Products > HVIL Series Connector > 1 POS High Voltage Interlock Connector Metal Receptacle 200A Busbar φ6.5 Through Hole A Key Box Mount

NI1-1-H080-1AYA-T03

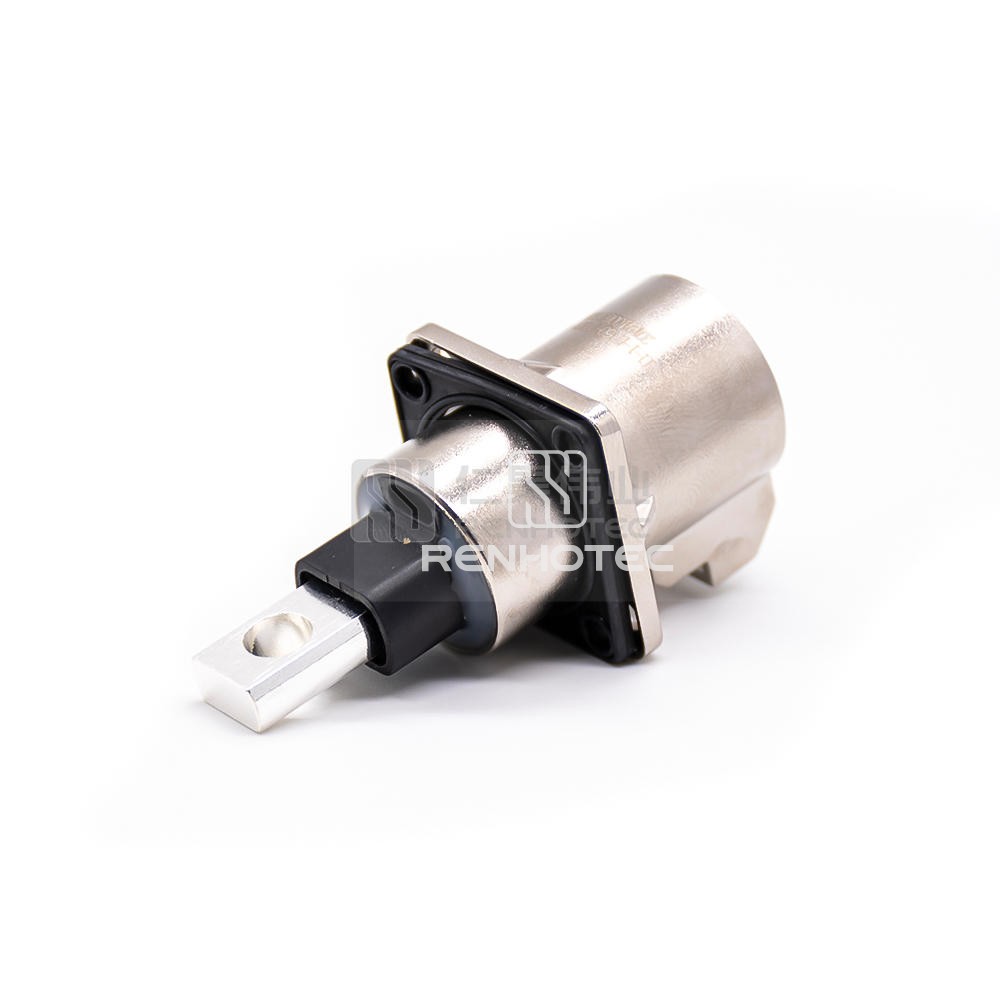

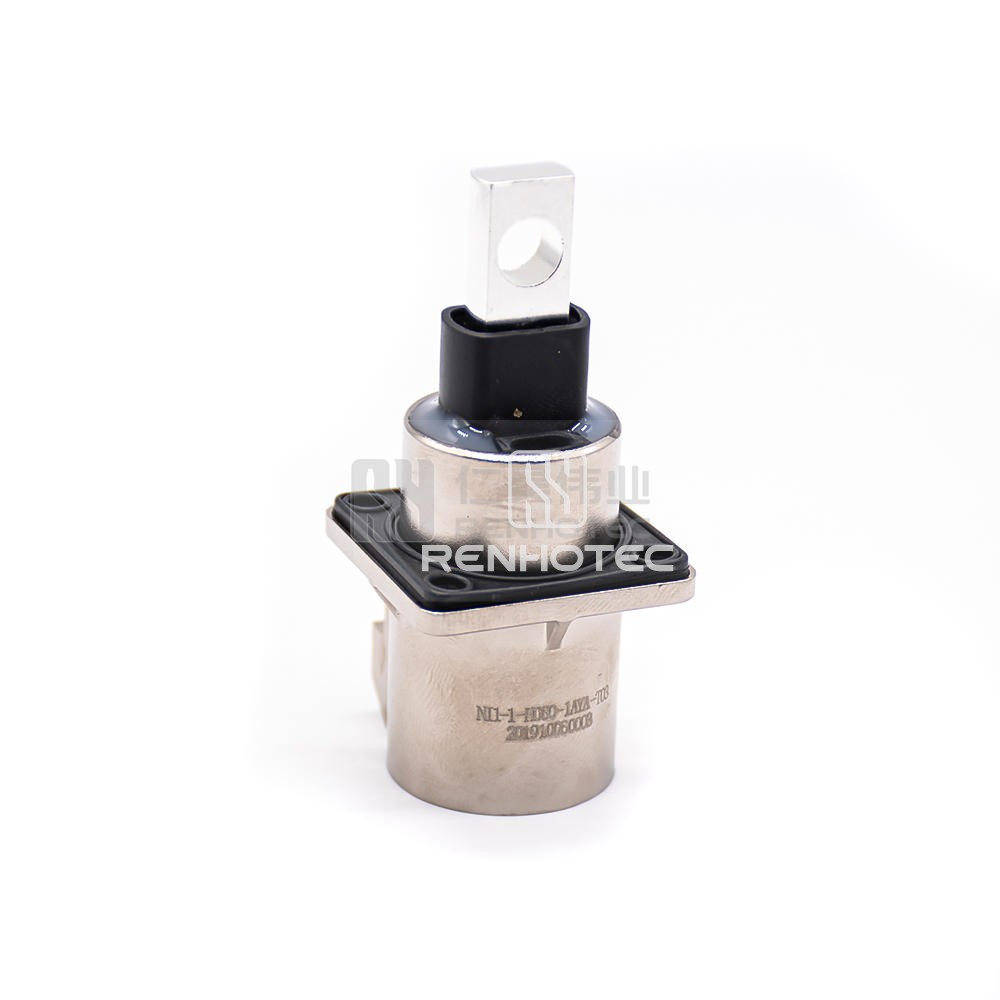

1 POS High Voltage Interlock Connector Metal Receptacle 200A Busbar φ6.5 Through Hole A Key Box Mount

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    Securely connect high voltage equipment with this 1 POS metal receptacle. Designed for 200A busbars with a φ6.5 through hole, featuring a key box mount for easy installation and safety. Ideal for applications requiring high voltage interlocking connectors.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions1
    Contact Size8mm
    Contact TerminationBusbar
    KeyA
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current200A
    ShieldingShielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFour Flange
    Wire Gauge or Rangeφ6.5Through Hole

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
