Products > HVIL Series Connector > 1 POS High Voltage Interlock Connector Metal Receptacle 350A Busbar φ10.5 Through Hole A Key Box Mount

NI1-1-H120-1AYA-T05

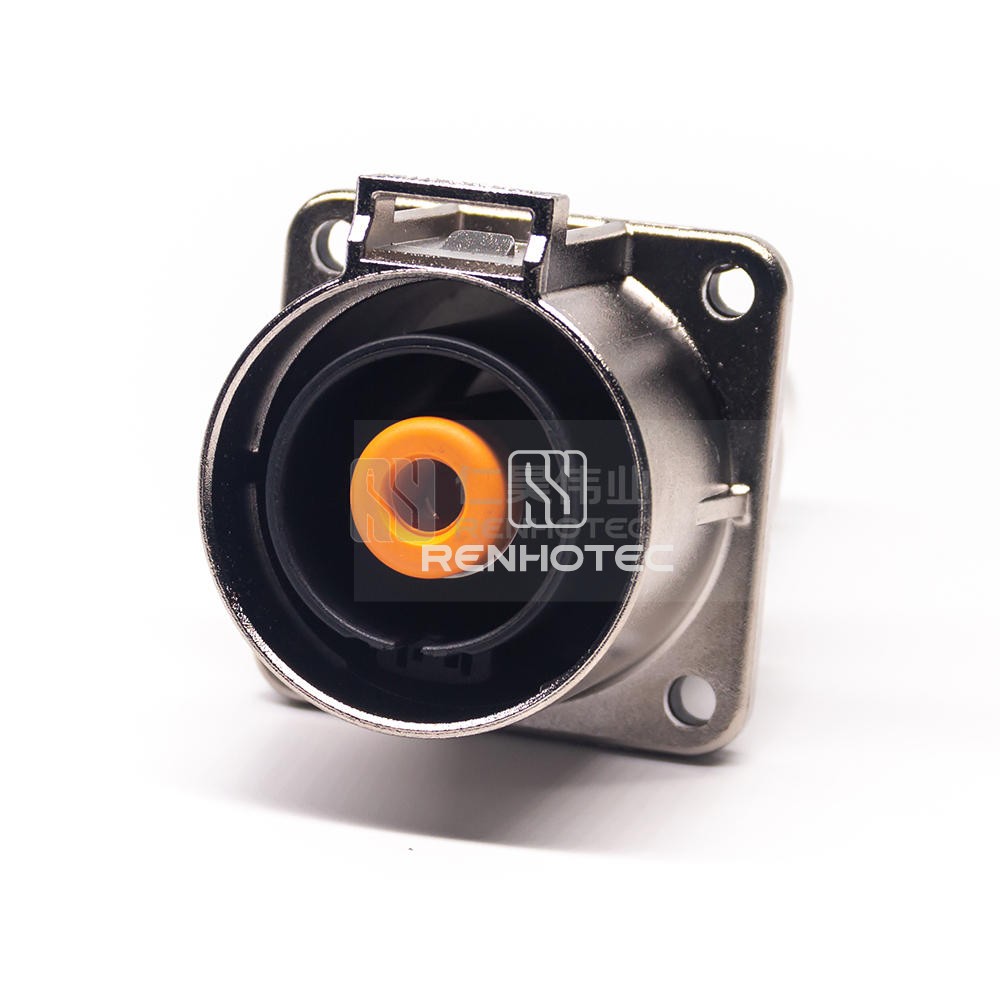

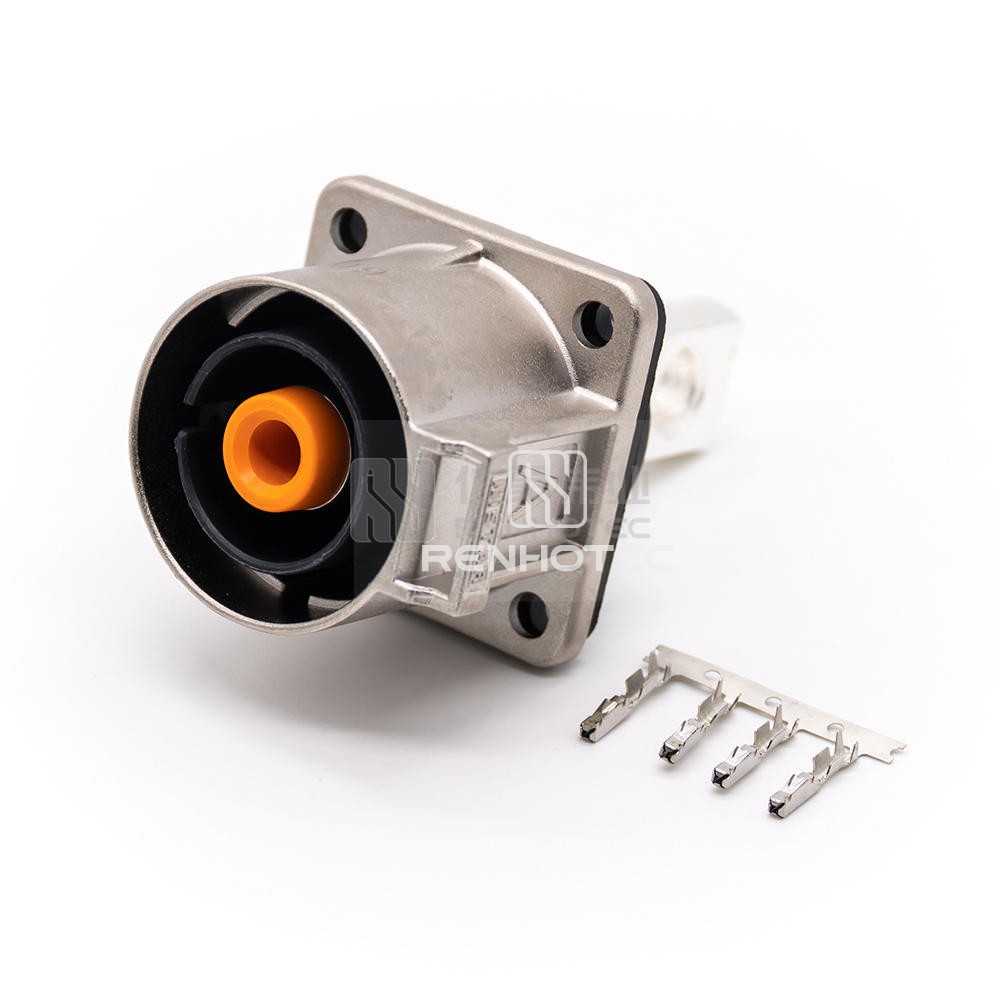

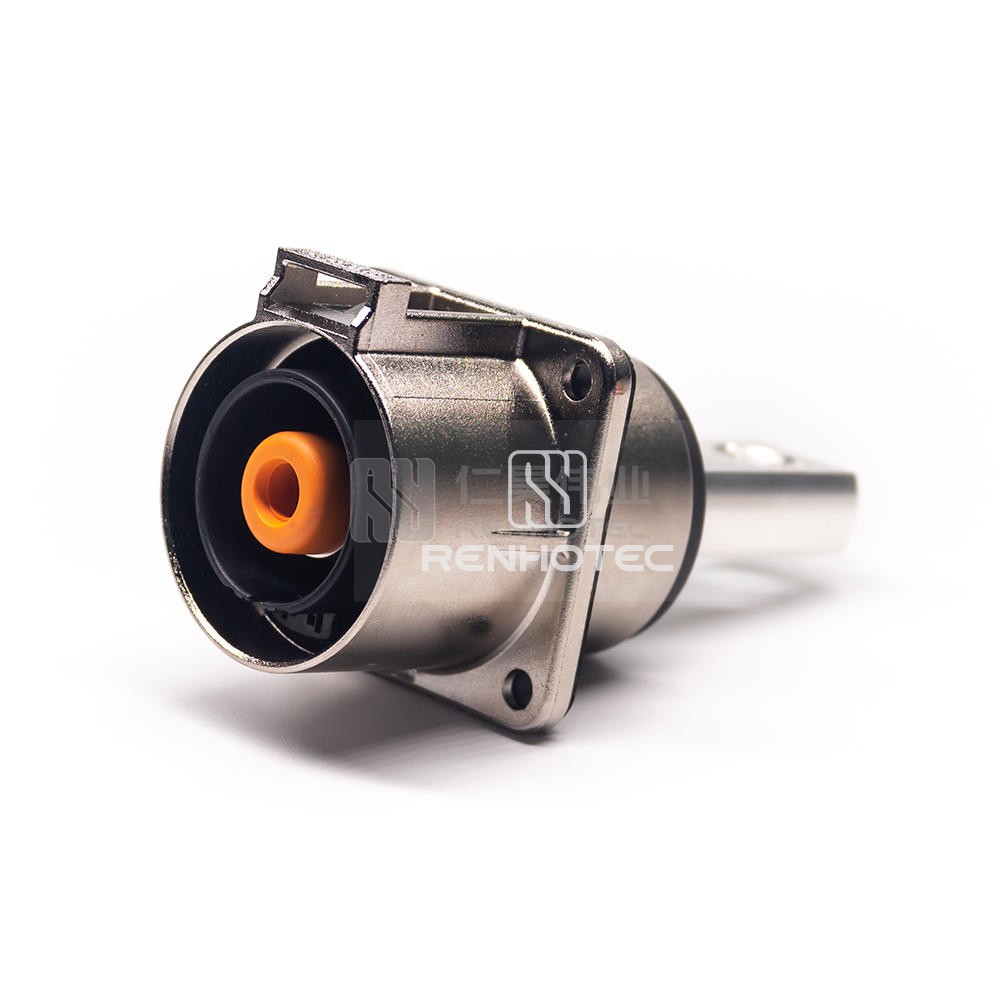

1 POS High Voltage Interlock Connector Metal Receptacle 350A Busbar φ10.5 Through Hole A Key Box Mount

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This high voltage interlock connector metal receptacle is designed for 350A busbar with a φ10.5 through hole and A key box mount. Ideal for ensuring electrical safety in high power applications.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions1
    Contact Size12mm
    Contact TerminationBusbar
    KeyA
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current350A
    ShieldingShielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFour Flange
    Wire Gauge or Rangeφ10.5Through Hole

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
