NI1-1-H140-1YYB-T09

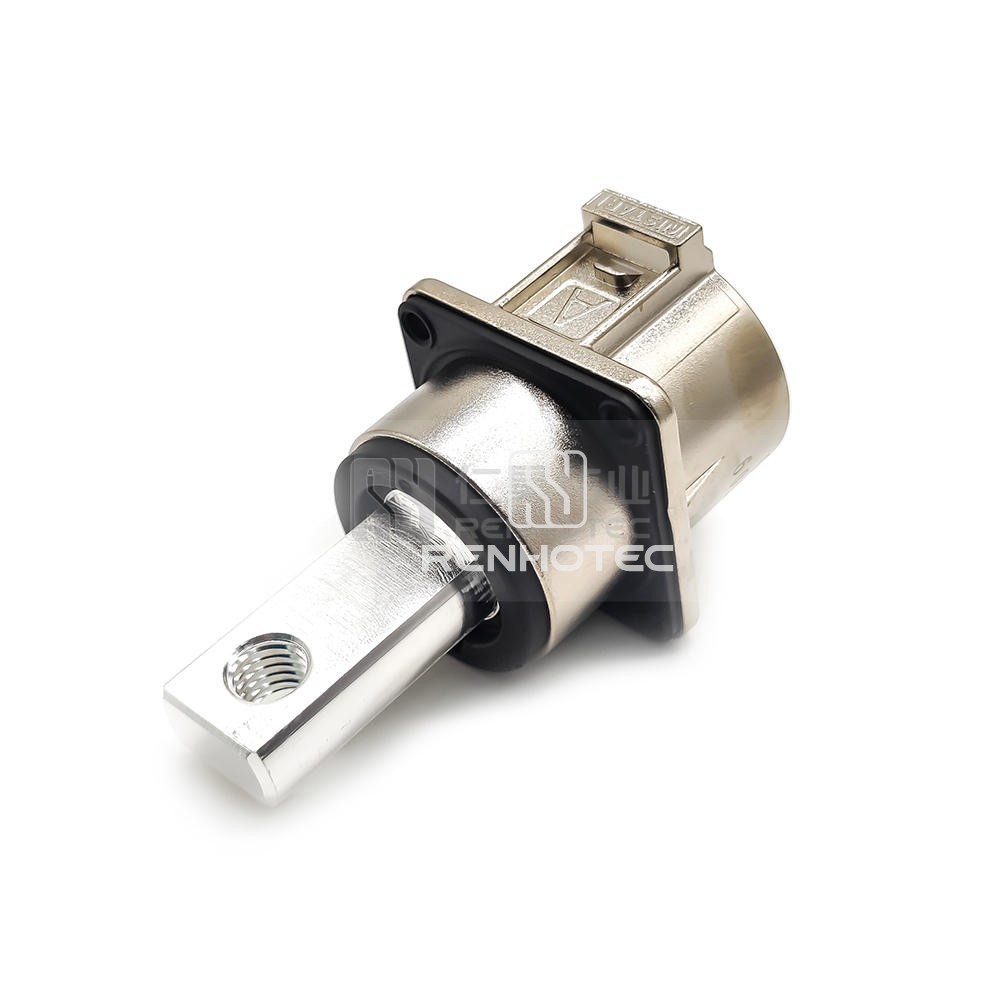

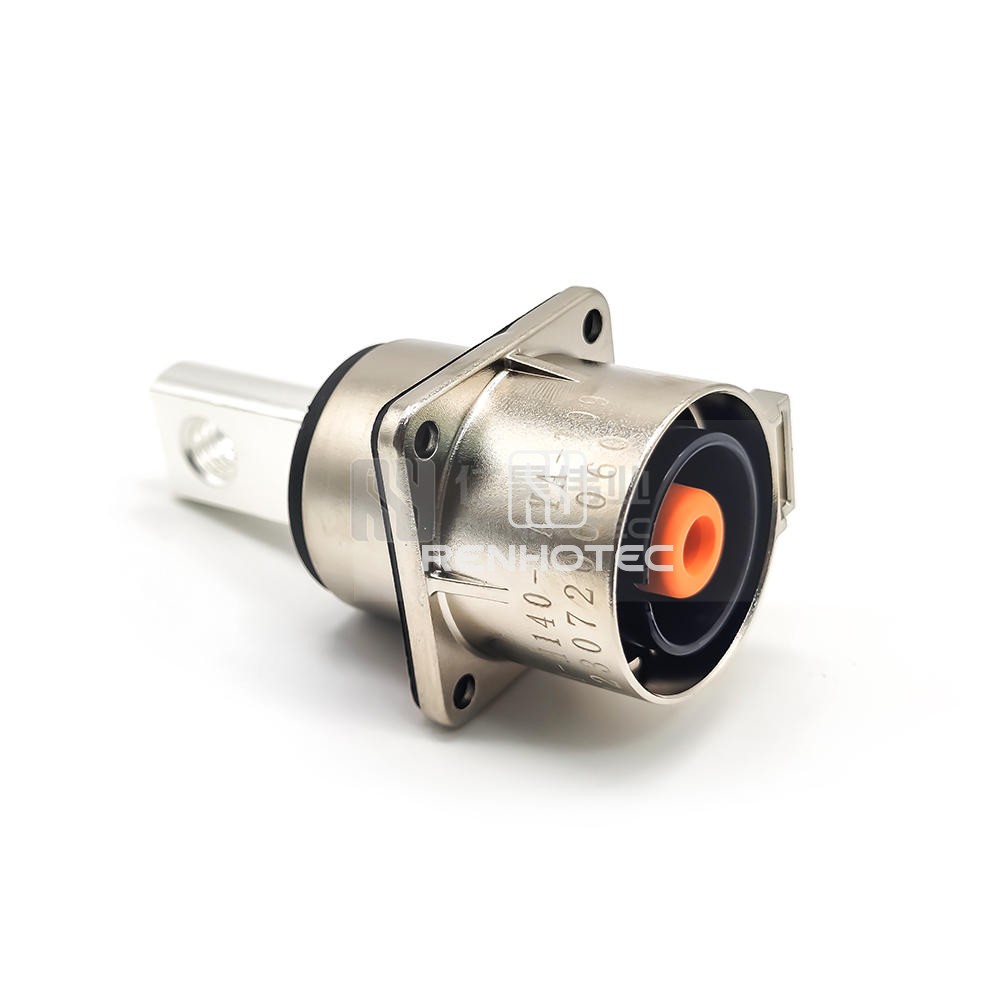

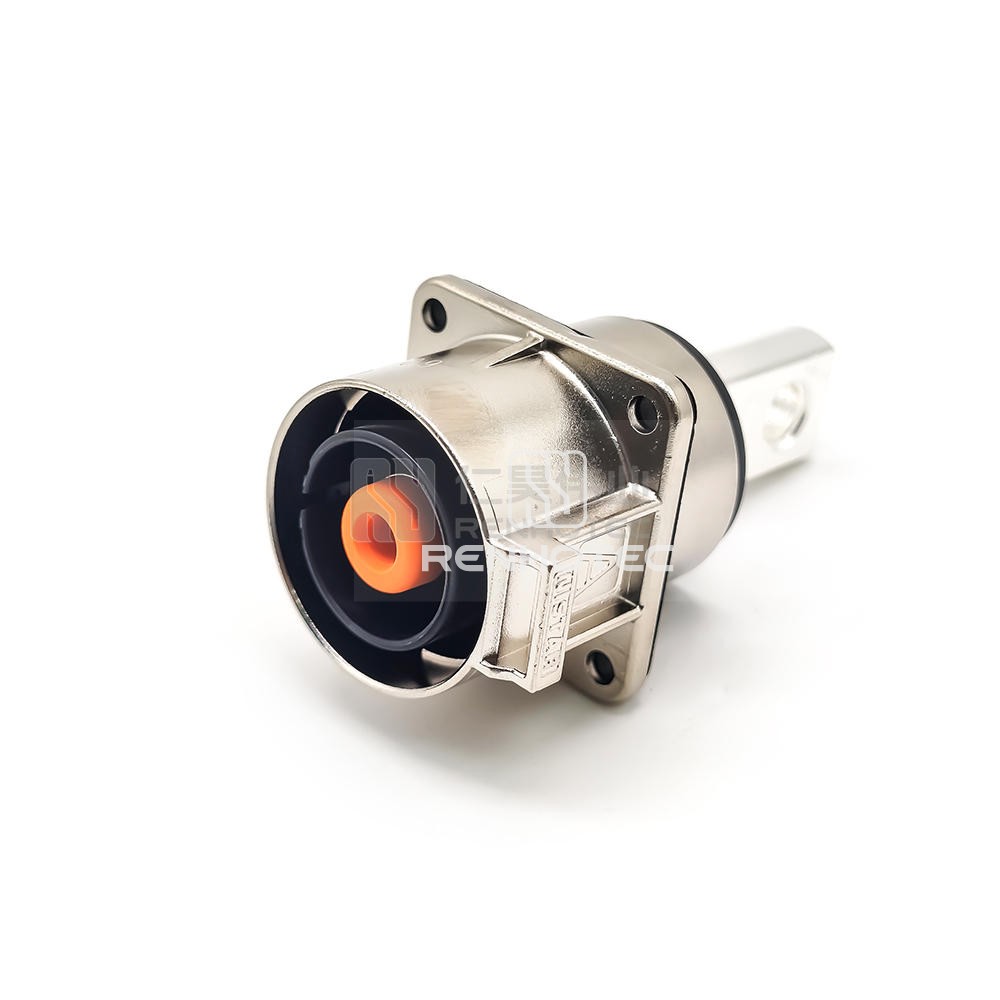

1 POS High Voltage Interlock Connector Receptacle 500A M10 Busbar Lug Y Key Box Mount

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This high-quality 1 POS high voltage interlock connector receptacle with a 500A capacity is designed for M10 busbar lug connections. Its Y key box mount ensures reliable and secure connections, making it ideal for various high voltage applications.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions1
    Contact Size14mm
    Contact TerminationBusbar
    KeyA
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current500A
    ShieldingShielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFour Flange
    Wire Gauge or RangeM10 Threaded Hole

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
