Products > Energy Storage Connector > 12.0mm Power Entry Connector 300A Receptacle Busbar Teminal(M10 screw) Black W Key

FSP240112CW-UM10B1RH

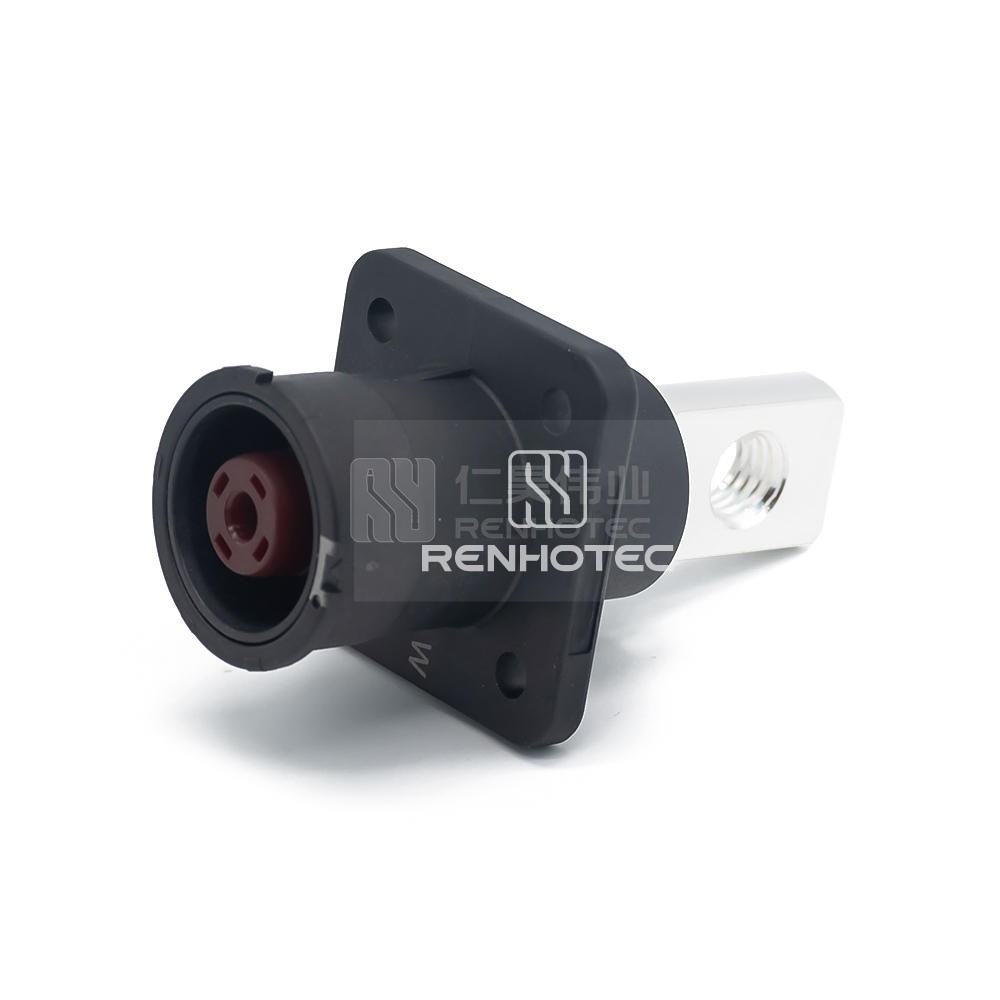

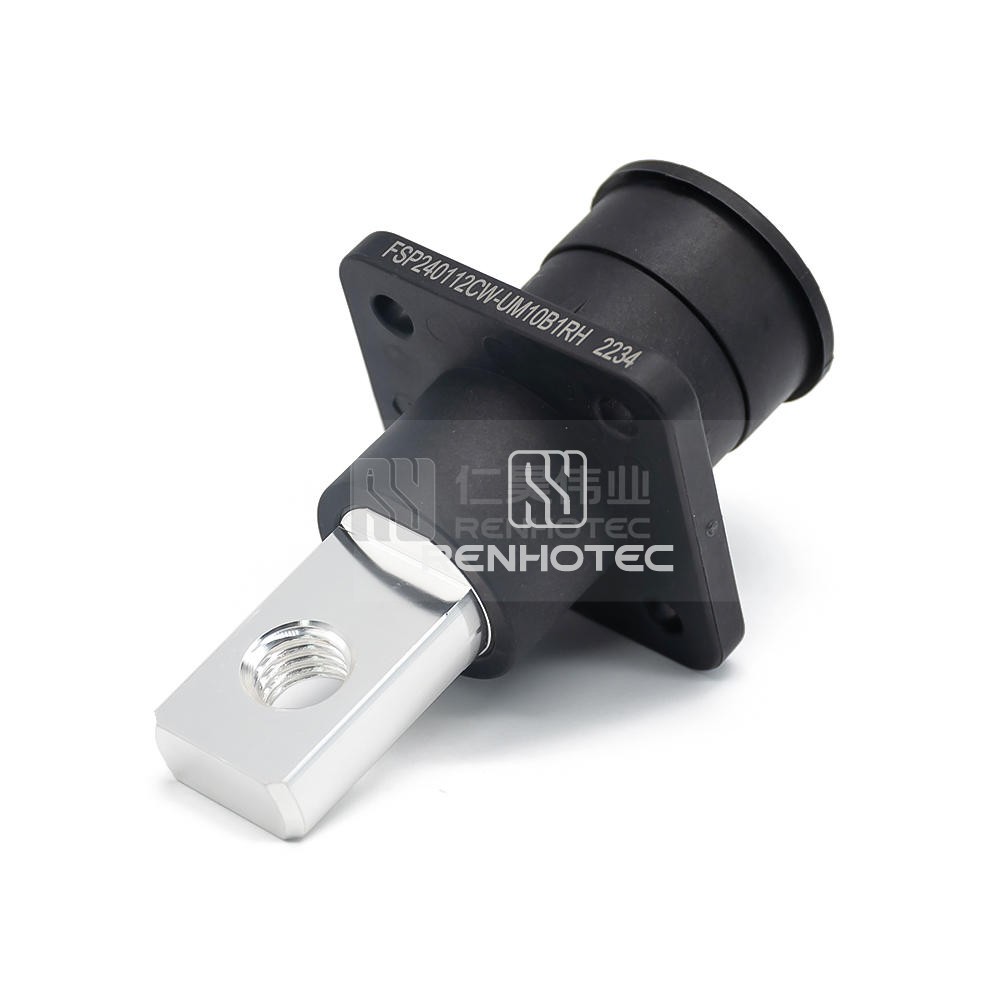

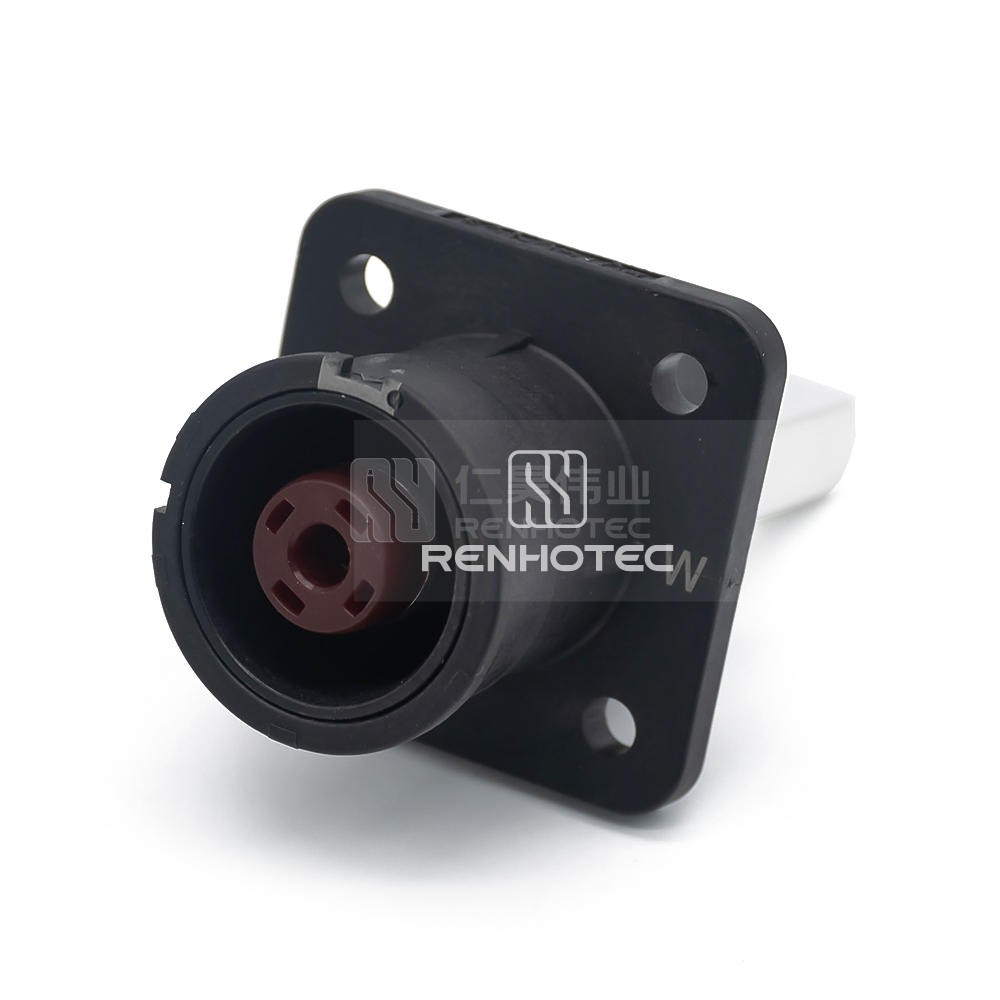

12.0mm Power Entry Connector 300A Receptacle Busbar Teminal(M10 screw) Black W Key

This 12.0mm Power Entry Connector with a 300A receptacle is designed with an M10 screw connection in a black finish, complete with a unique key feature. It offers a reliable and efficient power entry solution for various applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Material
    4. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions1
    Contact TerminationBusbar
    Mounting TypePanel Mount
    KeyW
    ColorBlack

    Electrical

    Rated Voltage1500V
    Rated Current300A
    ShieldingUnshielded

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    RENHOTEC Battery Storage Connector Catalog [EN] Download
    RENHOTEC EV Product Catalog [EN] Download
