FSP240112CZ-UM10A1RH

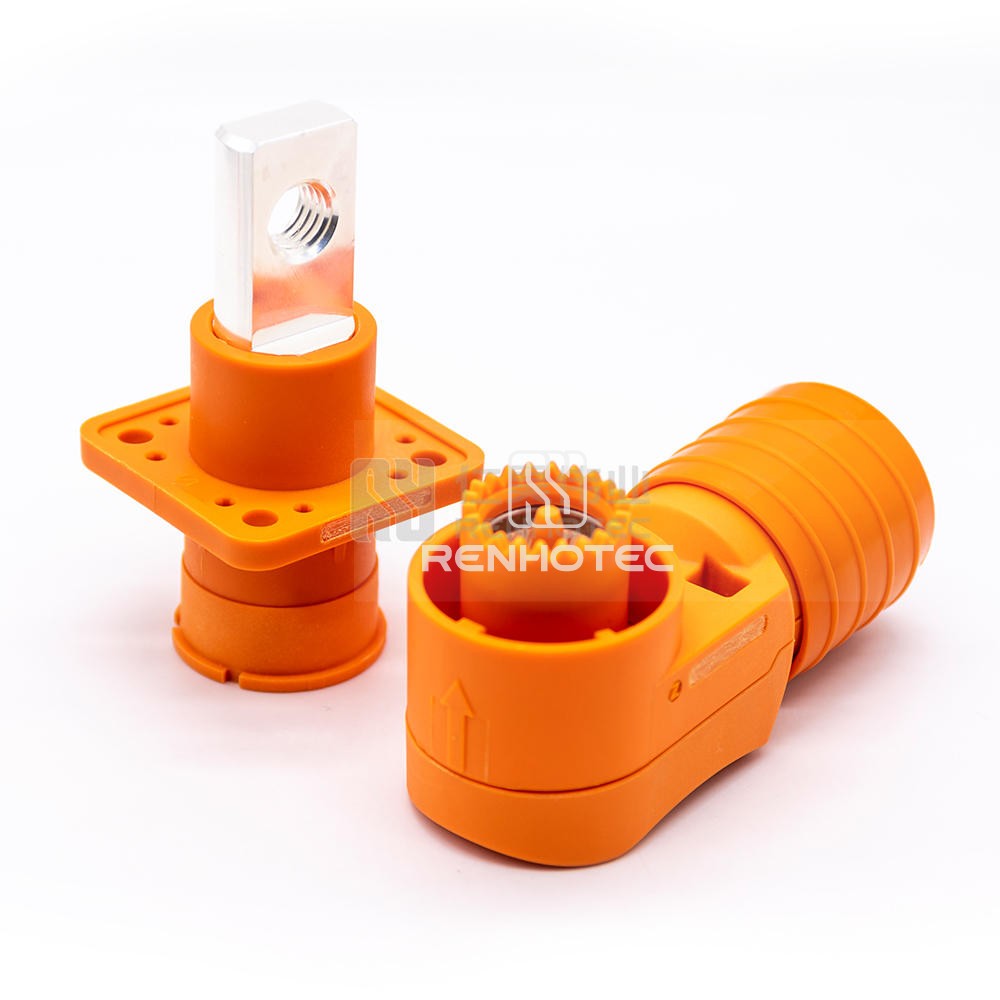

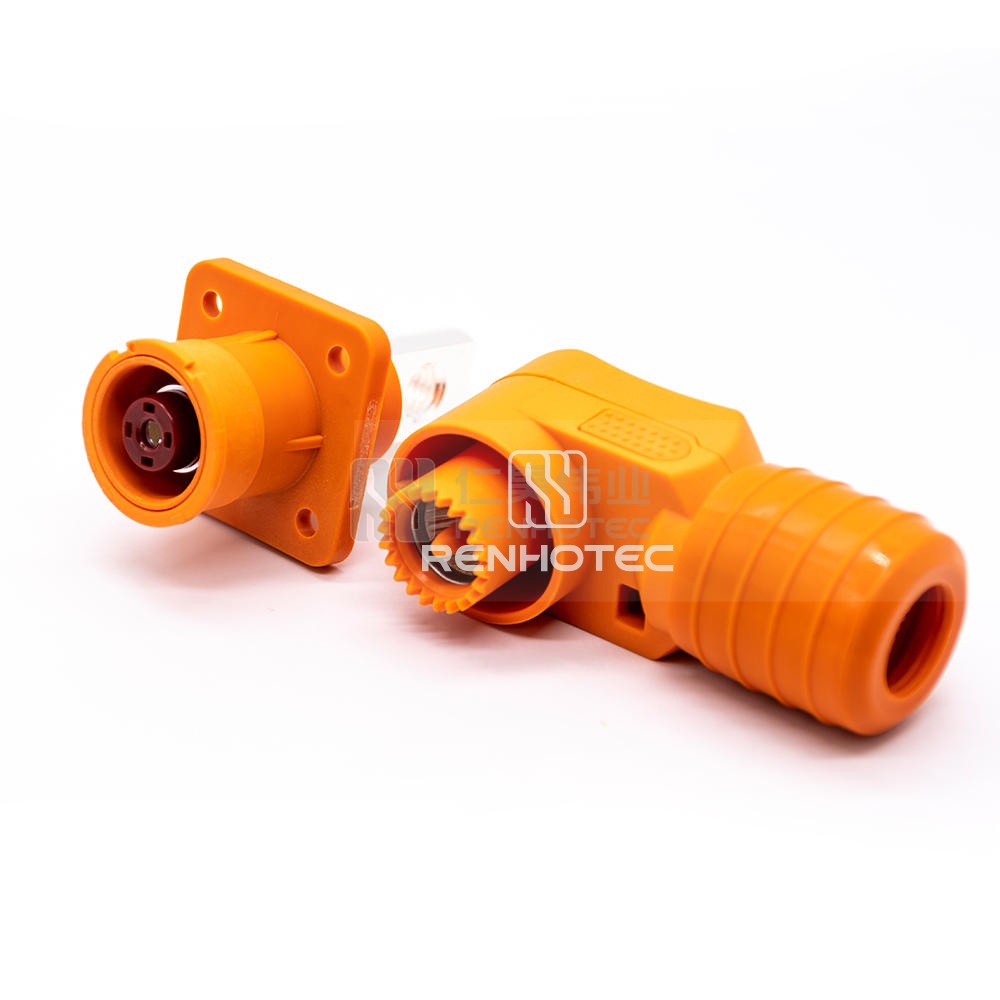

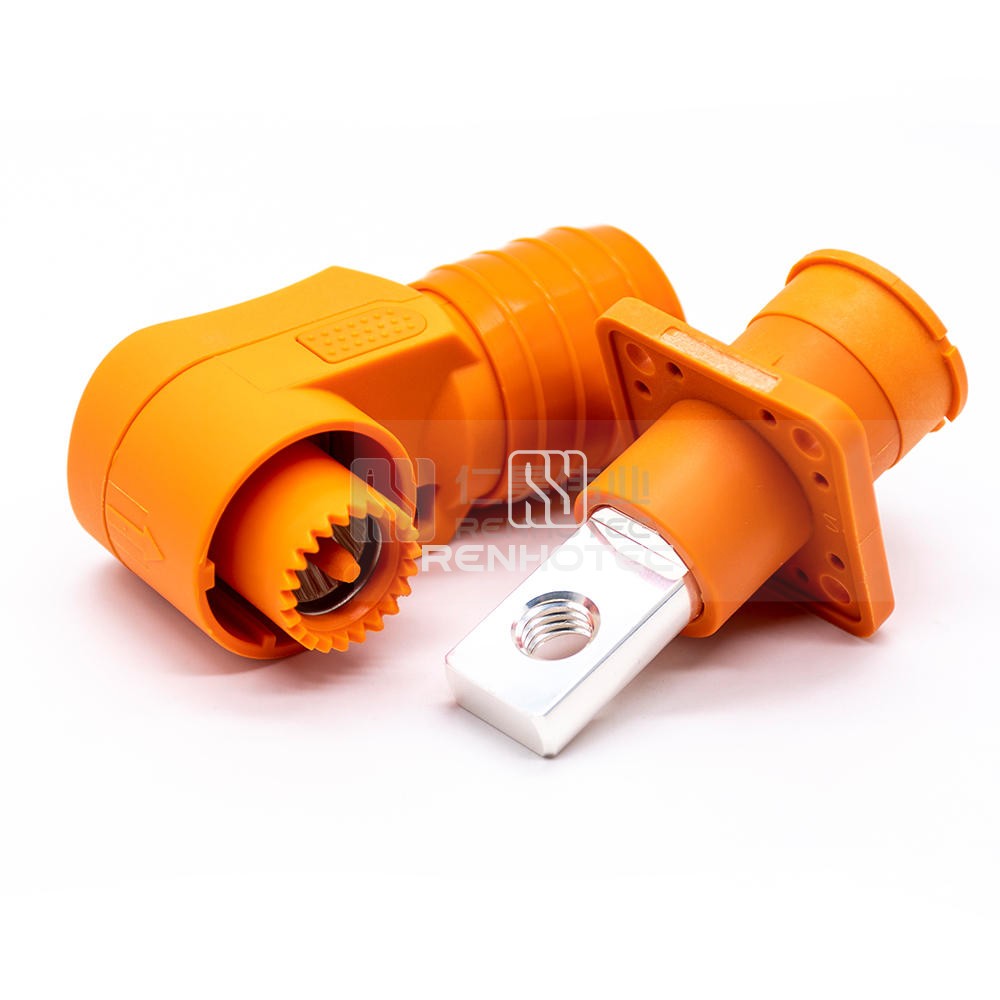

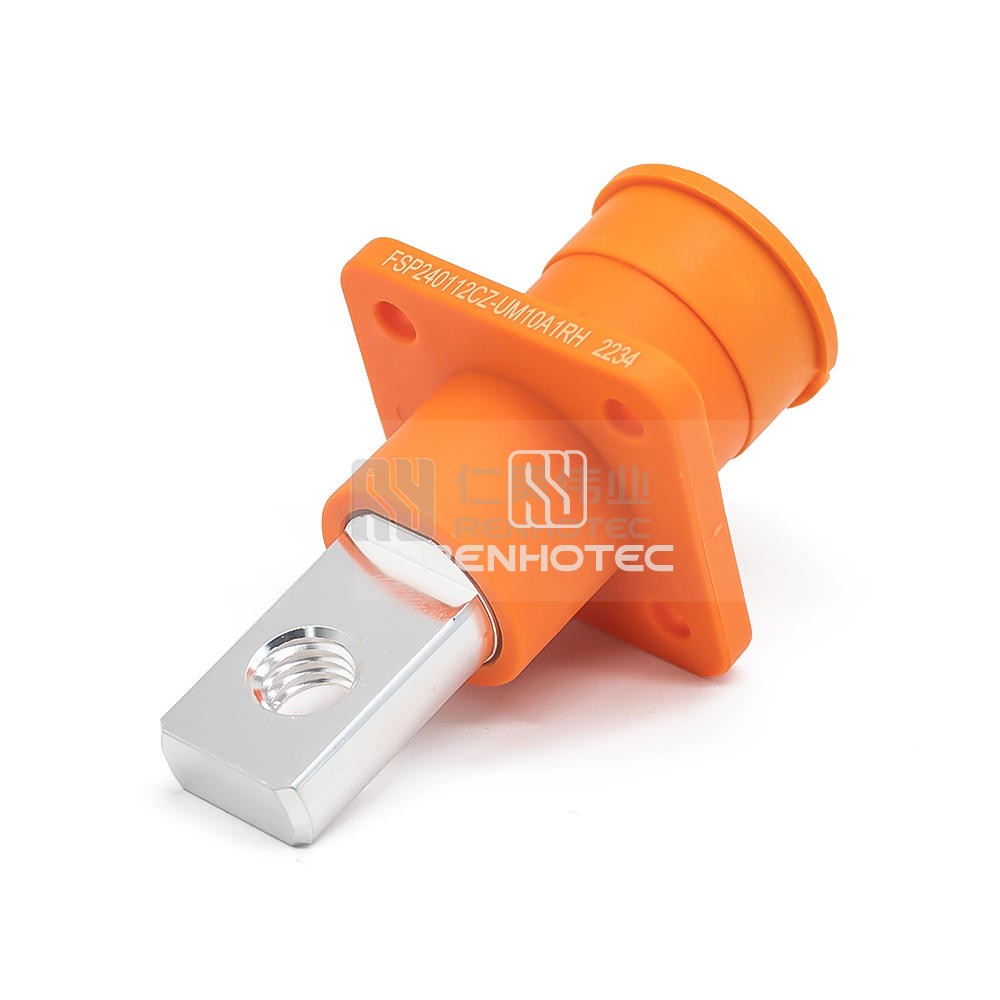

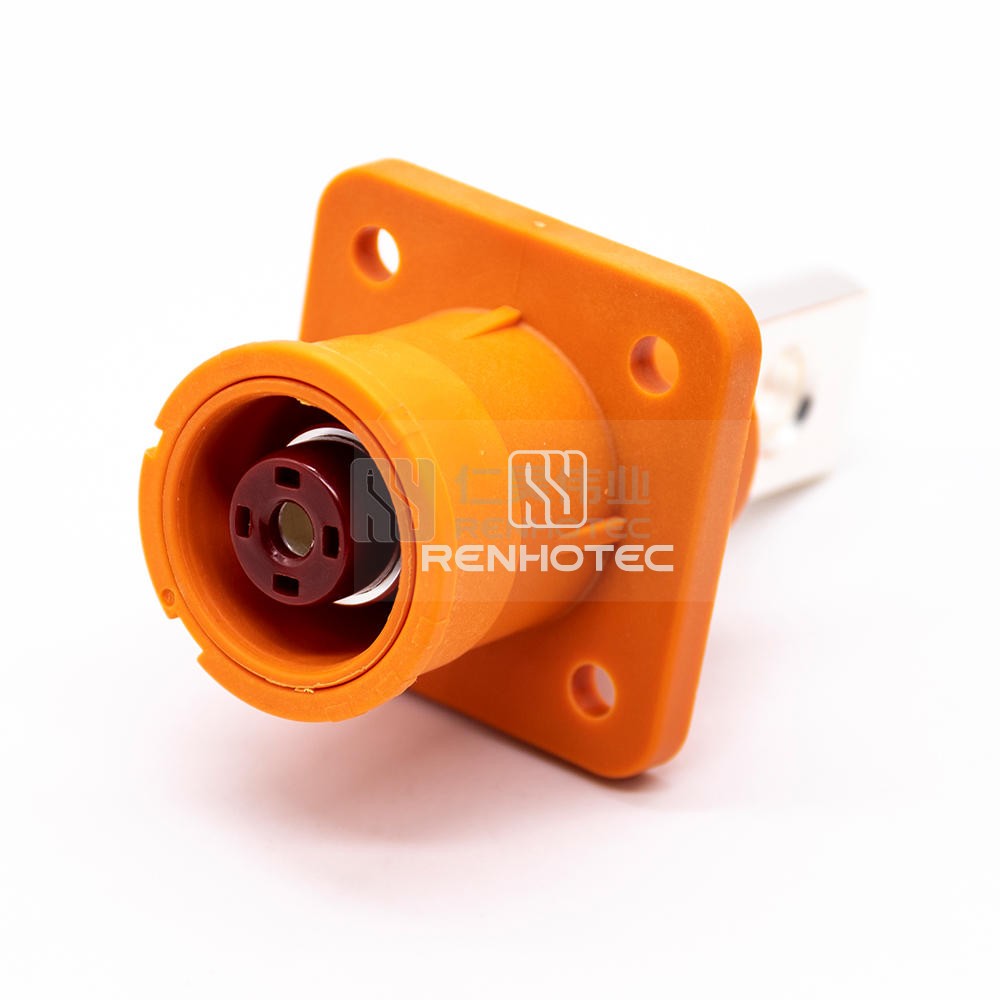

12.0mm Power Entry Connector 300A Receptacle Busbar Teminal(M10 screw) Orange Z Key

This 12.0mm Power Entry Connector features a 300A rating, Receptacle Busbar Terminal with an M10 screw, and an Orange Z Key. Designed for durability and efficiency in power connections, this connector ensures reliable performance in demanding applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Material
    4. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions1
    Contact TerminationBusbar
    Mounting TypePanel Mount
    KeyZ
    ColorOrange

    Electrical

    Rated Voltage1500V
    Rated Current300A
    ShieldingUnshielded

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
