Products > Energy Storage Connector > 12.0mm Power Entry Connector 350A Cable Plug Right Angled 95mm2 Unshielded Cable Red

FCC1295-F1RR

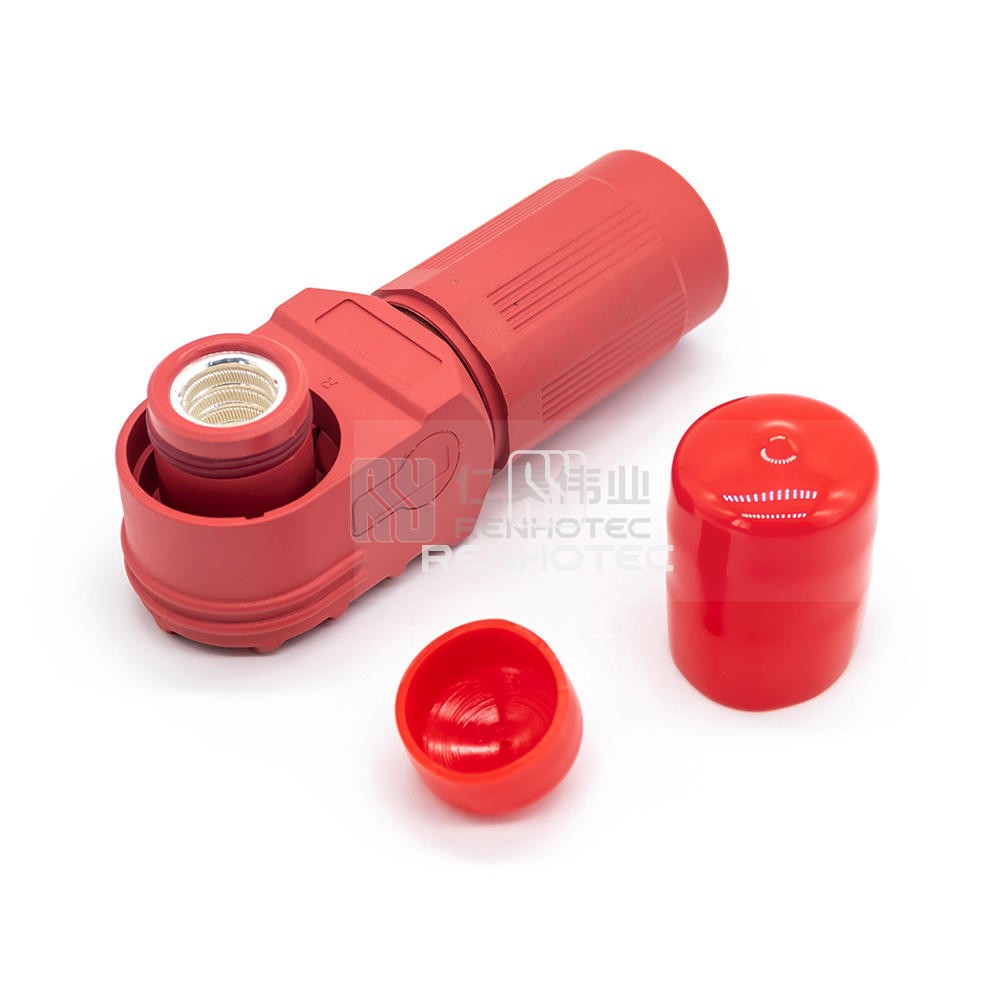

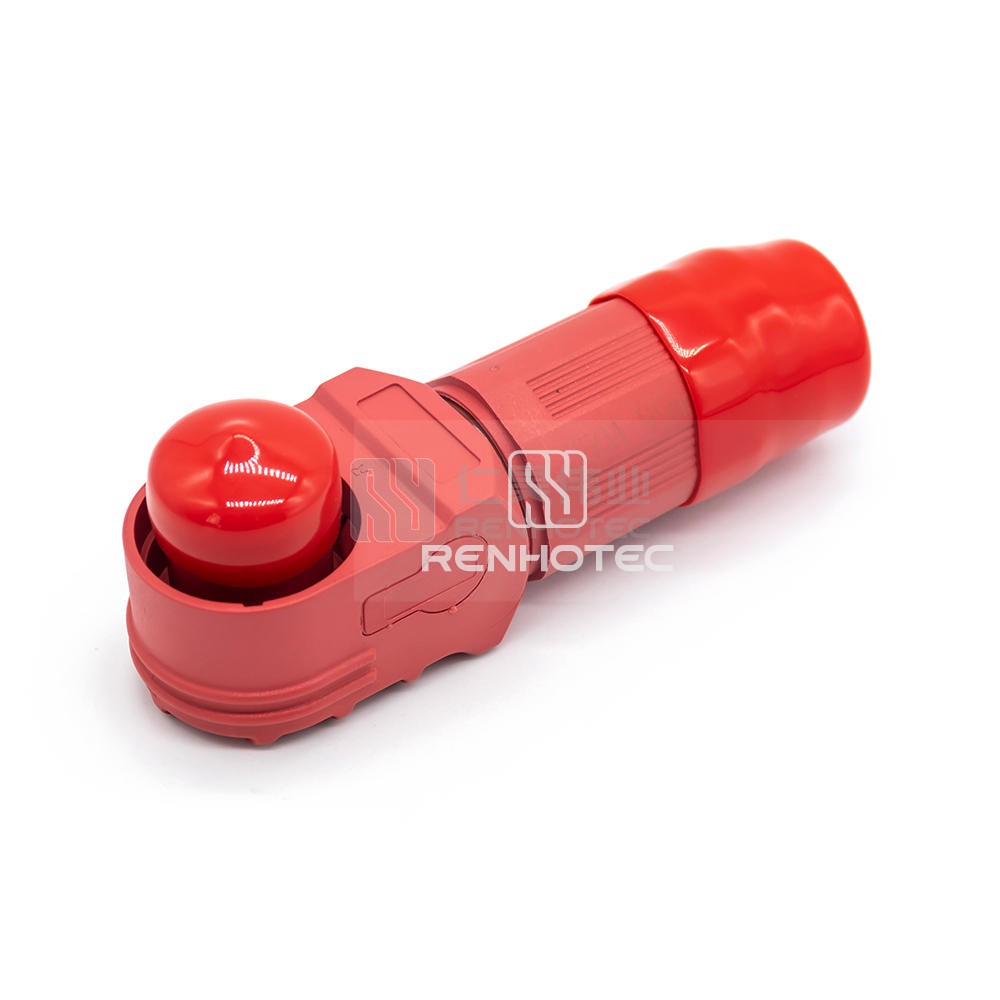

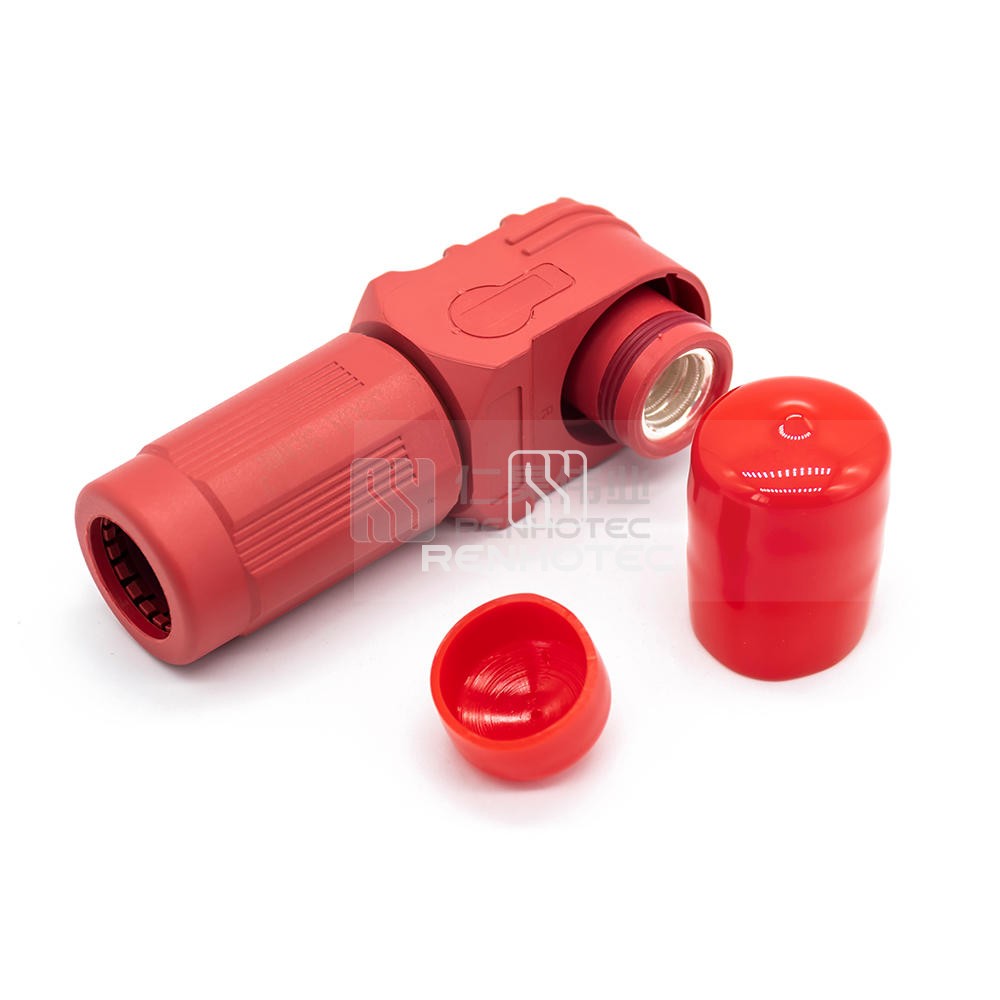

12.0mm Power Entry Connector 350A Cable Plug Right Angled 95mm2 Unshielded Cable Red

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality 12.0mm power entry connector with 350A capacity designed for 95mm2 unshielded cables in a convenient right-angled form, ensuring secure and efficient power connectivity. Available in a vibrant red color.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact TerminationCrimp
    ColorRed

    Electrical

    Rated Voltage1000V
    Rated Current350A
    ShieldingUnshielded

    Mechanical

    Mounting TypeCable Type

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
