Products > Energy Storage Connector > 12.0mm Power Entry Connector 350A Receptacle Inner Screw(M10) Red

FCC12SI-M1RL
12.0mm Power Entry Connector 350A Receptacle Inner Screw(M10) Red

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

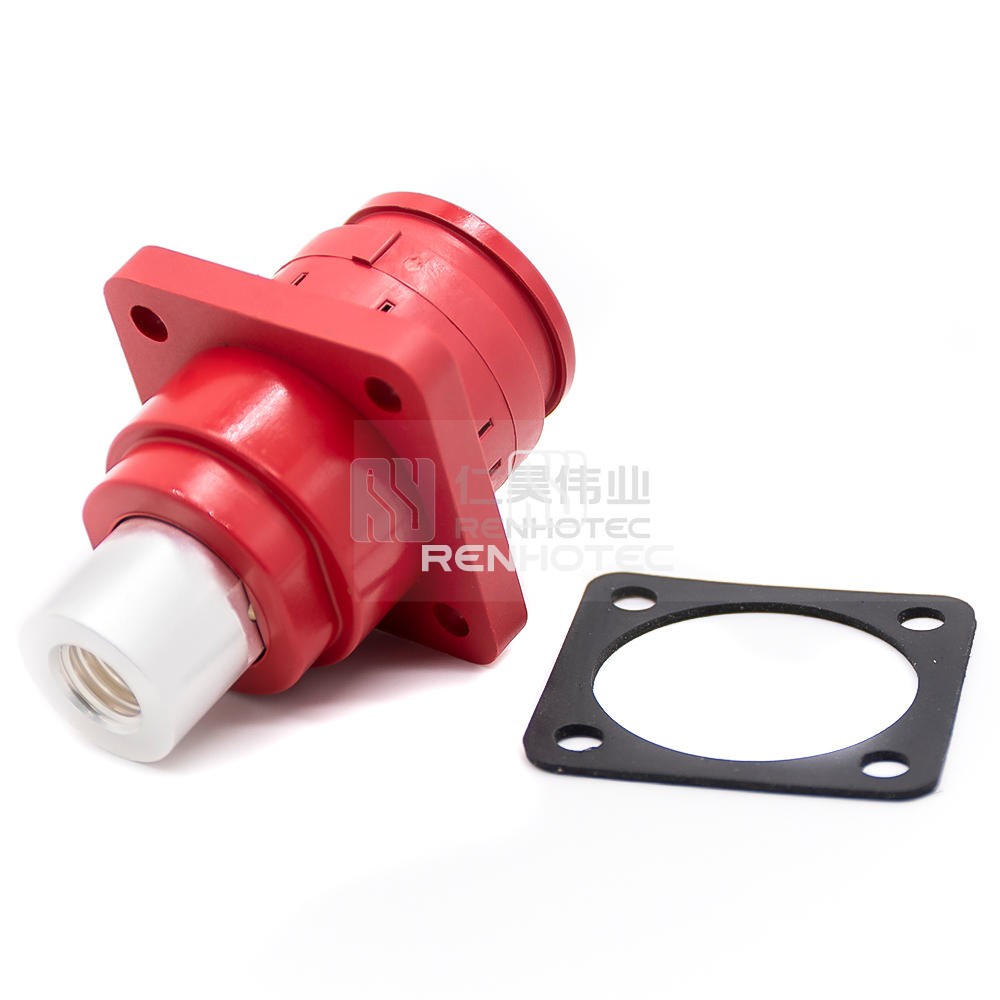

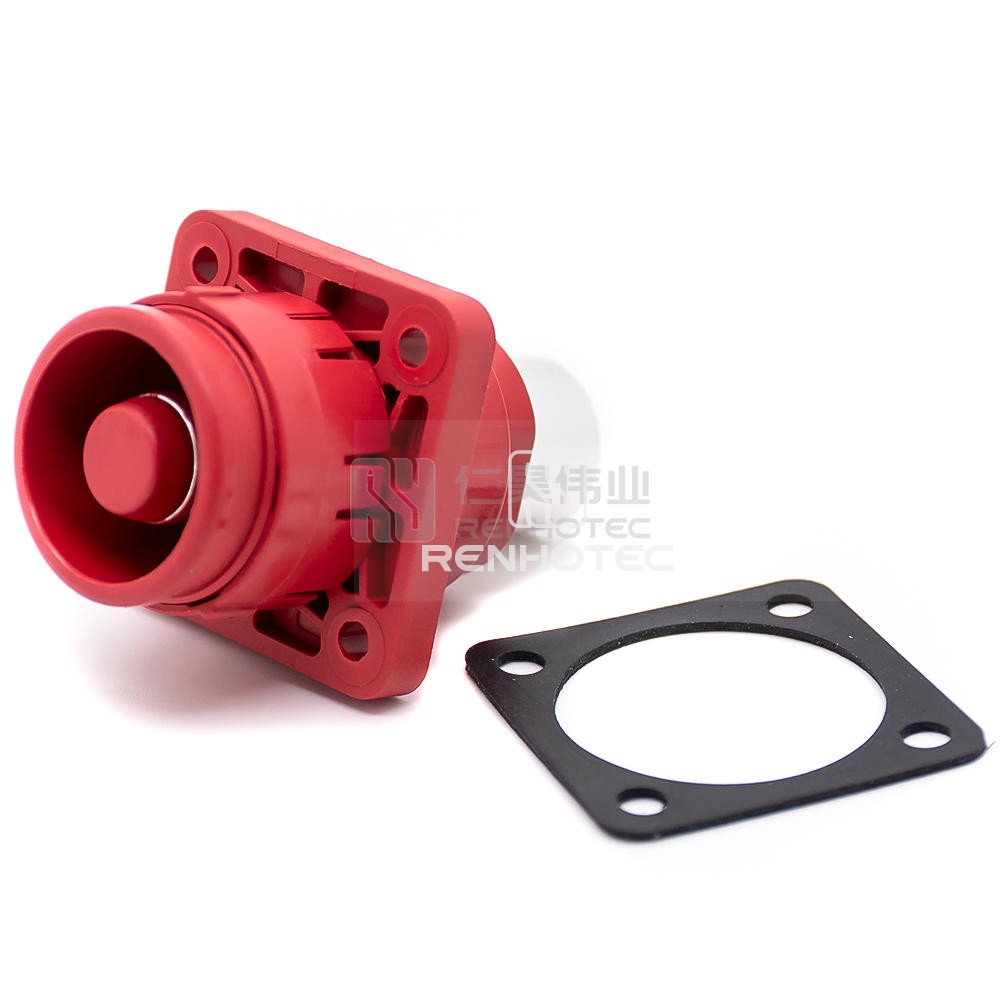

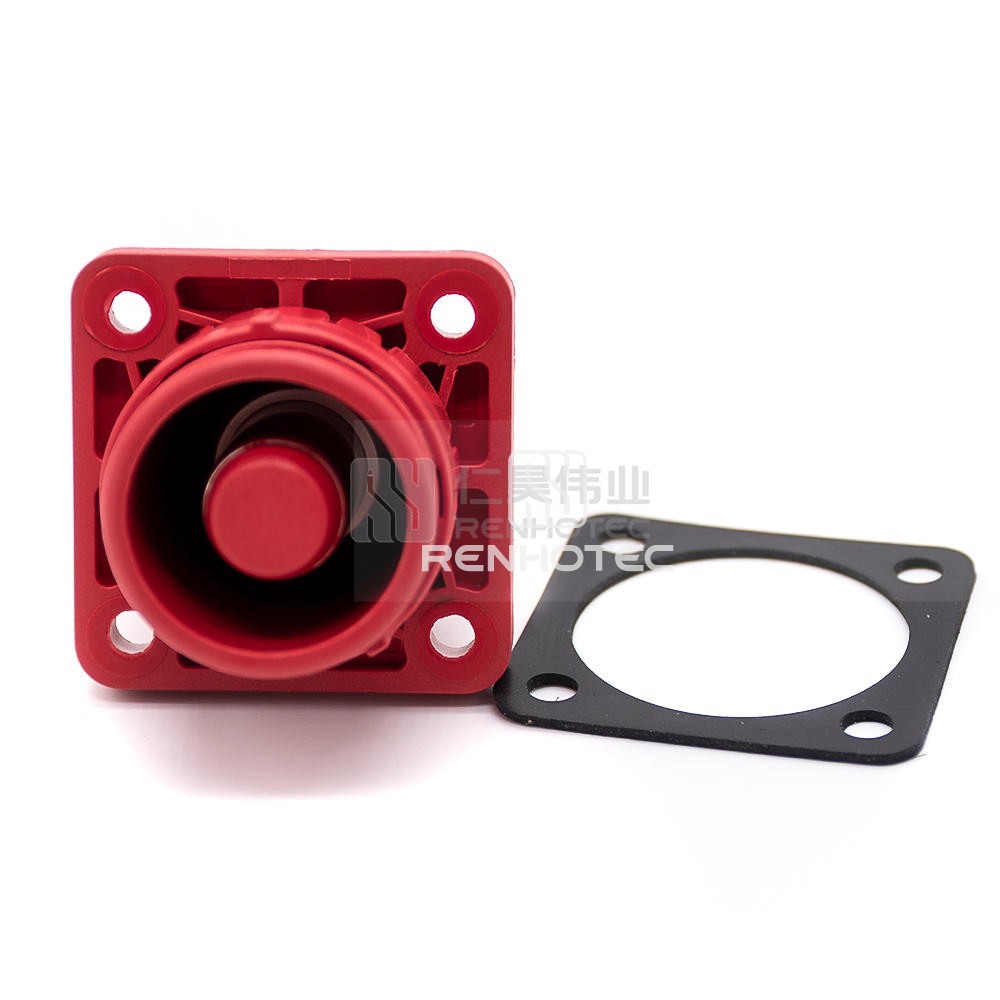

    This 12.0mm power entry connector features a 350A receptacle with an inner screw (M10) in a vibrant red color. Ideal for high-power applications, offering secure and reliable connections while adding a pop of color to your project.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions1
    Contact TerminationInner Screw
    ColorRed

    Electrical

    Rated Voltage1000V
    Rated Current350A
    ShieldingUnshielded

    Mechanical

    Mounting TypePanel Mount

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
