Products > Energy Storage Connector > 14.0mm Power Entry Connector 480A Receptacle Busbar Teminal(M10 screw) Orange Z Key

FSP240114CZ-UM10A1RH

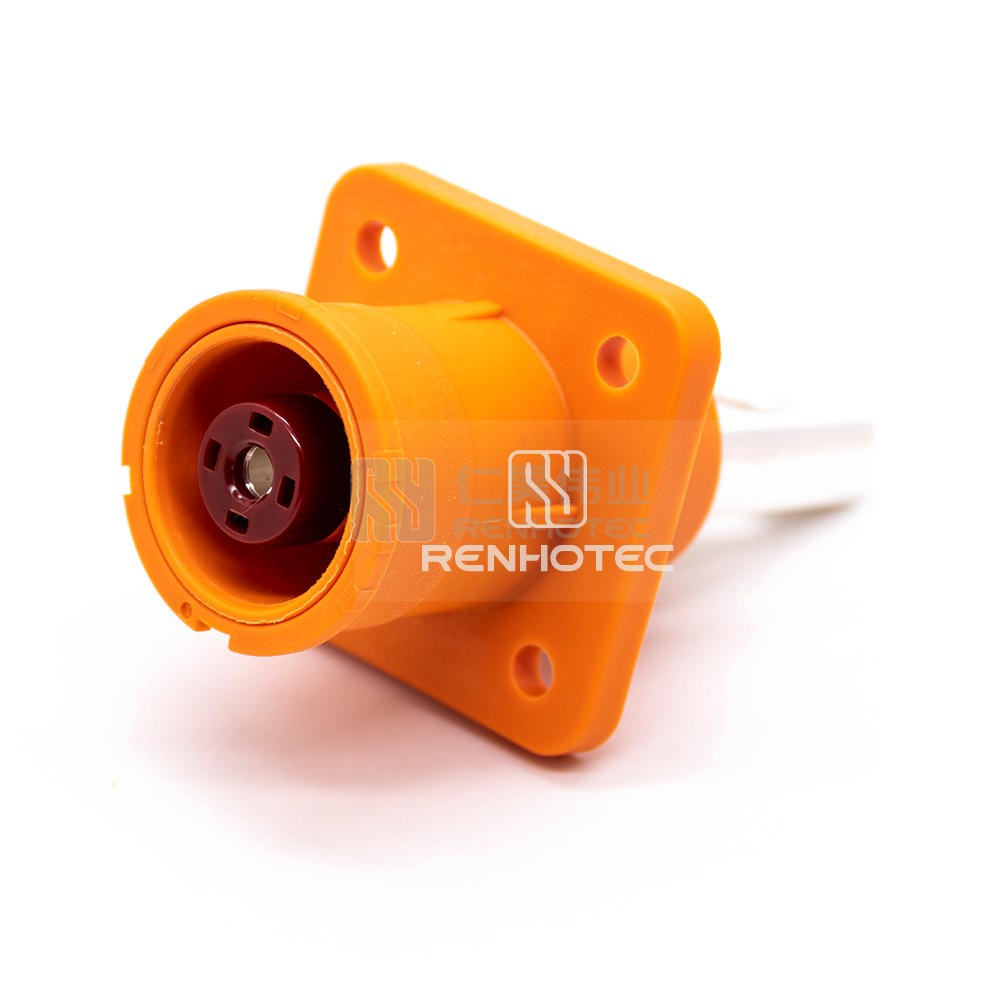

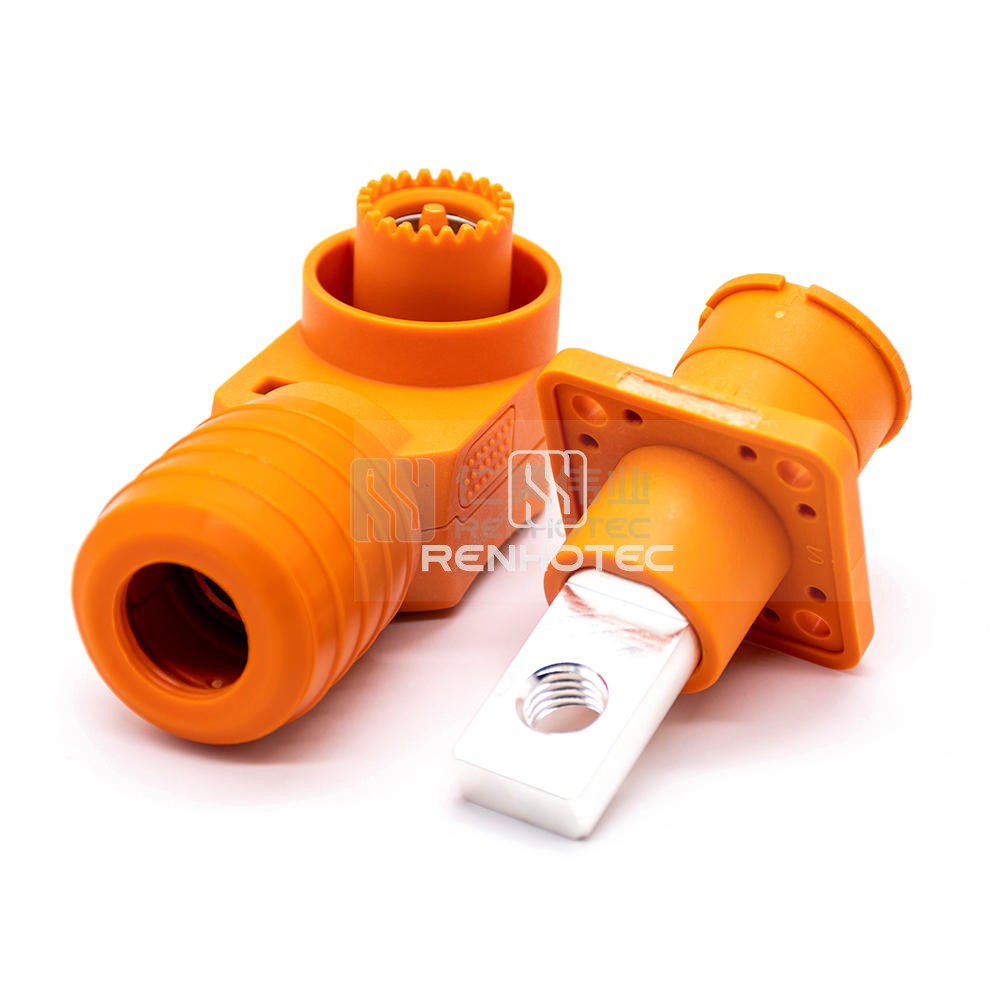

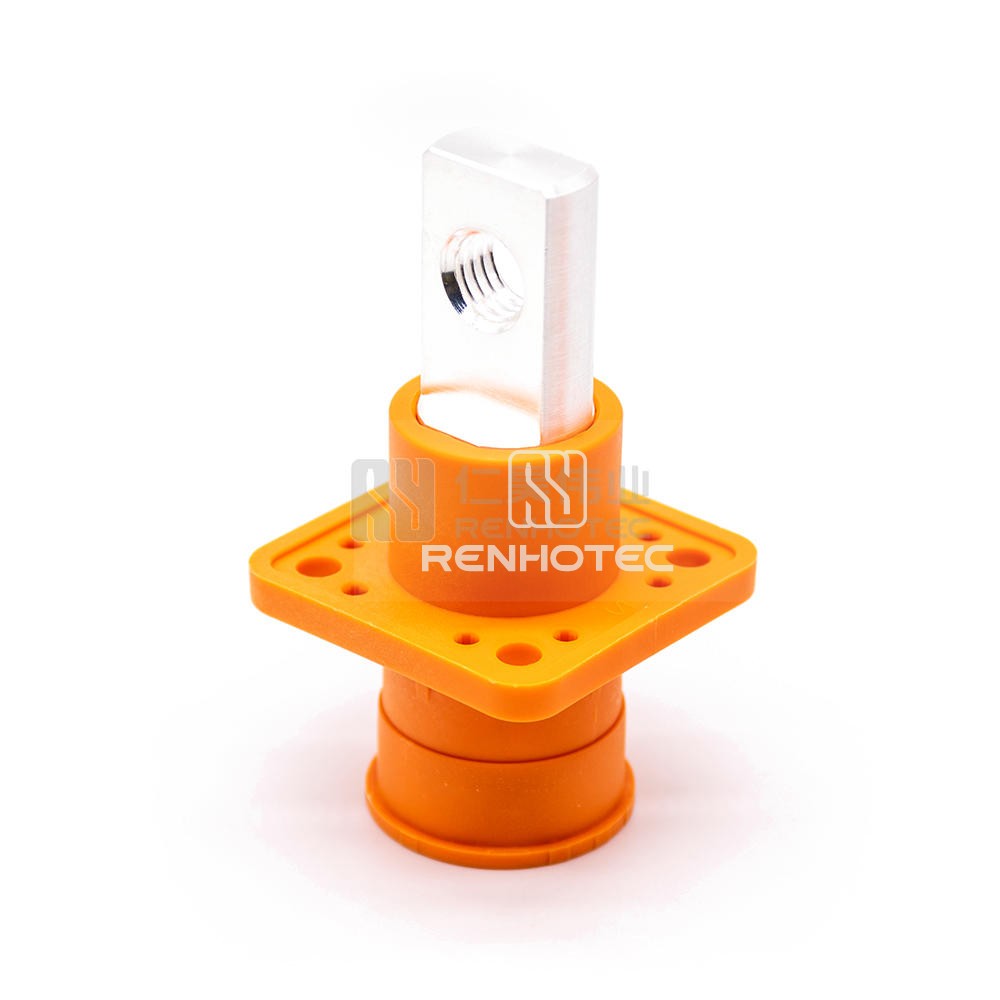

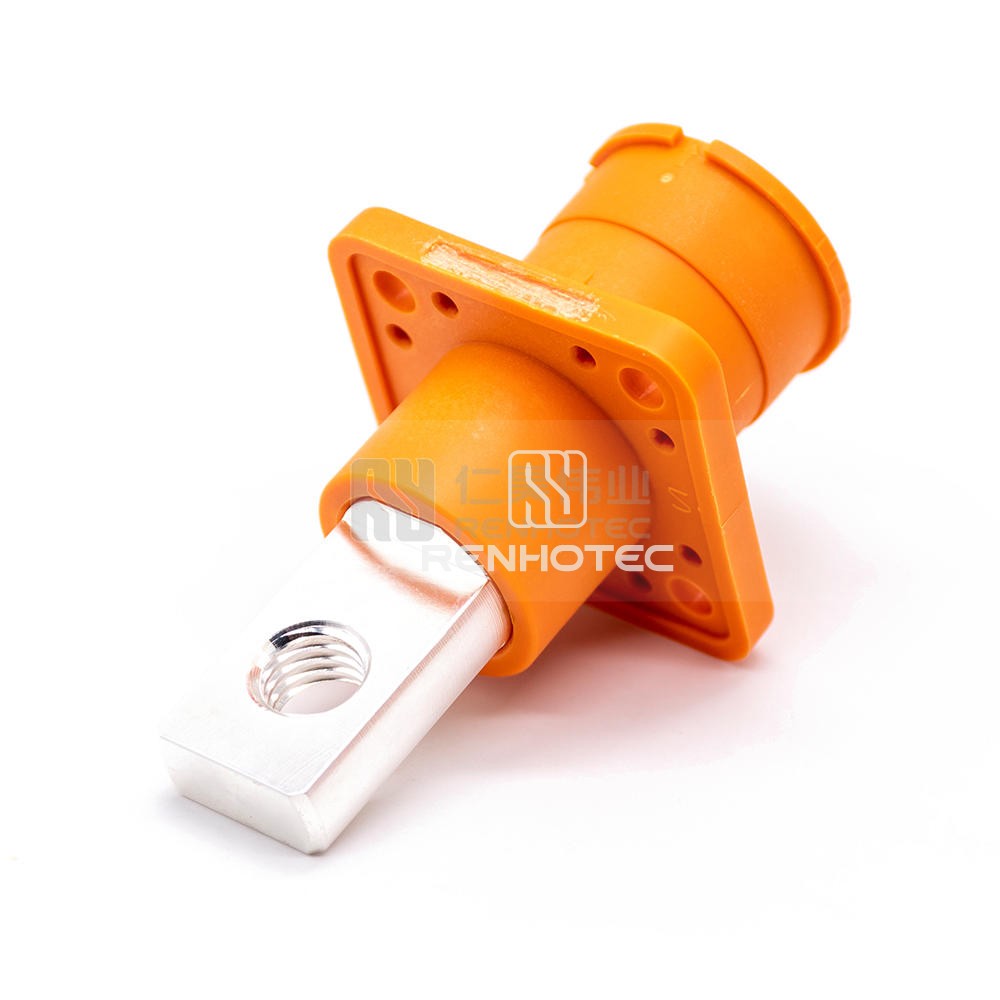

14.0mm Power Entry Connector 480A Receptacle Busbar Teminal(M10 screw) Orange Z Key

This Power Entry Connector features a 14.0mm size, a high current rating of 480A, a receptacle Busbar Terminal with an M10 screw, and an Orange Z Key design. Upgrade your power connections with this high-quality connector.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Material
    4. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions1
    Contact Size14mm
    Contact TerminationBusbar
    Mounting TypePanel Mount
    Mounting FeatureFlange
    KeyZ
    ColorOrange

    Electrical

    Rated Voltage1500V
    Rated Current480A
    ShieldingUnshielded

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
