Products > HVIL Series Connector > 2 POS High 16A 2.5mm2 Shielded Cable A Key Straight

ST549000-A-2.5

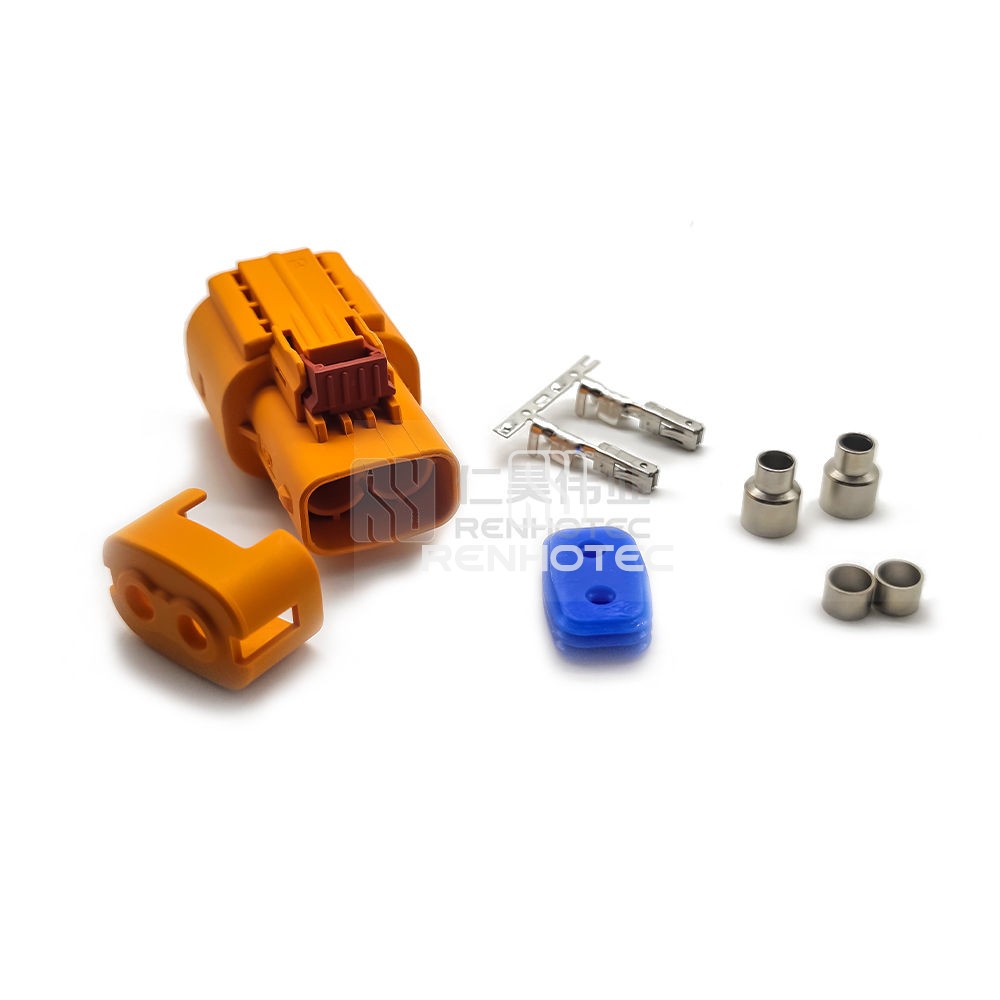

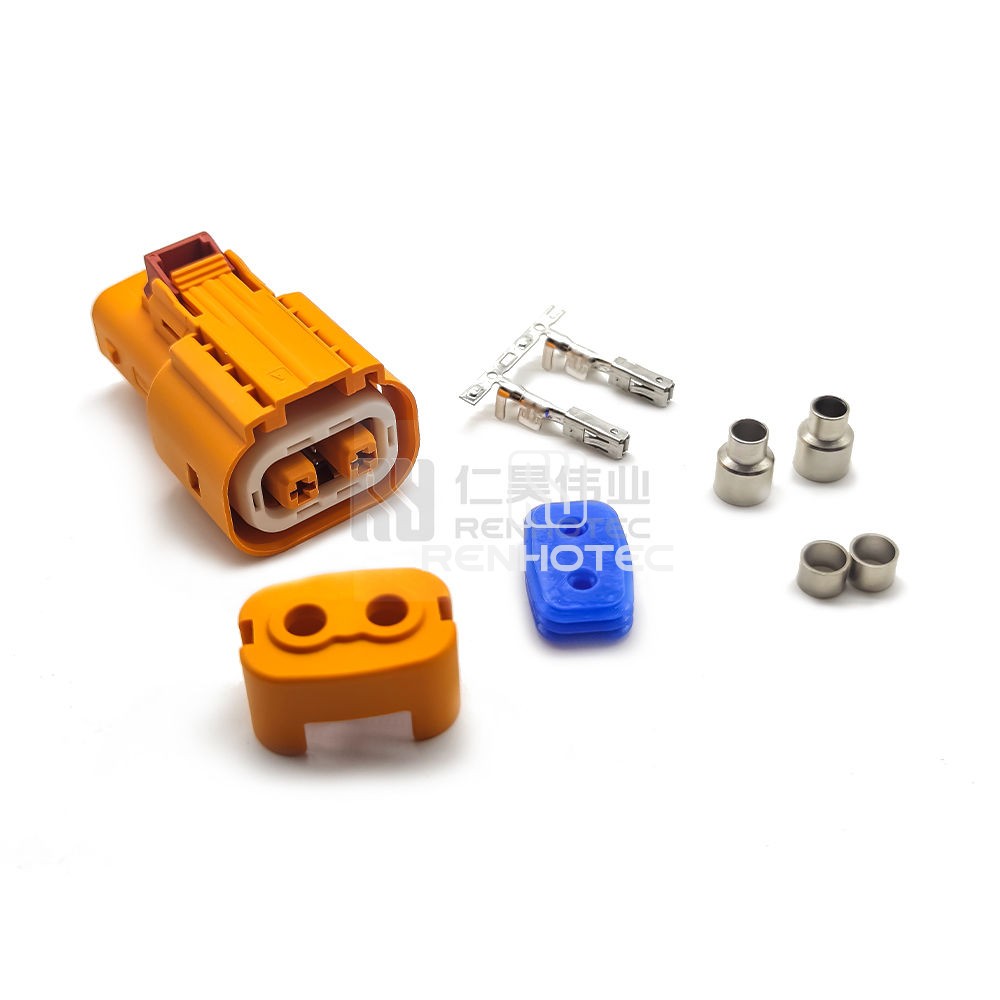

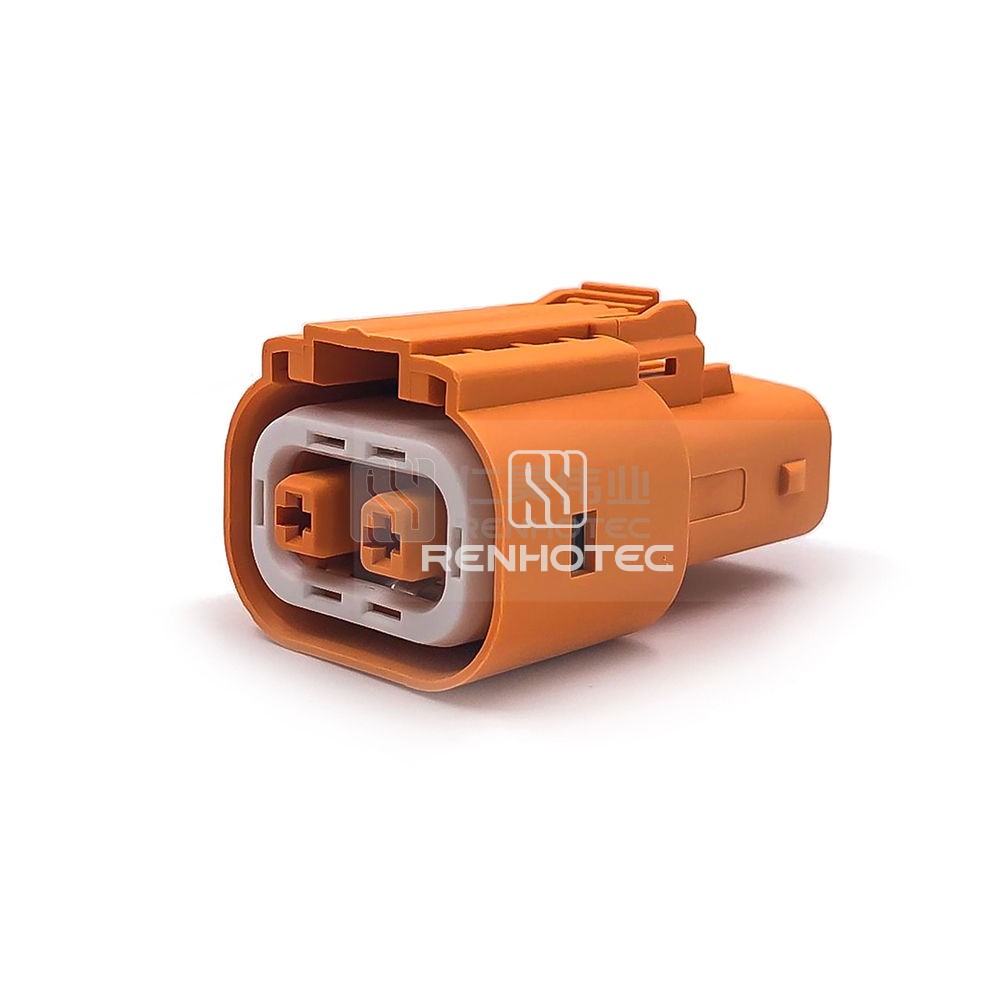

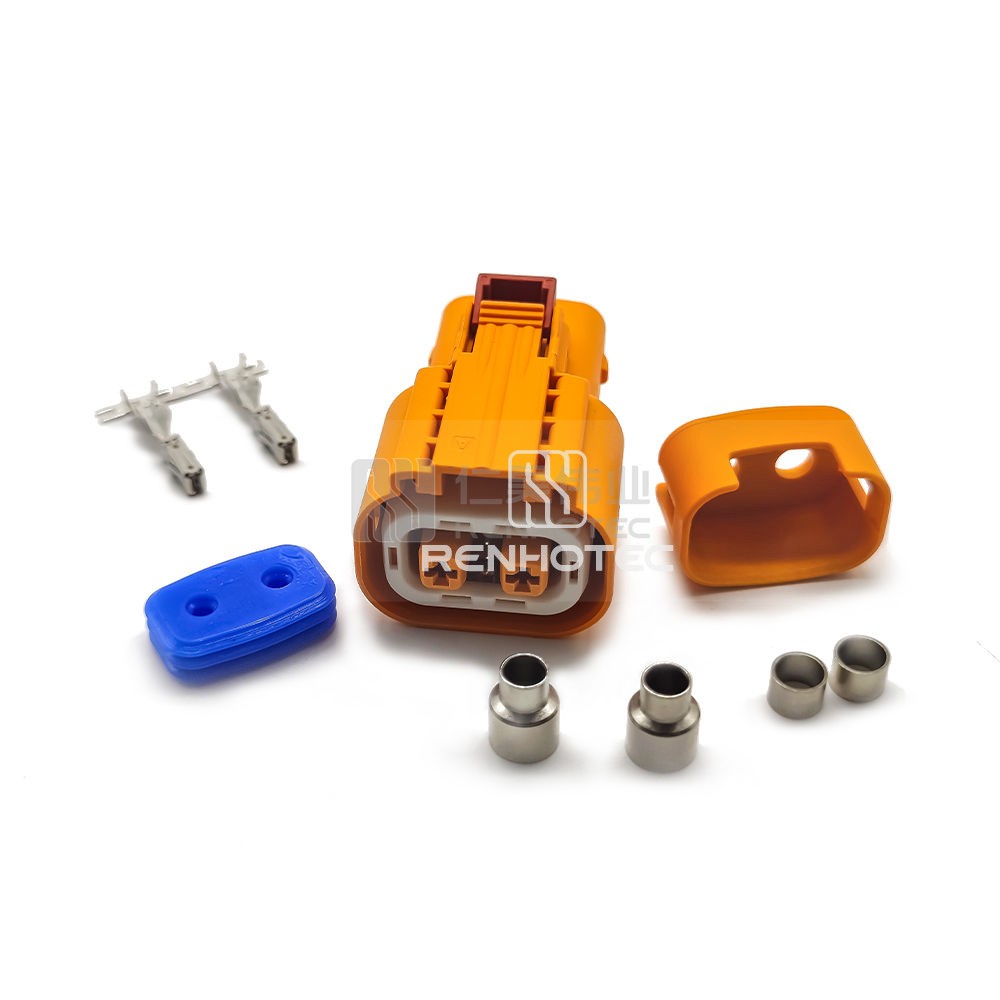

2 POS High 16A 2.5mm2 Shielded Cable A Key Straight

This shielded cable with a key straight design is ideal for high-power applications requiring a 16A current rating. The 2.5mm² cable ensures efficient power transfer while the A key configuration provides secure connectivity. Perfect for industrial and commercial applications where reliable power distribution is crucial.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions2
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyA
    ColorOrange
    FeaturesWaterproof

    Electrical

    Rated Voltage800V
    Rated Current16A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range2.5mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishTin

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
