NI1-1-B060-2AYN-C08

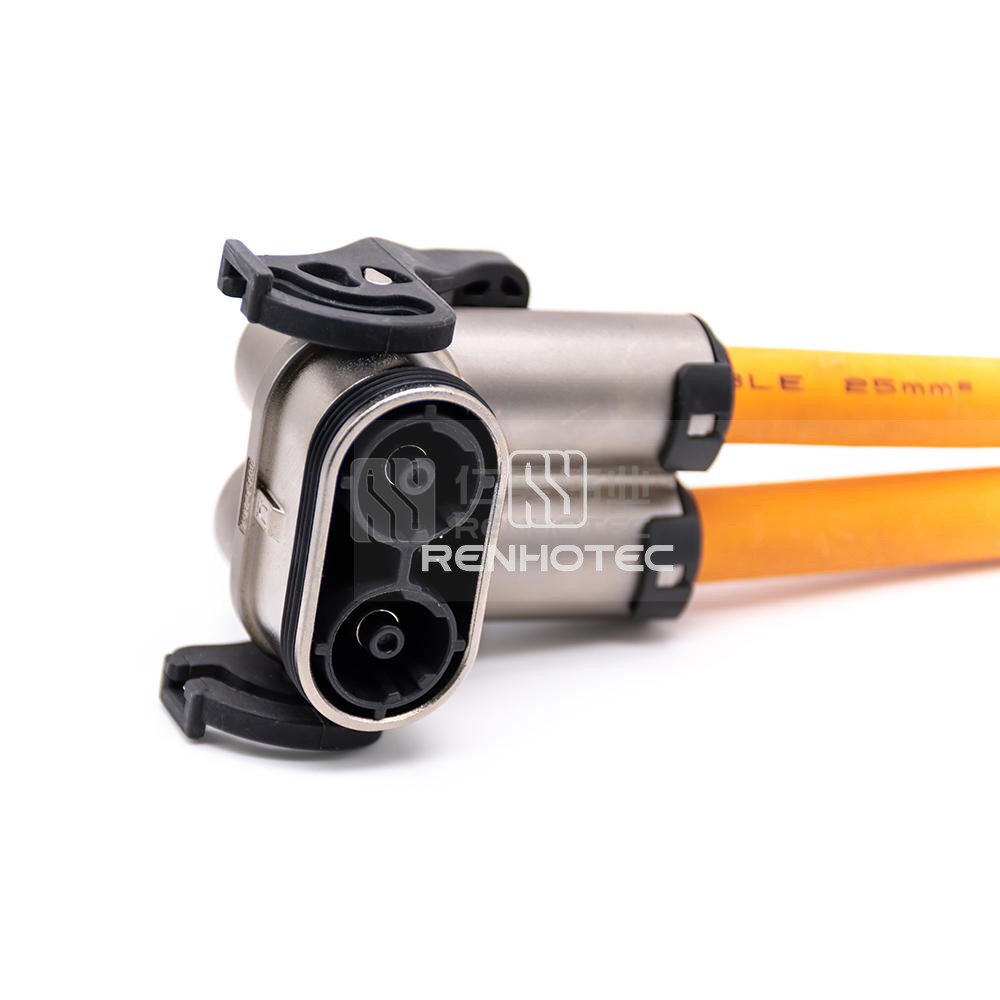

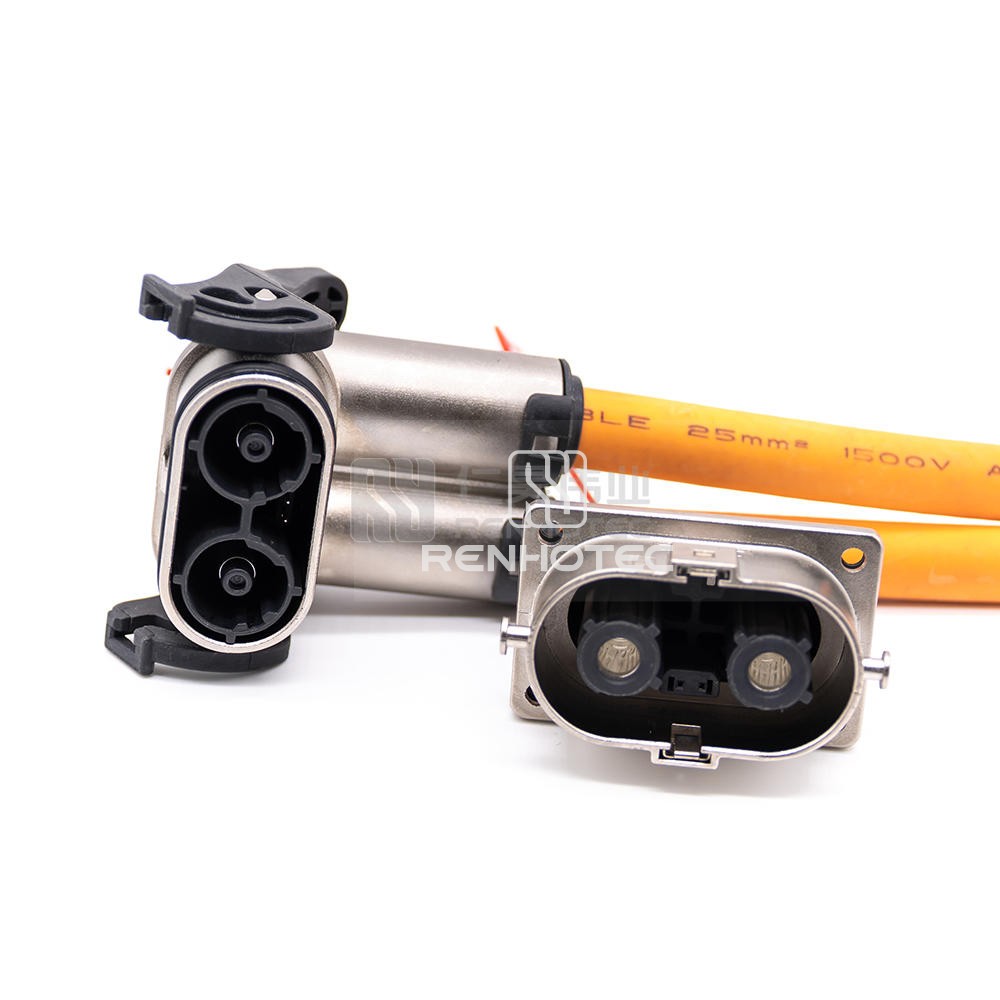

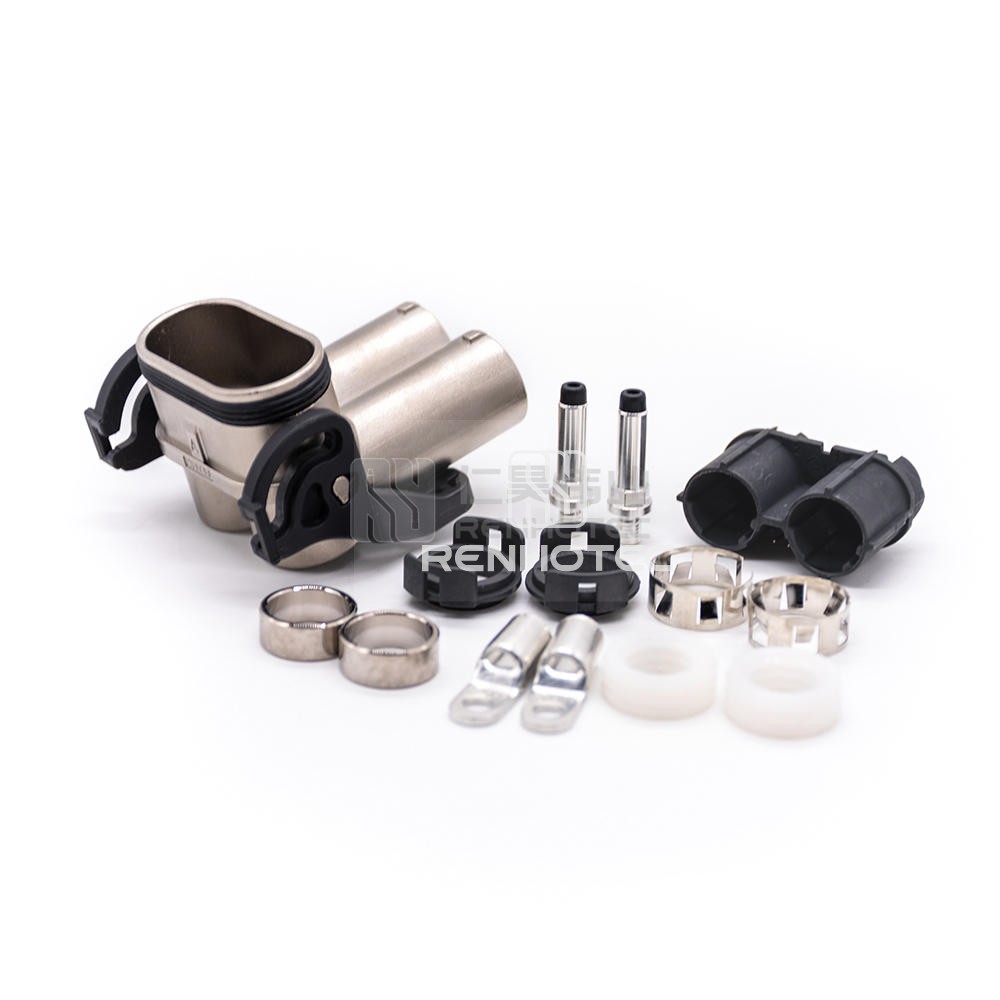

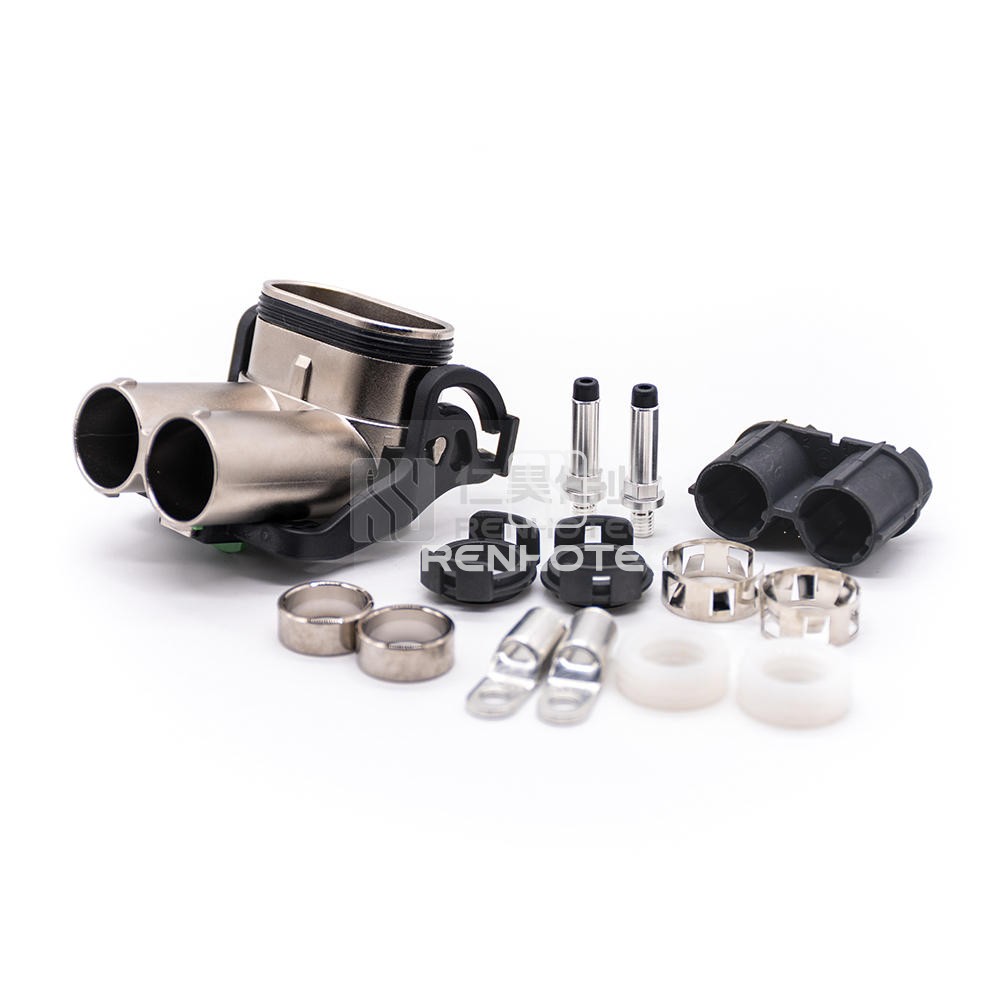

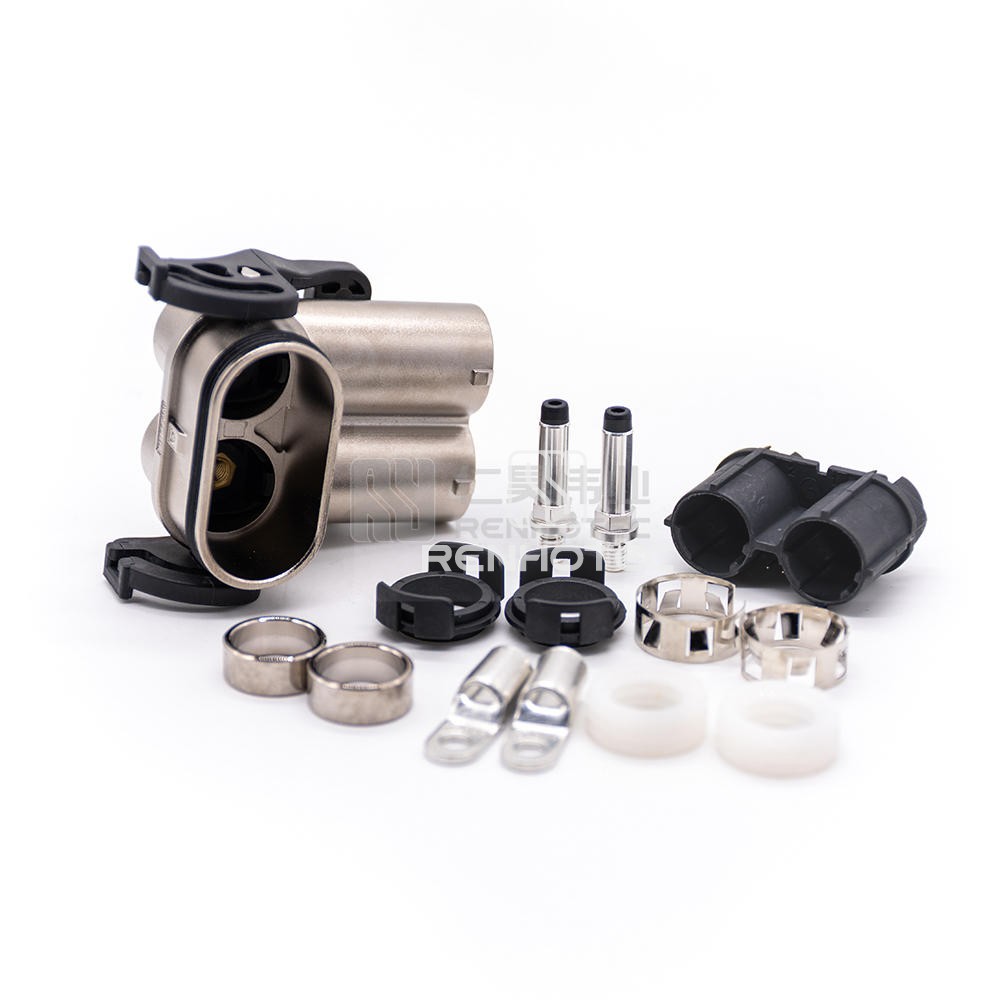

2 POS High Power Electric vehicle Cable Plug 125A 25mm2 Shielded Cable A Key Right Angle
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high-power electric vehicle cable plug is designed for 125A current with a 25mm² shielded cable, featuring a convenient right-angle design. Its 2-point contact system ensures secure connections. Ideal for electric vehicle charging applications.
GeneralMaterialMechanicalEnvironmentalElectrical
General
Connector TypePlug
OrientationRight Angle
Number of Positions2
Contact Size6mm
Contact TerminationCrimp
KeyA
ColorSilver
Material
Shell MaterialZinc Alloy
Contact MaterialCopper Alloy
Contact FinishNickel
Mechanical
Mounting TypeCable Type
Wire Gauge or Range25mm²
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
Electrical
Rated Voltage800V
Rated Current125A
ShieldingShielded
