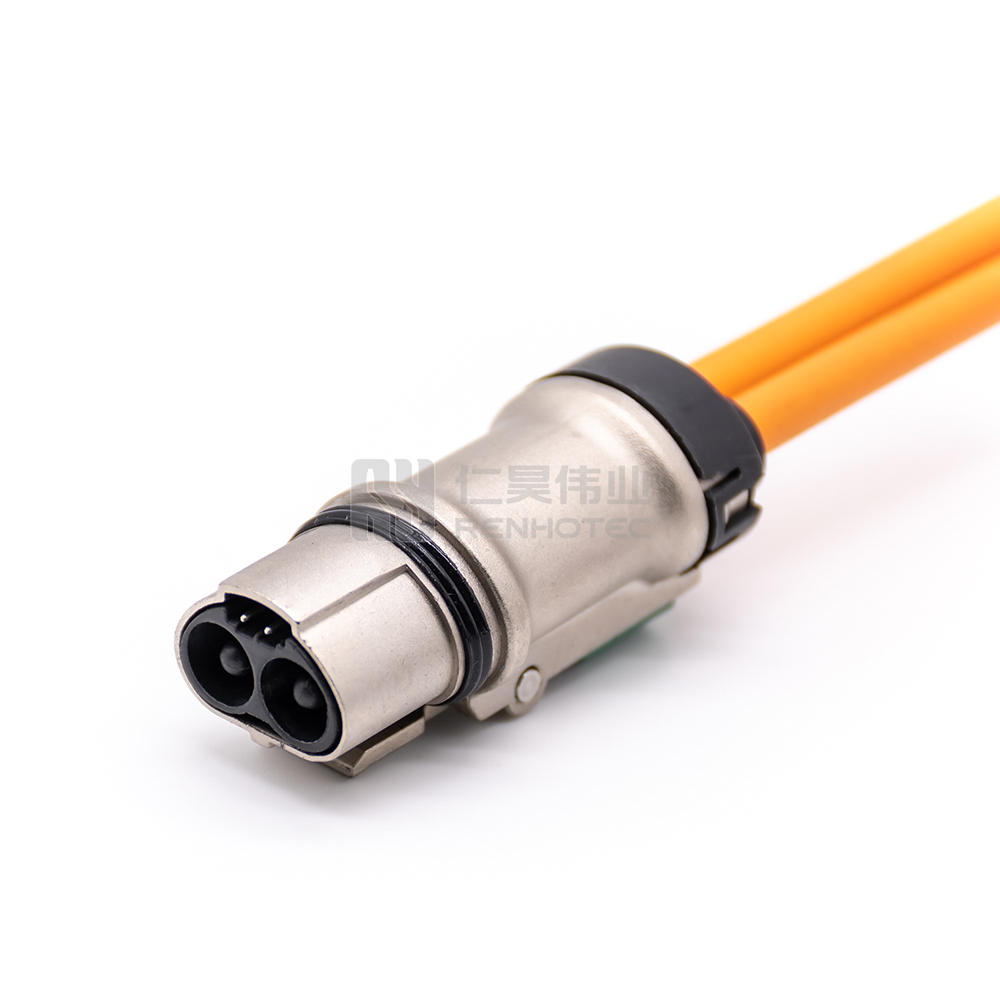

product image

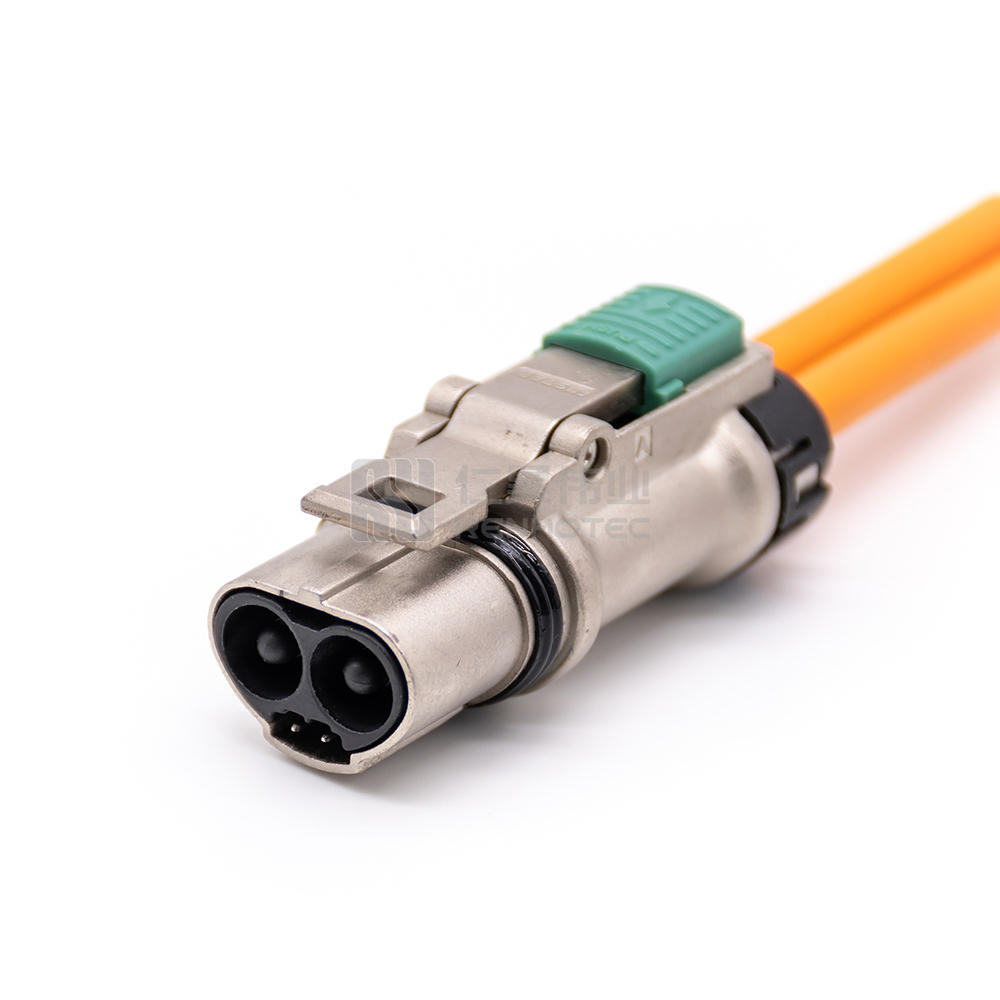

product image

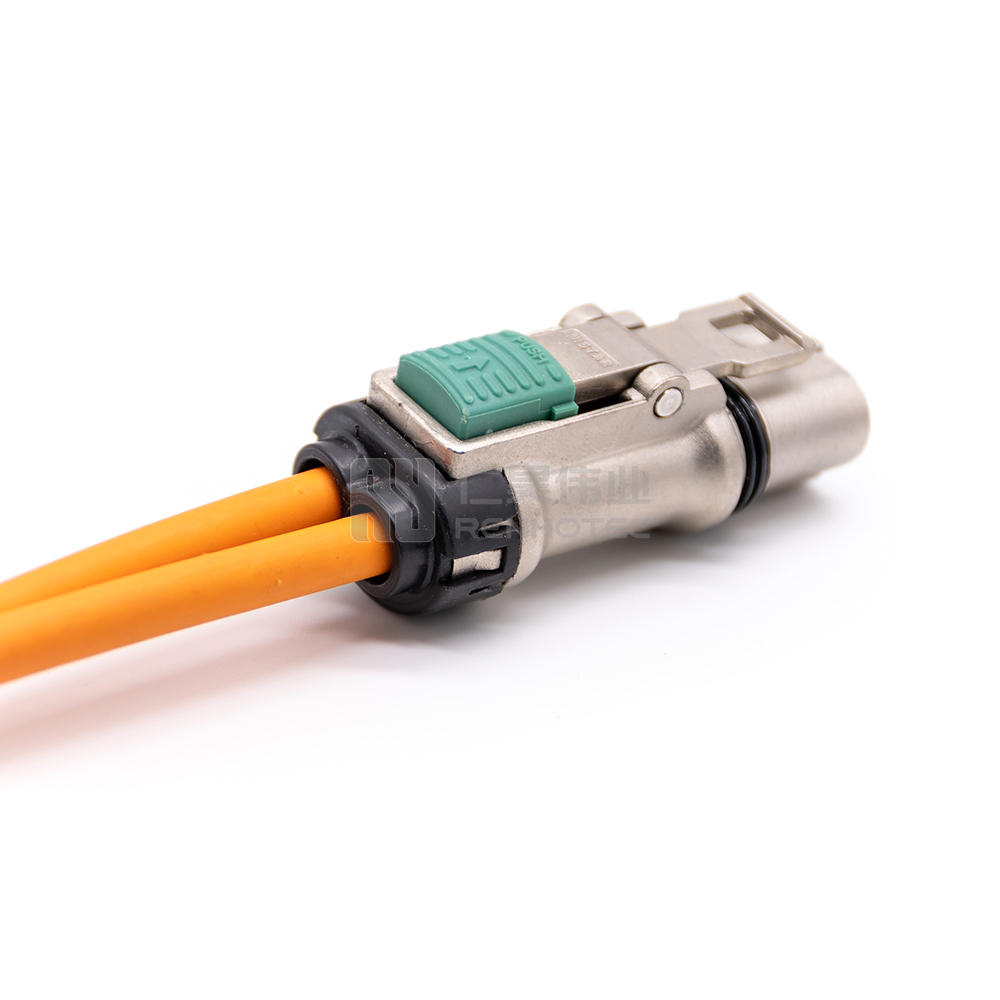

product image

NI1-1-S036-2AYN-C03

2 POS High Power Electric vehicle Cable Plug 16A 2.5mm2 Shielded Cable A Key Straight
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

GeneralMaterialMechanicalEnvironmentalElectrical
General
Connector TypePlug
OrientationStraight
Number of Positions2
Contact Size3.6mm
Contact TerminationCrimp
KeyA
ColorSilver
FeaturesIntegrated Internal HVIL
Material
Shell MaterialZinc Alloy
Contact MaterialCopper Alloy
Contact FinishNickel
Mechanical
Mounting TypeCable Type
Wire Gauge or Range2.5mm²
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
Electrical
Rated Voltage800V
Rated Current16A
ShieldingShielded
