Products > HVIL Series Connector > 2 POS High Power Electric vehicle Cable Plug 16A 2.5mm2 Shielded Cable Y Key Straight

NI1-1-S036-2YYN-C03

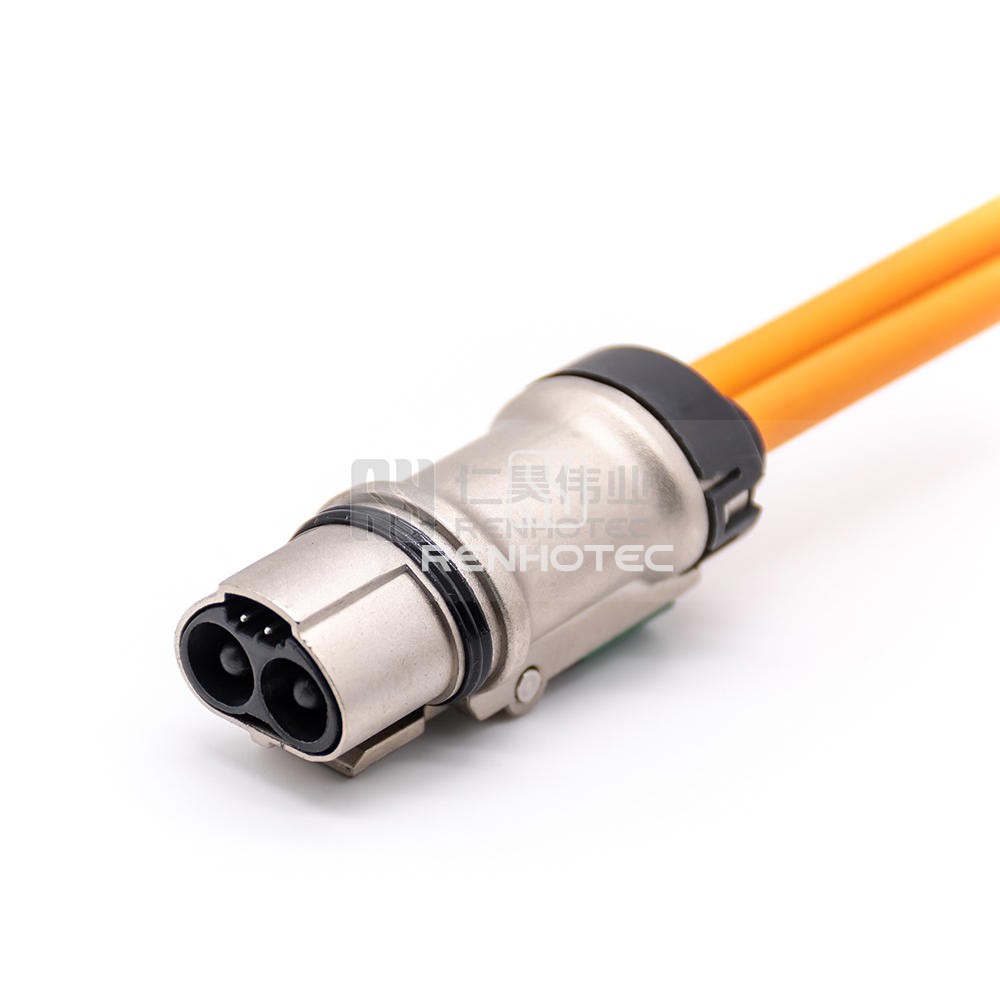

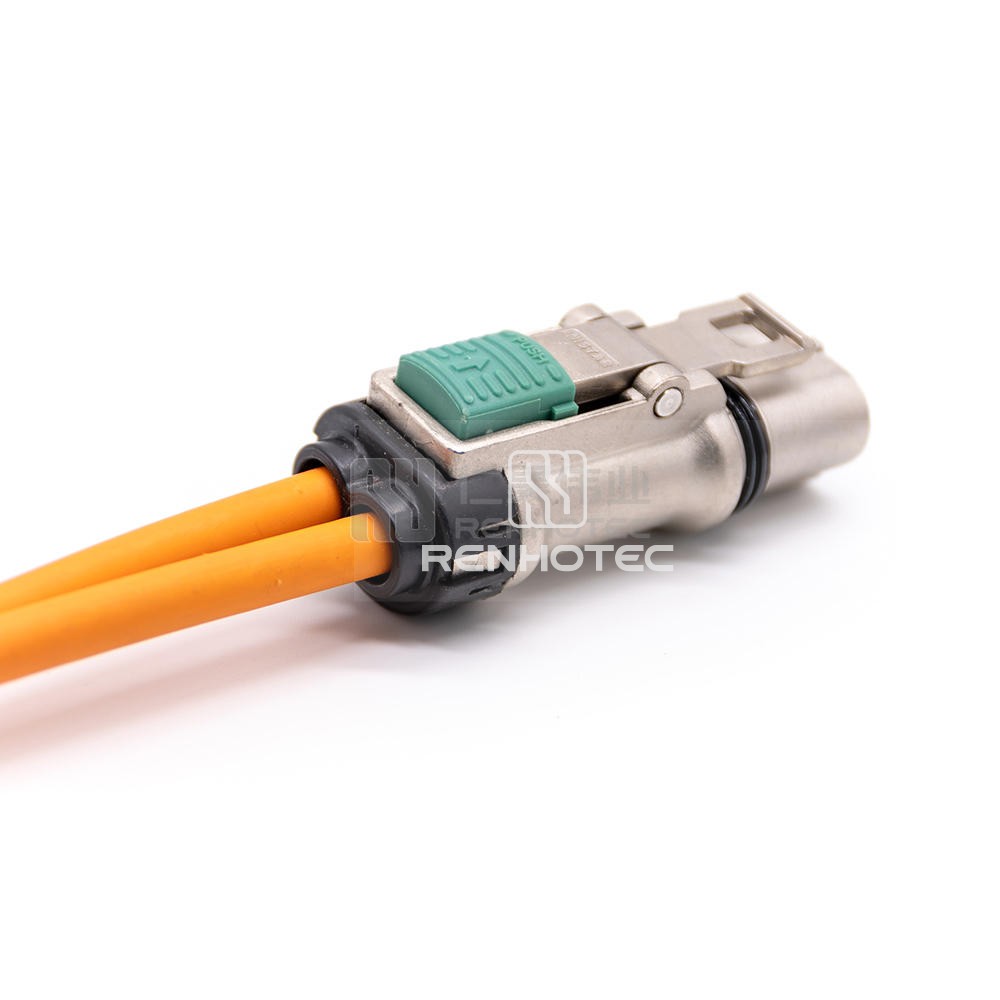

2 POS High Power Electric vehicle Cable Plug 16A 2.5mm2 Shielded Cable Y Key Straight

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This high-power electric vehicle cable plug features a 16A capacity and 2.5mm² shielded cable, designed for reliable performance. The Y Key Straight design ensures secure connections, making it ideal for various electric vehicle applications.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions2
    Contact Size3.6mm
    Contact TerminationCrimp
    KeyY
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current16A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range2.5mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
