ST524000-A-35

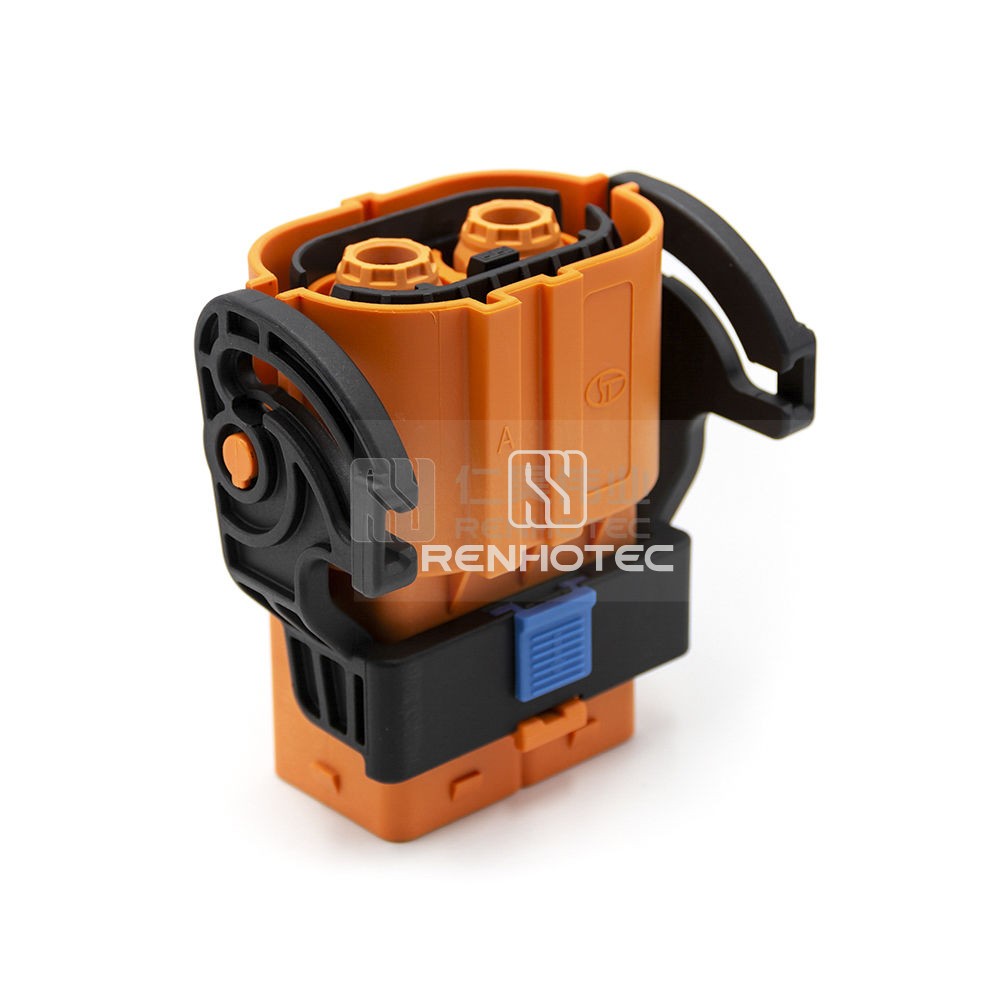

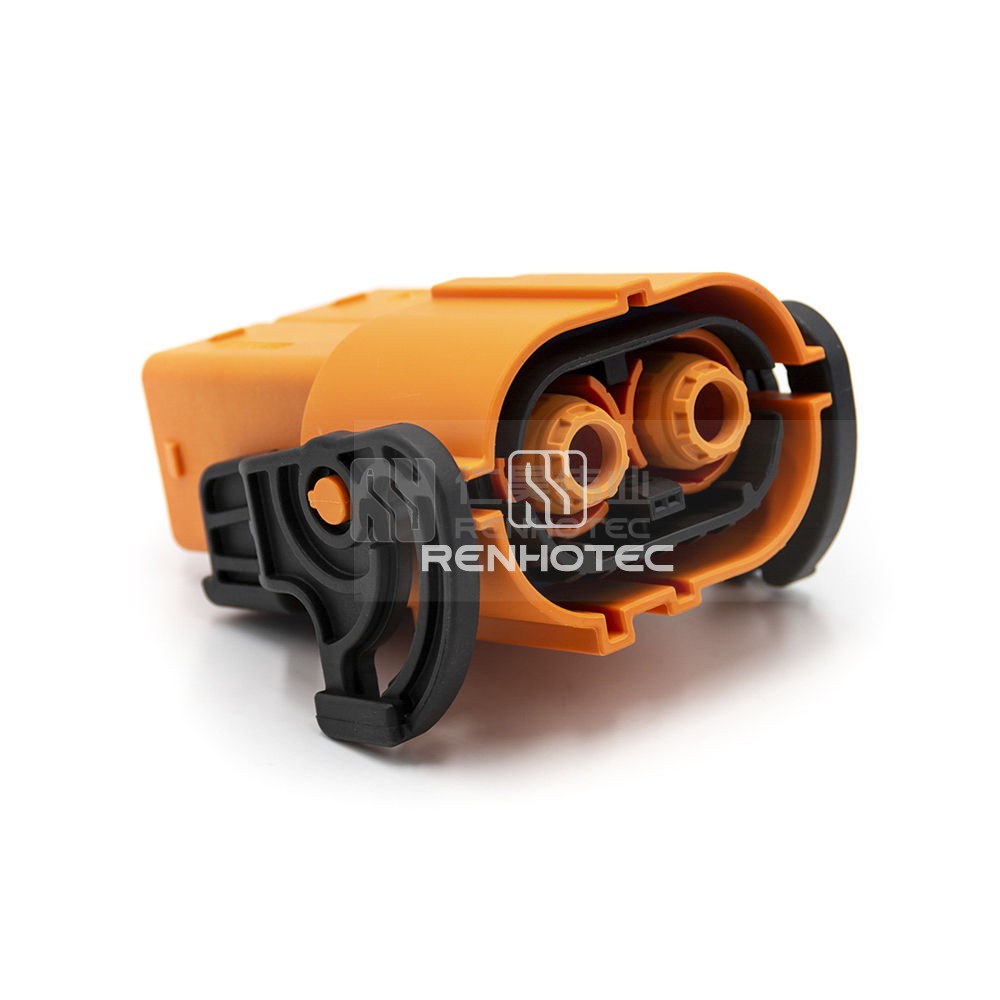

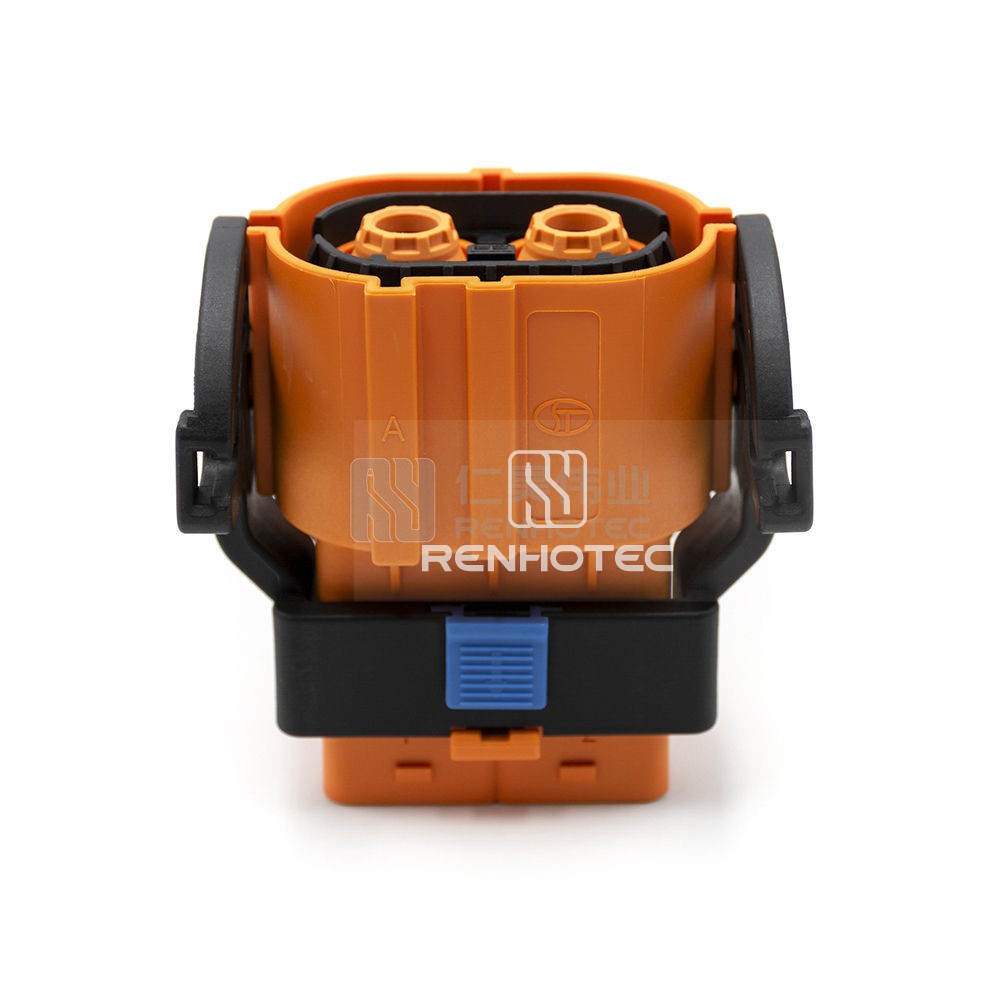

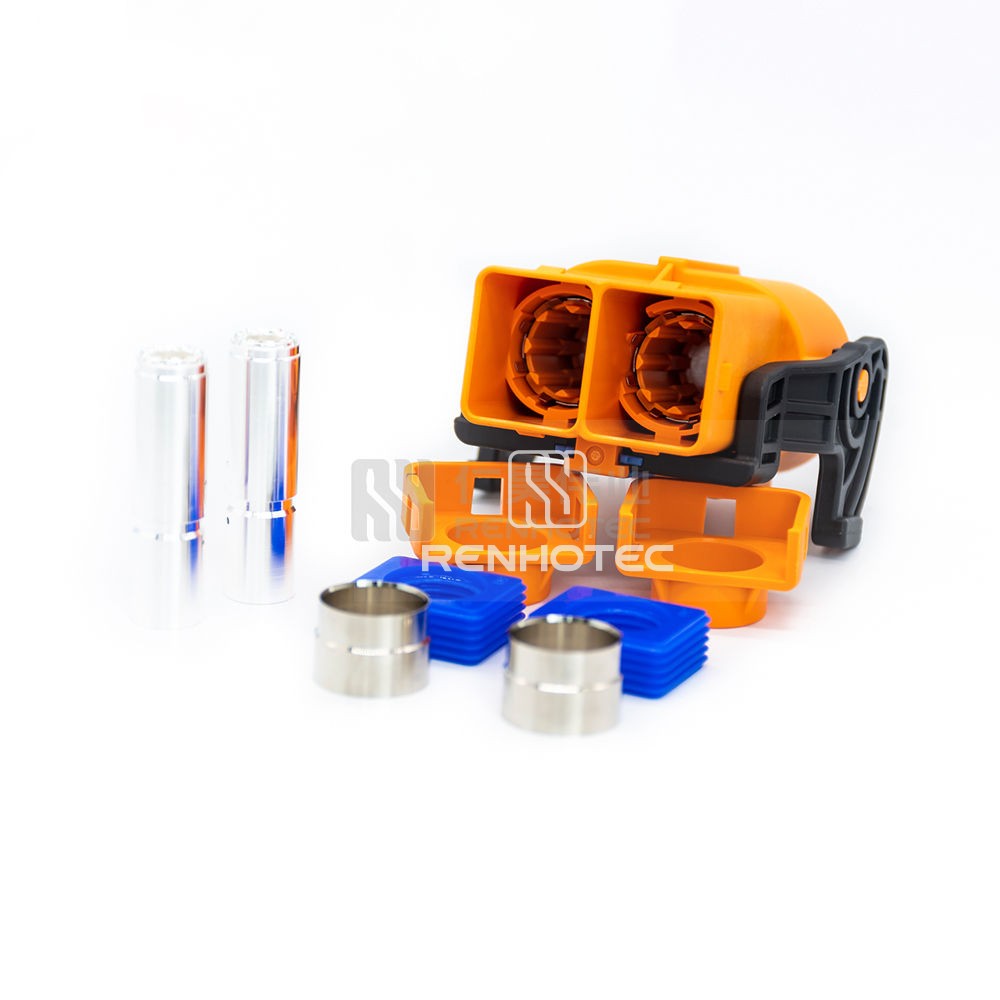

2 POS High Power Electric vehicle Cable Plug 200A 35mm2 Shielded Cable A Key Straight
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high-power electric vehicle cable plug features a 200A capacity, shielded 35mm2 cable, and a convenient A-Key design for straight connection. Ideal for efficient and reliable power transfer in electric vehicles.
GeneralMaterialMechanicalEnvironmentalElectrical
General
Connector TypePlug
OrientationStraight
Number of Positions2
Contact Size8mm
Contact TerminationCrimp
KeyA
ColorOrange
FeaturesWaterproof
Material
Shell MaterialPA66+GF
Contact MaterialCopper Alloy
Contact FinishSilver
Mechanical
Mounting TypeCable Type
Wire Gauge or Range35mm²
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
Electrical
Rated Voltage1500V
Rated Current200A
ShieldingShielded
