Products > HVIL Series Connector > 2 POS High Power Electric vehicle Cable Plug 200A 50mm2 Shielded Cable A Key Right Angle

NI2-1-B080-2AYA-C10
2 POS High Power Electric vehicle Cable Plug 200A 50mm2 Shielded Cable A Key Right Angle

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

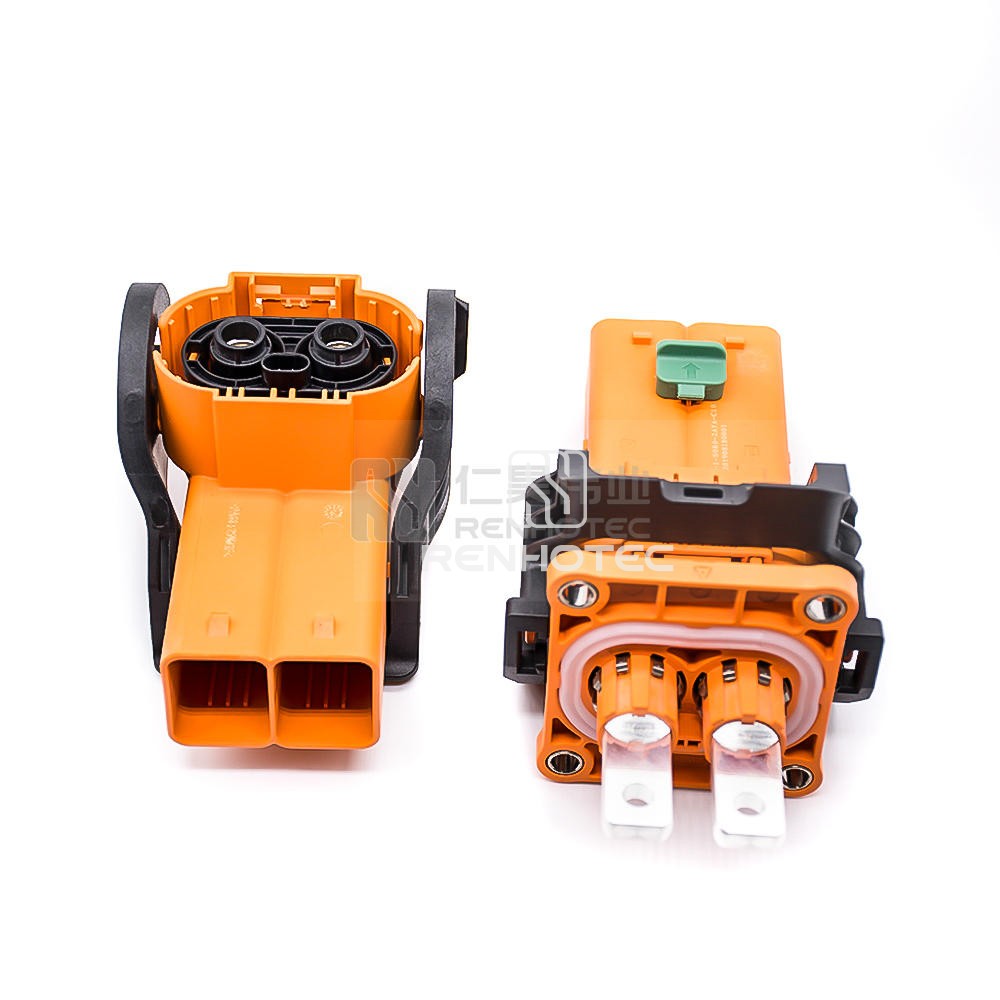

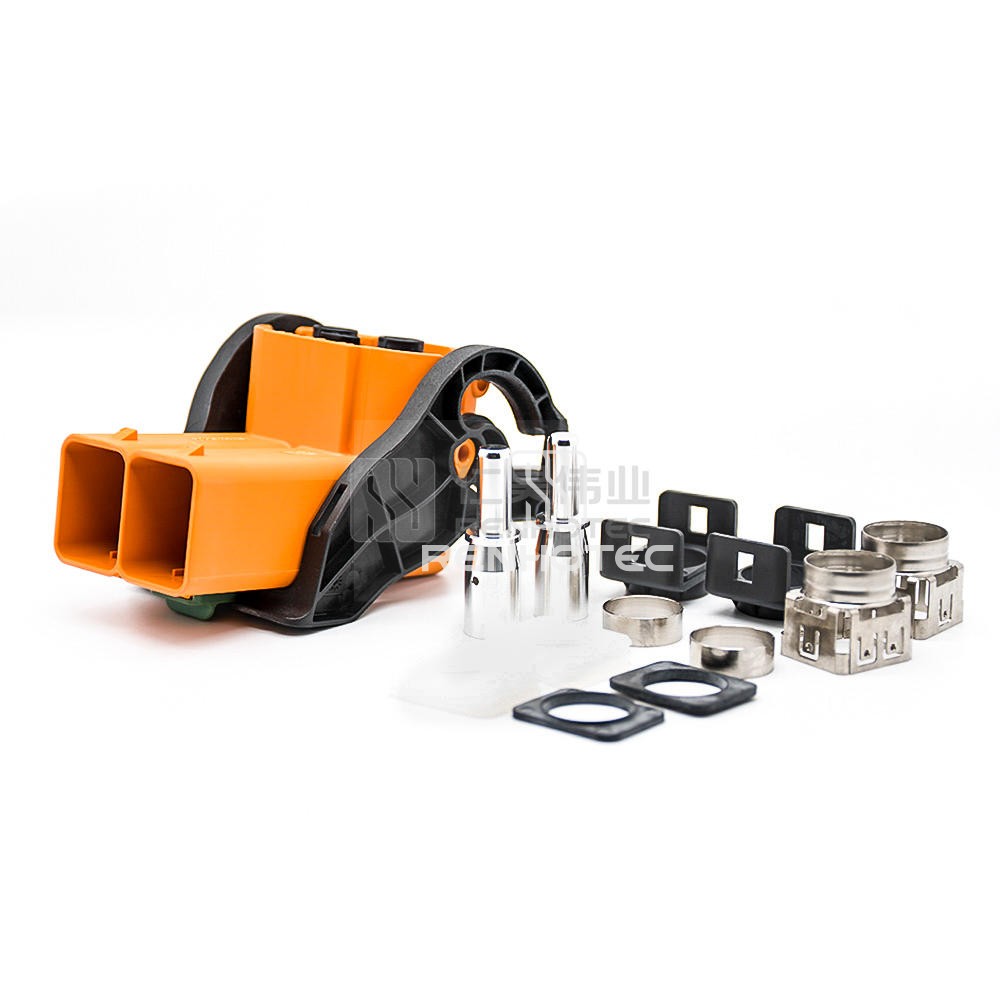

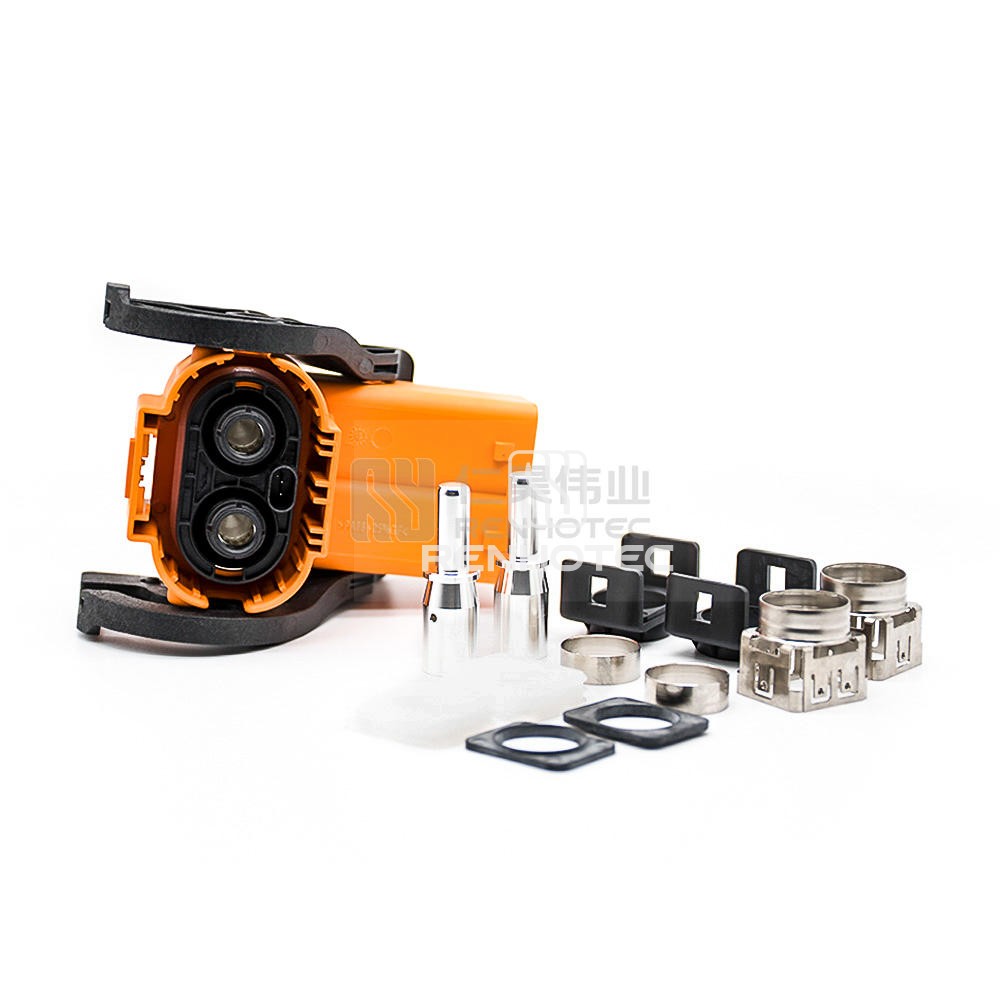

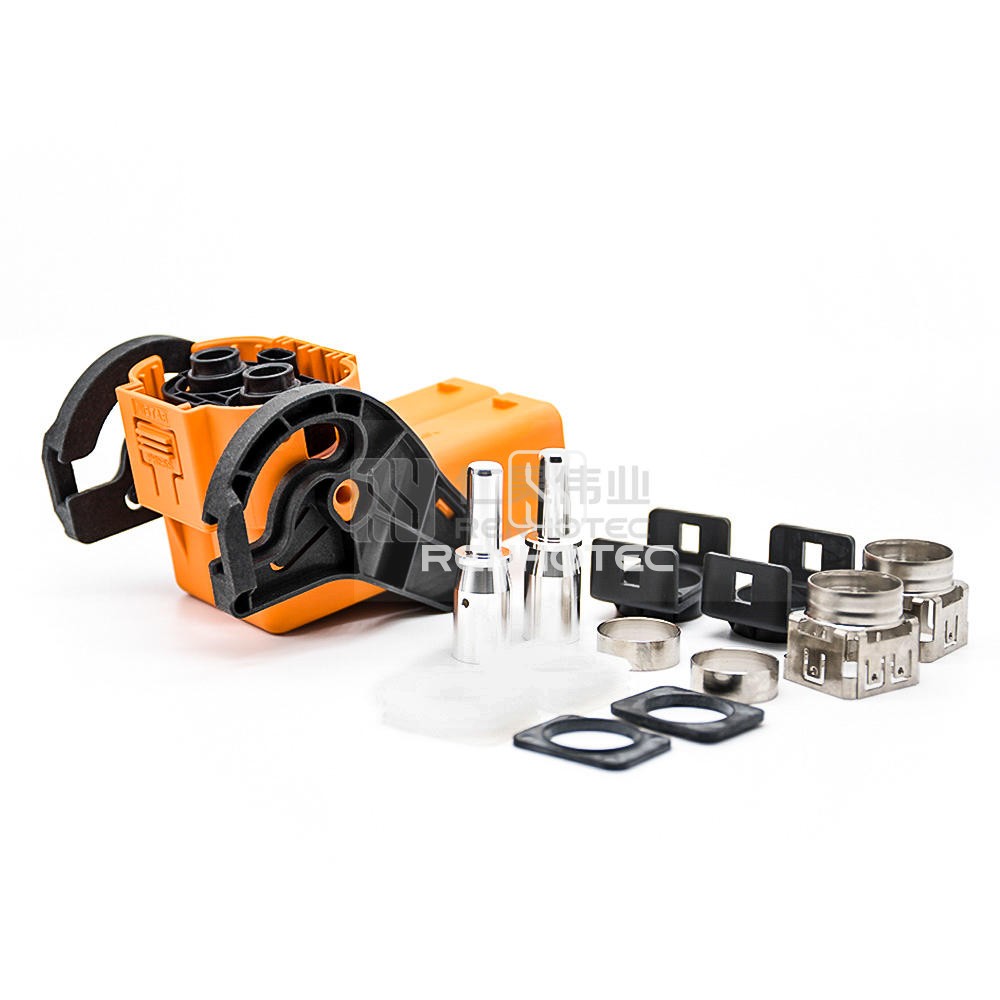

    This high-power electric vehicle cable plug features a waterproof Touch Proof design, 200A capacity, shielded 50mm² cable, and a convenient right-angle A key. Ideal for secure and efficient connections in electric vehicle setups.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions2
    Contact Size8mm
    Contact TerminationCrimp
    KeyA
    ColorOrange

    Electrical

    Rated Voltage800V
    Rated Current200A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range50mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
