Products > HVIL Series Connector > 2 POS High Power Electric vehicle Cable Plug 200A 50mm2 Shielded Cable A Key Straight

NI2-1-S080-2AYA-C10

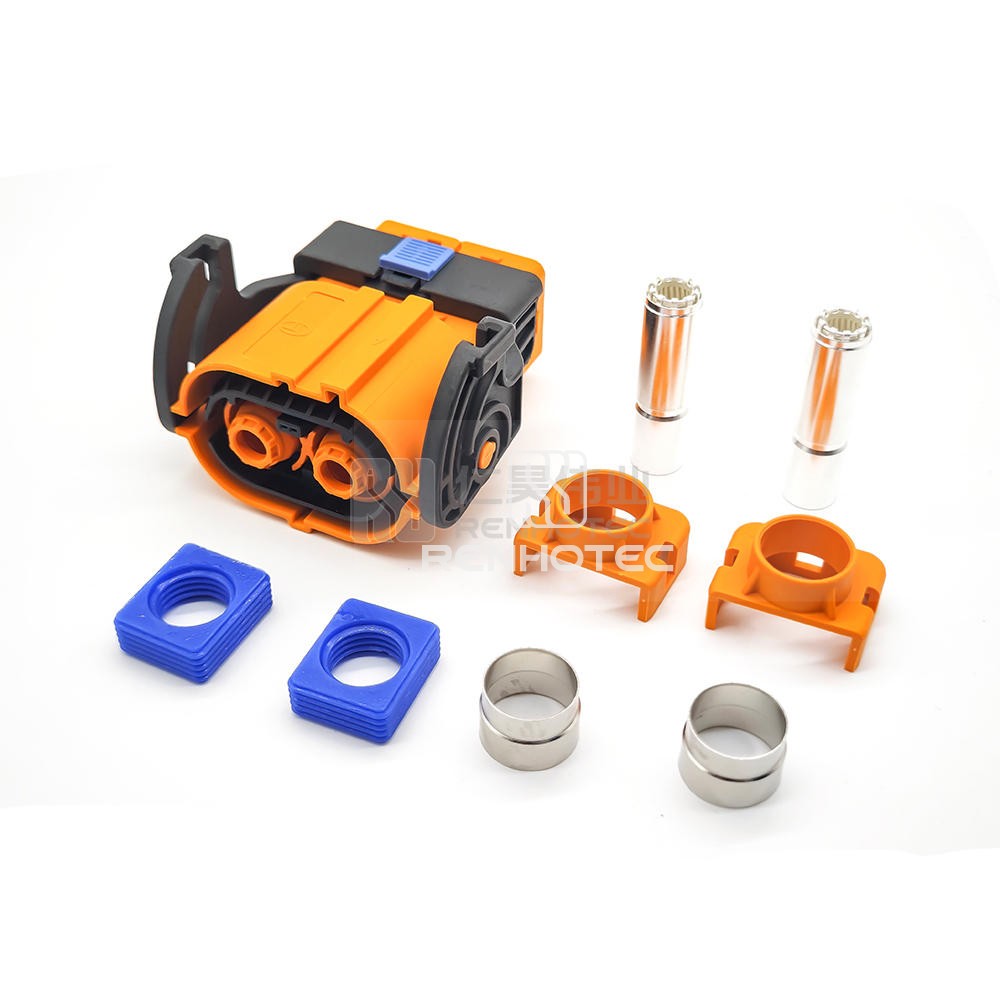

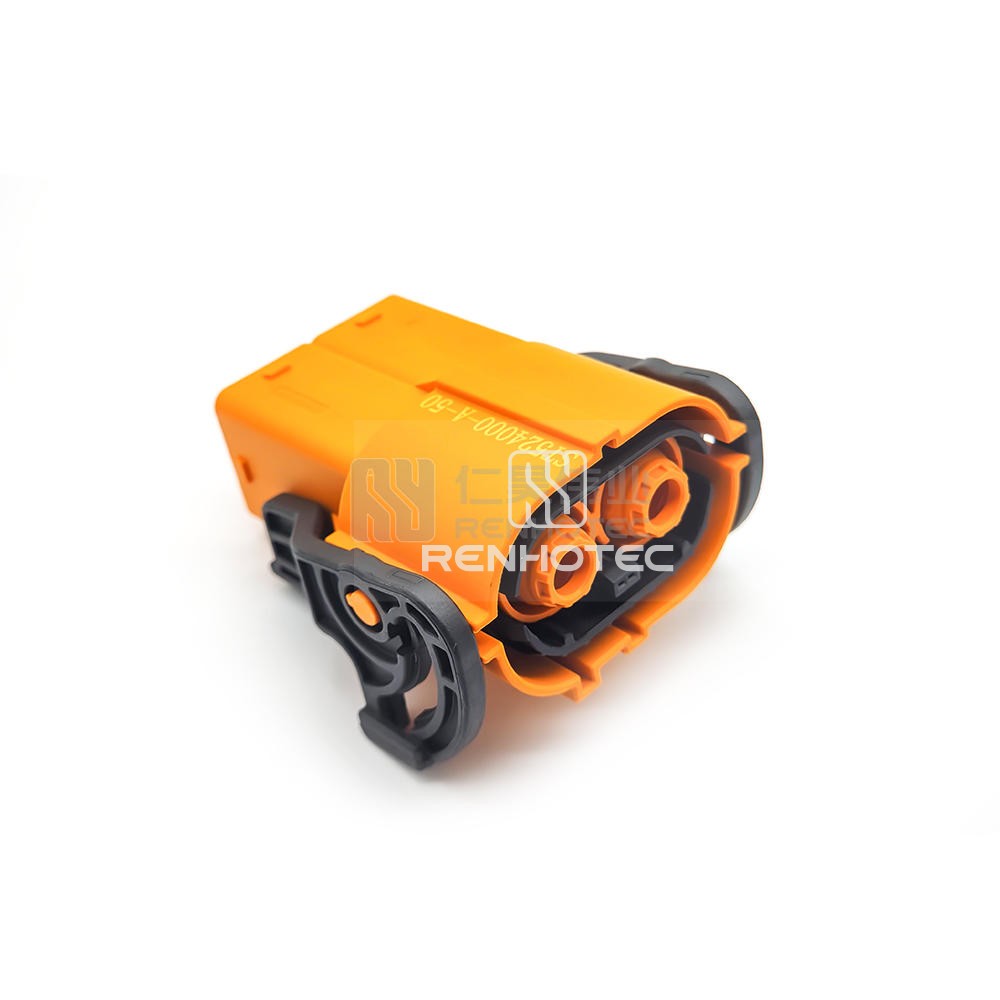

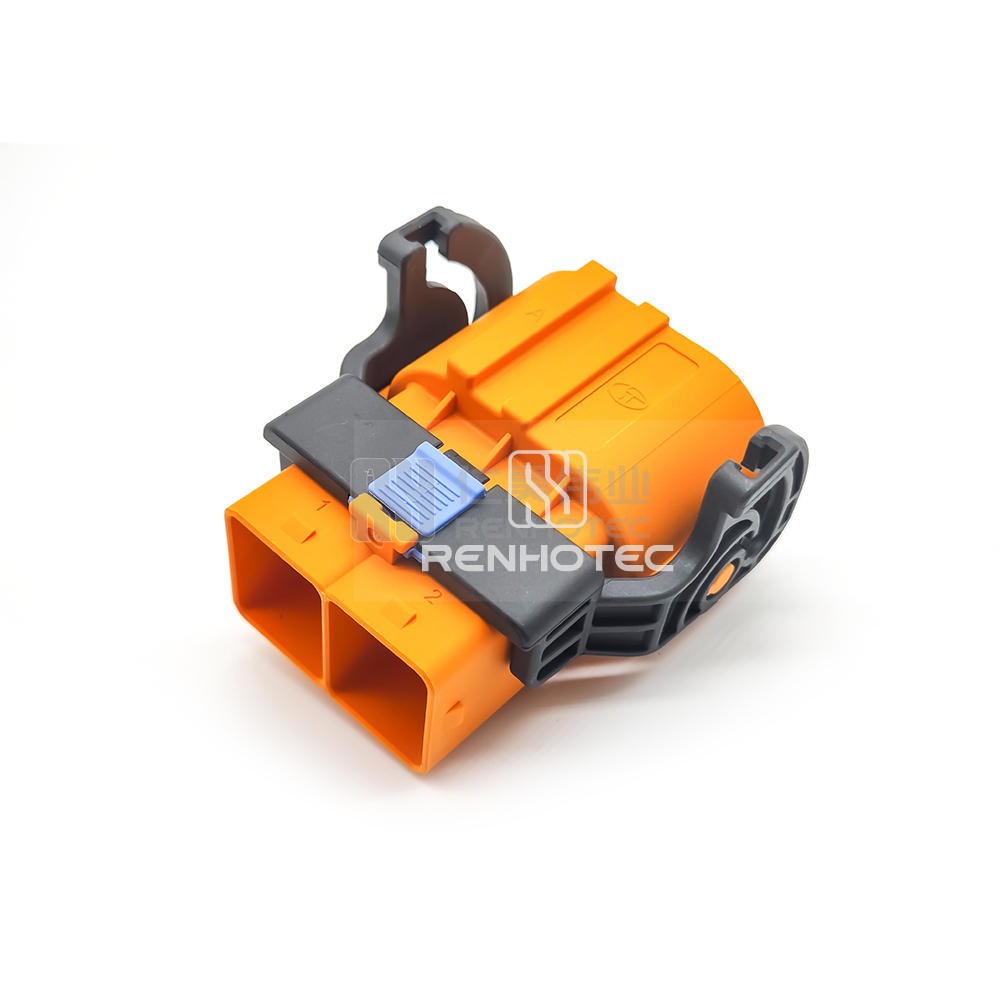

2 POS High Power Electric vehicle Cable Plug 200A 50mm2 Shielded Cable A Key Straight

This high-power electric vehicle cable plug features a 200A capacity, 50mm² shielded cable, A key straight design, and is waterproof Touch Proof for added durability and safety.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions2
    Contact Size8mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyA
    ColorOrange
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current200A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range50mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
