Products > HVIL Series Connector > 2 POS High Power Electric vehicle Cable Plug 23A 4mm2 Shielded Cable A Key Straight

NI1-1-S036-2AYN-C04

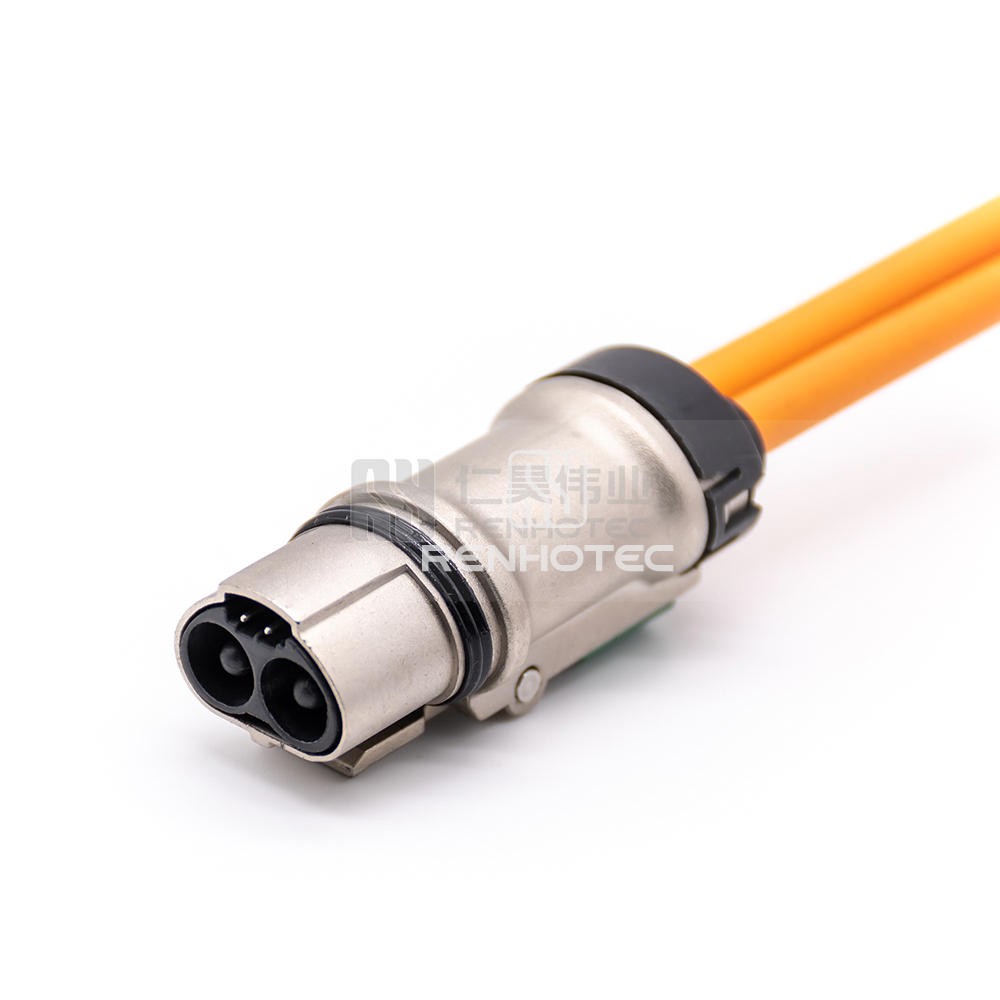

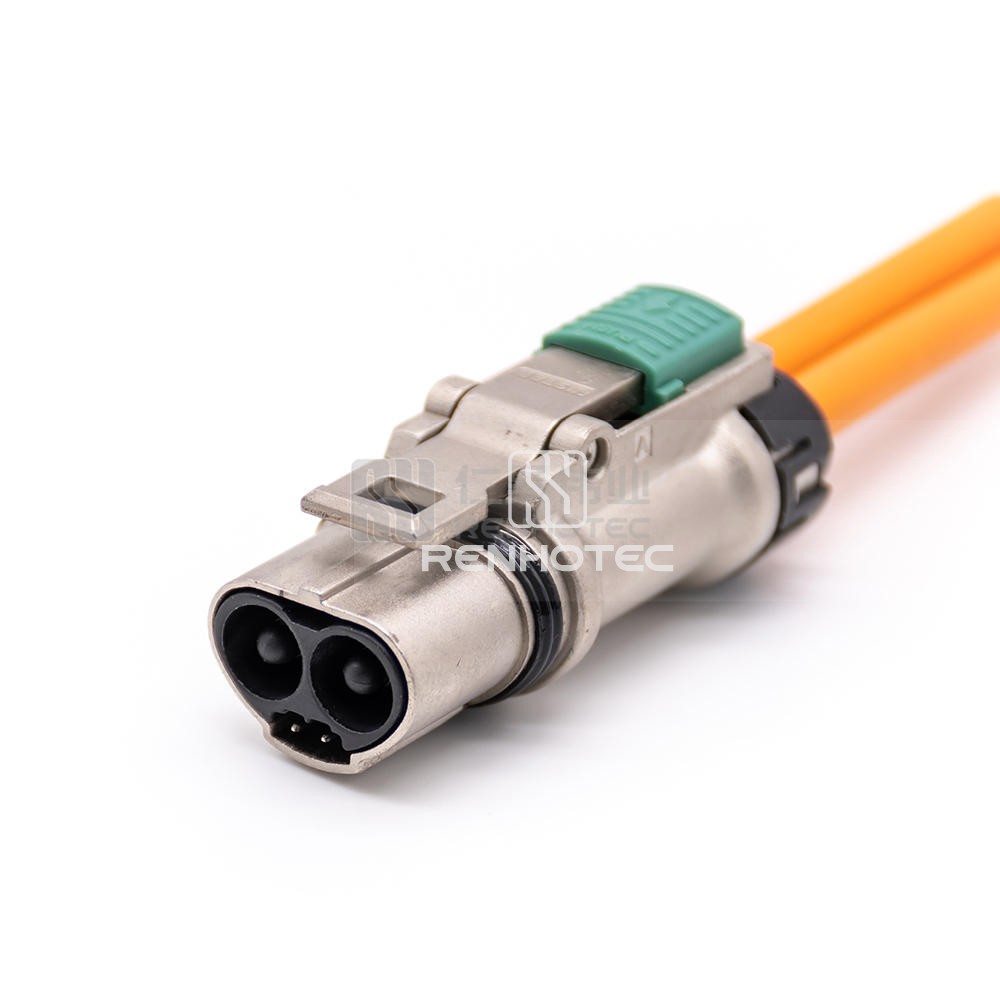

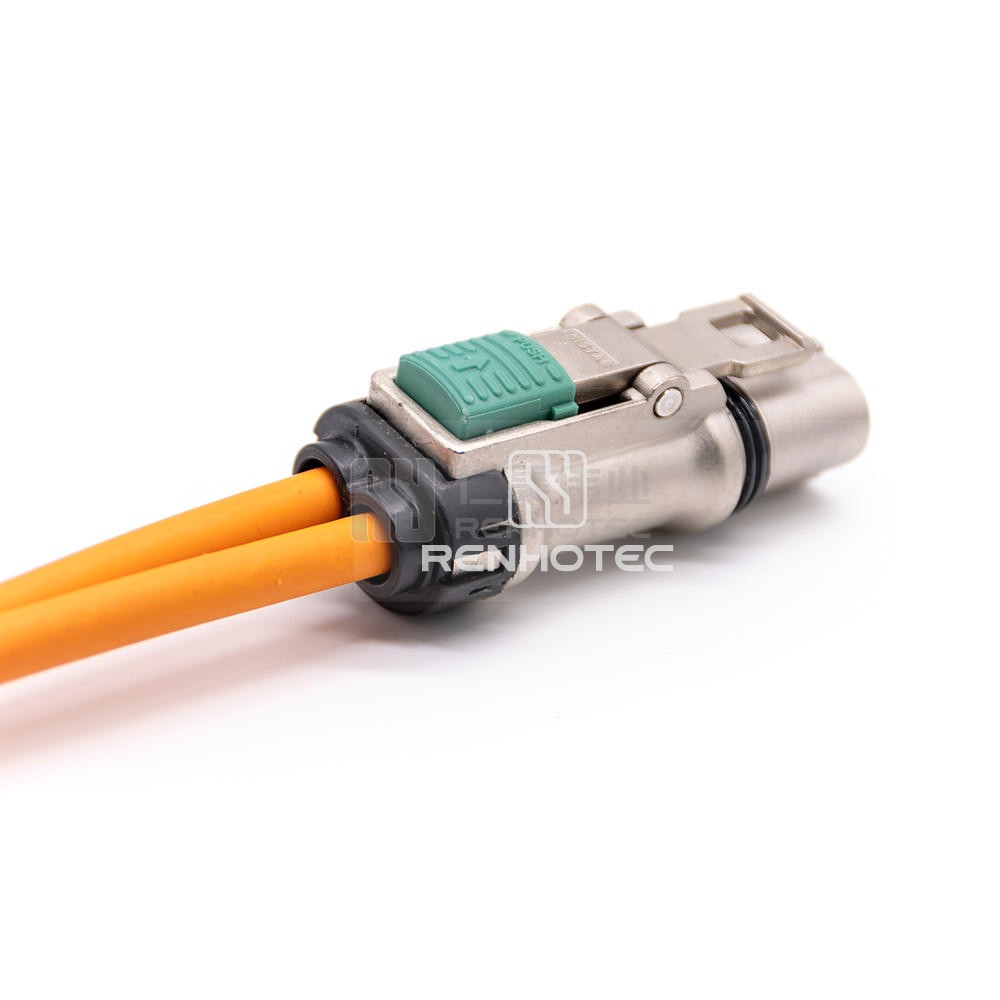

2 POS High Power Electric vehicle Cable Plug 23A 4mm2 Shielded Cable A Key Straight

This high-power electric vehicle cable plug features a 4mm² shielded cable with a 23A capacity. Designed with a key straight feature for ease of use, it is ideal for electric vehicle applications requiring reliable power transmission.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions2
    Contact Size3.6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyA
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current23A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range4mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
