Products > HVIL Series Connector > 2 POS High Power Electric vehicle Cable Plug 40A 6mm2 Shielded Cable A Key Straight

ST539000-A-6

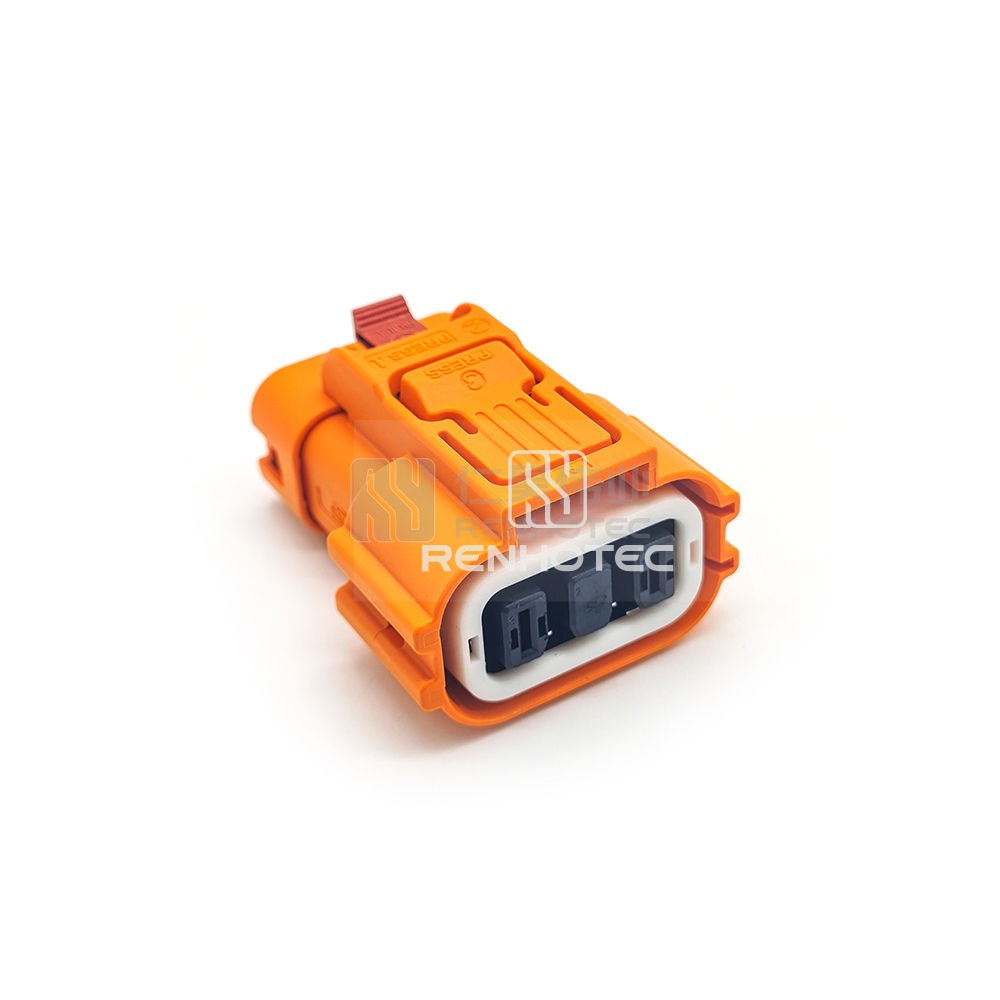

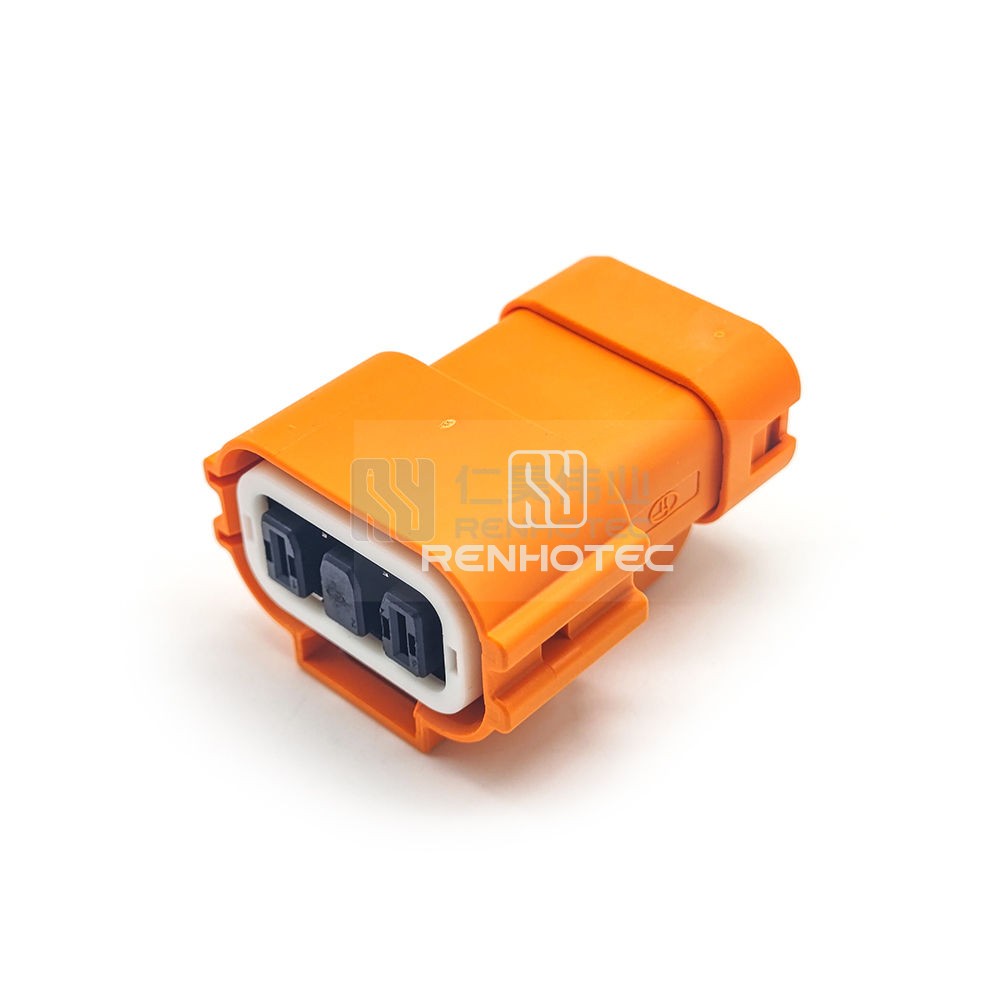

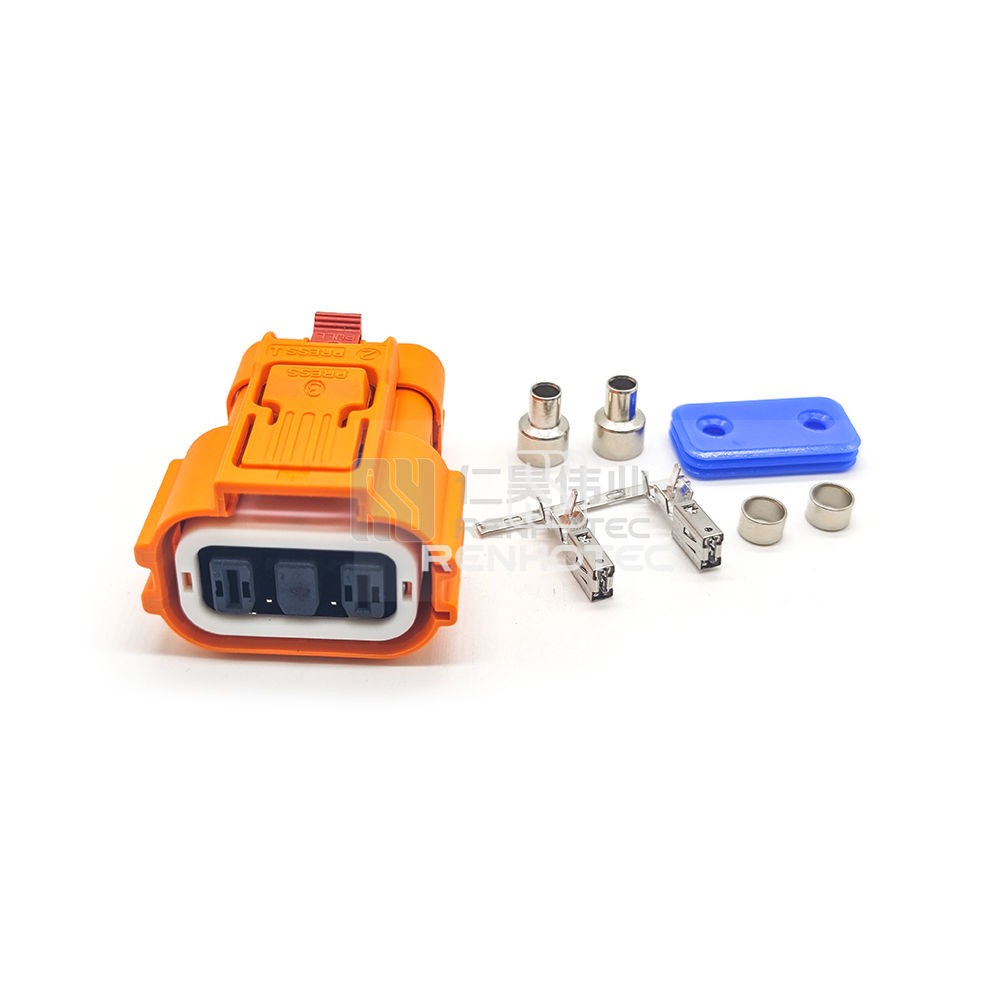

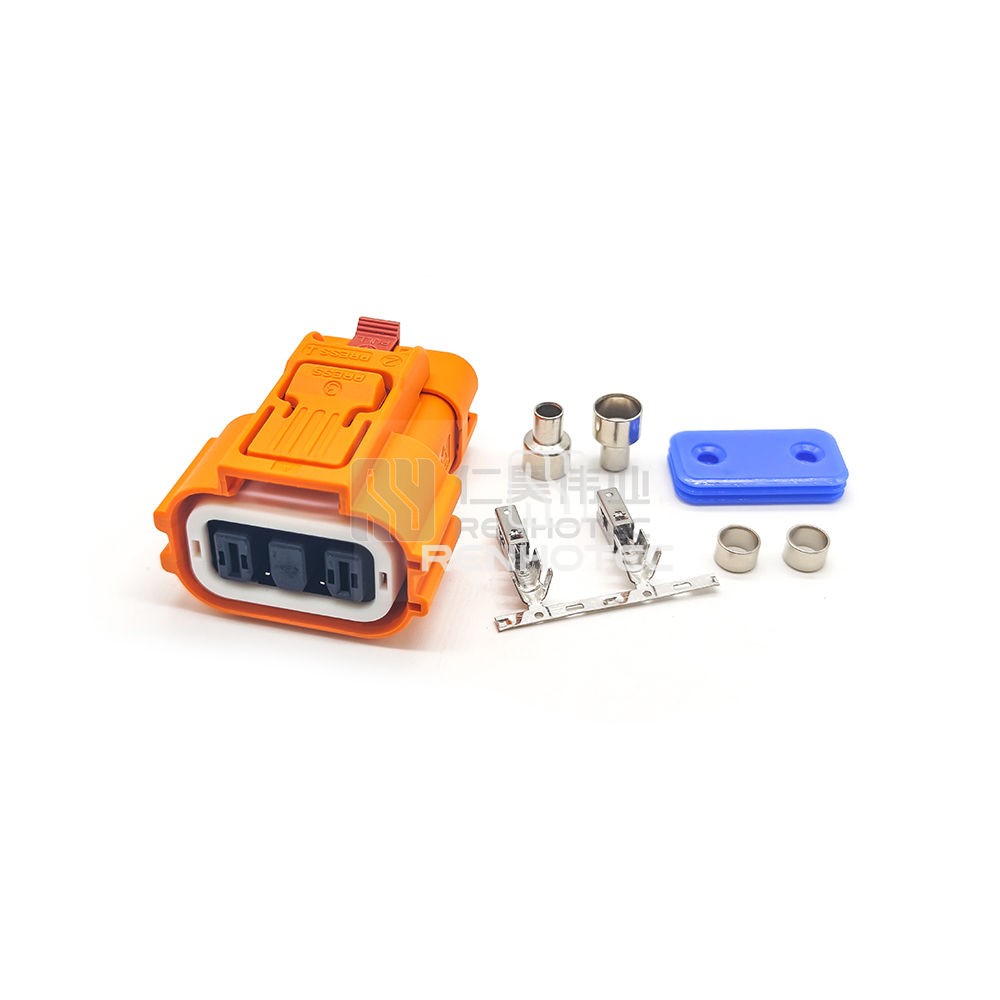

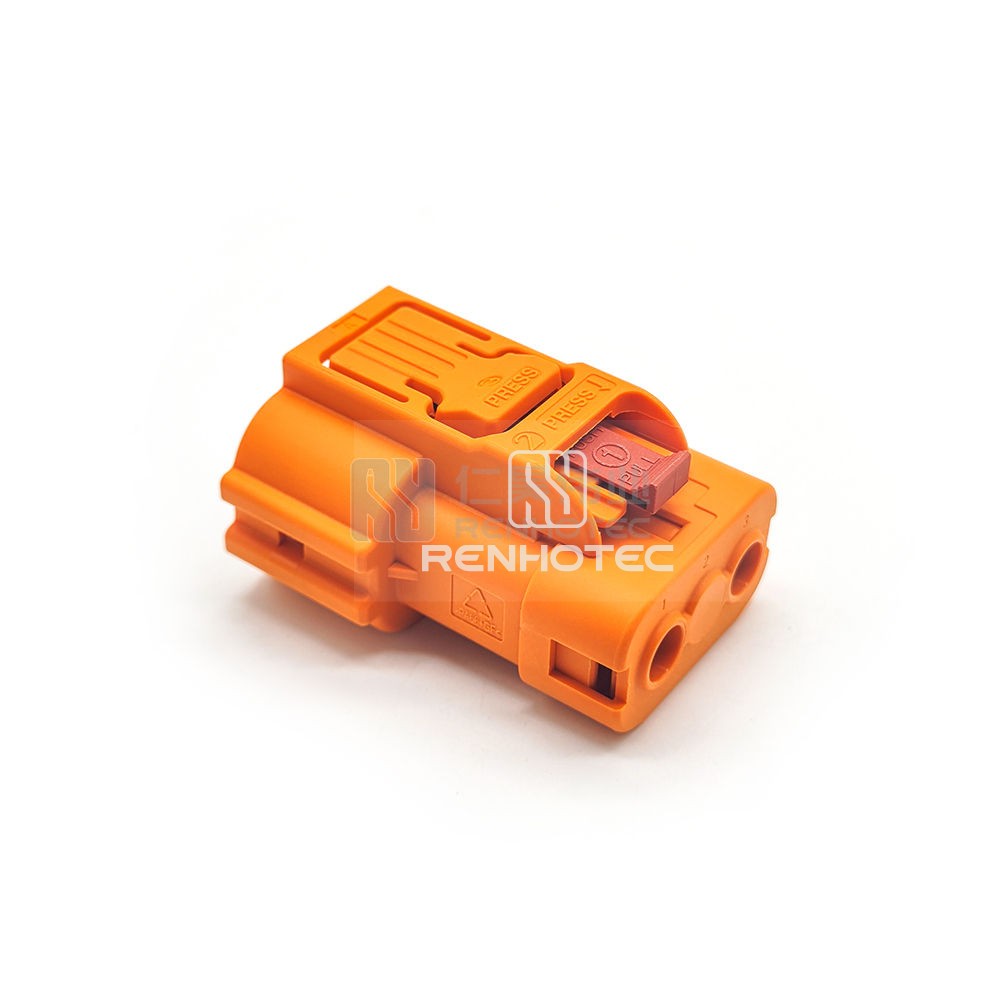

2 POS High Power Electric vehicle Cable Plug 40A 6mm2 Shielded Cable A Key Straight

This high-power electric vehicle cable plug features 2 POS, 40A capacity, 6mm² shielded cable, and a waterproof Touch Proof design. Ideal for ensuring safe and reliable connections for electric vehicles.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions2
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyA
    ColorOrange
    FeaturesWaterproof

    Electrical

    Rated Voltage800V
    Rated Current40A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range6mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishTin

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
