NI2-1-S036-2AYA-C06

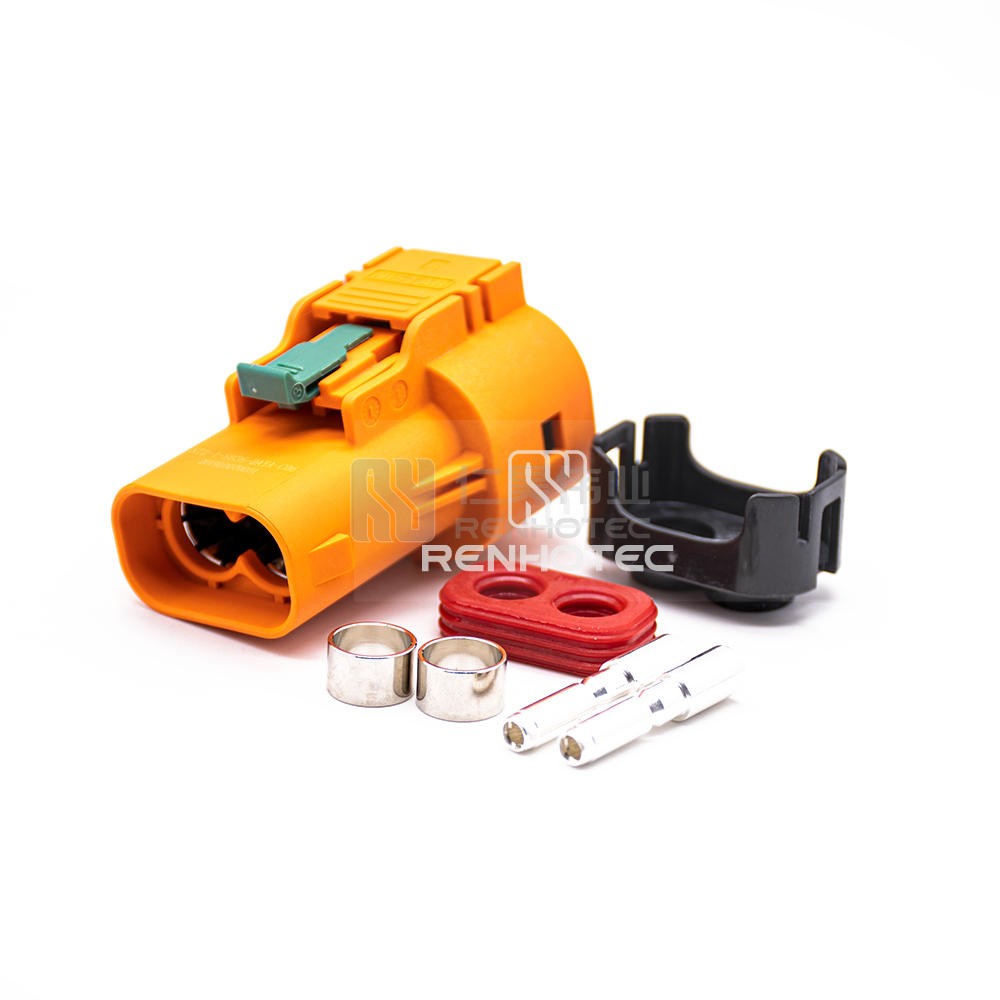

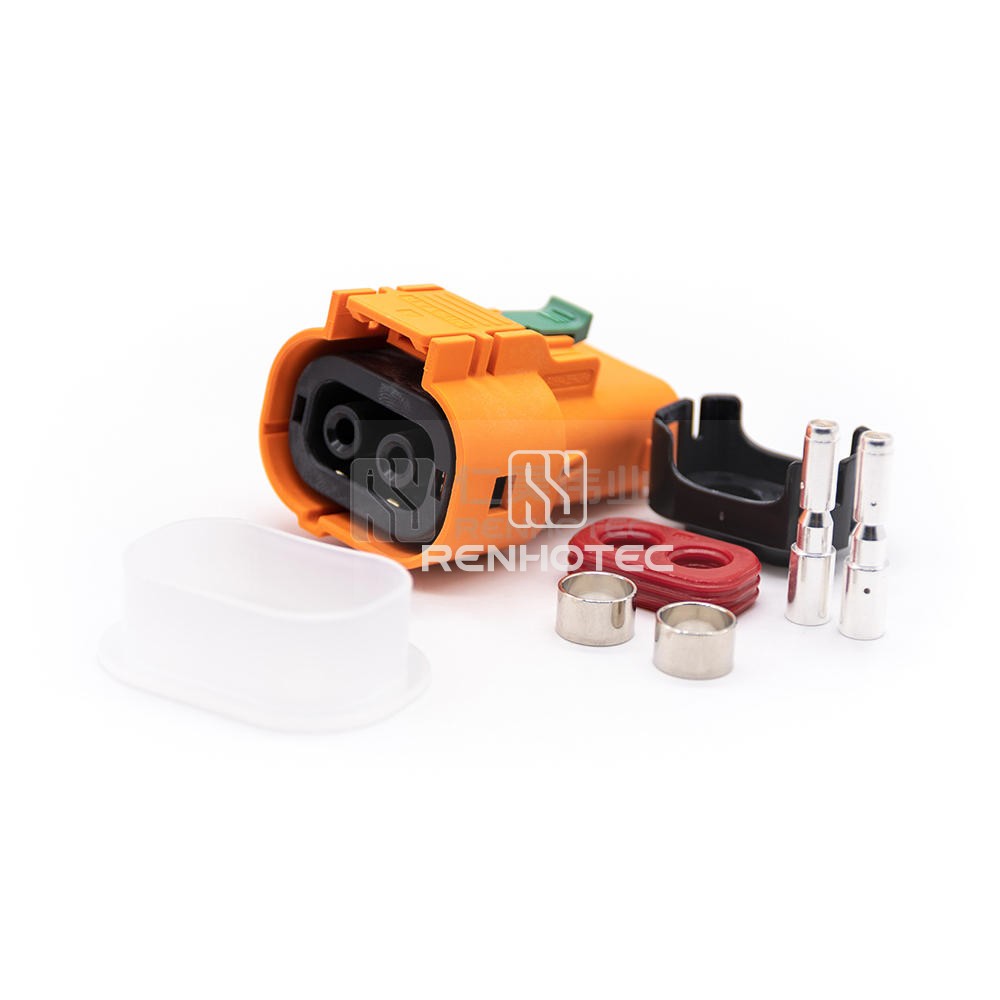

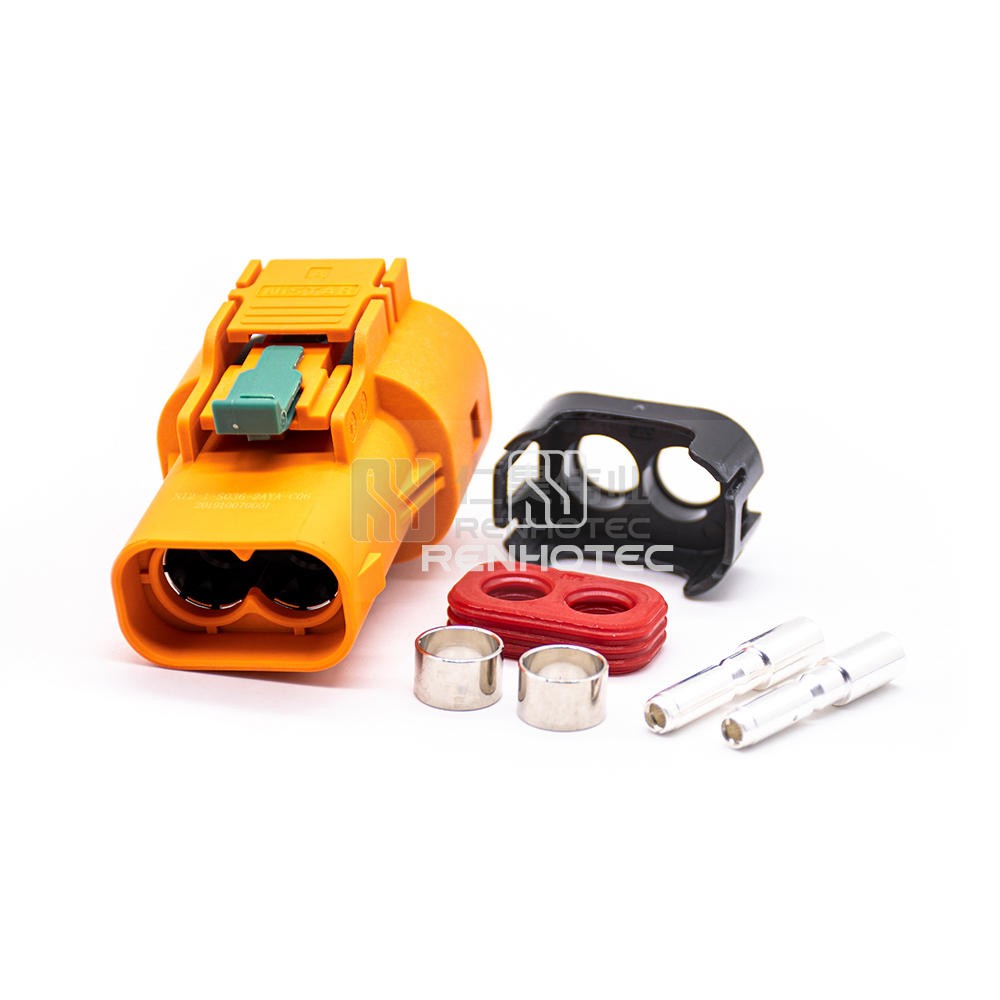

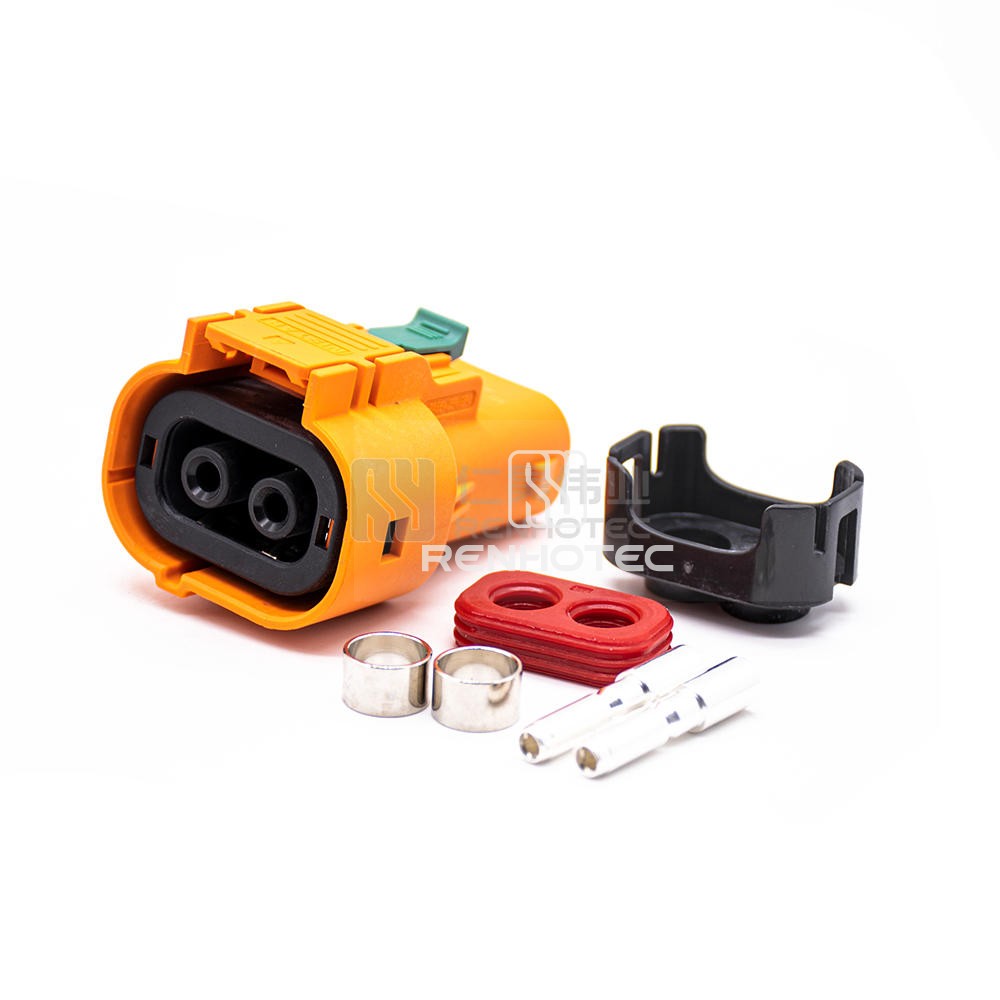

2 POS High Power Electric vehicle Cable Plug 63A 10mm2 Shielded Cable A Key Straight
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high-power electric vehicle cable plug features a 63A capacity, 10mm² shielded cable, and A key straight design. Ideal for electric vehicles, this plug provides efficient and reliable power transfer for fast charging.
GeneralMaterialMechanicalEnvironmentalElectrical
General
Connector TypePlug
OrientationStraight
Number of Positions2
Contact Size3.6mm
Contact TerminationCrimp
KeyA
ColorOrange
FeaturesIntegrated Internal HVIL
Material
Shell MaterialPA66+GF
Contact MaterialCopper Alloy
Contact FinishNickel
Mechanical
Mounting TypeCable Type
Wire Gauge or Range10mm²
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
Electrical
Rated Voltage800V
Rated Current63A
ShieldingShielded
