Products > HVIL Series Connector > 2 POS High Power Electric Vehicle Cable Plug 70A 10mm² Shielded Cable Z Key Straight

FHV201236TZ-10S01

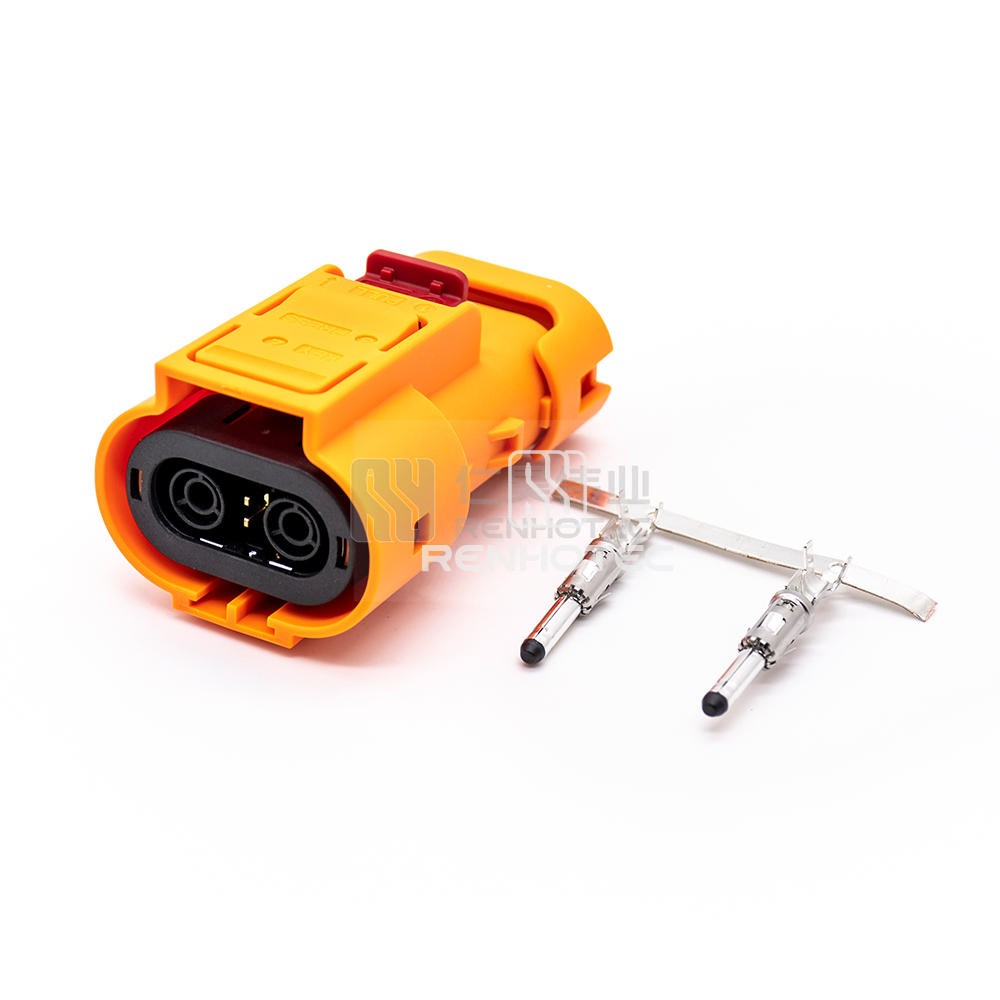

2 POS High Power Electric Vehicle Cable Plug 70A 10mm² Shielded Cable Z Key Straight

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This high-quality electric vehicle cable plug is designed for high power applications, featuring a 70A capacity and shielded 10mm² cable. Equipped with a Z Key Straight design, it ensures a secure and efficient connection for electric vehicles.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions2
    Contact TerminationCrimp
    KeyZ
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current70A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range10mm²

    Material

    Shell MaterialPA66
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
