Products > HVIL Series Connector > 2 POS High Power Electric vehicle Cable Plug 80A 16mm2 Shielded Cable A Key Right Angle

NI1-1-B060-2AYN-C07

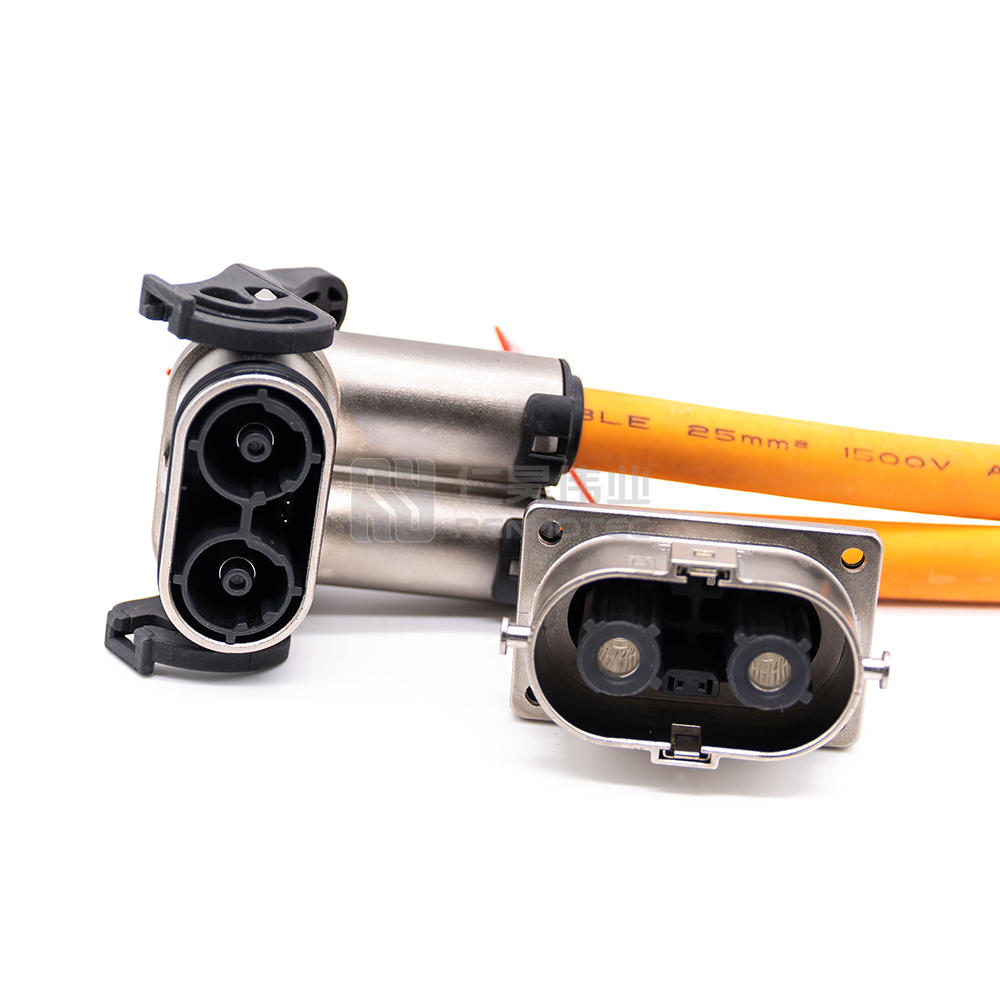

2 POS High Power Electric vehicle Cable Plug 80A 16mm2 Shielded Cable A Key Right Angle

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This 2 POS High Power Electric vehicle Cable Plug features 80A capacity, 16mm2 shielded cable, and A key right angle design. Ideal for high power electric vehicles, this plug offers reliable and efficient connection for your charging needs.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions2
    Contact Size6mm
    Contact TerminationCrimp
    KeyA
    ColorSilver

    Electrical

    Rated Voltage800V
    Rated Current80A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range16mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
