Products > HVIL Series Connector > 2 POS High Power Electric vehicle Cable Socket 35A 6mm2 Shielded Cable A Key Straight

NI1-1-H036-2AYN-C05

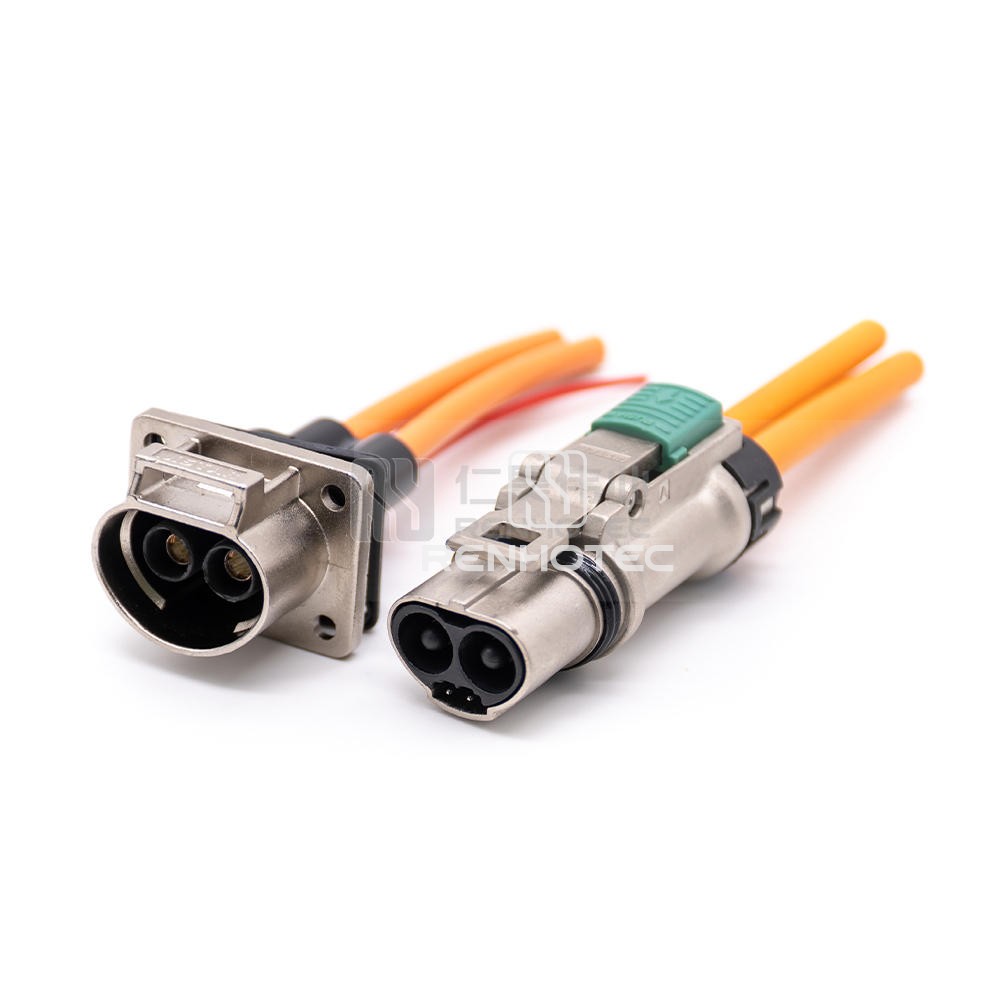

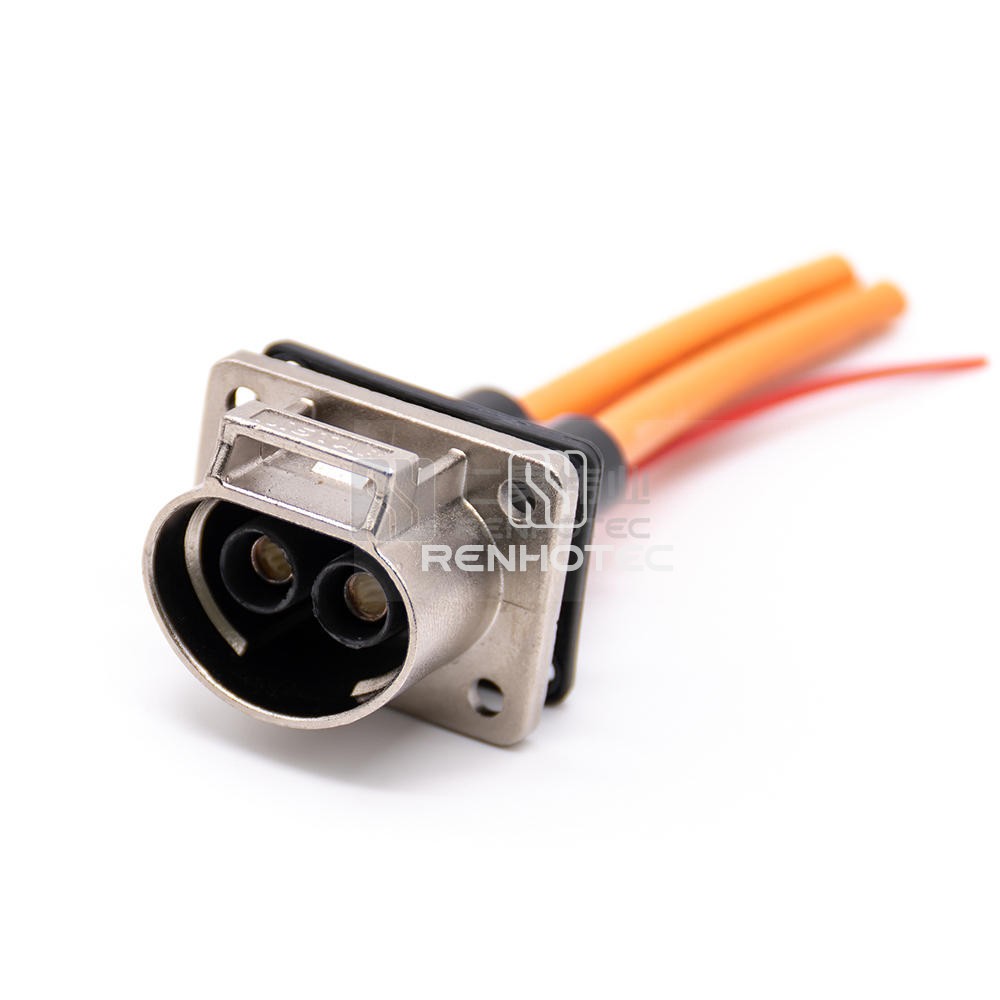

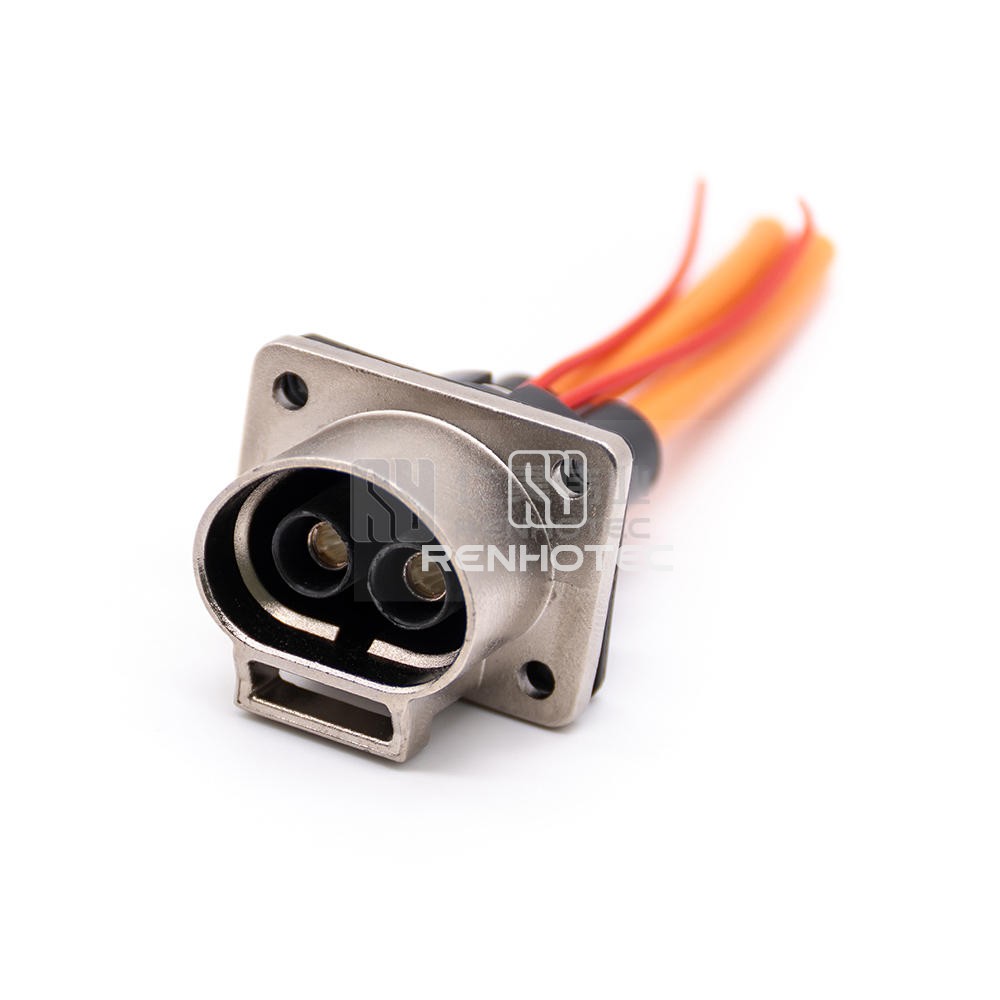

2 POS High Power Electric vehicle Cable Socket 35A 6mm2 Shielded Cable A Key Straight

This high-power electric vehicle cable socket features a 35A capacity and a 6mm² shielded cable with a convenient A key straight design. Ideal for heavy-duty applications requiring reliable connections.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions2
    Contact Size3.6mm
    Contact TerminationCrimp
    Mounting TypePanel Mount
    Mounting FeatureFlange
    KeyA
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current35A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range6mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
