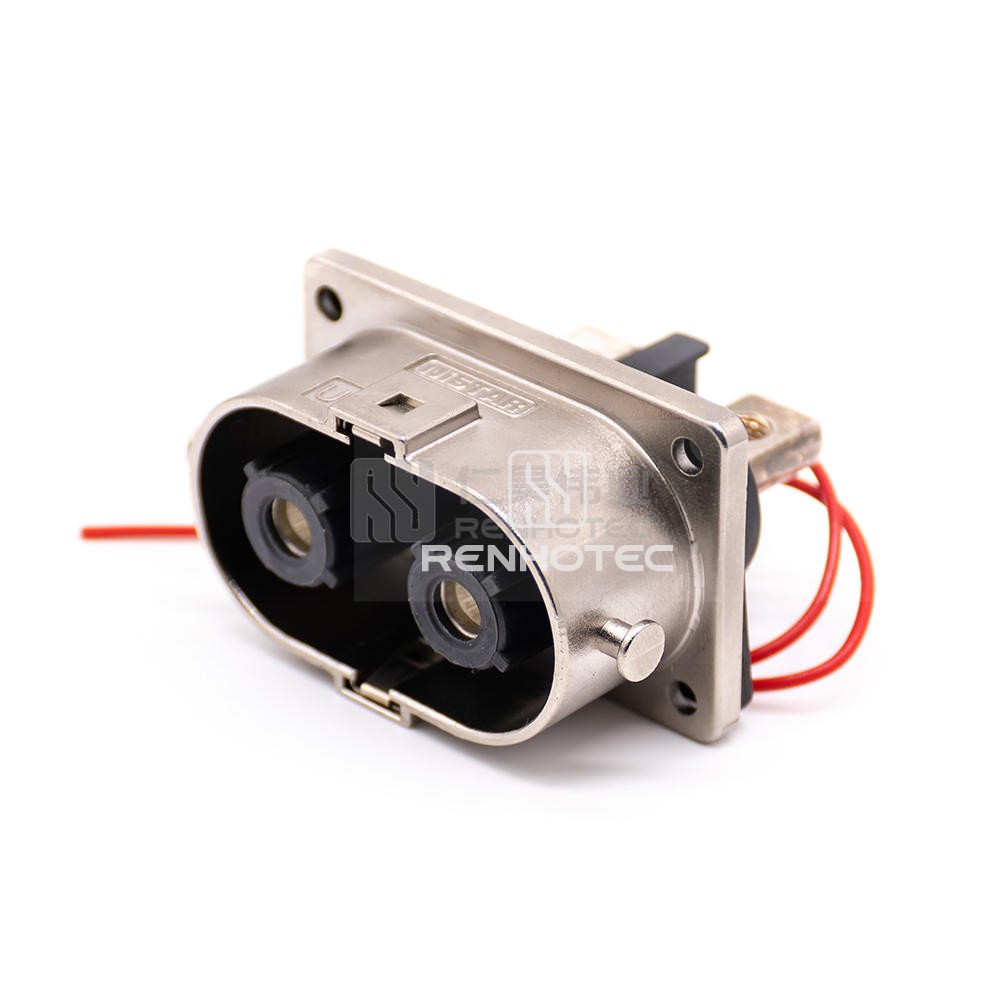

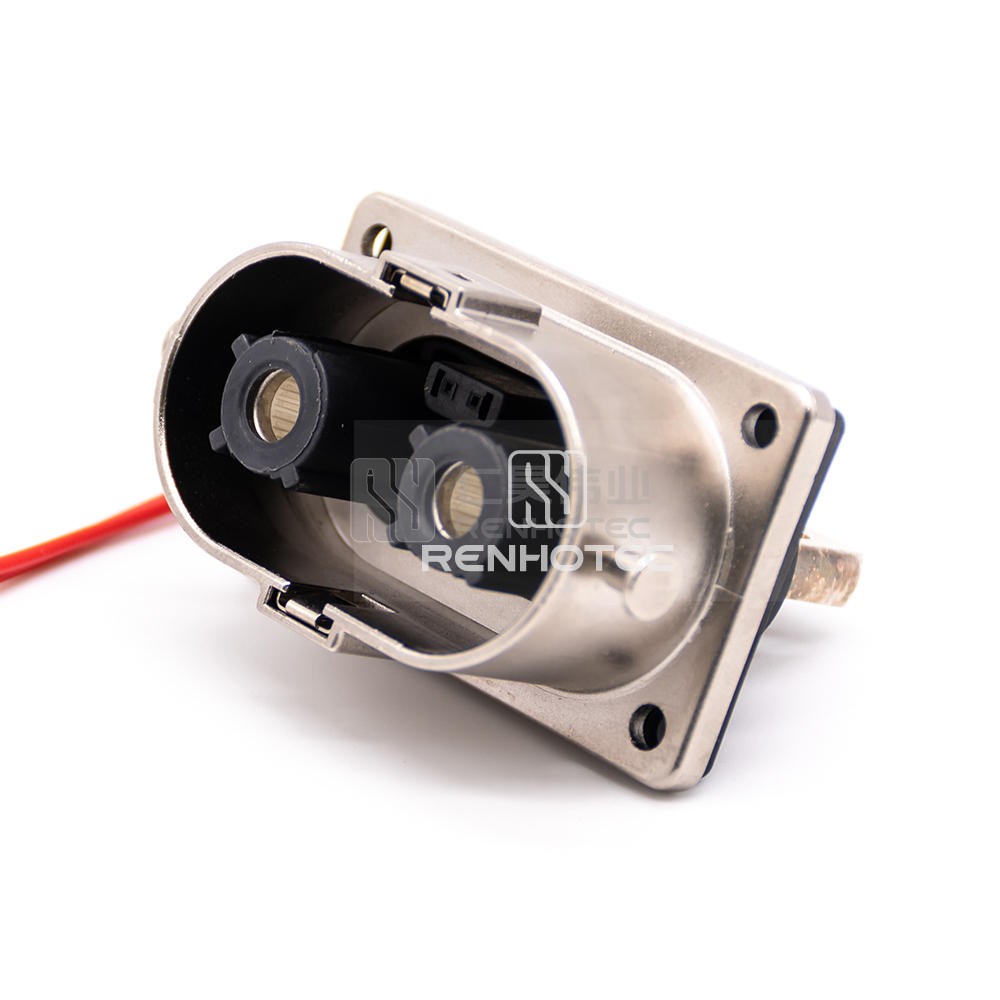

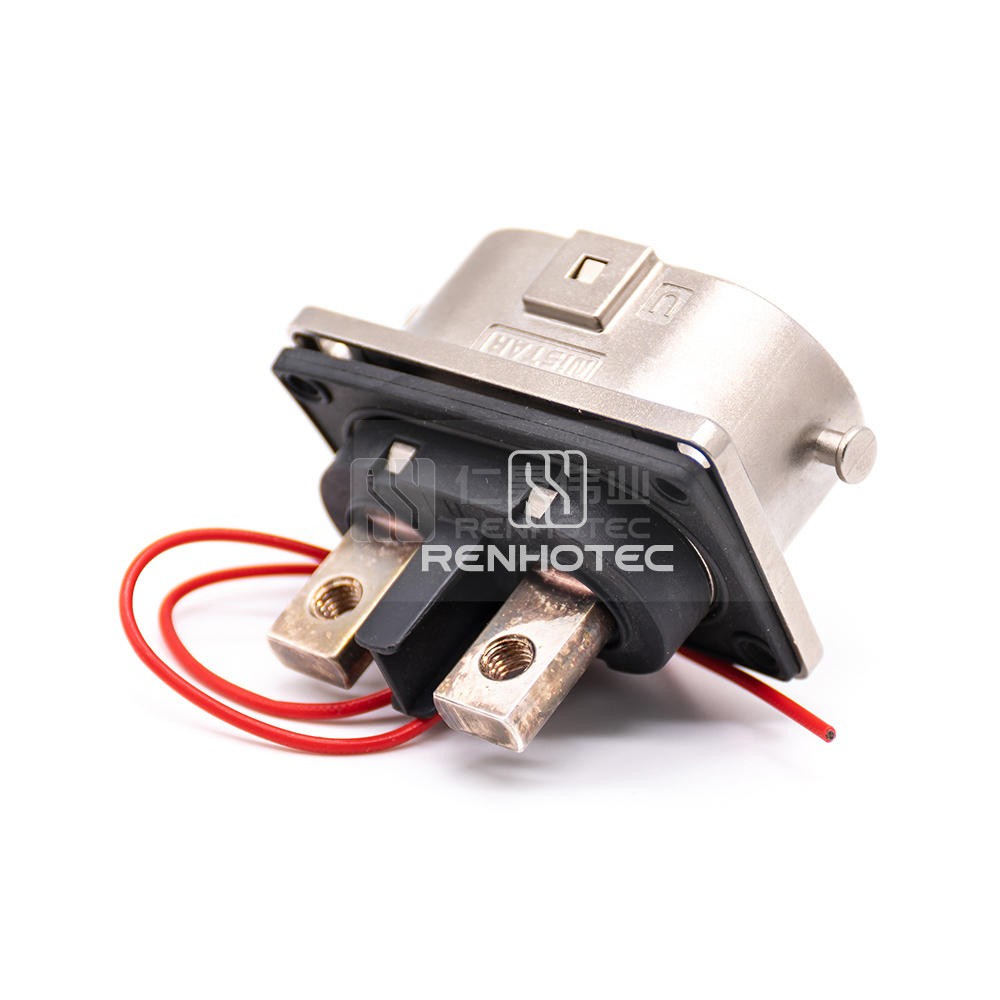

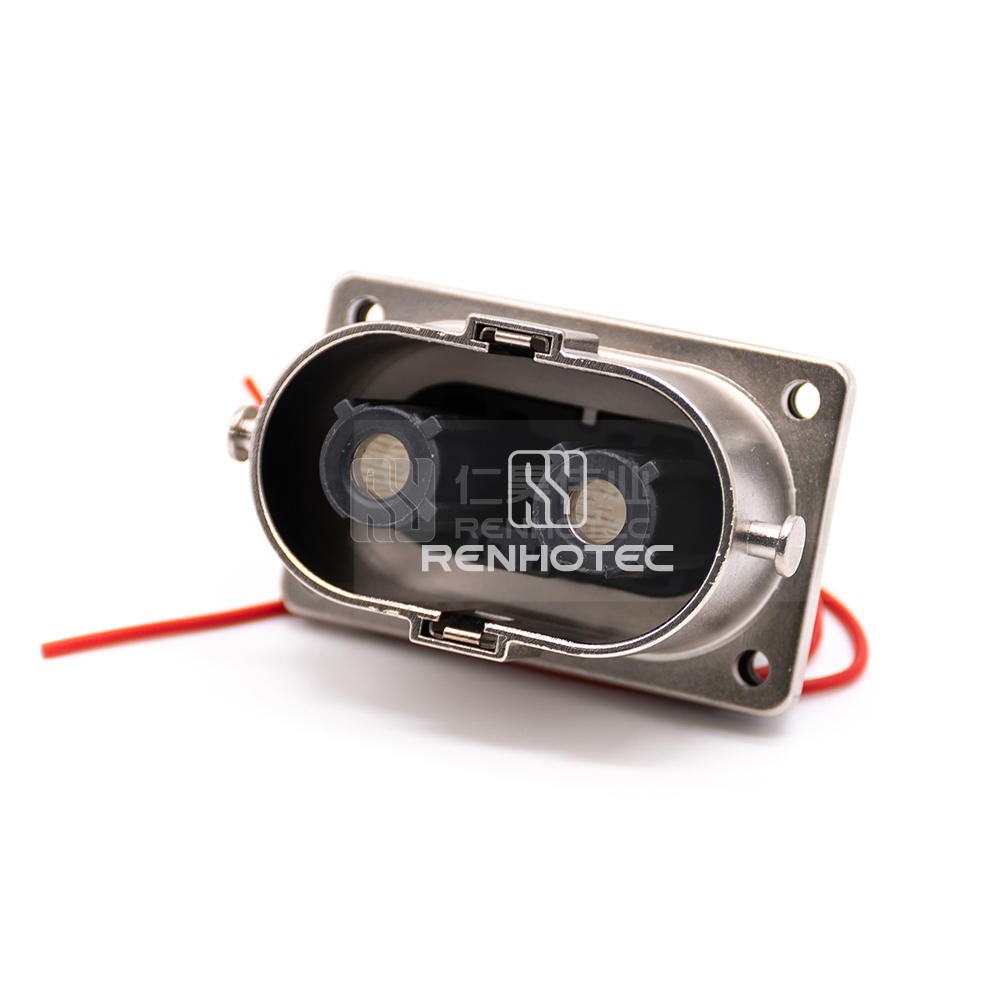

Products > HVIL Series Connector > 2 POS High Power Electric vehicle connector Socket 125A Busbar Lug
U Key Box Mount
- Overview
- Technical data
- Catalog
- Certificate
Product certification
General
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 2 |
Contact Size | 6mm |
Contact Termination | Busbar |
Key | U |
Color | Silver |
Electrical
Rated Voltage | 1000V |
Rated Current | 125A |
Shielding | Shielded |
Mechanical
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Wire Gauge or Range | M6 Threaded Hole |
Material
Shell Material | Zinc Alloy |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
High Voltage Interlock Connectors CE | Download |
