Products > HVIL Series Connector > 2 POS High Power Electric vehicle connector Socket 125A Busbar M6 A Key Box Mount
product image

NI2-1-H060-2AYA-T07-1

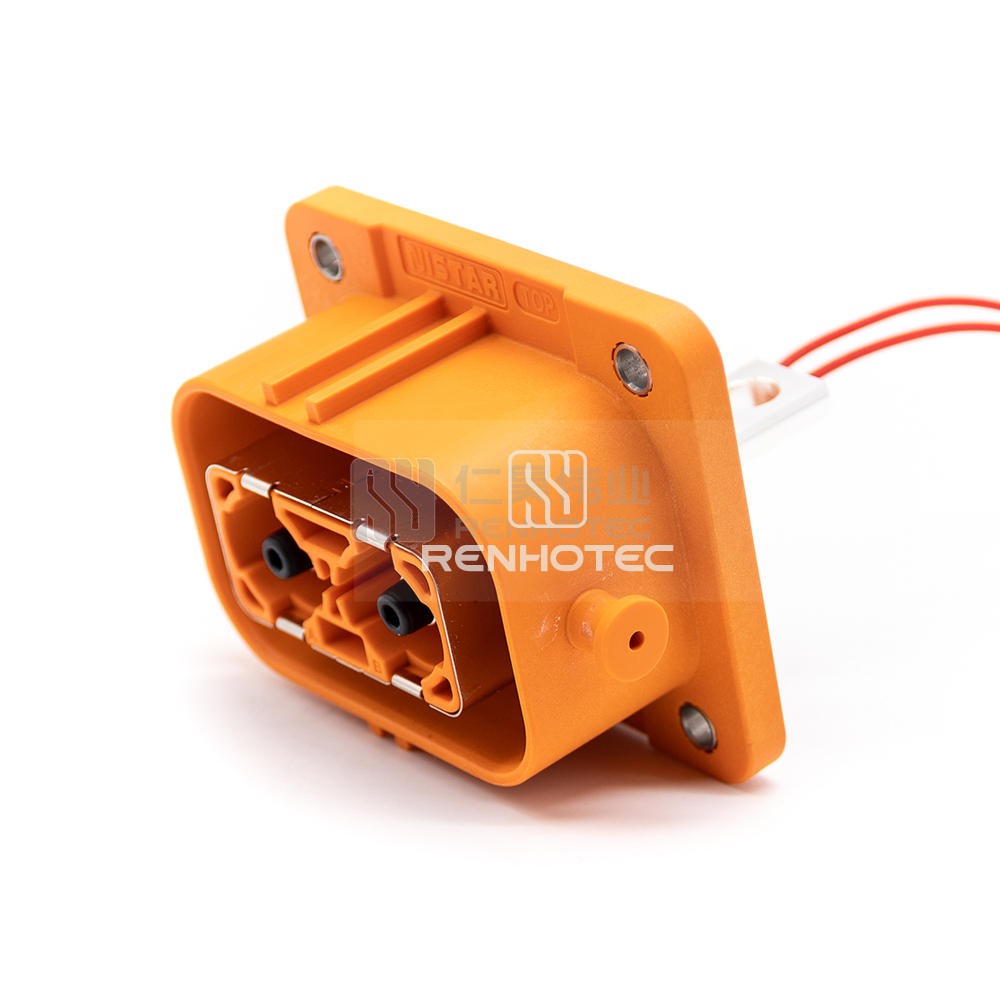

2 POS High Power Electric vehicle connector Socket 125A Busbar M6 A Key Box Mount
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high-power electric vehicle connector socket efficiently delivers 125A while featuring a sturdy busbar and M6 connection. The key box mount ensures convenient and secure installation. Ideal for various electric vehicle applications.
GeneralMaterialMechanicalEnvironmentalElectrical
General
Connector TypeReceptacle
OrientationStraight
Number of Positions2
Contact Size6mm
Contact TerminationBusbar
KeyA
ColorOrange
Material
Shell MaterialPA66+GF
Contact MaterialCopper Alloy
Contact FinishNickel
Mechanical
Mounting TypePanel Mount
Mounting FeatureFour Flange
Wire Gauge or RangeM6 Threaded Hole
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
Electrical
Rated Voltage800V
Rated Current125A
ShieldingShielded
