Products > HVIL Series Connector > 2 POS High Power Electric vehicle connector Socket 150A Busbar Through Hole φ5.5mm A Key Box Mount

NI2-1-H060-2AYA-T02

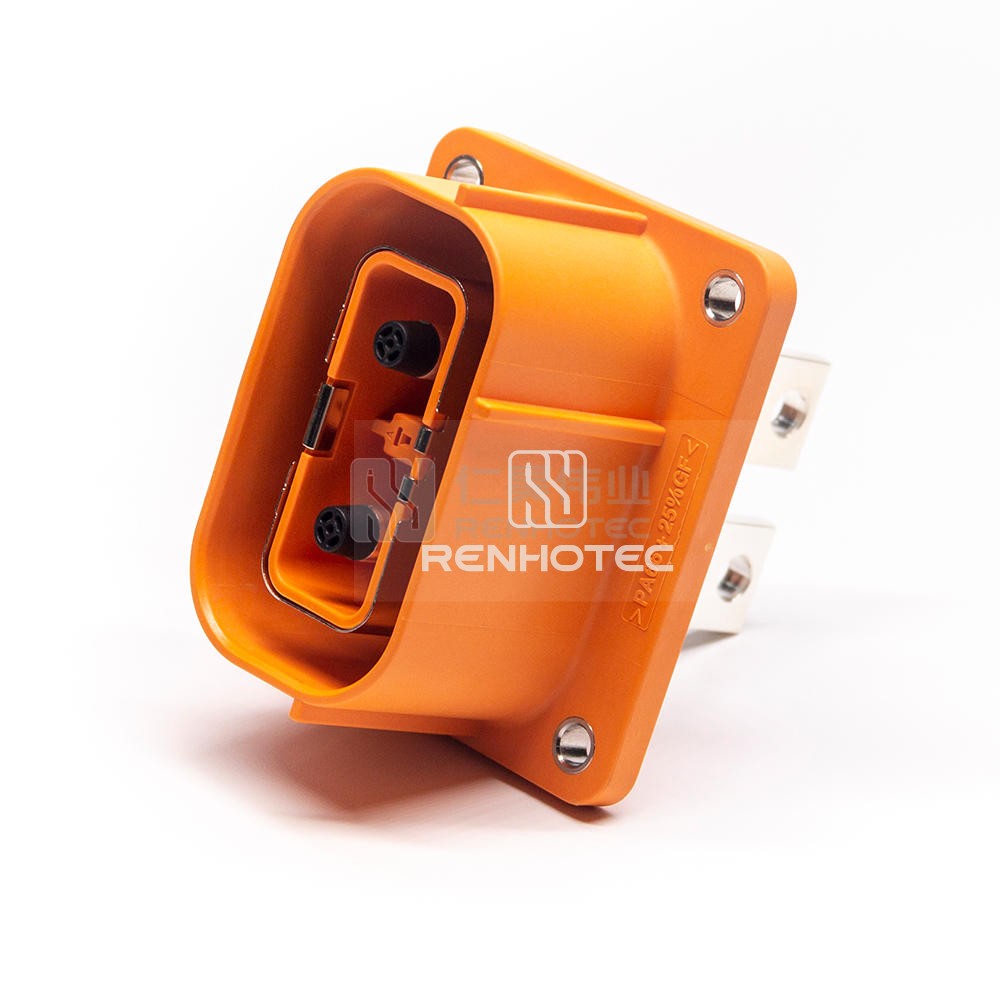

2 POS High Power Electric vehicle connector Socket 150A Busbar Through Hole φ5.5mm A Key Box Mount

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This high power electric vehicle connector socket features a 150A capacity and is designed for easy installation with a through hole of φ5.5mm and a key box mount. Ideal for electric vehicle charging applications.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions2
    Contact Size6mm
    Contact TerminationBusbar
    KeyA
    ColorOrange
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current150A
    ShieldingShielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFour Flange
    Wire Gauge or Rangeφ5.5Through Hole

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
