NI2-1-H060-2YYA-T02

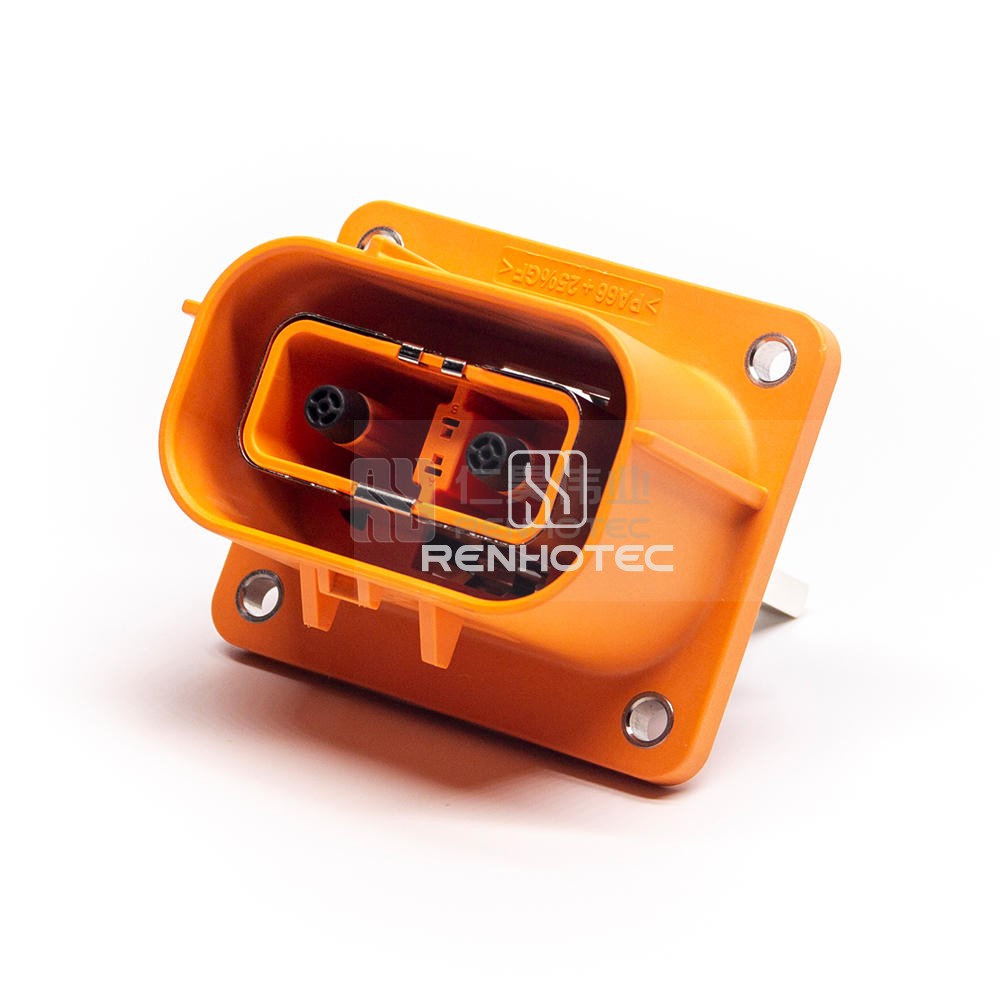

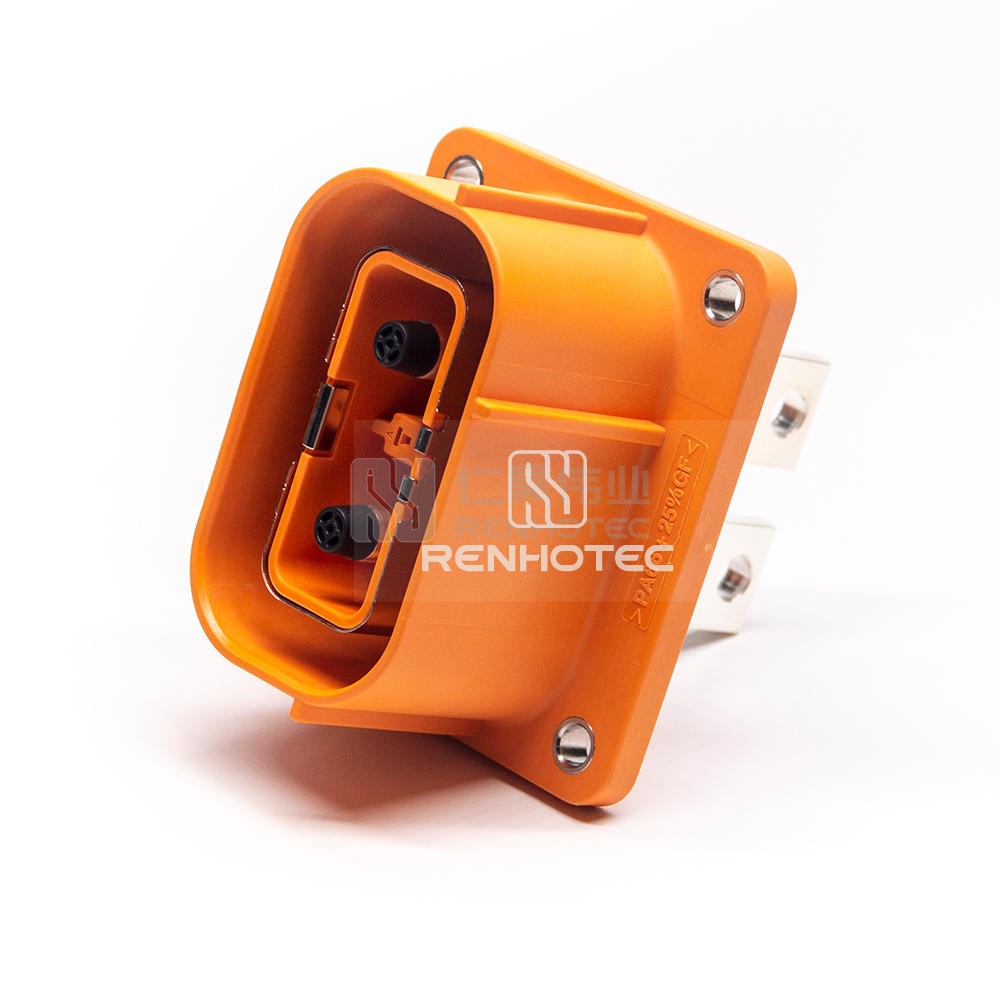

2 POS High Power Electric vehicle connector Socket 150A Busbar Through Hole φ5.5mm Y Key Box Mount

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This high power electric vehicle connector socket is designed for 150A current with a through hole of 5.5mm diameter. It features a Y key box mount for secure connection. Ideal for electric vehicles and other high-power applications.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions2
    Contact Size6mm
    Contact TerminationBusbar
    KeyY
    ColorOrange
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current150A
    ShieldingShielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFour Flange
    Wire Gauge or Rangeφ5.5Through Hole

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
