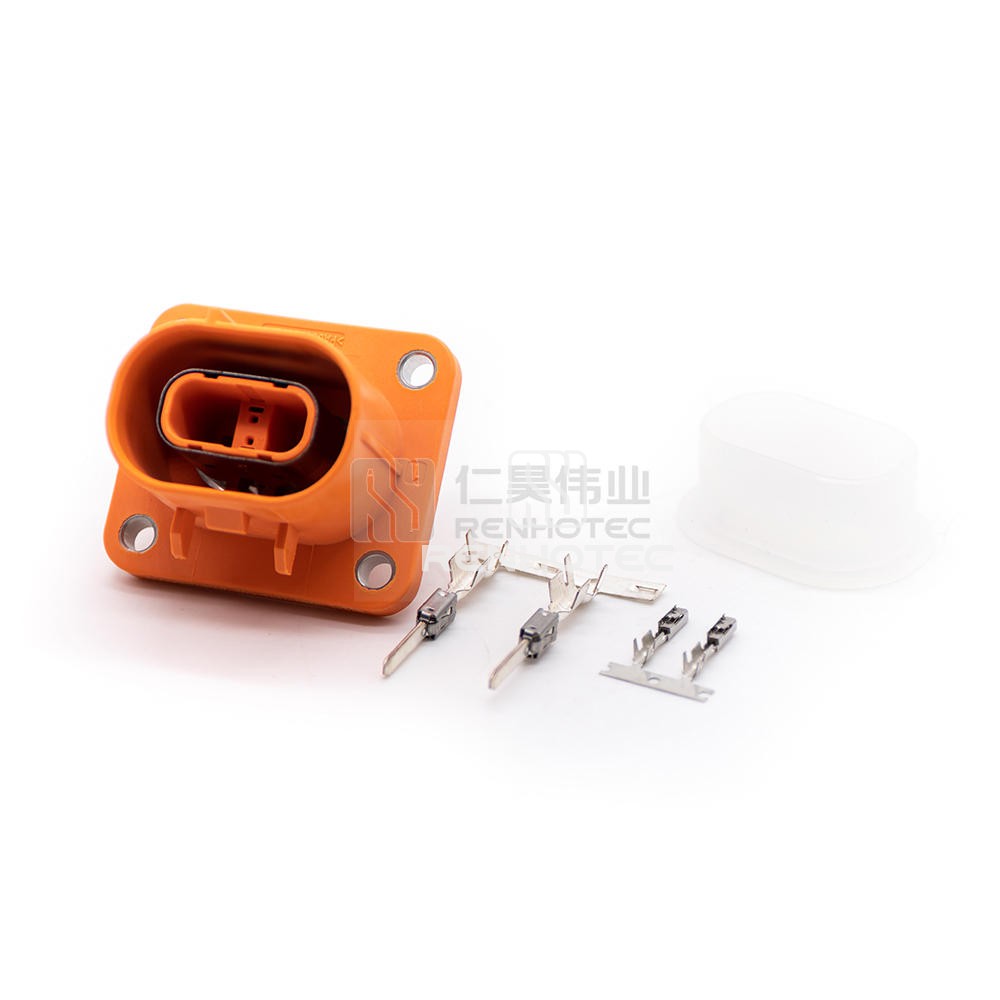

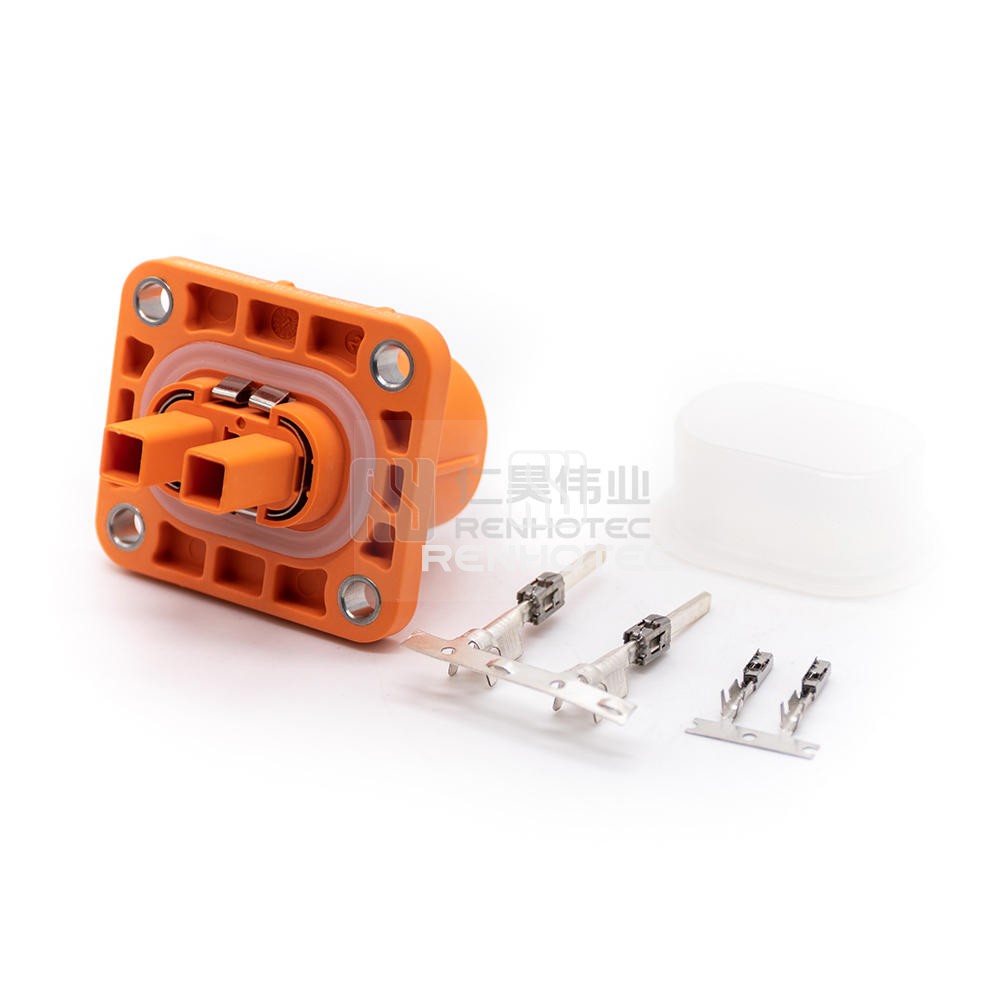

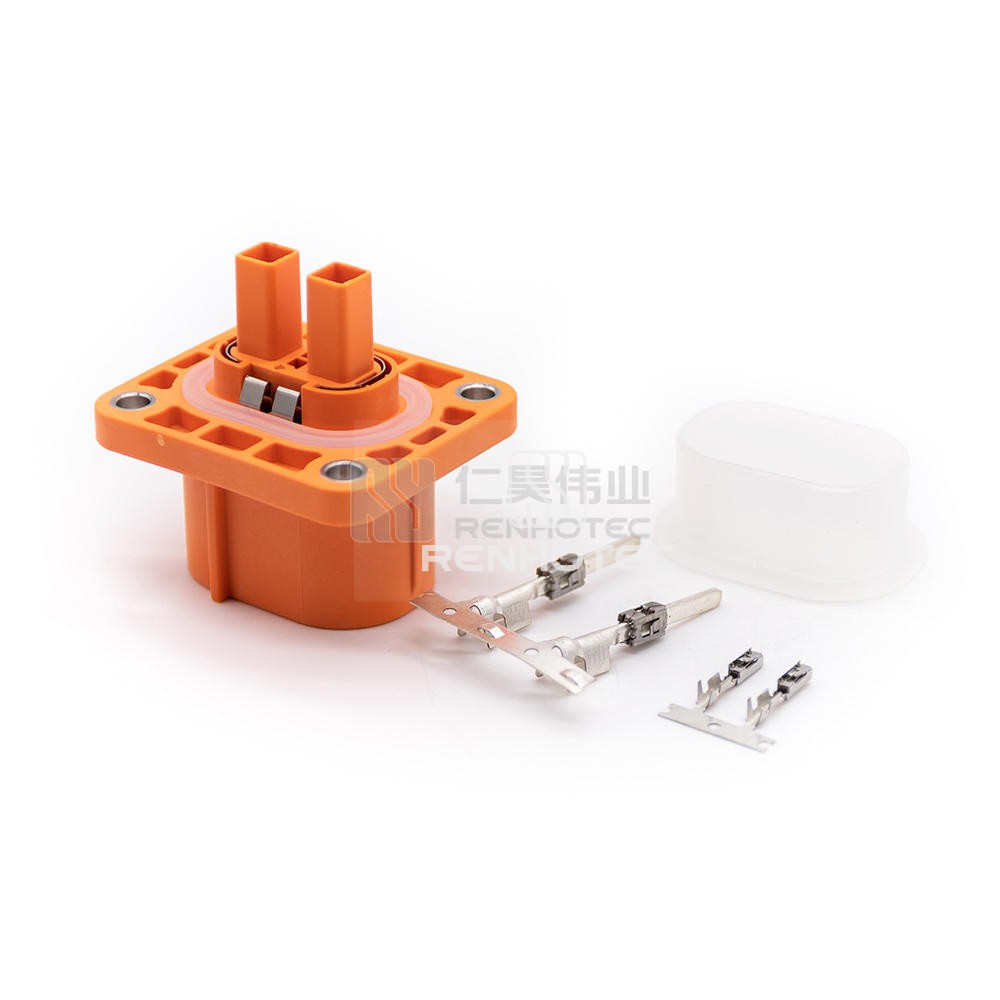

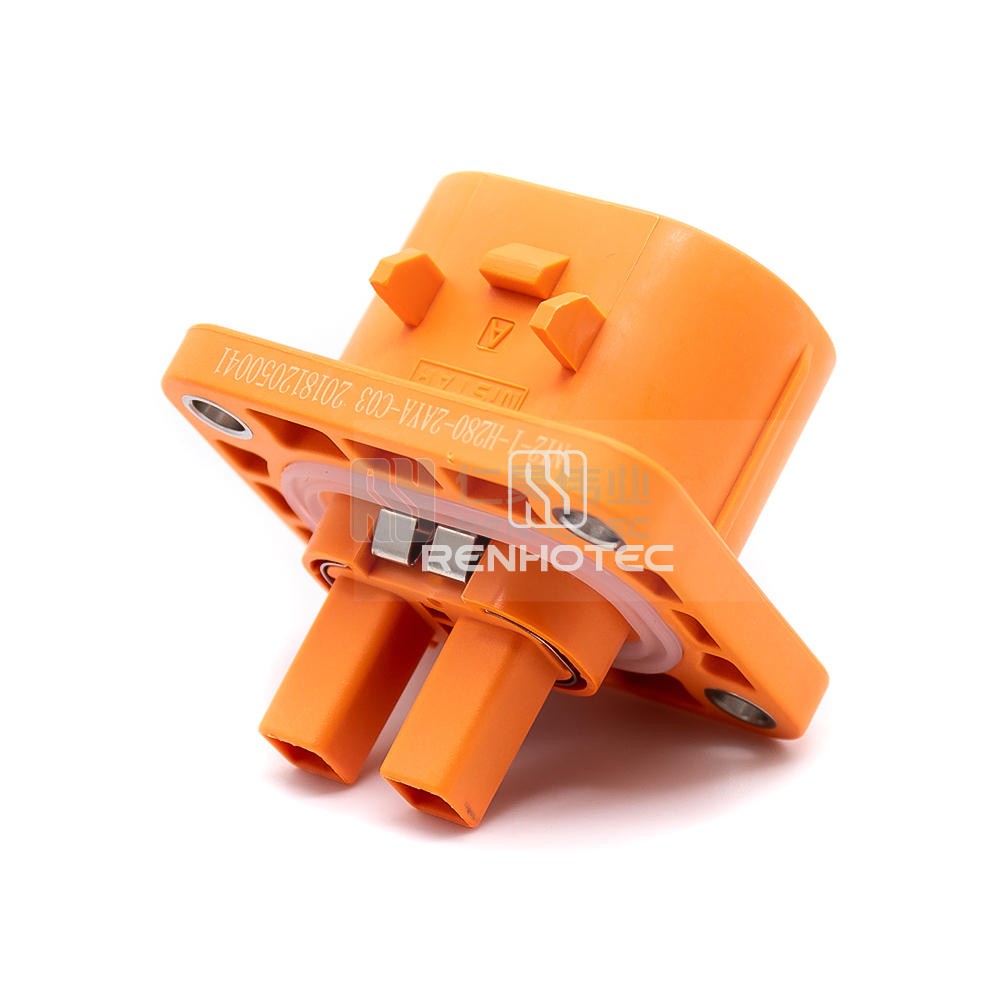

Shop the 2 POS High Power Electric Vehicle connector Socket with 16A capacity and 2.5mm² shielded cable. Features a convenient A key design for secure connections. Ideal for electric vehicle charging applications.
General
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 2 |
Contact Size | 2.8mm |
Contact Termination | Crimp |
Key | A |
Color | Orange |
Features | Integrated Internal HVIL |
Electrical
Rated Voltage | 800V |
Rated Current | 16A |
Shielding | Shielded |
Mechanical
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Wire Gauge or Range | 2.5mm² |
Material
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
