Products > HVIL Series Connector > 2 POS High Power Electric vehicle connector Socket 200A M8 Busbar Lug Y Key Box Mount

NI2-1-H080-2YYA-T08

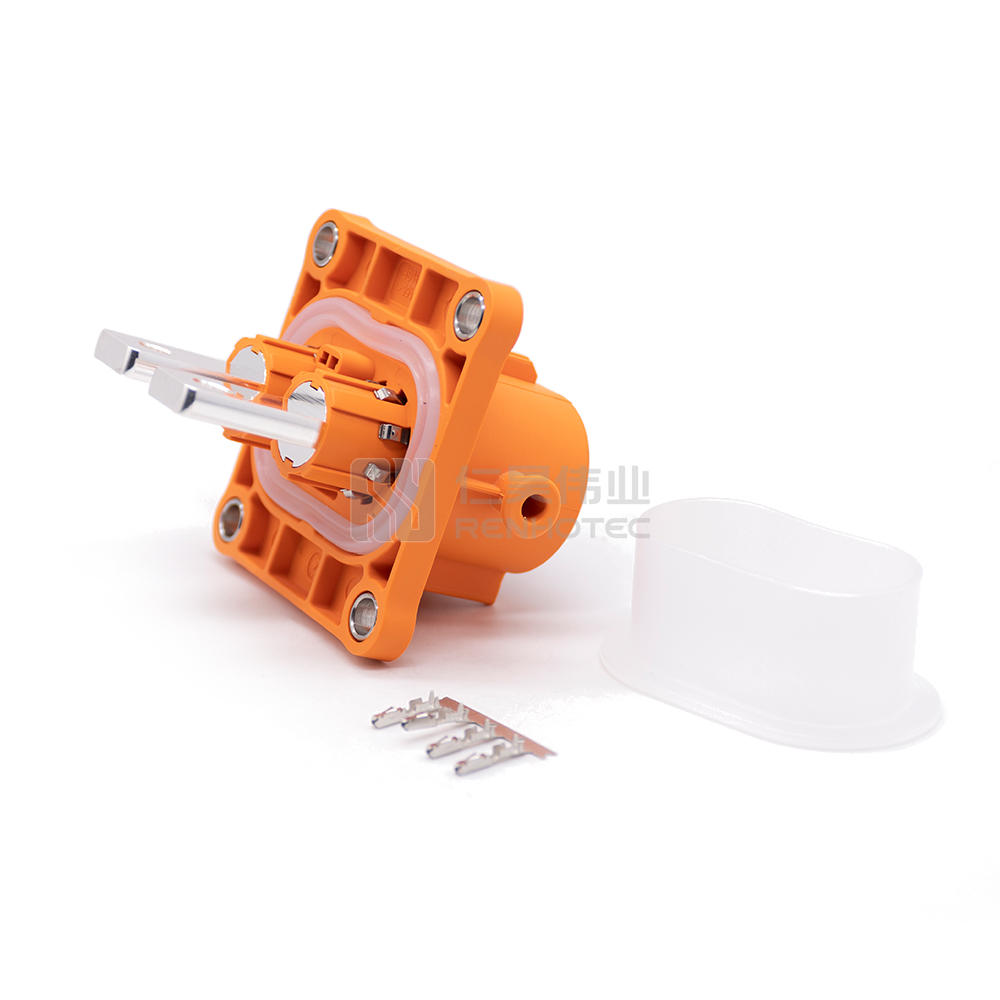

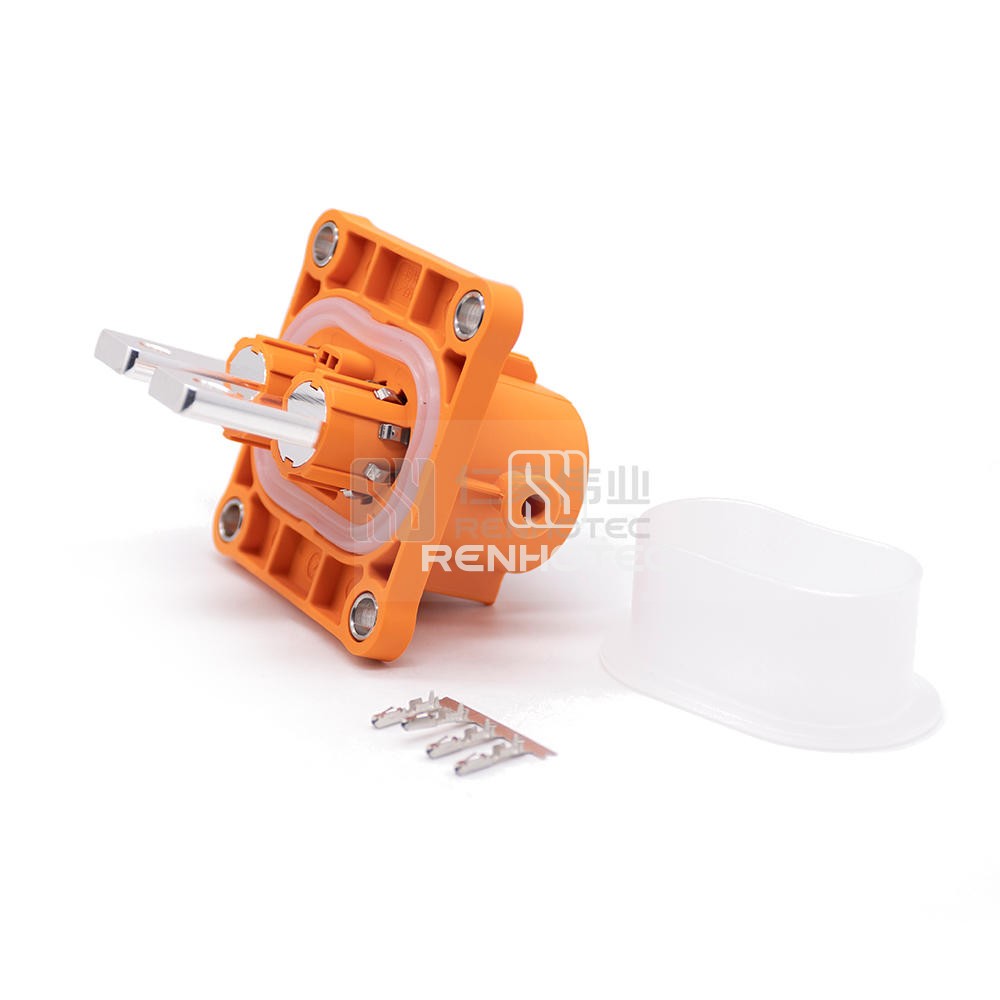

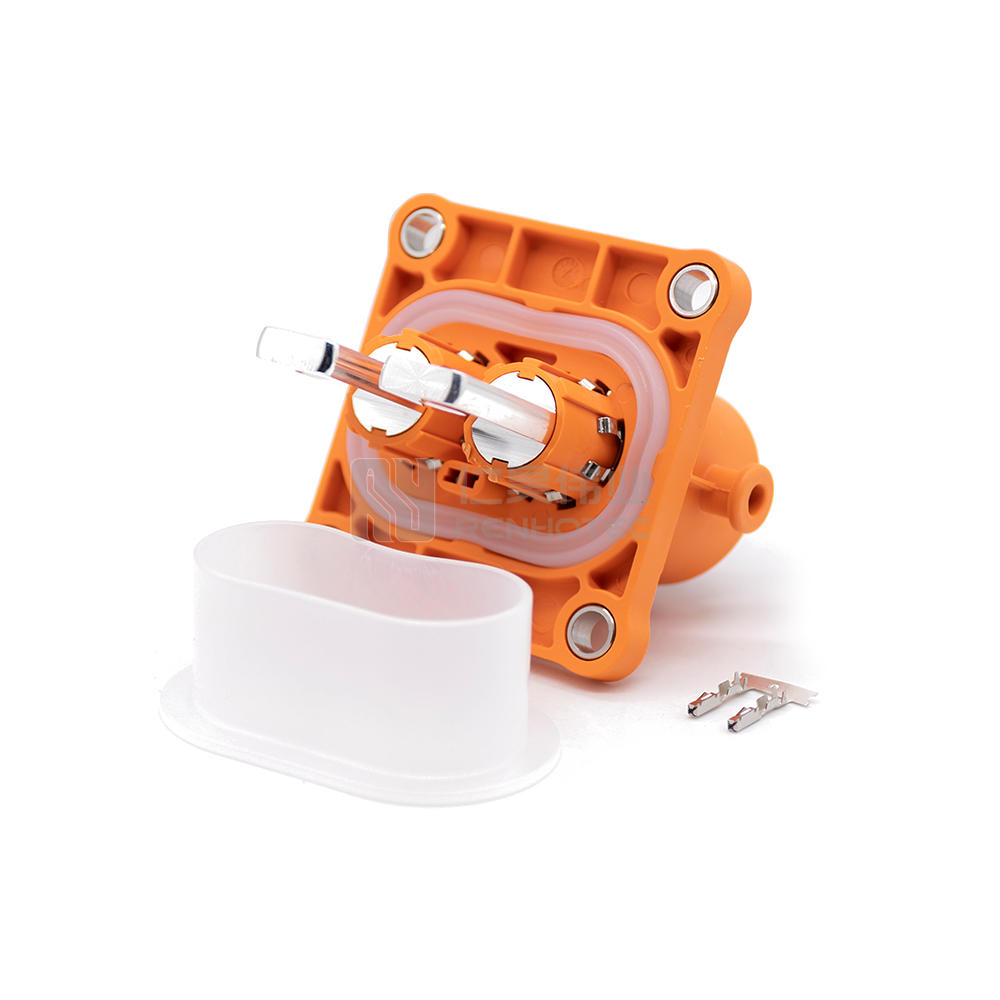

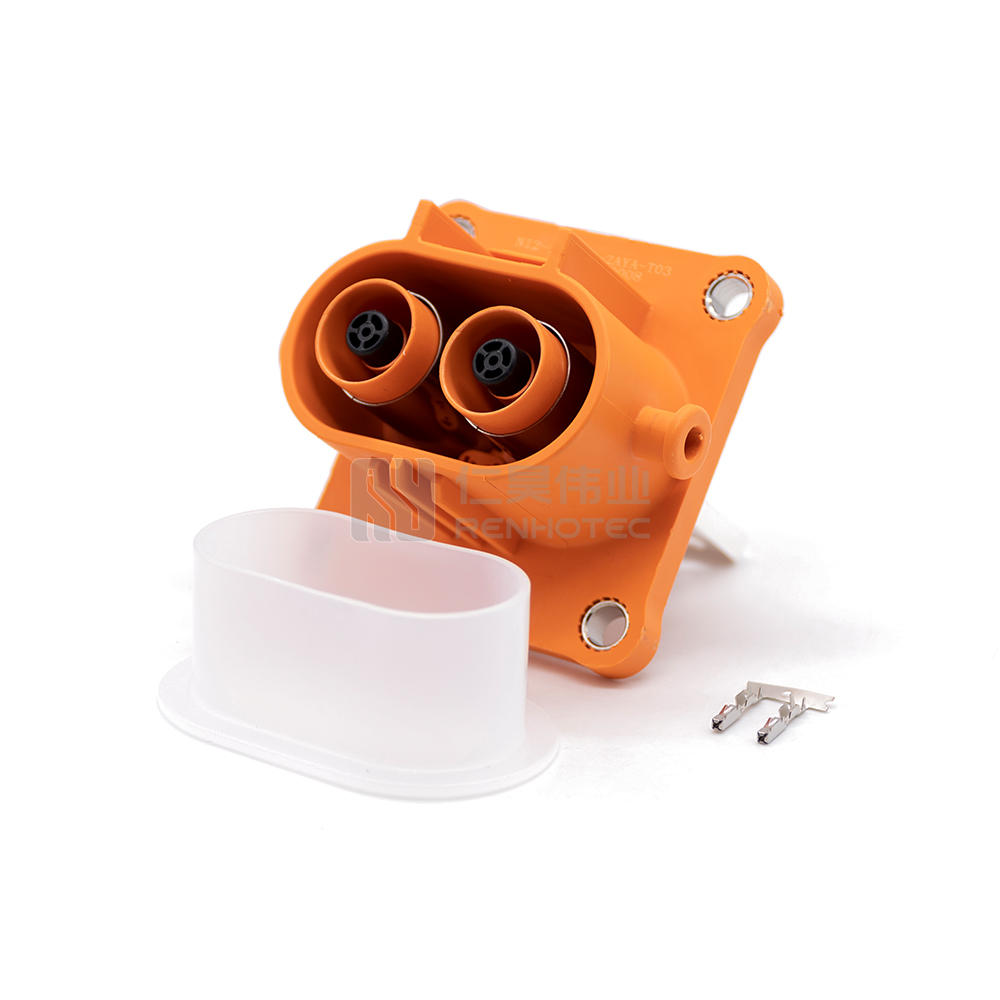

2 POS High Power Electric vehicle connector Socket 200A M8 Busbar Lug Y Key Box Mount

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This high-powered 2 POS electric vehicle connector socket with 200A capacity and M8 busbar lug is designed for easy mounting in Y key box setups. Ideal for electric vehicle charging applications, this connector ensures secure and efficient power transfer.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions2
    Contact Size8mm
    Contact TerminationBusbar
    KeyY
    ColorOrange

    Electrical

    Rated Voltage800V
    Rated Current200A
    ShieldingShielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFour Flange
    Wire Gauge or RangeM8 Threaded Hole

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
