NI2-1-H036-2AYA-C04

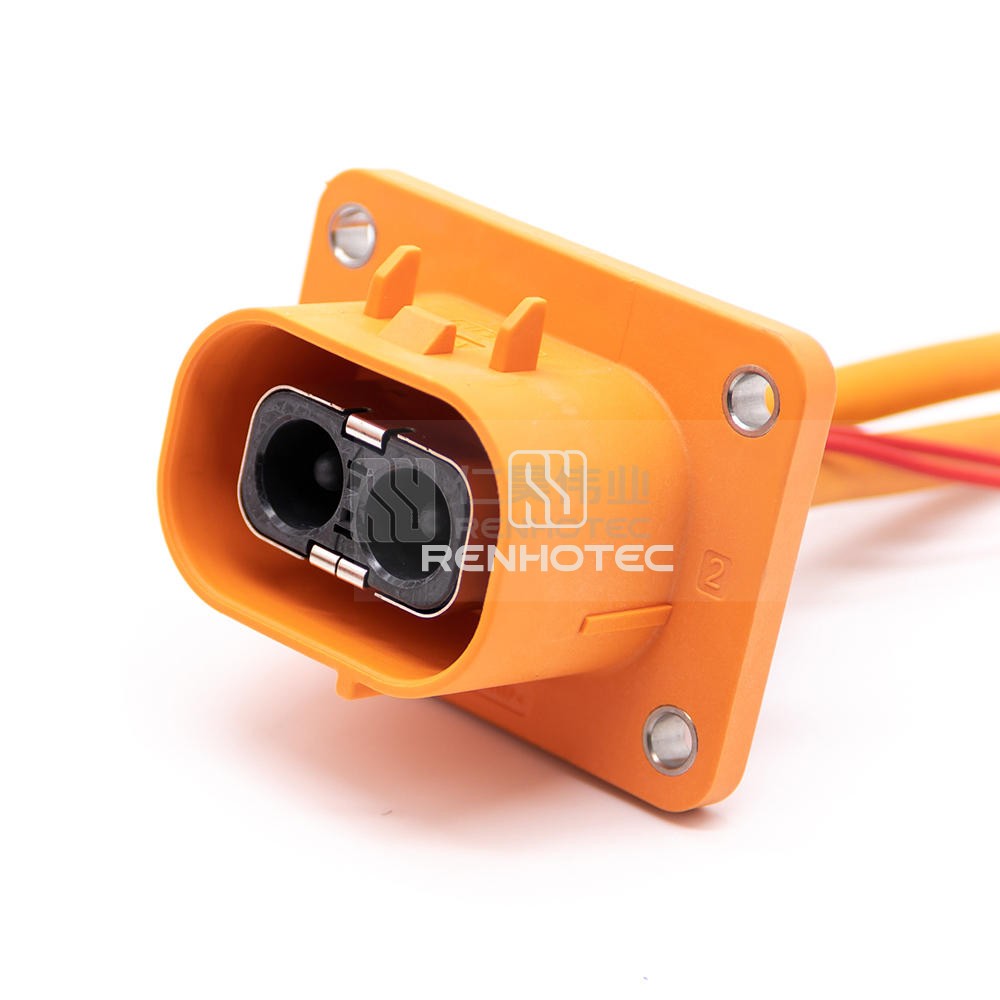

2 POS High Power Electric vehicle connector Socket 23A 4mm2 Shielded Cable A Key
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high-power electric vehicle connector socket features a shielded cable, 23A capacity, and A key design. Ideal for electric vehicle charging applications, providing efficient and reliable connection.
GeneralMaterialMechanicalEnvironmentalElectrical
General
Connector TypeReceptacle
OrientationStraight
Number of Positions2
Contact Size3.6mm
Contact TerminationCrimp
KeyA
ColorOrange
FeaturesIntegrated Internal HVIL
Material
Shell MaterialPA66+GF
Contact MaterialCopper Alloy
Contact FinishNickel
Mechanical
Mounting TypePanel Mount
Mounting FeatureFour Flange
Wire Gauge or Range4mm²
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
Electrical
Rated Voltage800V
Rated Current23A
ShieldingShielded
