Products > HVIL Series Connector > 2 POS High Power Electric vehicle connector Socket 250A Busbar Lug A Key Box Mount

ST523000-A

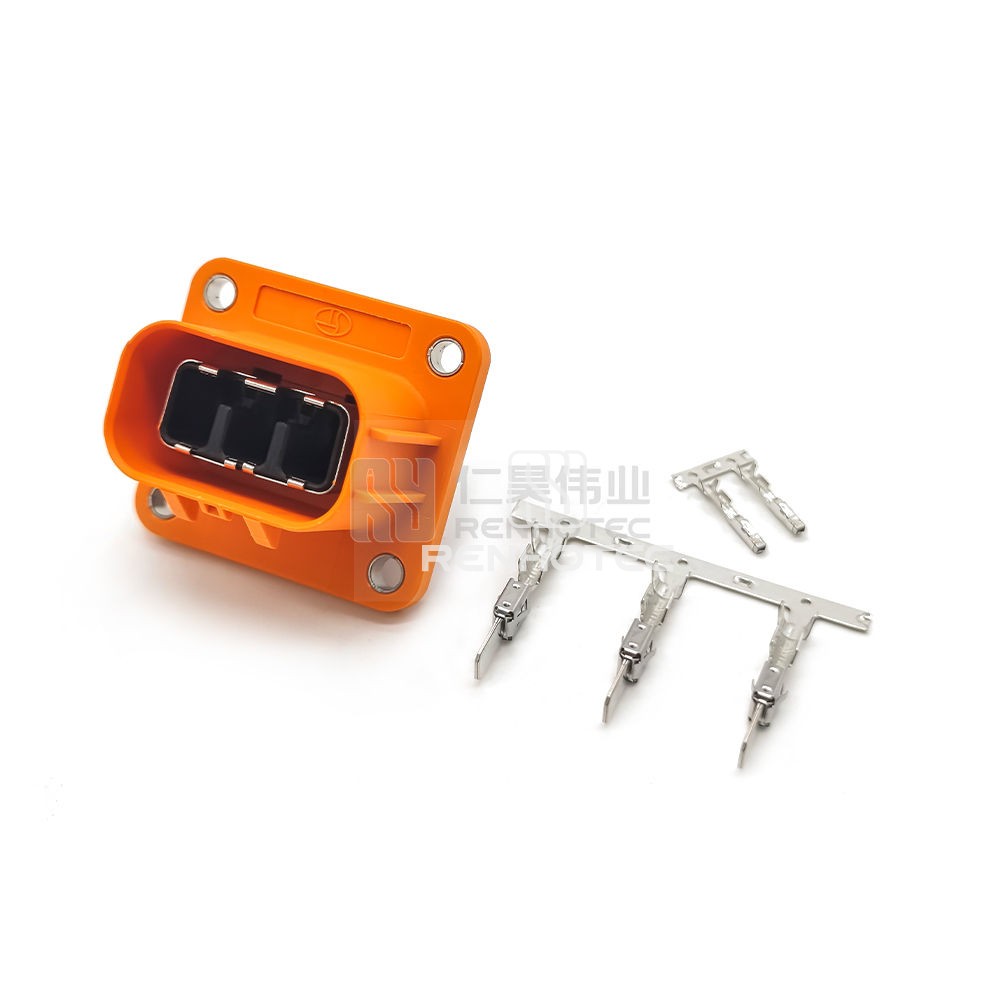

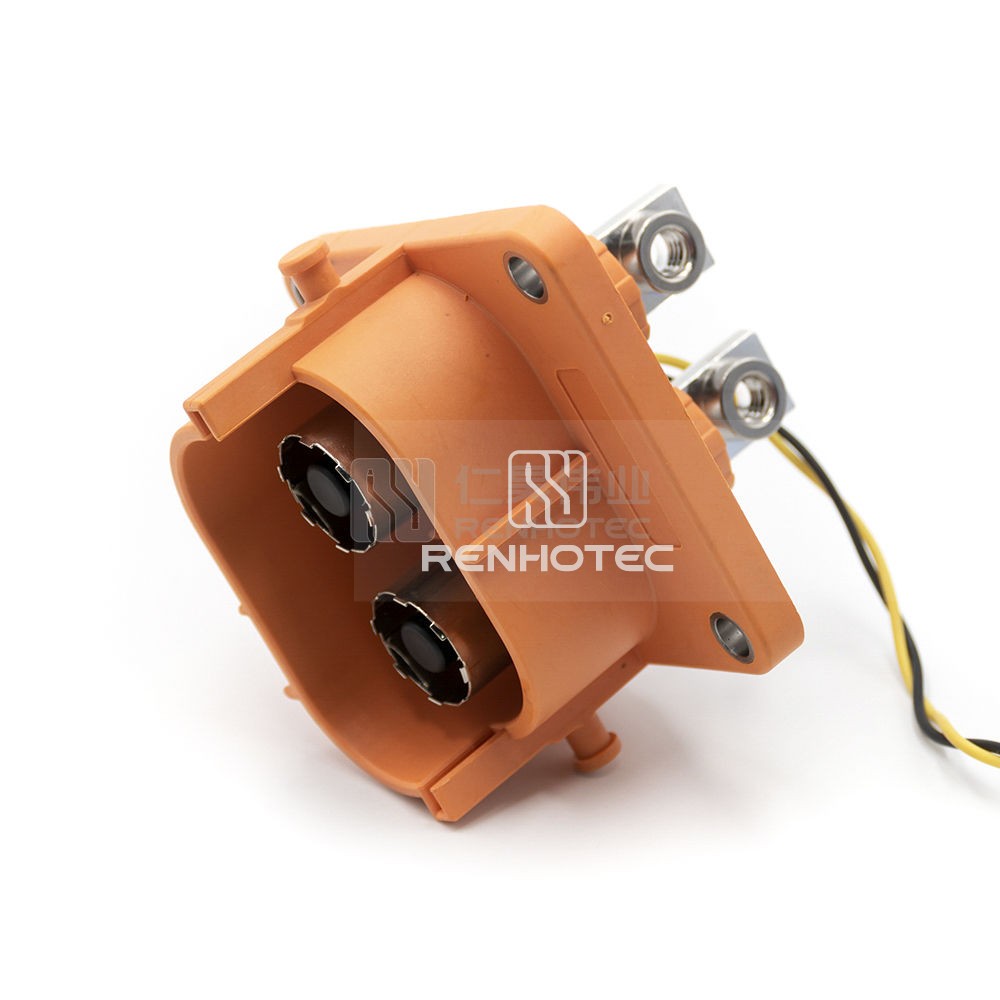

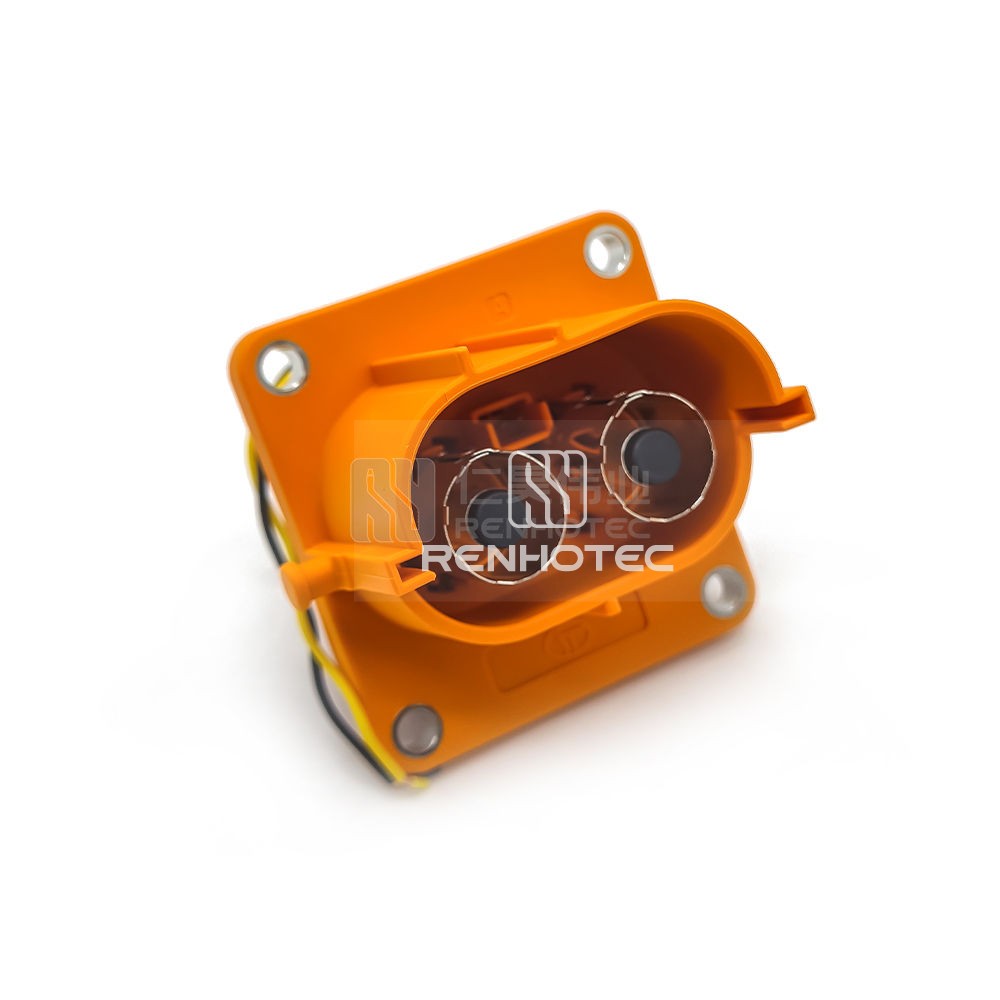

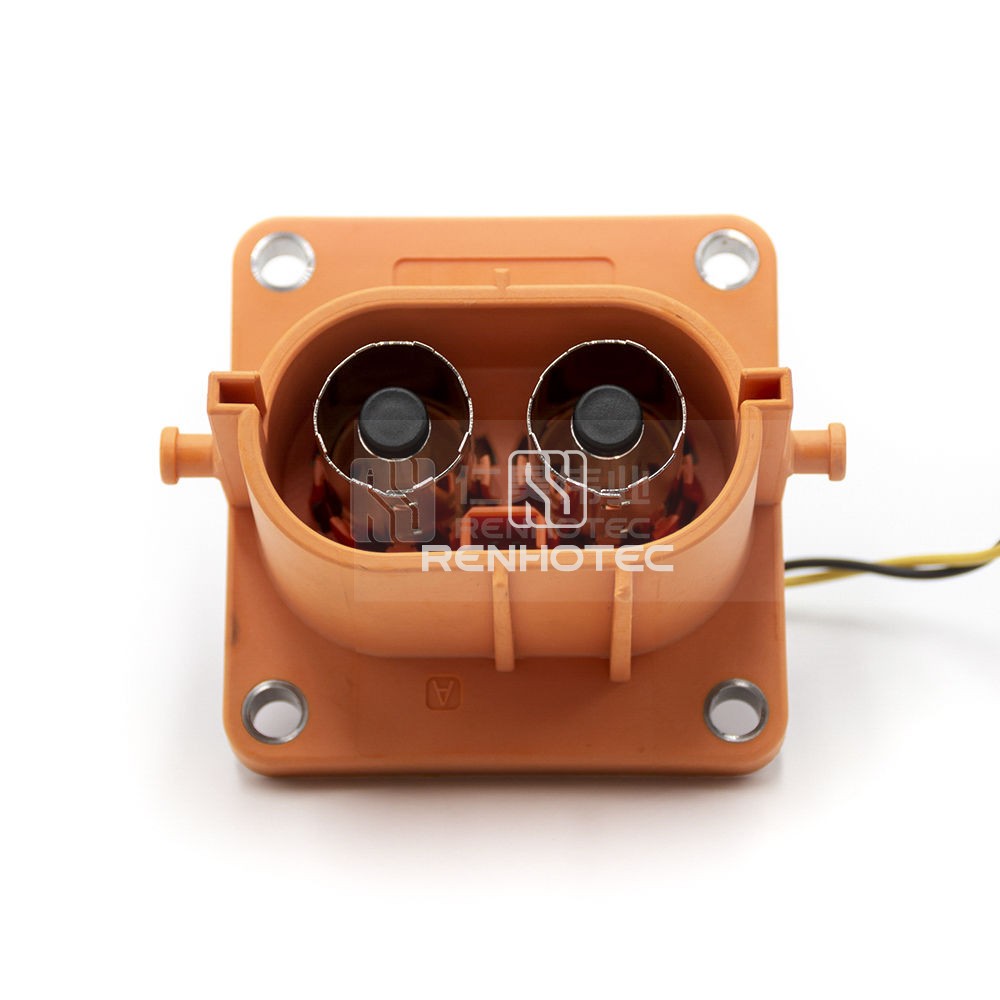

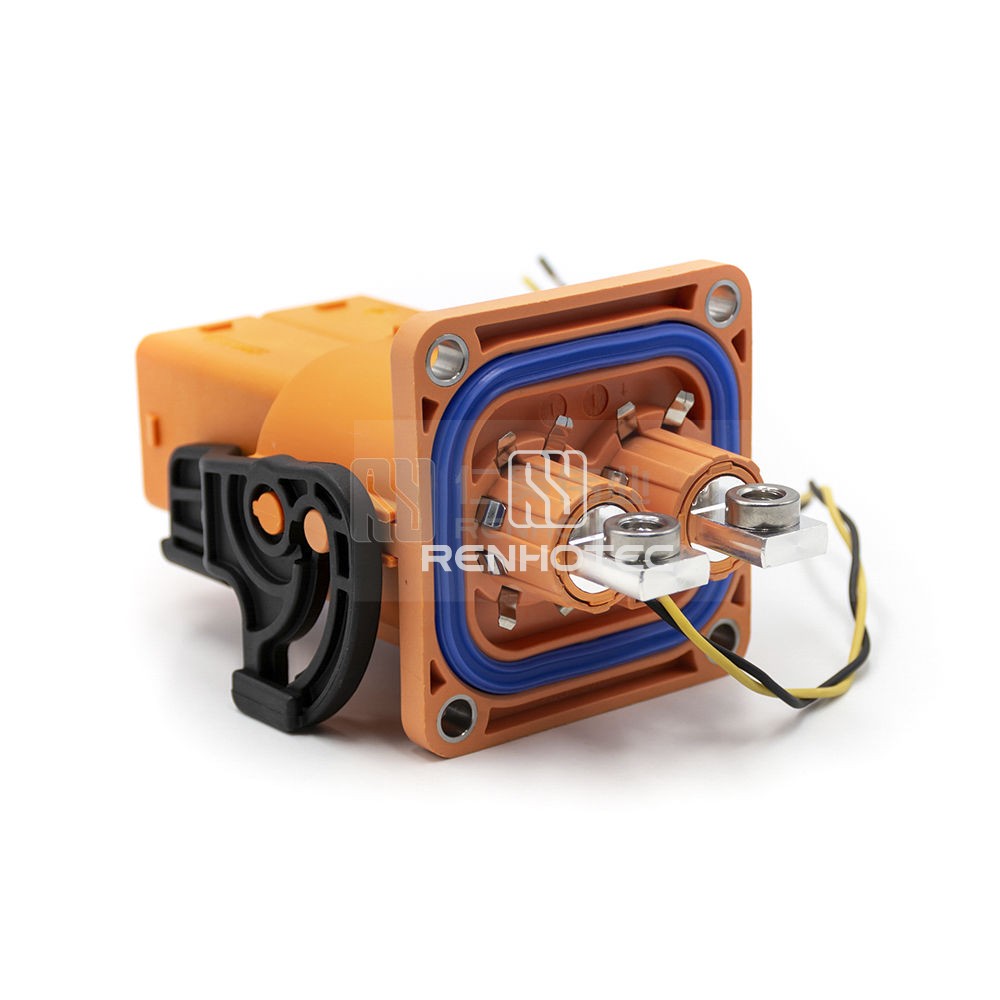

2 POS High Power Electric vehicle connector Socket 250A Busbar Lug A Key Box Mount

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This electric vehicle connector socket features 2 POS, high power 250A capacity, waterproof design, and touch-proof technology. Ideal for reliable and safe charging of electric vehicles. Easy to mount with a key box for added security.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions2
    Contact Size8mm
    Contact TerminationBusbar
    KeyA
    ColorOrange
    FeaturesWaterproof

    Electrical

    Rated Voltage1500V
    Rated Current250A
    ShieldingShielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFour Flange
    Wire Gauge or Range50mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
