Products > HVIL Series Connector > 2 POS High Power Electric vehicle connector Socket 250A Busbar Lug A Key Box Mount

ST515320-A

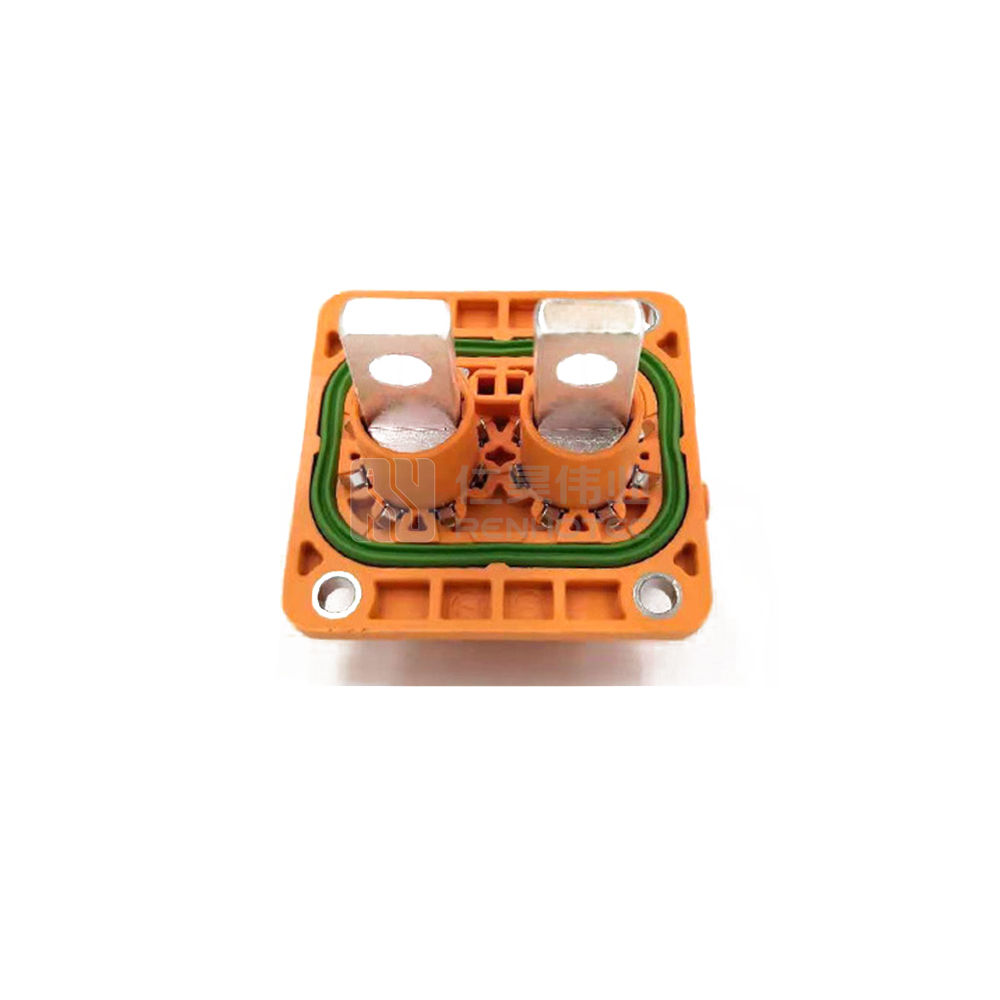

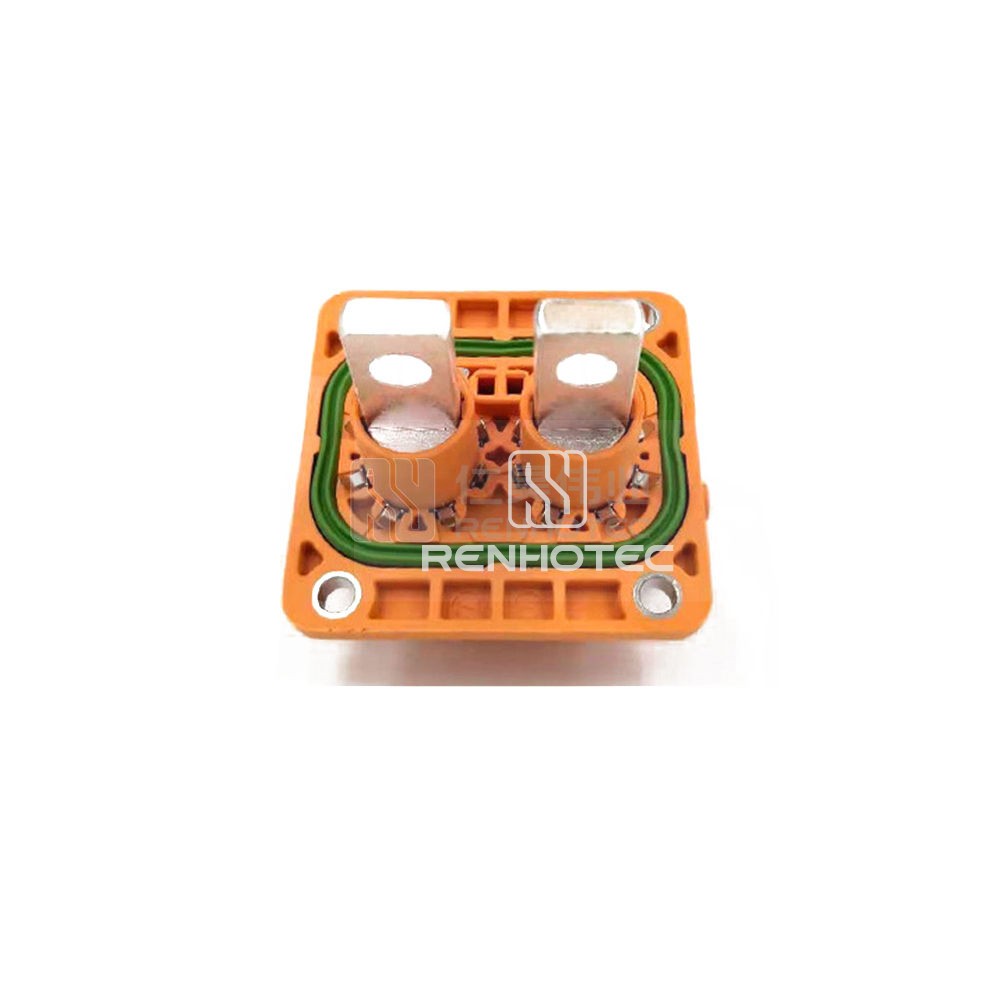

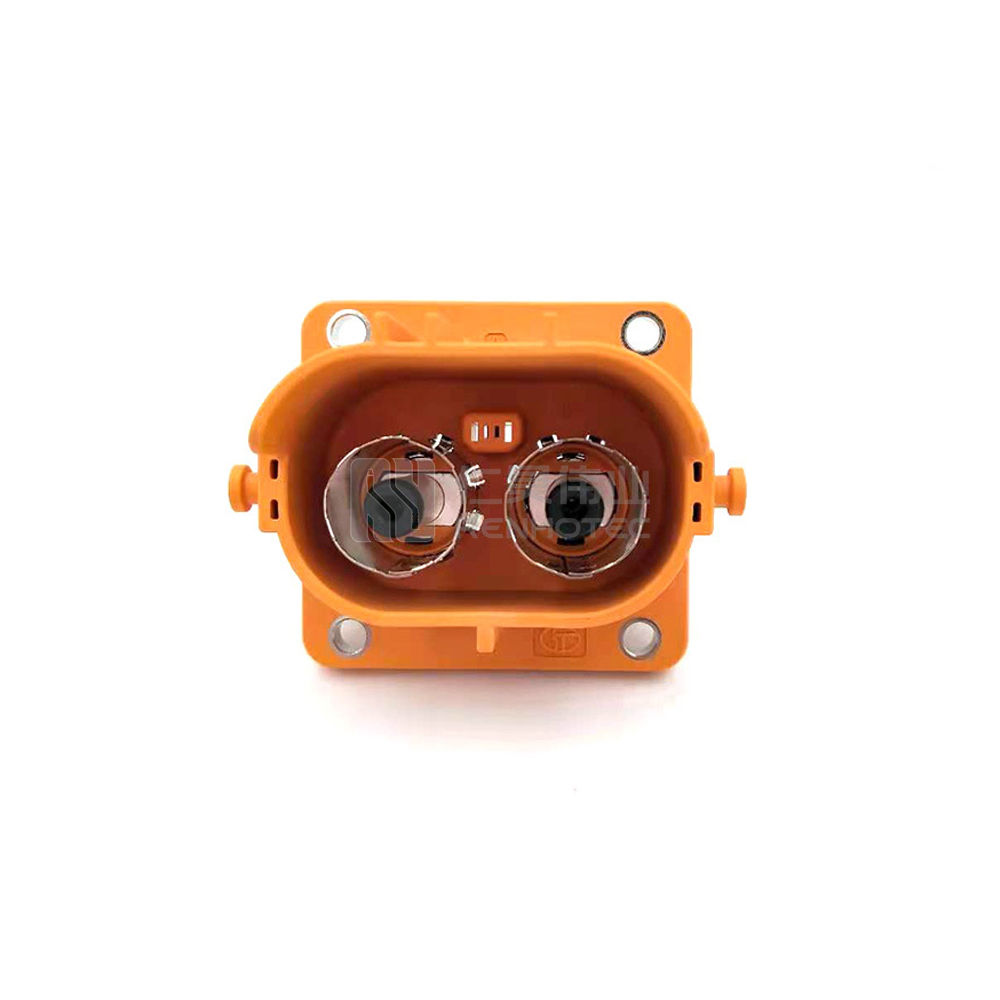

2 POS High Power Electric vehicle connector Socket 250A Busbar Lug A Key Box Mount

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This 250A electric vehicle connector socket is perfect for high voltage power distribution, battery pack, motor controller, electric air conditioning, and electric heater applications. Its key box mount design ensures convenient and secure usage.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions2
    Contact Size9mm
    Contact TerminationBusbar
    KeyA
    ColorOrange
    FeaturesWaterproof

    Electrical

    Rated Voltage1500V
    Rated Current250A
    ShieldingShielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFour Flange

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
