NI2-1-H036-2AYA-C06

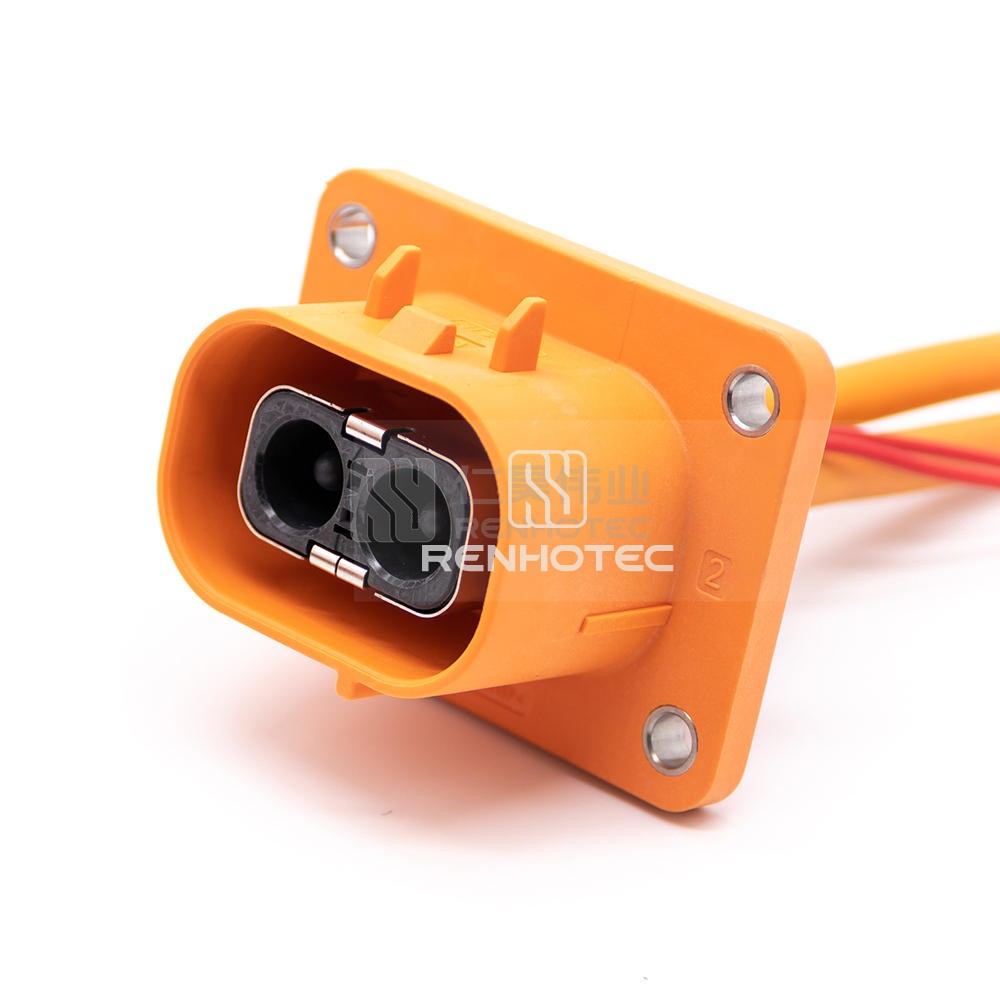

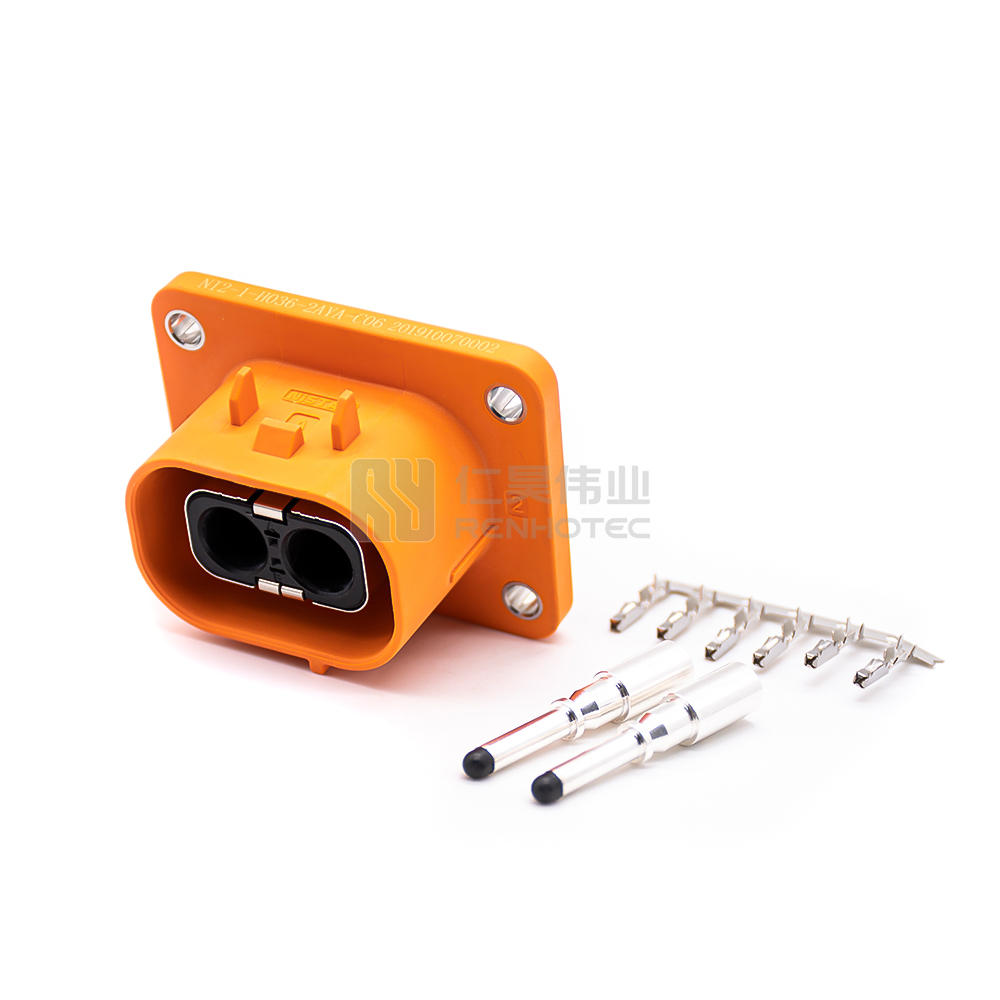

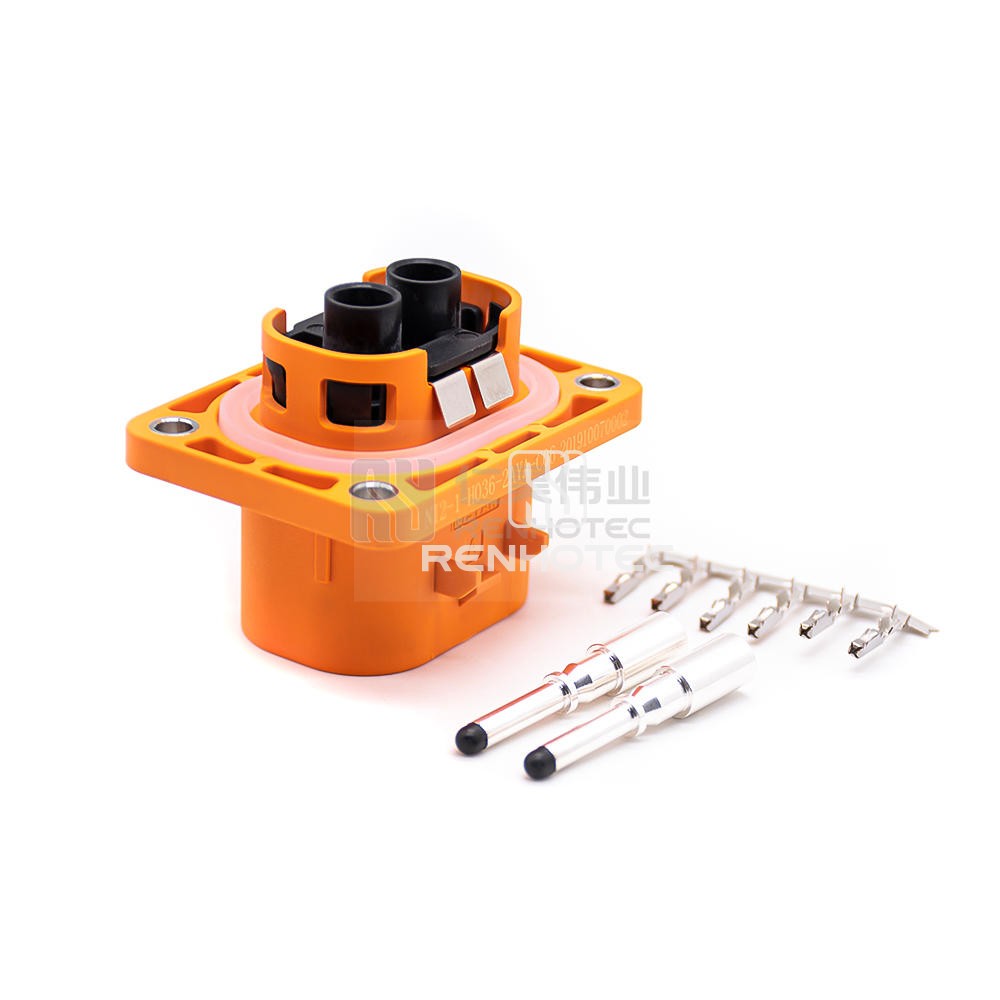

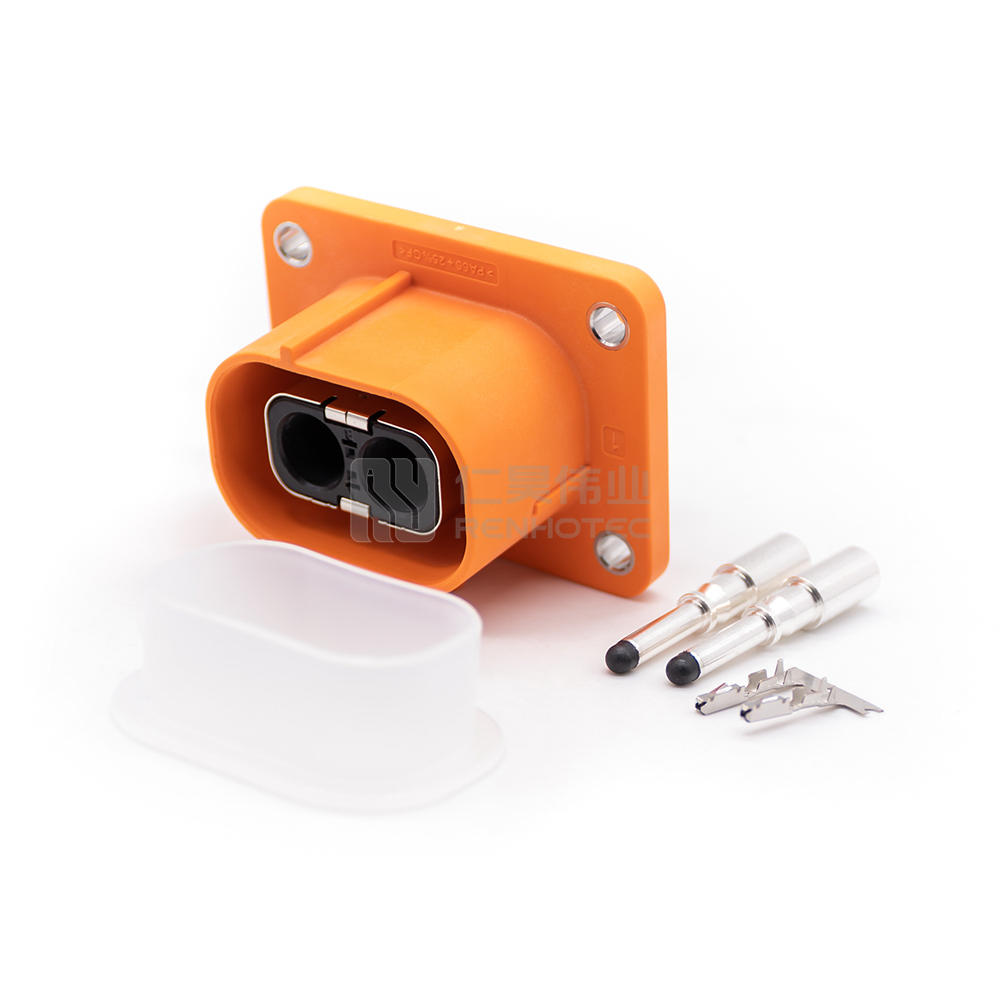

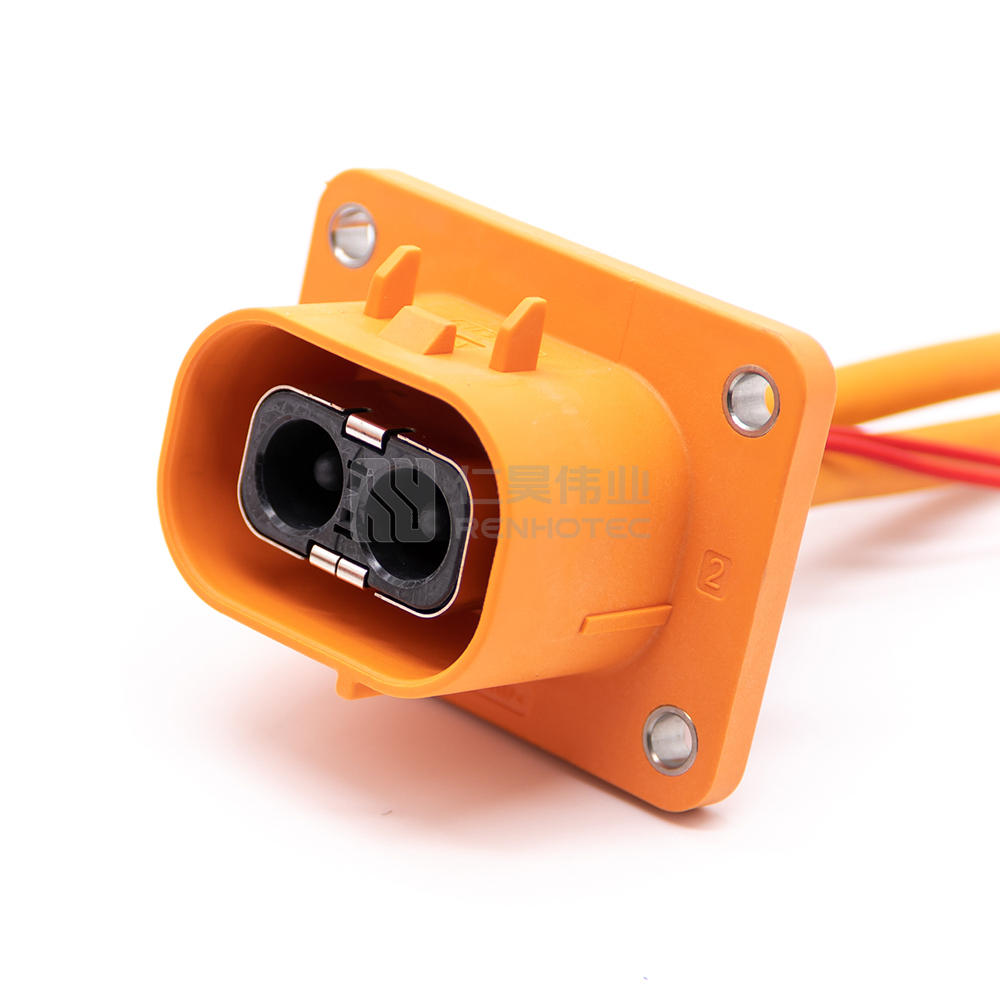

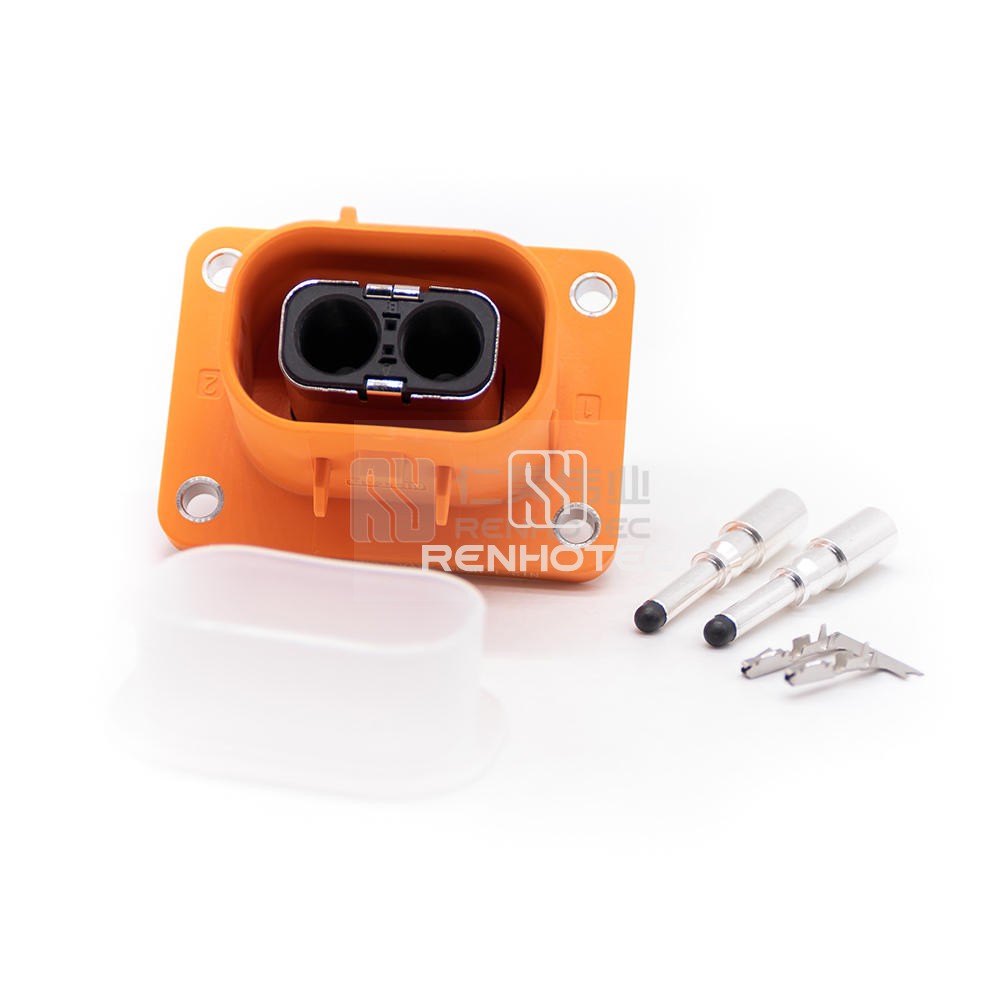

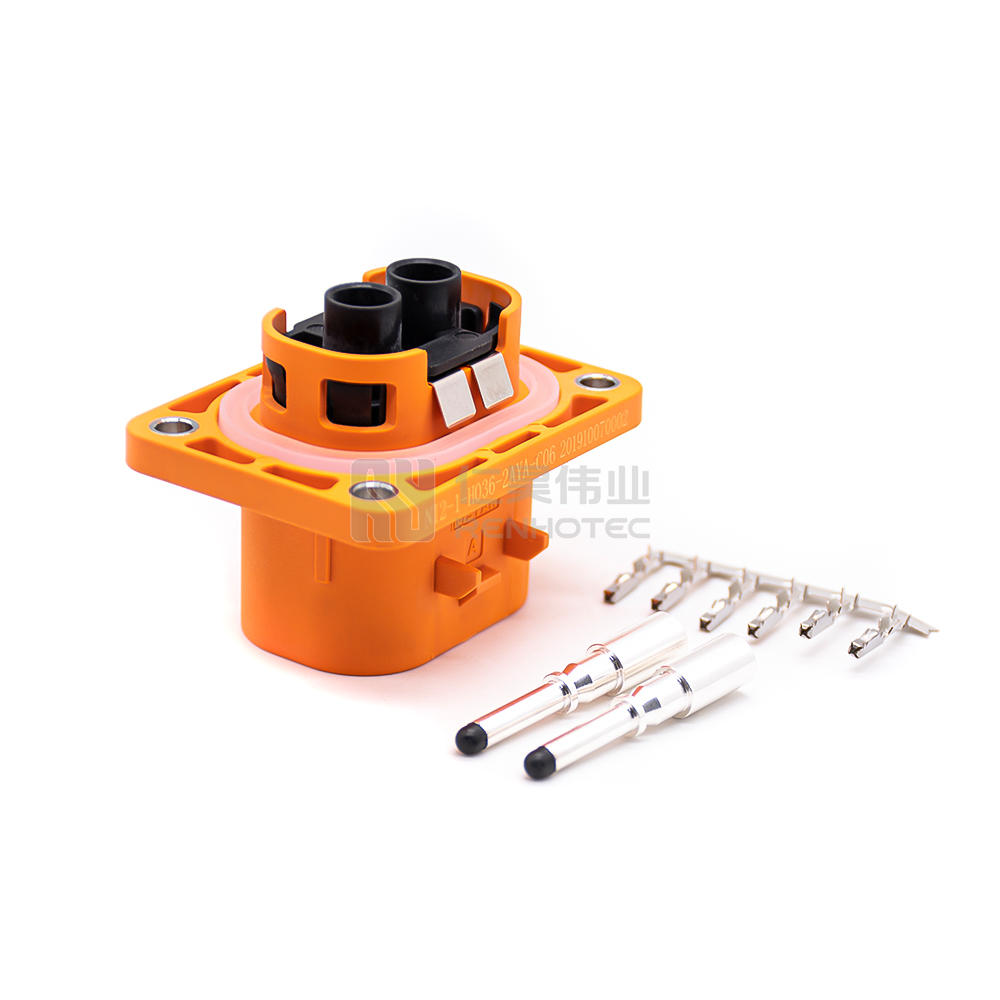

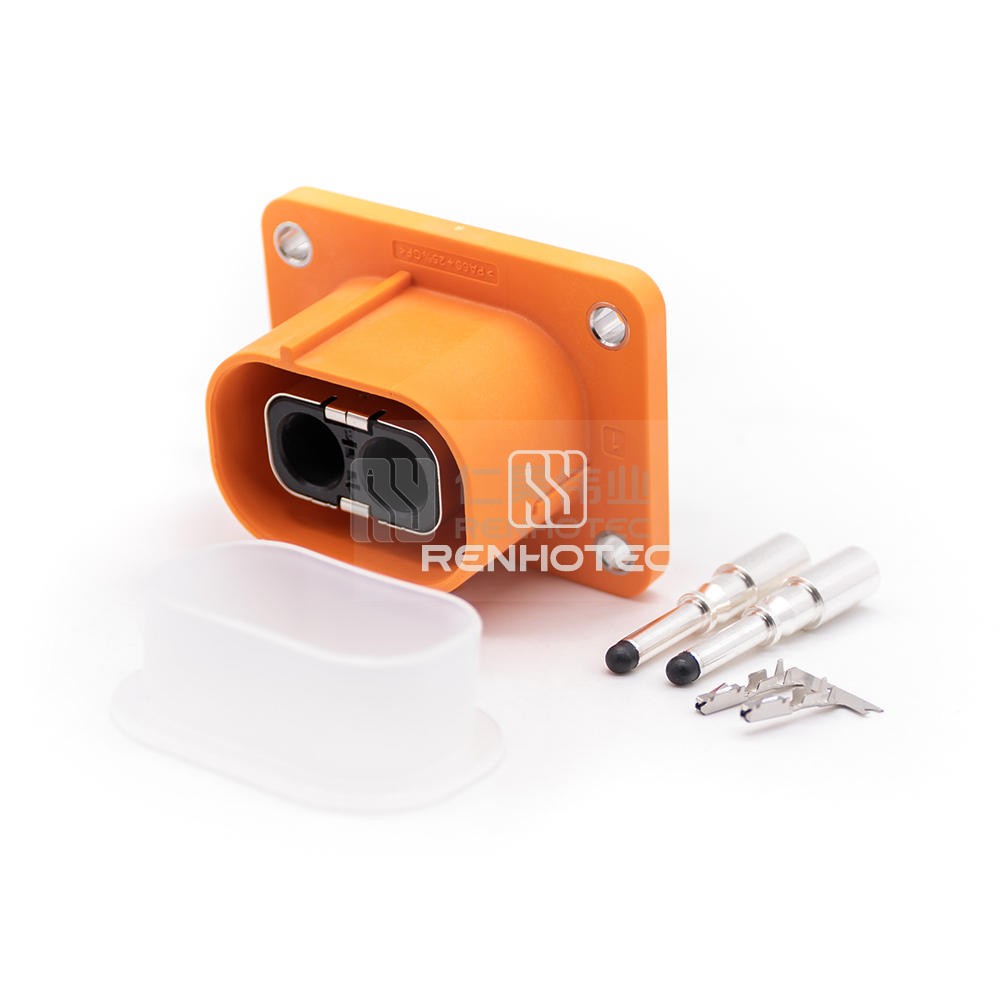

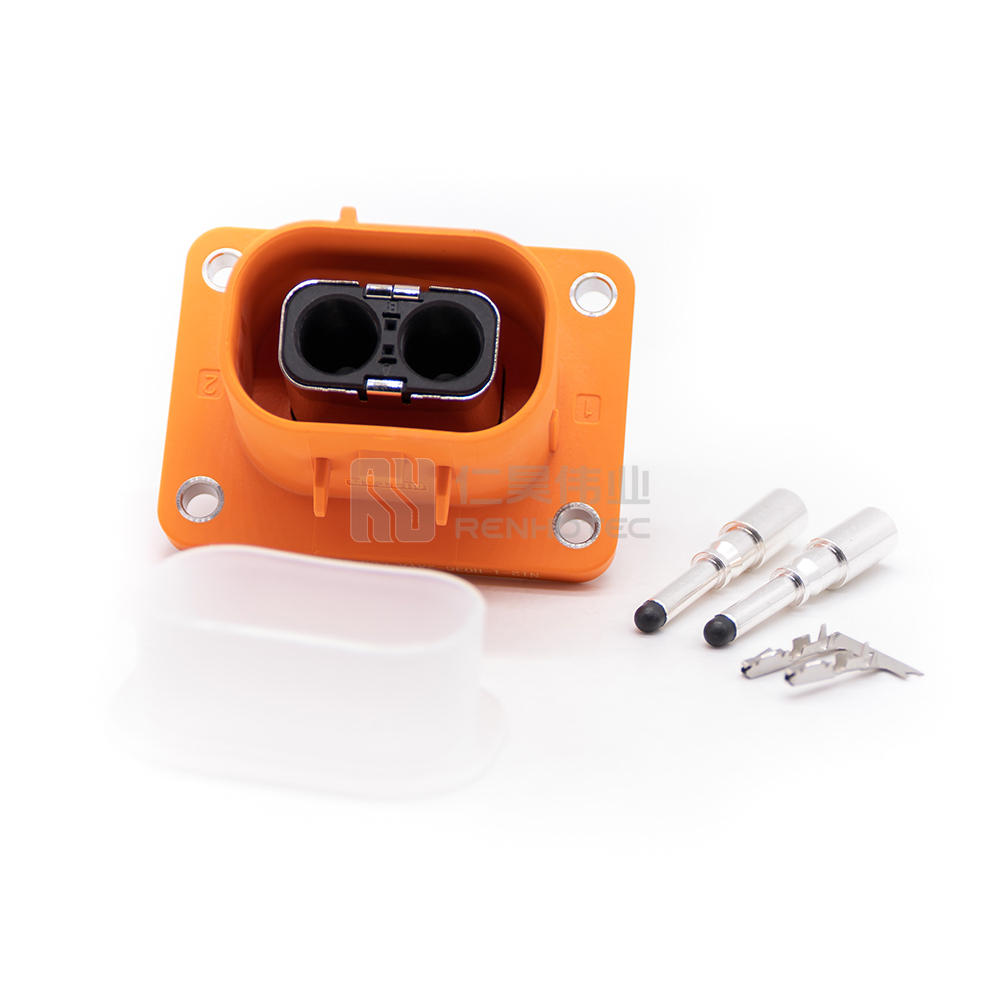

2 POS High Power Electric vehicle connector Socket 63A 10mm2 Shielded Cable A Key
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high power electric vehicle connector socket is designed for 2 POS, allowing for a secure and efficient connection. With a 63A capacity and 10mm² shielded cable, it ensures safe and reliable power transmission. The A key feature adds an extra layer of security. Ideal for electric vehicle charging applications.
GeneralMaterialMechanicalEnvironmentalElectrical
General
Connector TypeReceptacle
OrientationStraight
Number of Positions2
Contact Size3.6mm
Contact TerminationCrimp
KeyA
ColorOrange
FeaturesIntegrated Internal HVIL
Material
Shell MaterialPA66+GF
Contact MaterialCopper Alloy
Contact FinishNickel
Mechanical
Mounting TypePanel Mount
Mounting FeatureFour Flange
Wire Gauge or Range10mm²
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
Electrical
Rated Voltage800V
Rated Current63A
ShieldingShielded
