Products > HVIL Series Connector > 2 POS High Power Electric Vehicle connector Socket 80A Busbar Lug Box Mount

FHV220260CN-UM51

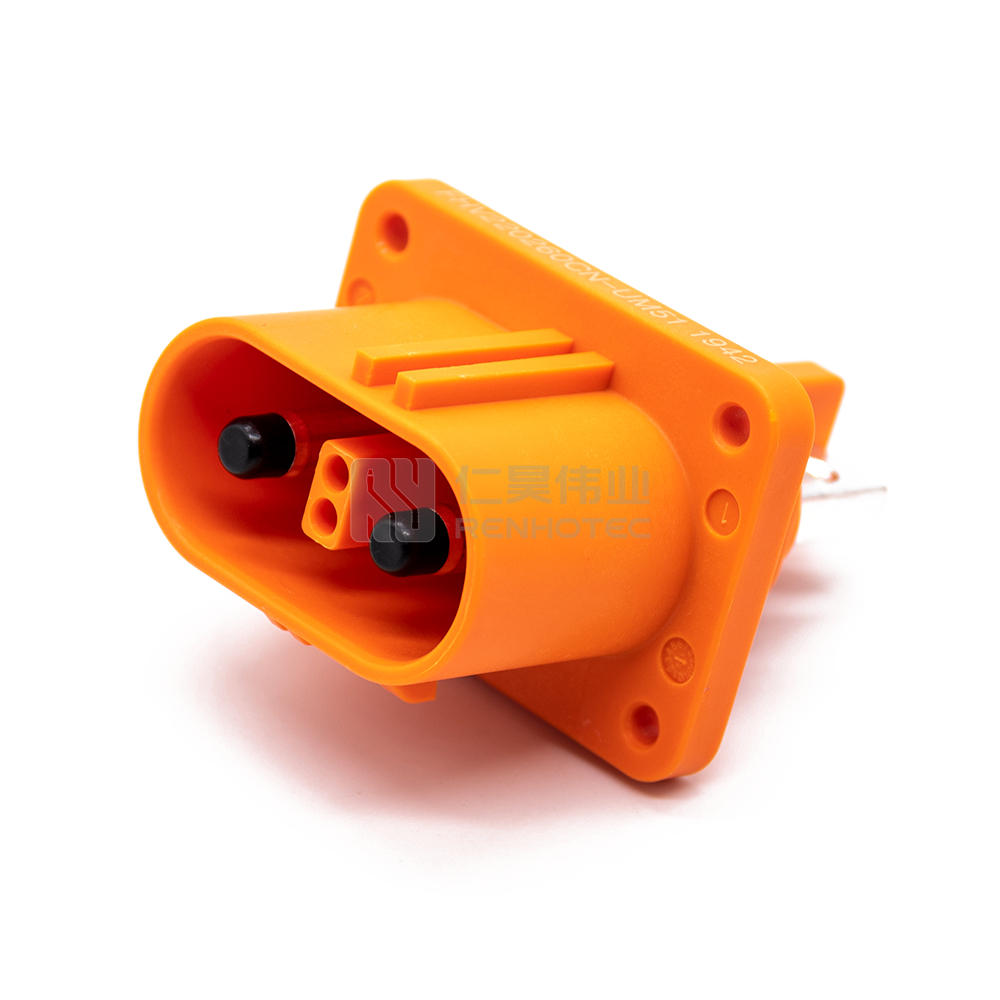

2 POS High Power Electric Vehicle connector Socket 80A Busbar Lug Box Mount

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This high-quality 2 POS electric vehicle connector socket features a power rating of 80A, making it a reliable choice for efficient charging. Designed with busbar lug and box mount for easy installation.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions2
    Contact Size6mm
    Contact TerminationCrimp
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current80A
    ShieldingShielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFour Flange
    Wire Gauge or RangeM6 Threaded Hole

    Material

    Shell MaterialPA66
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
