Products > HVIL Series Connector > 2 POS High Voltage Interlock Connector Plastic Plug 150A 35mm2 Shielded Cable A Key Straight

NI2-1-S060-2AYA-C09

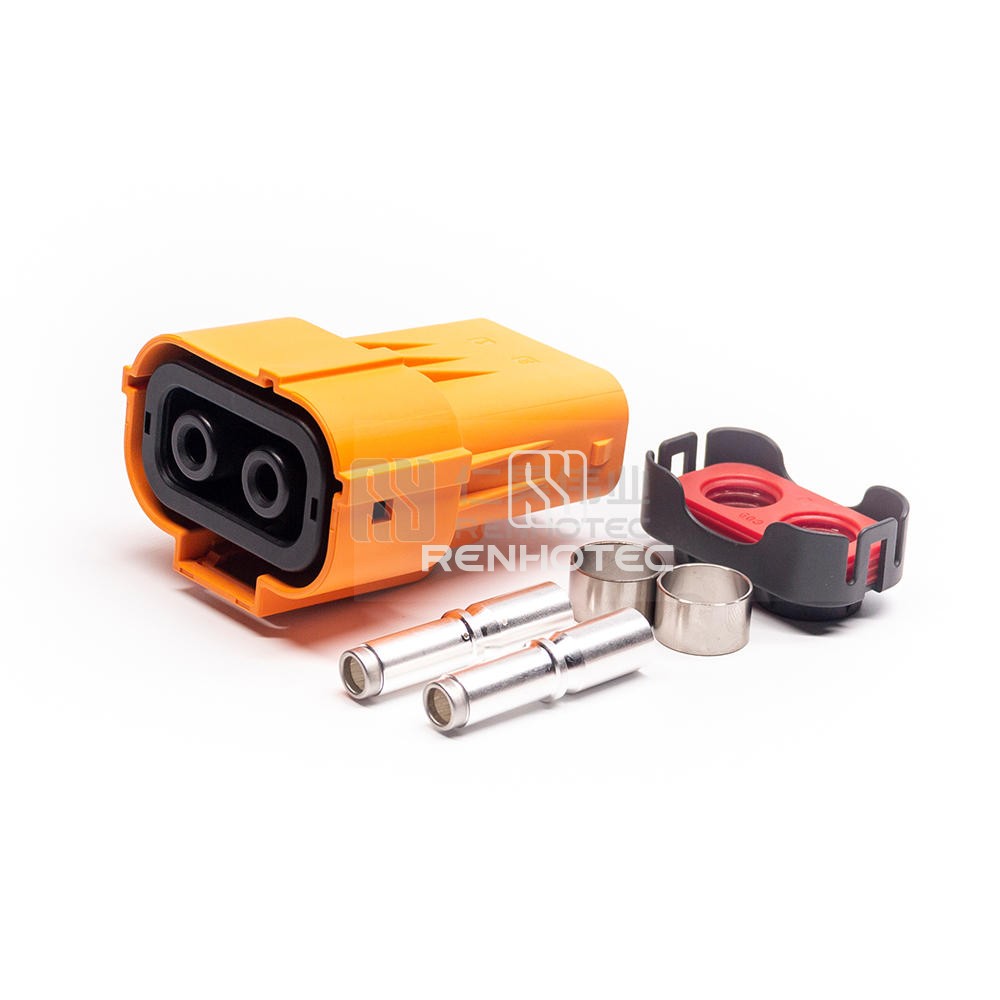

2 POS High Voltage Interlock Connector Plastic Plug 150A 35mm2 Shielded Cable A Key Straight

This high-quality 2 POS high voltage interlock connector features a plastic plug with a 150A capacity, compatible with 35mm² shielded cables. The A Key straight design ensures a secure connection for various applications, making it a reliable choice for industrial use.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions2
    Contact Size6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyA
    ColorOrange
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current150A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range35mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
