Products > HVIL Series Connector > 2 POS High Voltage Interlock Connector Plastic Plug 23A 4mm2 Shielded Cable Y Key Straight

NI2-1-S280-2YYA-C04

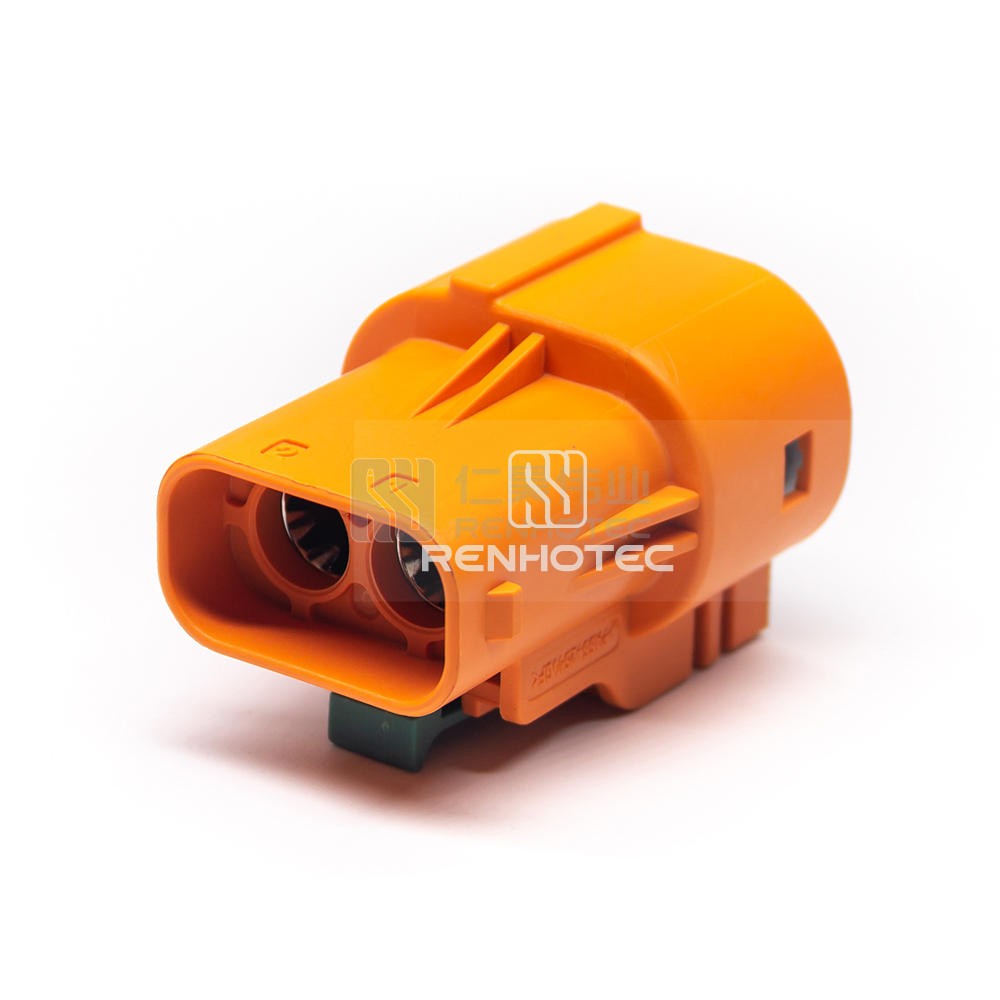

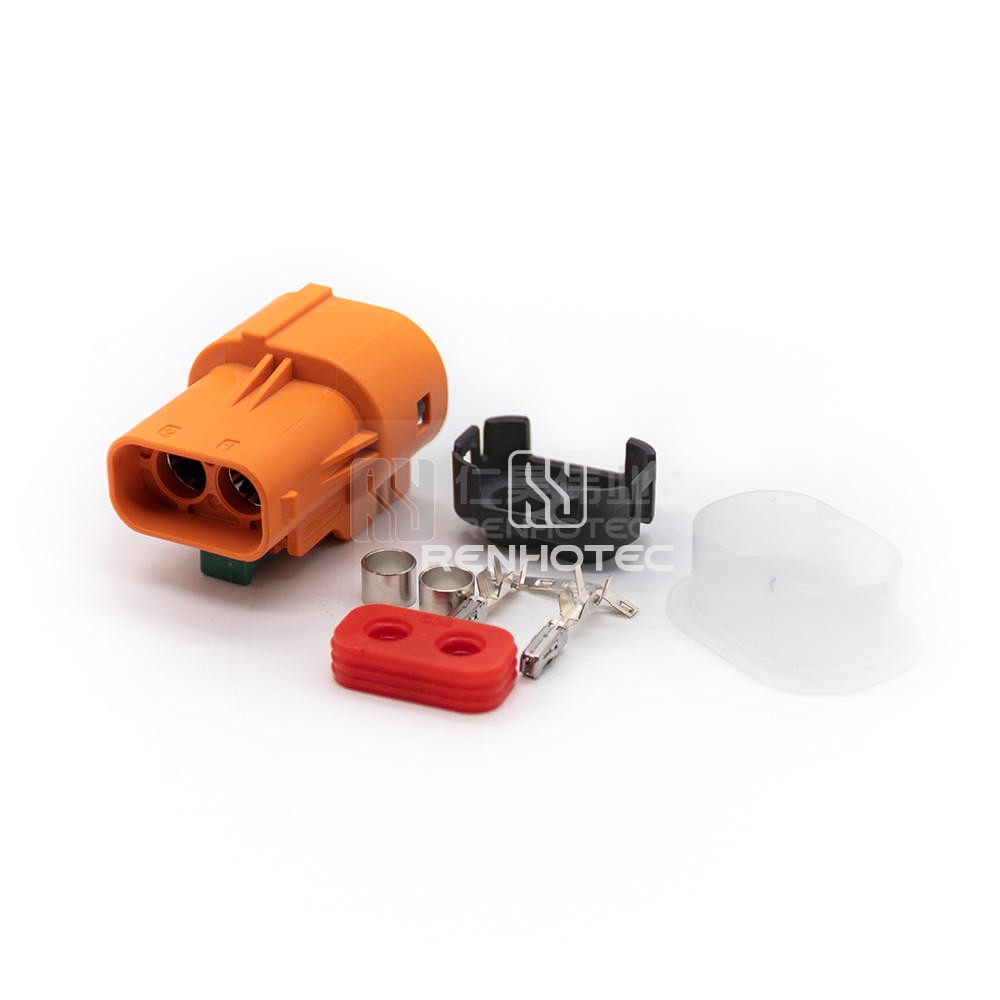

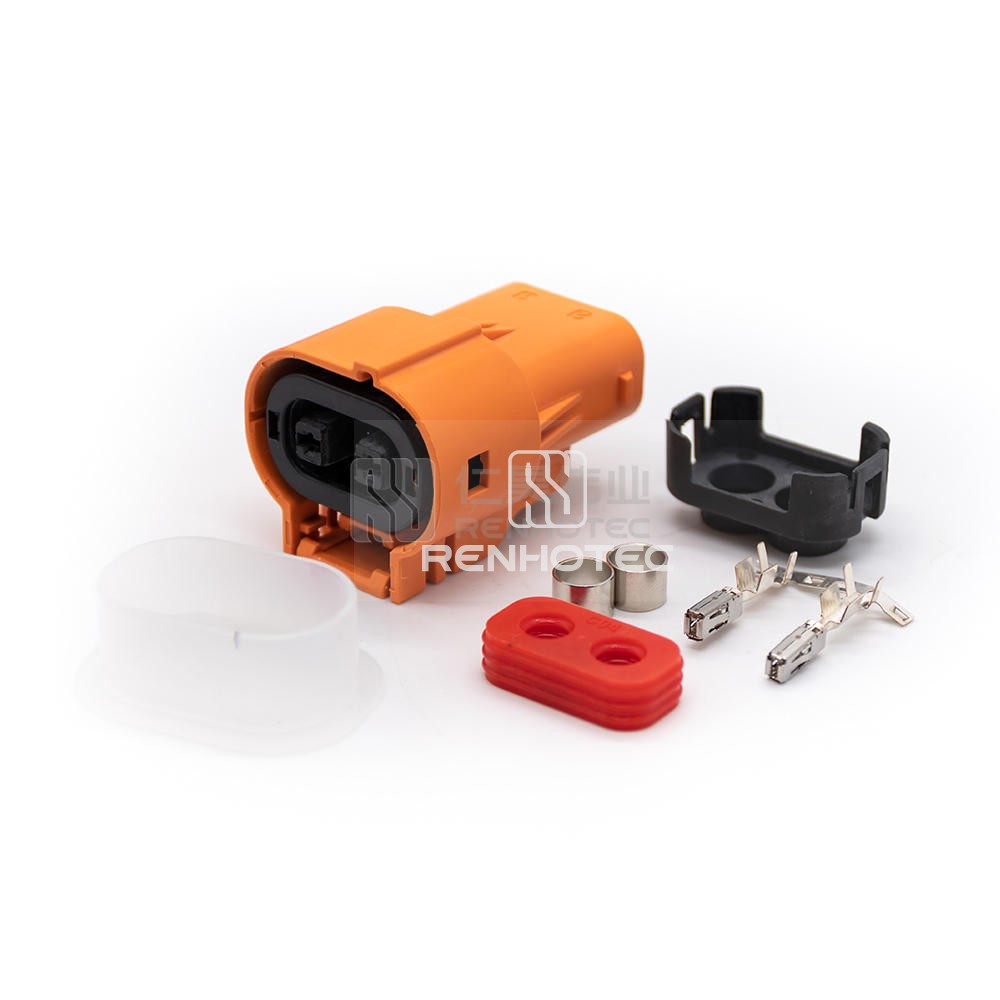

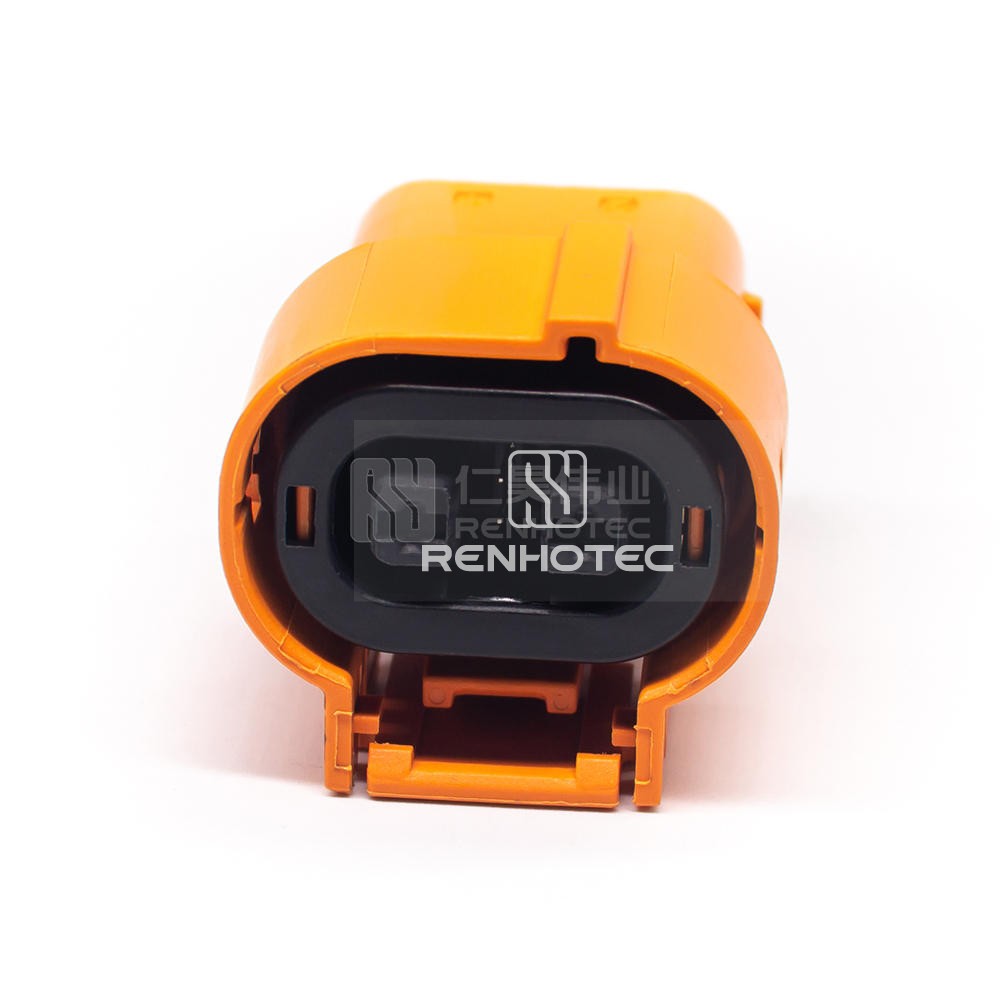

2 POS High Voltage Interlock Connector Plastic Plug 23A 4mm2 Shielded Cable Y Key Straight

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This high-quality 2 POS High Voltage Interlock Connector comes with a plastic plug, 23A capacity, 4mm² shielded cable, and Y key straight design. Perfect for ensuring secure electrical connections in high-voltage applications, this connector offers reliability and safety. Ideal for industrial use.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions2
    Contact Size2.8mm
    Contact TerminationCrimp
    KeyY
    ColorOrange
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current23A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range4mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
