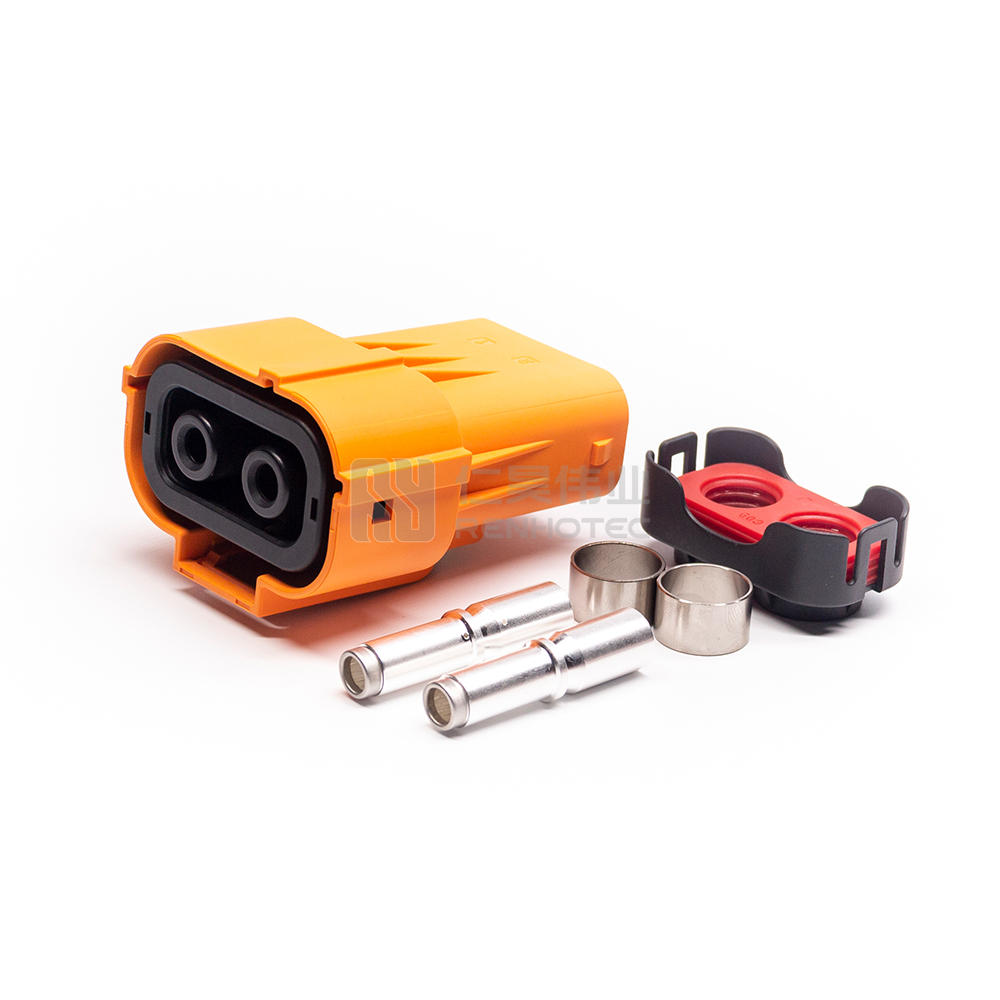

product image

NI2-1-S060-2AYA-C07

2 POS High Voltage Interlock Connector Plastic Plug 80A 16mm2 Shielded Cable A Key Straight
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This 2 POS High Voltage Interlock Connector with a plastic plug is designed for use with 80A 16mm² shielded cables. Featuring a straight design and A Key configuration, this connector ensures a secure and reliable connection for high voltage applications.
GeneralMaterialMechanicalEnvironmentalElectrical
General
Connector TypePlug
OrientationStraight
Number of Positions2
Contact Size6mm
Contact TerminationCrimp
KeyA
ColorOrange
FeaturesIntegrated Internal HVIL
Material
Shell MaterialPA66+GF
Contact MaterialCopper Alloy
Contact FinishNickel
Mechanical
Mounting TypeCable Type
Wire Gauge or Range16mm²
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
Electrical
Rated Voltage800V
Rated Current80A
ShieldingShielded
