Products > HVIL Series Connector > 2 POS High Voltage Interlock Connector Plastic Receptacle 16A 2.5mm2 Shielded Cable Y Key

NI2-1-H280-2YYA-C03

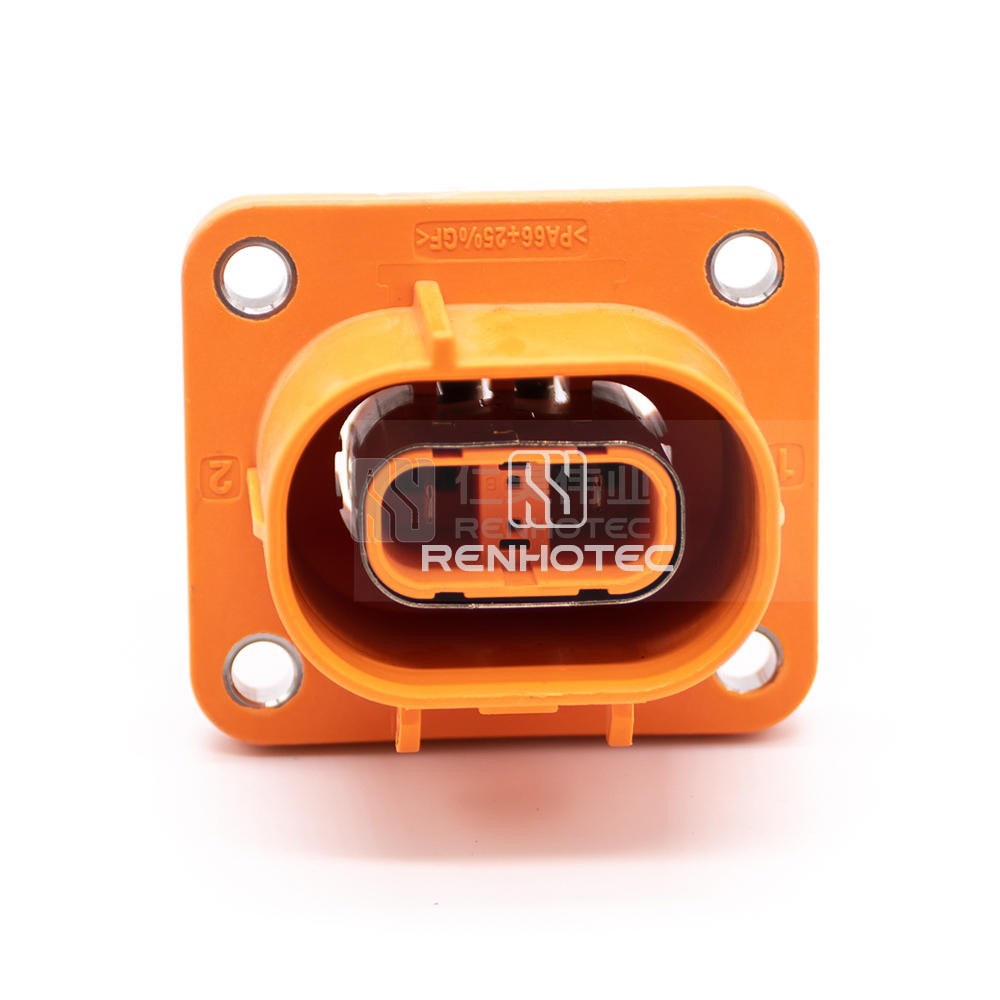

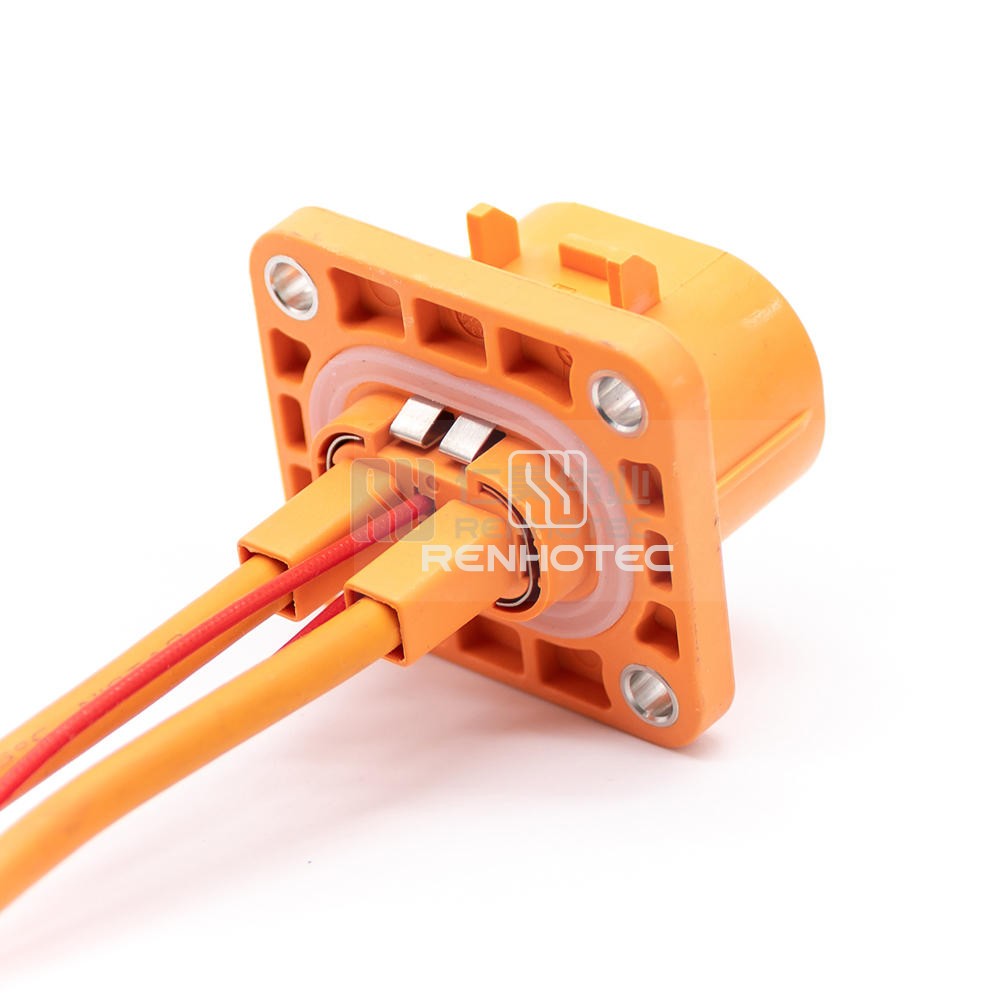

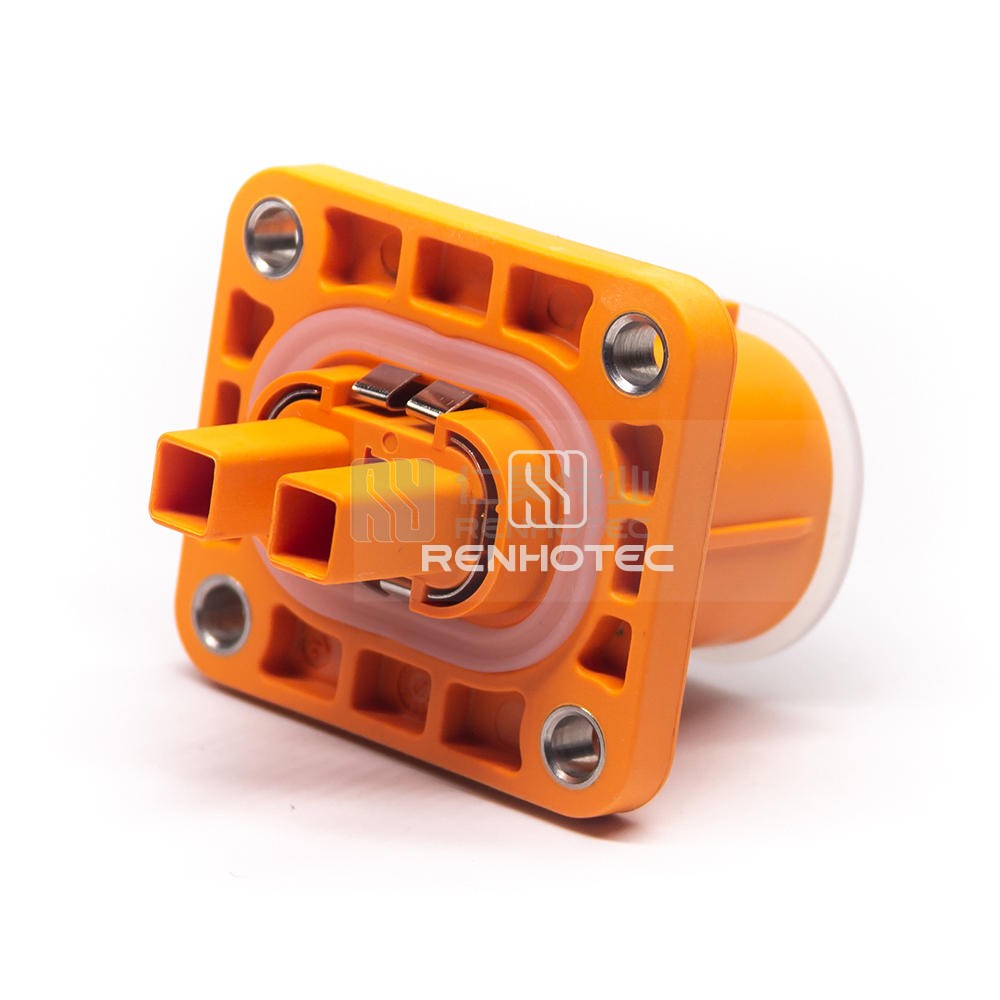

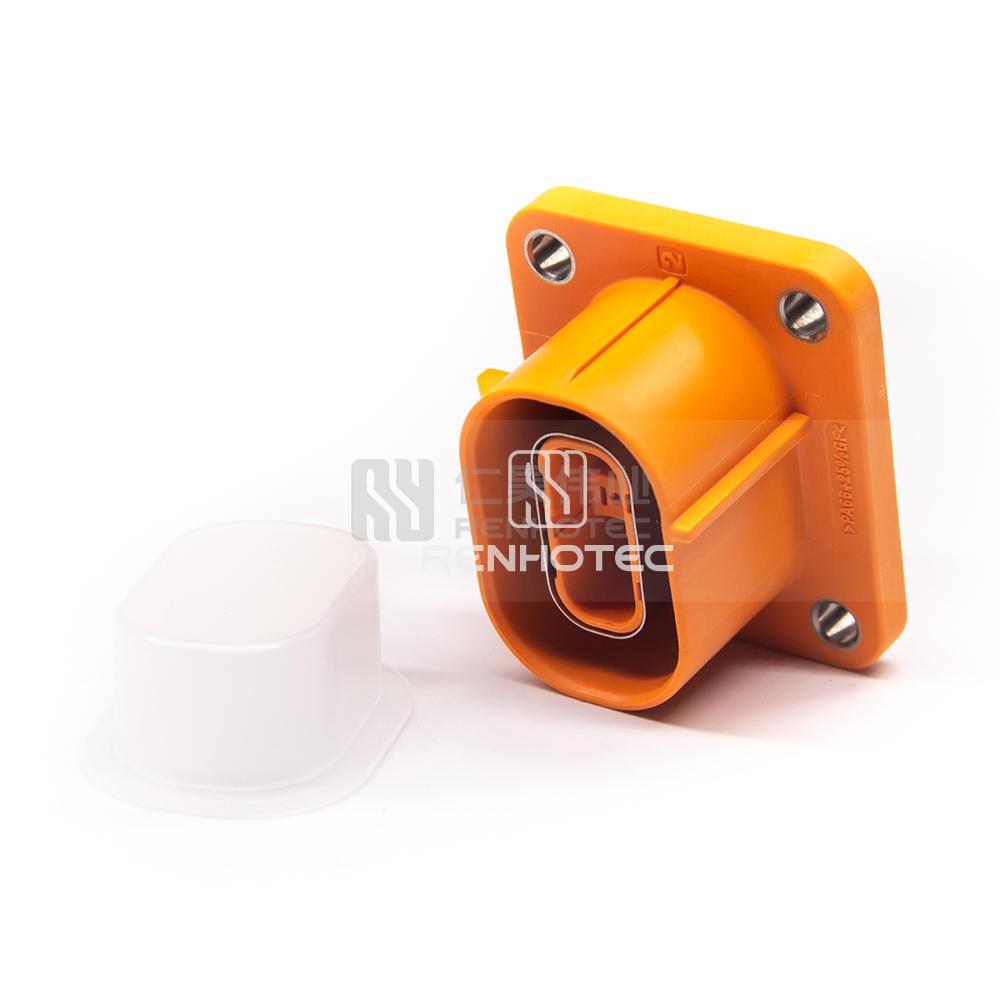

2 POS High Voltage Interlock Connector Plastic Receptacle 16A 2.5mm2 Shielded Cable Y Key

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This high-quality 2 POS High Voltage Interlock Connector Plastic Receptacle with Shielded Cable and Y Key is ideal for 16A applications. Ensure secure connections and prevent accidents with this reliable connector.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions2
    Contact Size2.8mm
    Contact TerminationCrimp
    KeyY
    ColorOrange
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current16A
    ShieldingShielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFour Flange
    Wire Gauge or Range2.5mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
