Products > HVIL Series Connector > 2 POS Metal High Power Electric vehicle Cable Plug 125A 25mm2 Shielded Cable Y Key Right Angle

NI1-1-B060-2YYN-C08

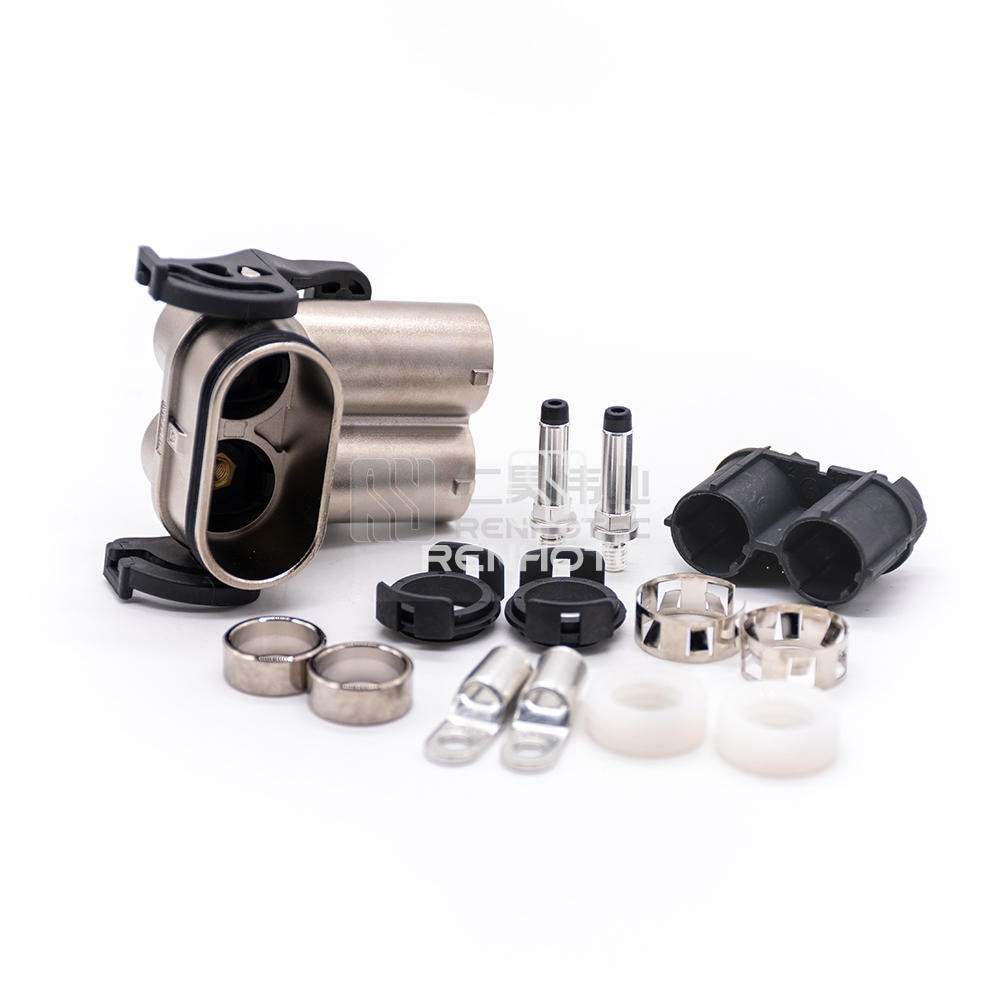

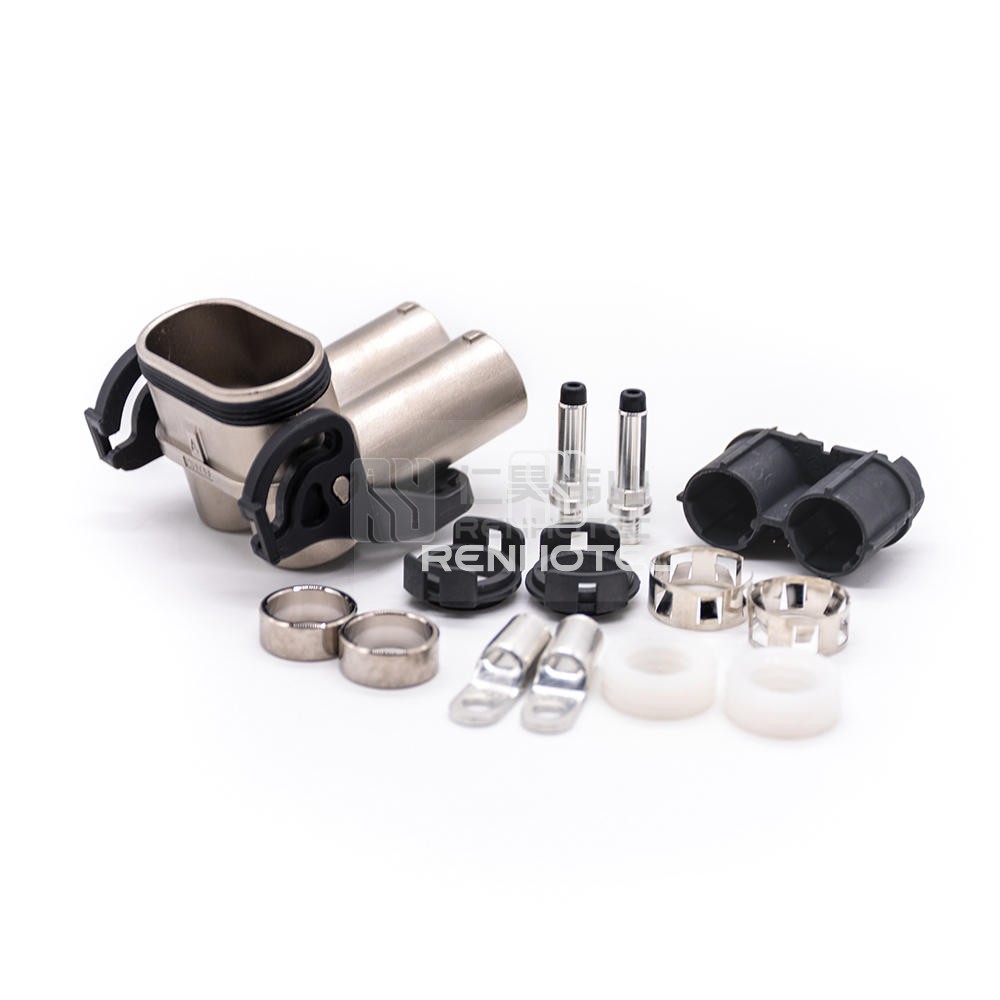

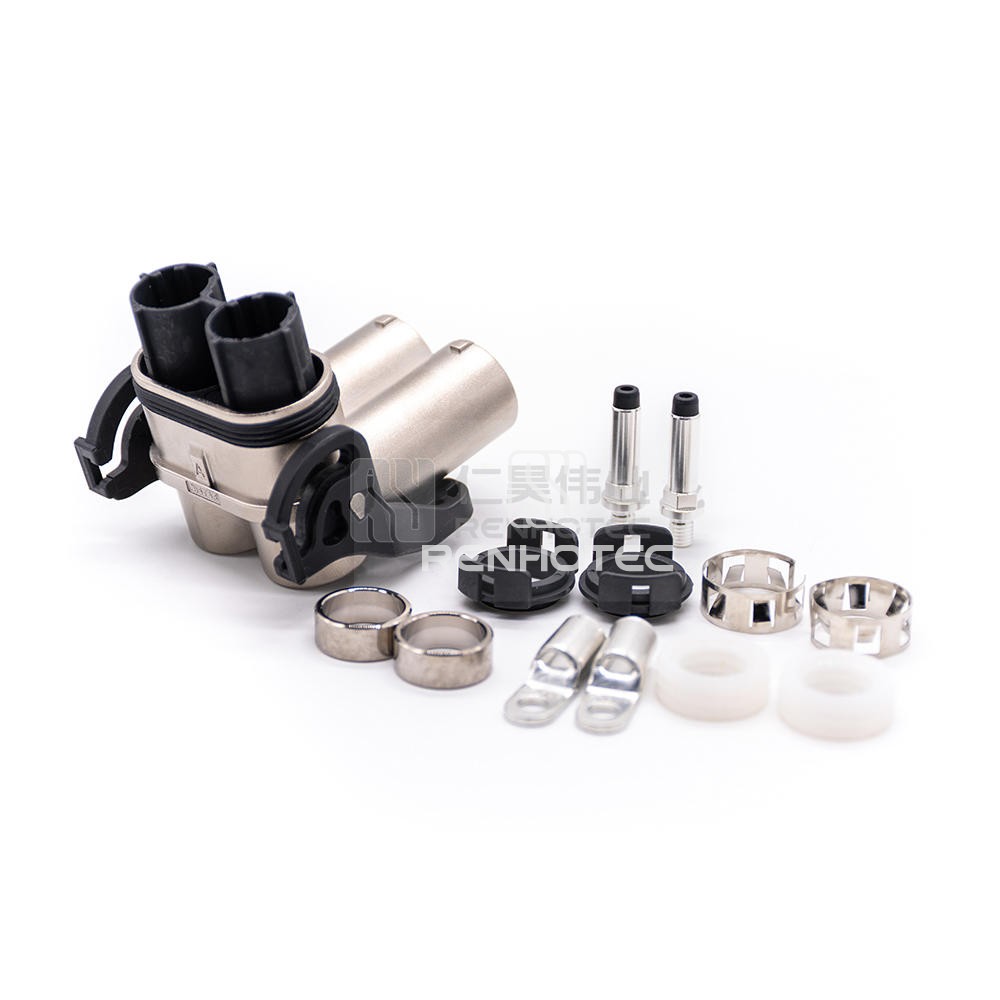

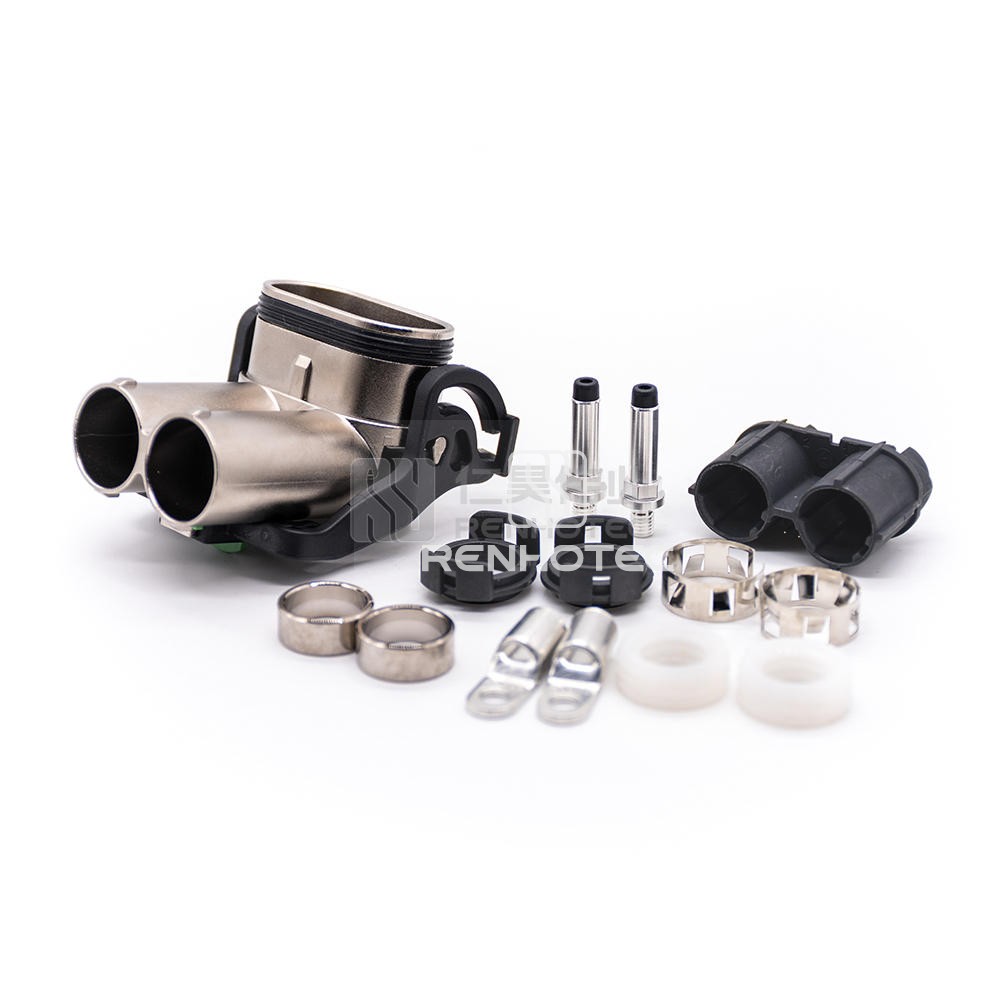

2 POS Metal High Power Electric vehicle Cable Plug 125A 25mm2 Shielded Cable Y Key Right Angle

This electric vehicle cable plug is designed for 125A power output with a 25mm² shielded cable. The Y key right angle connector ensures secure and reliable connections. Ideal for electric vehicles and high-power applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions2
    Contact Size6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyY
    ColorSilver

    Electrical

    Rated Voltage800V
    Rated Current125A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range25mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
