Products > HVIL Series Connector > 2 POS Plastic High Power Electric vehicle Cable Plug 150A 25mm2 Shielded Cable A Key Straight

ST524000-A-25

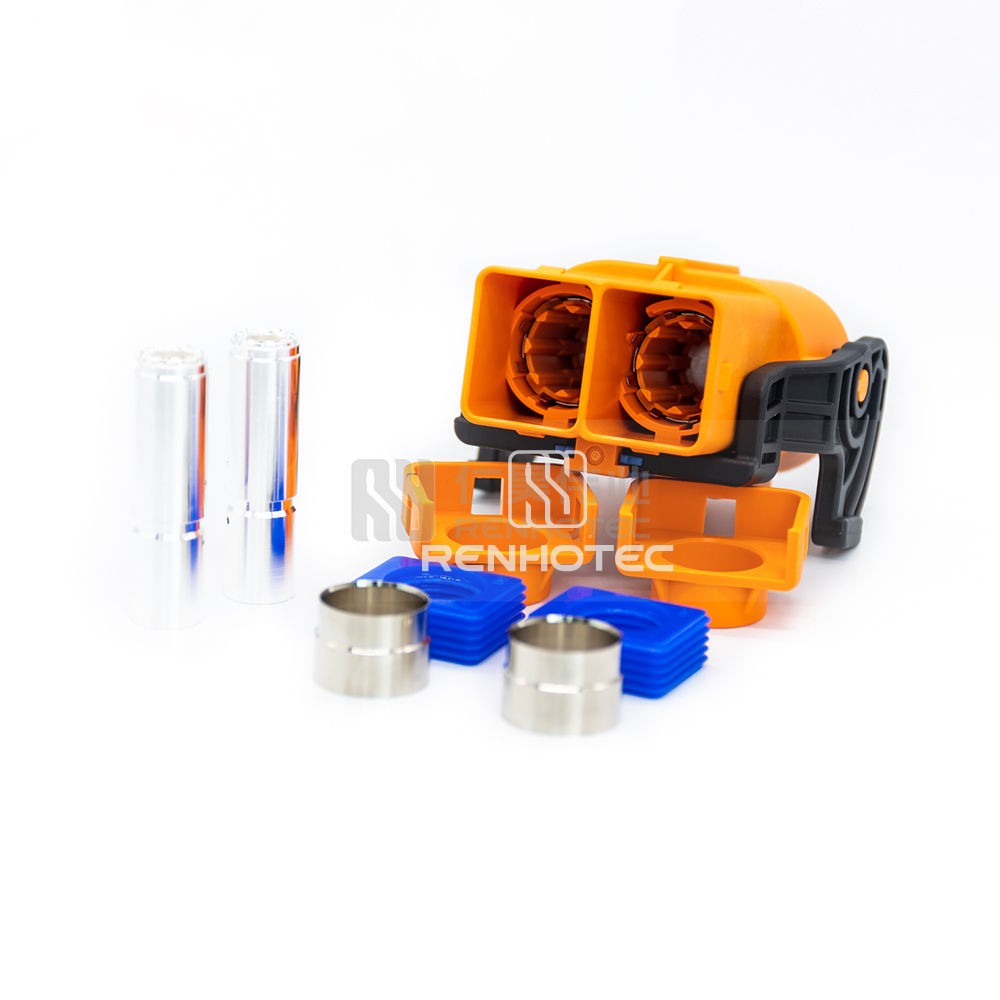

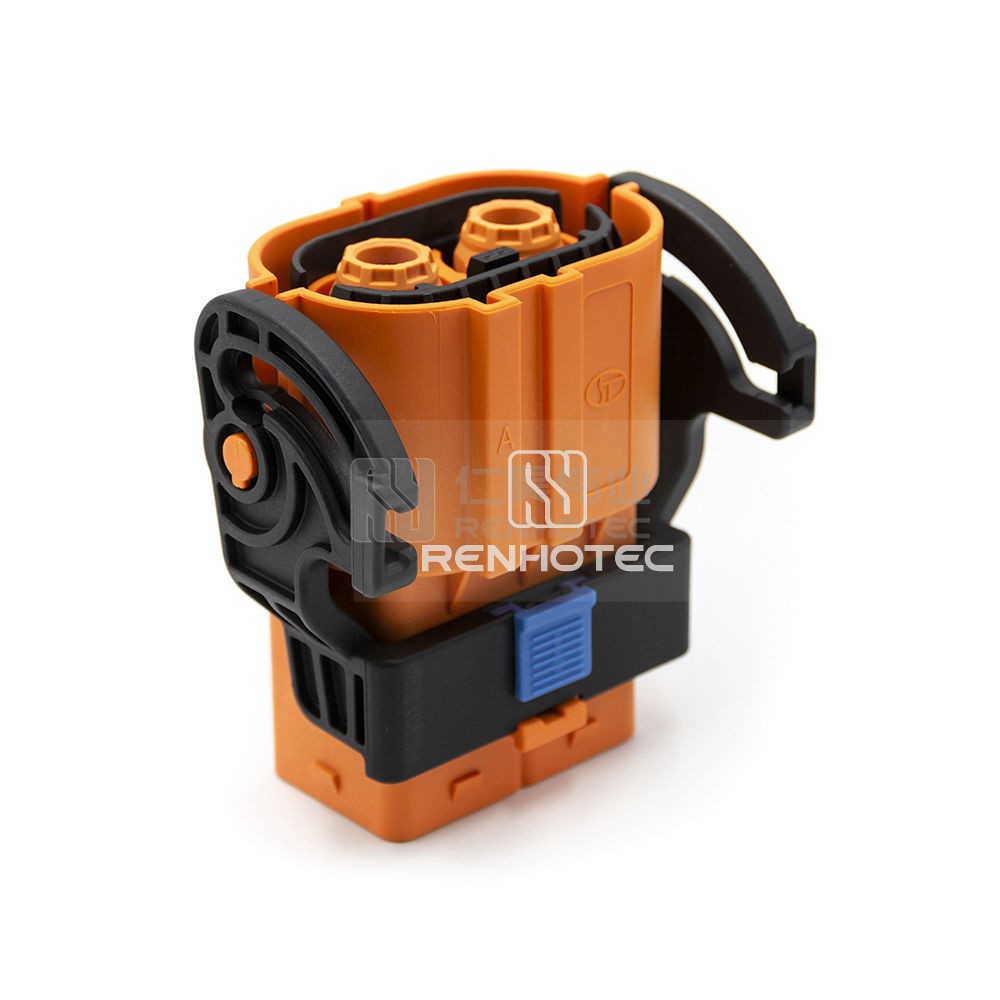

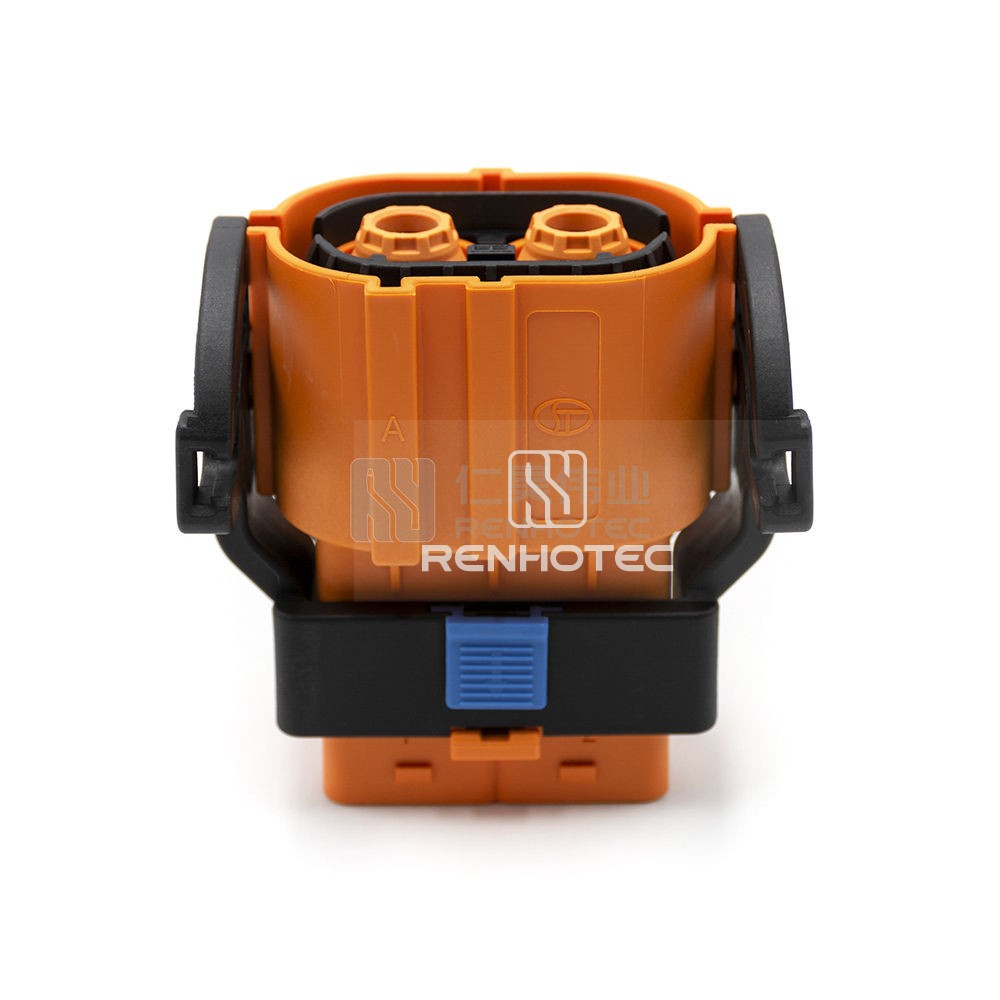

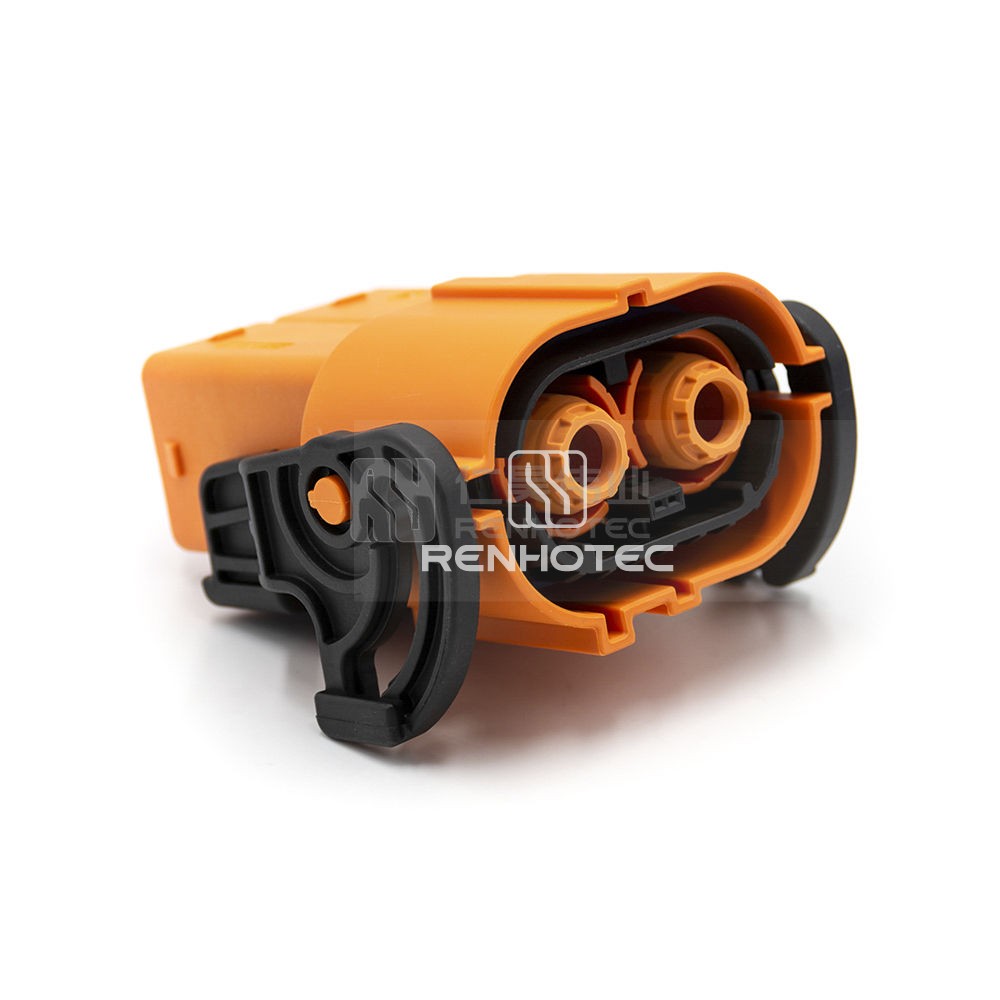

2 POS Plastic High Power Electric vehicle Cable Plug 150A 25mm2 Shielded Cable A Key Straight

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    Enhance your electric vehicle with this high-quality 2 POS Plastic Cable Plug delivering 150A power. With shielded 25mm² cable and a handy key straight design, this plug ensures secure and efficient electric connections. Perfect for electric vehicle upgrades and maintenance projects.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions2
    Contact Size8mm
    Contact TerminationCrimp
    KeyA
    ColorOrange
    FeaturesWaterproof

    Electrical

    Rated Voltage1500V
    Rated Current150A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range25mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
