Products > HVIL Series Connector > 2 POS Plastic High Power Electric vehicle Cable Plug 16A 2.5mm2 Shielded Cable Y Key Straight

NI2-1-S036-2YYA-C03

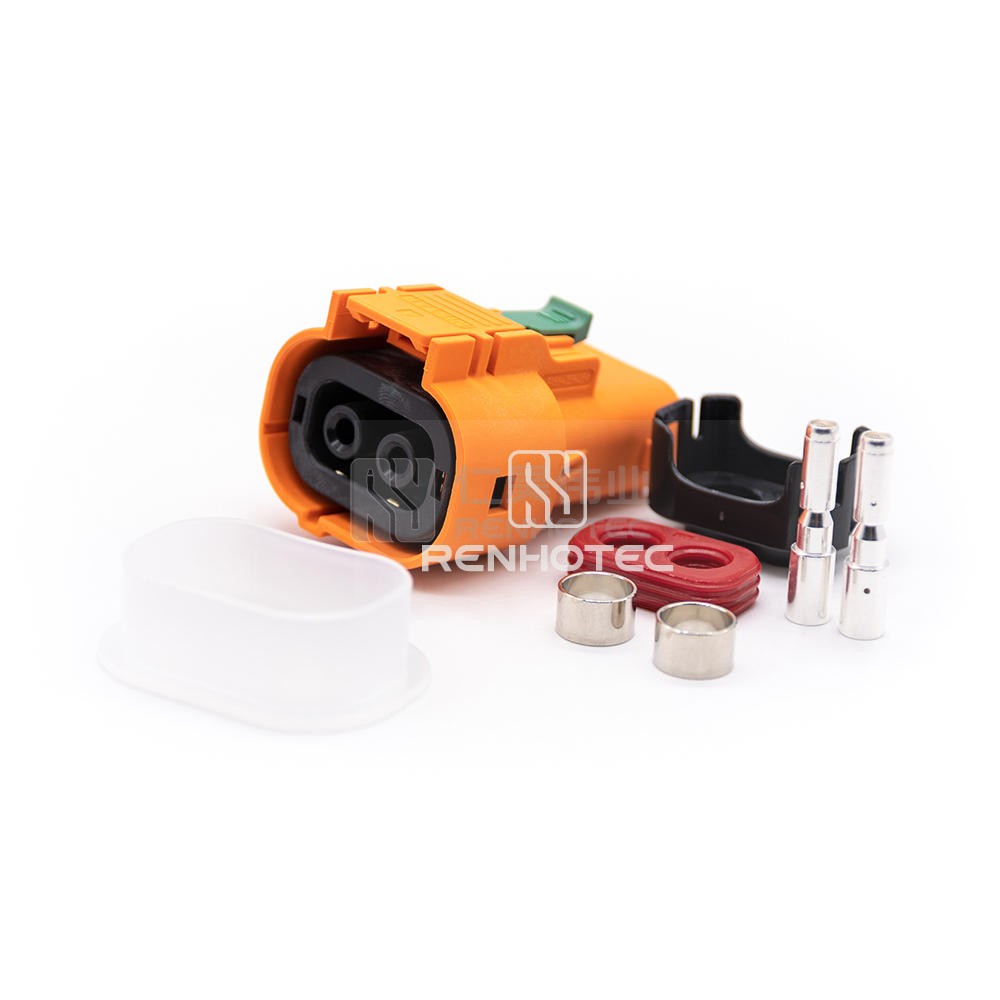

2 POS Plastic High Power Electric vehicle Cable Plug 16A 2.5mm2 Shielded Cable Y Key Straight

This high-quality electric vehicle cable plug is designed for 16A power applications, featuring a shielded 2.5mm² cable and Y Key Straight configuration. Perfect for use with electric vehicles to ensure efficient power transmission.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions2
    Contact Size3.6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyY
    ColorOrange
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current16A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range2.5mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
