Products > HVIL Series Connector > 2 POS Plastic High Power Electric vehicle Cable Plug 250A 50mm2 Shielded Cable A Key Right Angle
- Overview
- Technical data
- Catalog
- Certificate
Product certification

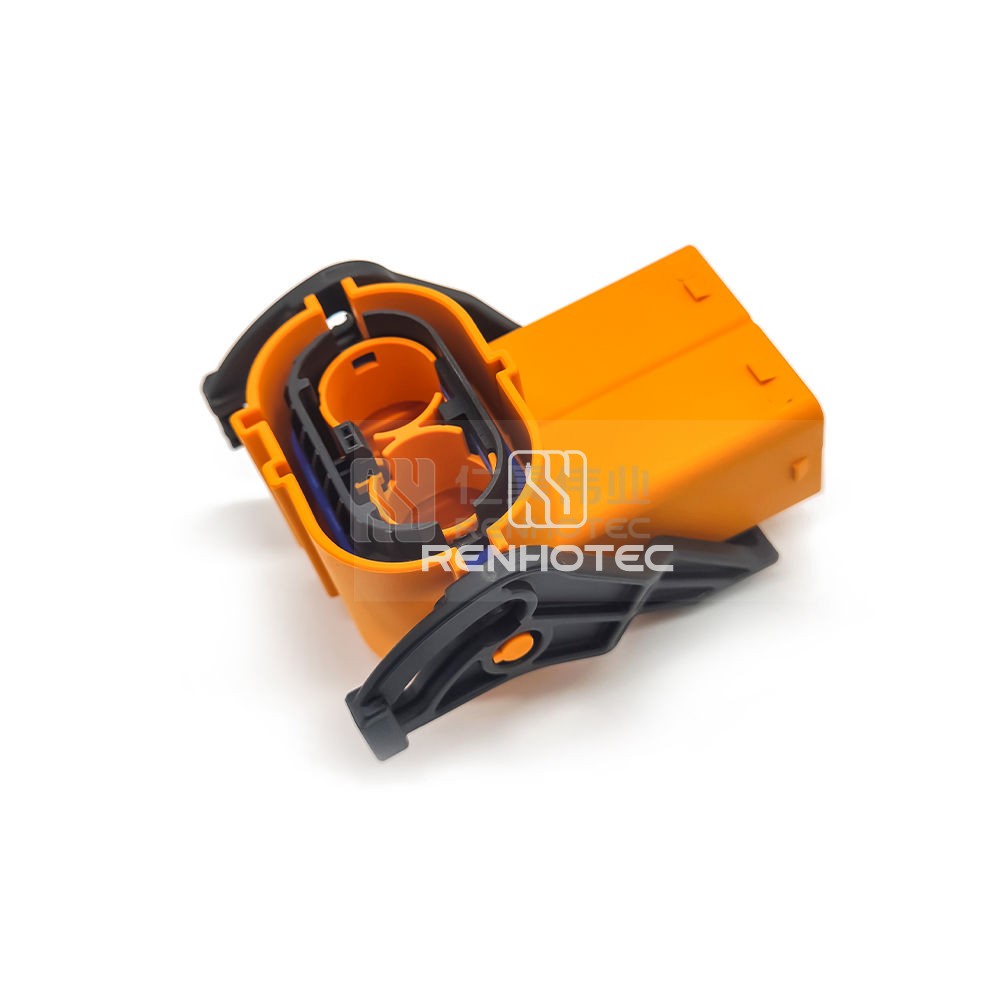

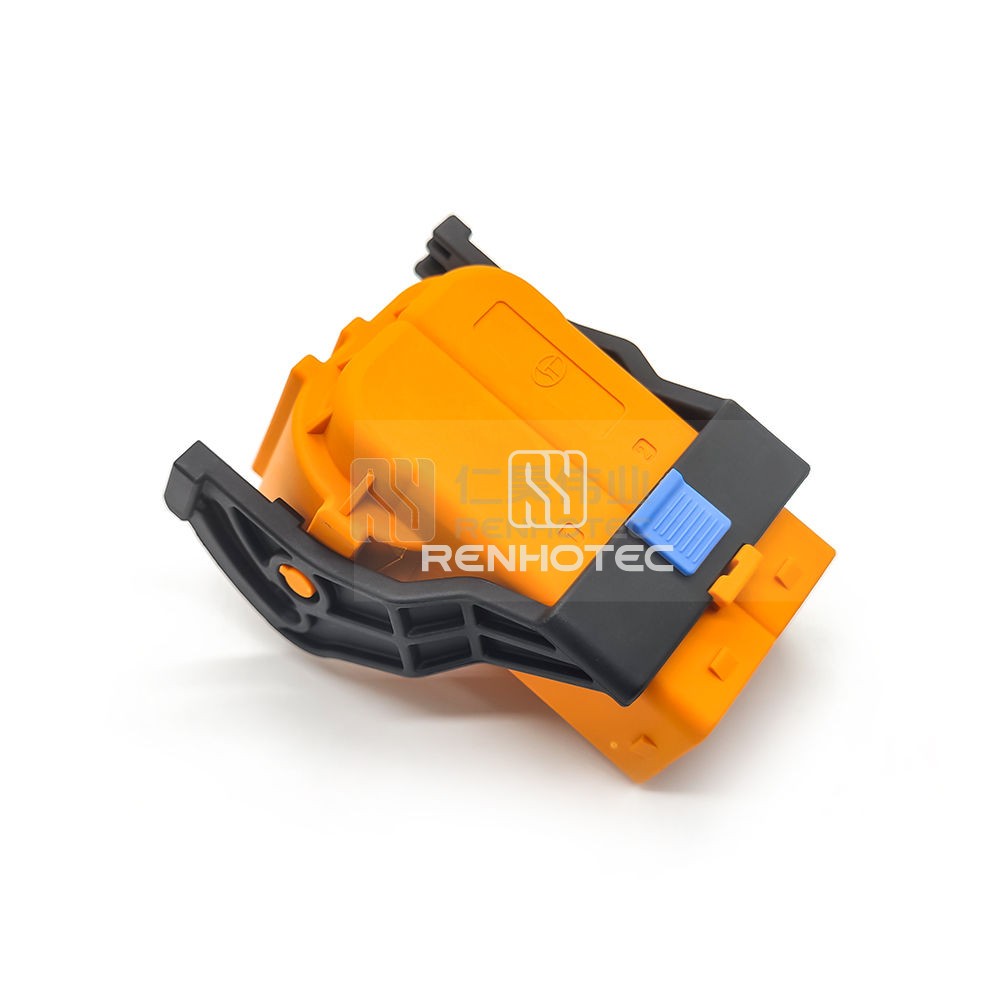

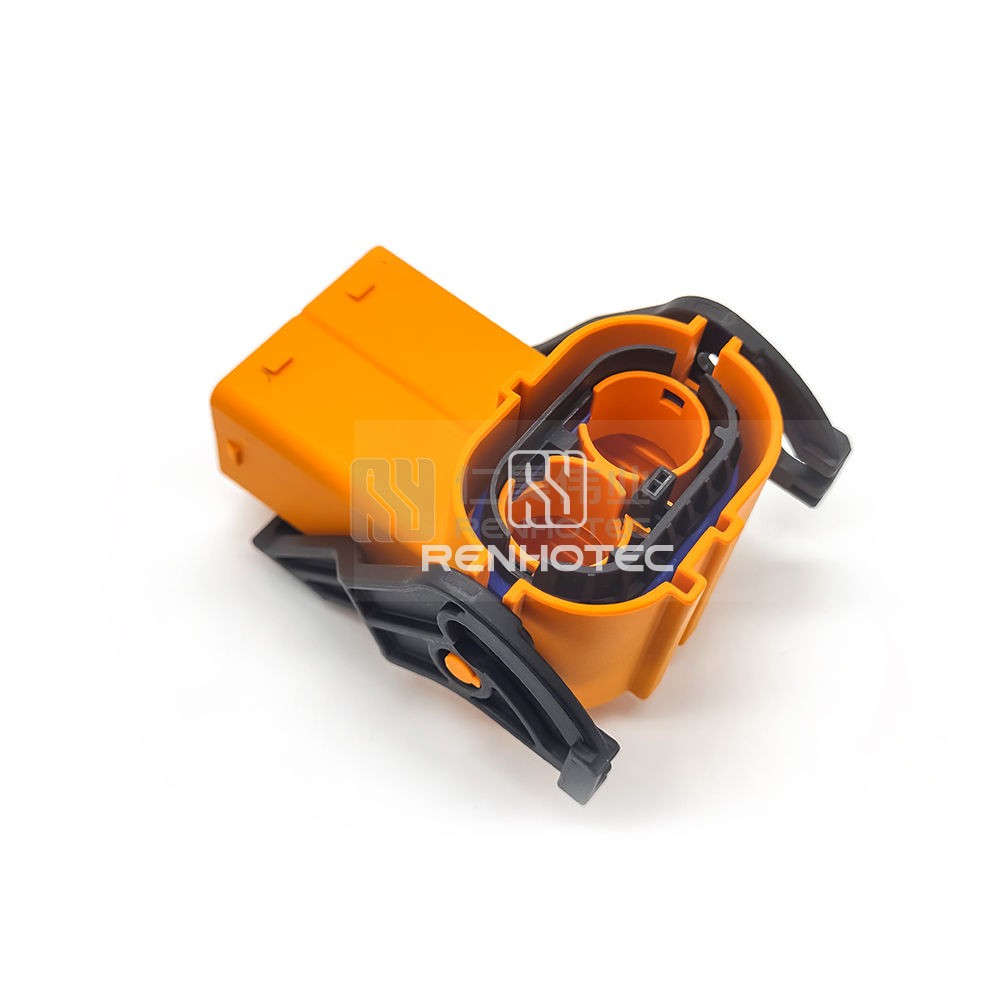

This high-quality electric vehicle cable plug features 2 positions, 250A capacity, a 50mm² shielded cable, and a waterproof Touch Proof design for secure connectivity and optimal performance.
General
Connector Type | Plug |
Orientation | Right Angle |
Number of Positions | 2 |
Contact Size | 8mm |
Contact Termination | Crimp |
Key | A |
Color | Orange |
Features | Waterproof |
Electrical
Rated Voltage | 1500V |
Rated Current | 250A |
Shielding | Shielded |
Mechanical
Mounting Type | Cable Type |
Wire Gauge or Range | 50mm² |
Material
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Silver |
Environmental
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
High Voltage Interlock Connectors CE | Download |
