Products > HVIL Series Connector > 2 POS Plastic High Power Electric vehicle Cable Plug 35A 6mm2 Shielded Cable A Key Straight

NI2-1-S036-2AYA-C05

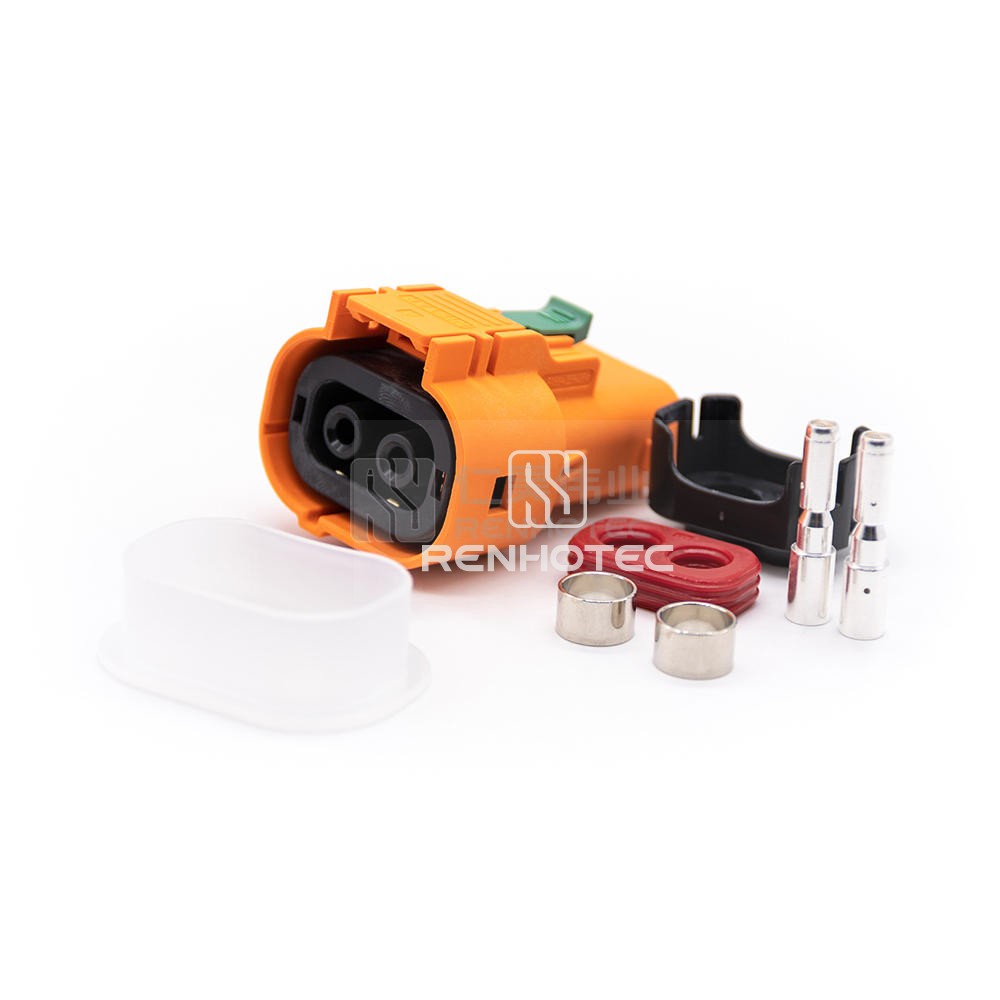

2 POS Plastic High Power Electric vehicle Cable Plug 35A 6mm2 Shielded Cable A Key Straight

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This high-power electric vehicle cable plug features two positions, is made of plastic, and can handle up to 35A. The shielded 6mm² cable with a key straight design ensures secure connections. Ideal for various electric vehicle applications.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions2
    Contact Size3.6mm
    Contact TerminationCrimp
    KeyA
    ColorOrange
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current35A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range6mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
