Products > HVIL Series Connector > 2 POS Plastic High Power Electric vehicle Cable Plug 80A 16mm2 Shielded Cable Y Key Right Angle

NI2-1-B060-2YYA-C07

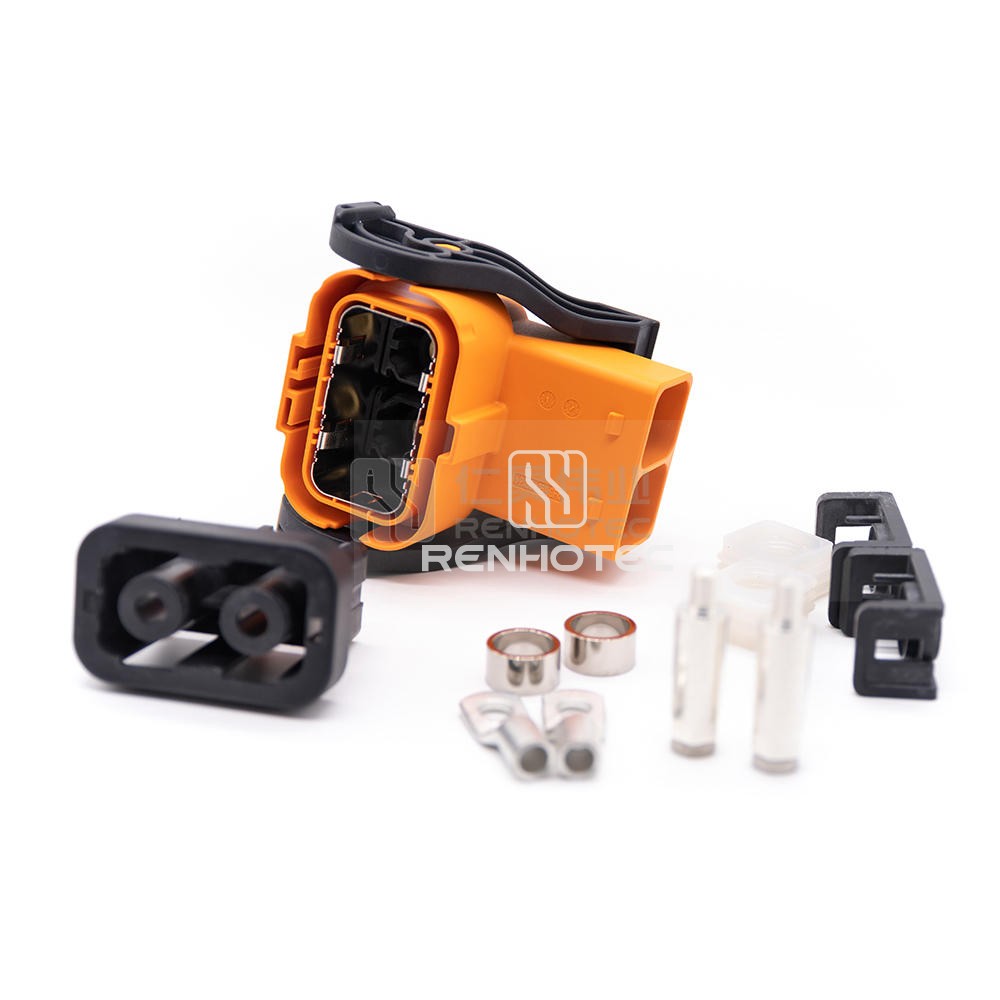

2 POS Plastic High Power Electric vehicle Cable Plug 80A 16mm2 Shielded Cable Y Key Right Angle

This 2 POS Plastic High Power Electric Vehicle Cable Plug with 80A 16mm² Shielded Cable is designed with a Y Key Right Angle for optimal performance. Ideal for electric vehicle applications, this plug ensures secure connections and efficient power delivery.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions2
    Contact Size6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyY
    ColorOrange

    Electrical

    Rated Voltage800V
    Rated Current80A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range16mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
