Products > Waterproof Connector > 20 Series Full Metal Power Waterproof Connector 5 Pin Plug

RK-20-P-05-P-0

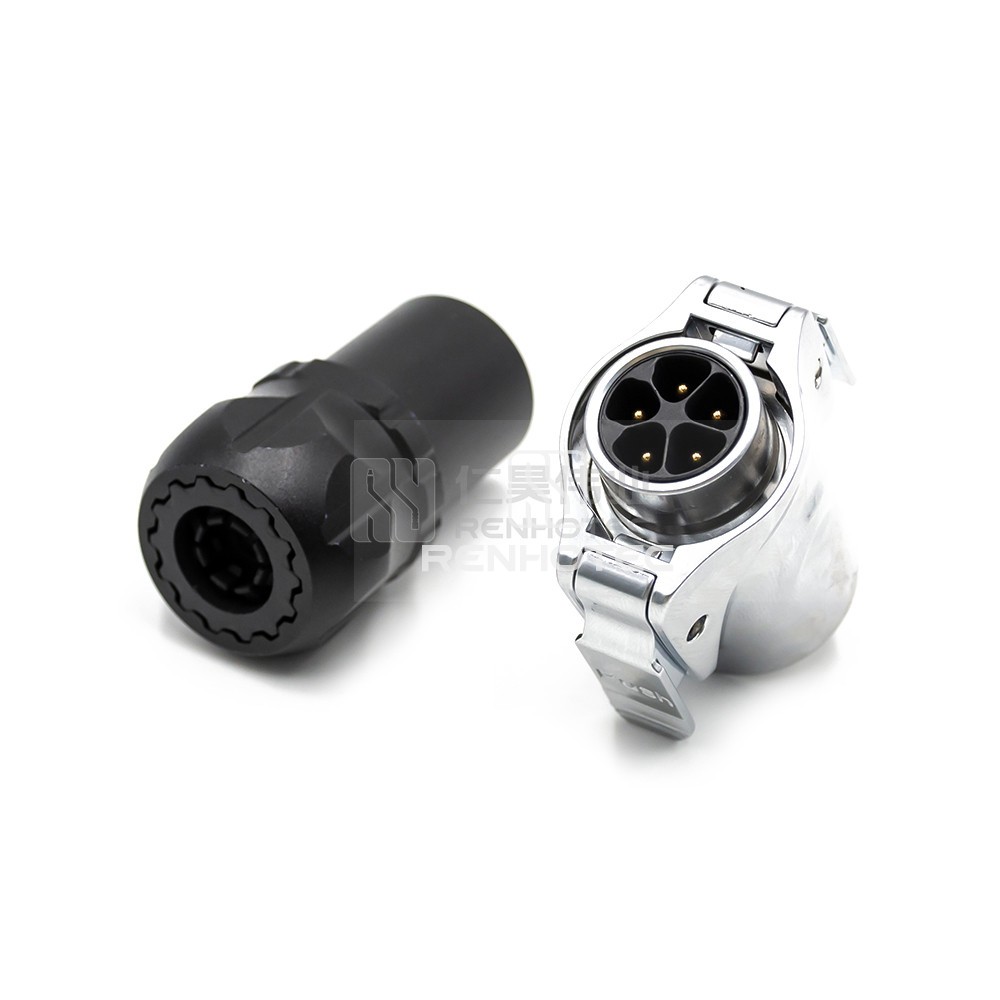

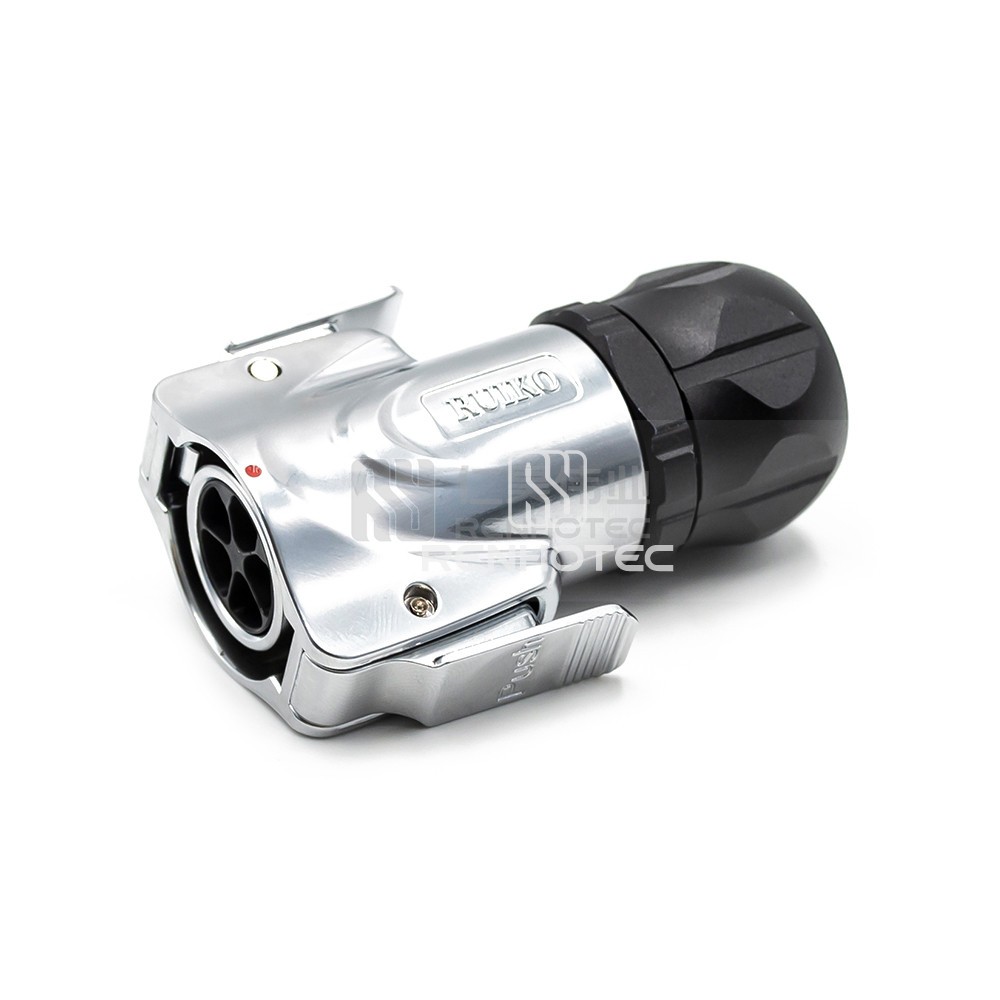

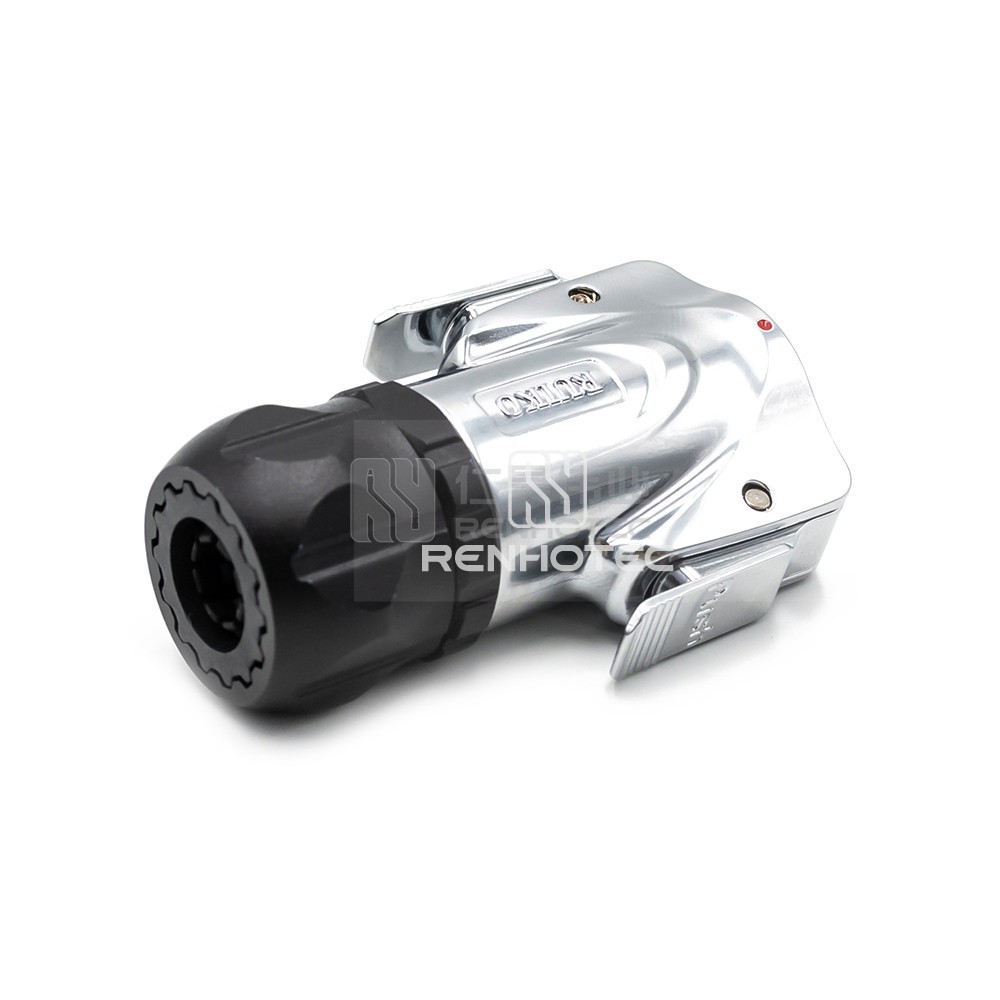

20 Series Full Metal Power Waterproof Connector 5 Pin Plug

Reliable and durable, the 20 Series Full Metal Power Waterproof Connector 5 Pin Plug is designed to provide a secure and waterproof connection for your electrical components. Perfect for outdoor or harsh environments.

Color
  1. Silver
Number of Positions
  1. 2
  2. 3
  3. 4
  4. 5
  5. 7
  6. 9
  7. 12
  8. 14
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

    Product certification

    1. General
    2. Mechanical
    3. Material
    4. Electrical
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions5
    Fastening TypePush-Pull
    Mounting TypeCable Type
    Contact TerminationSolder

    Mechanical

    Wire Gauge or Range18-16AWG/1.0mm²-1.5mm²

    Material

    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Insulating MaterialPA66

    Electrical

    Rated Voltage250V
    Rated Current12A

    Environmental

    Operating Temperature-40°C ~ + 80°C
