20 Series Full Metal Power Waterproof Connector 7 Pin Plug - RK-20-P-07-P-0
20 Series Full Metal Power Waterproof Connector 7 Pin Plug - RK-20-P-07-P-0

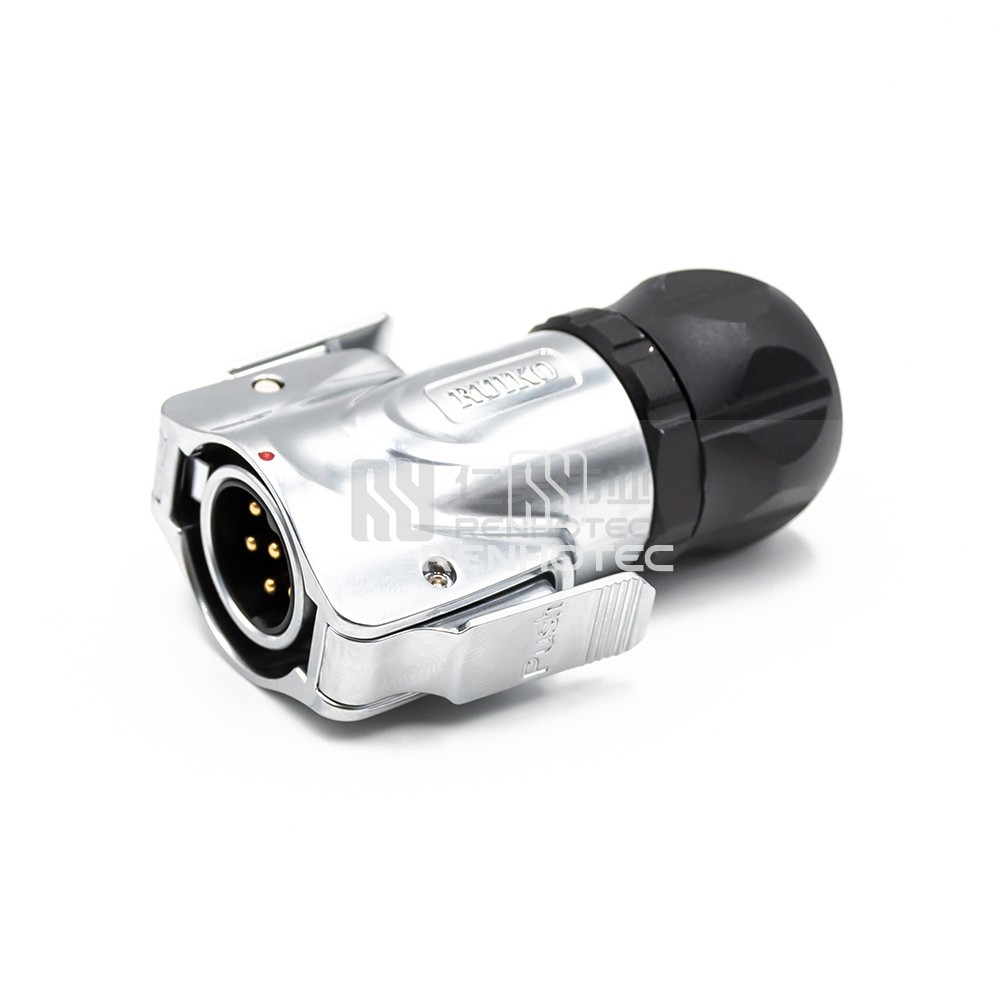

20 Series Full Metal Power Waterproof Connector 7 Pin Plug product image

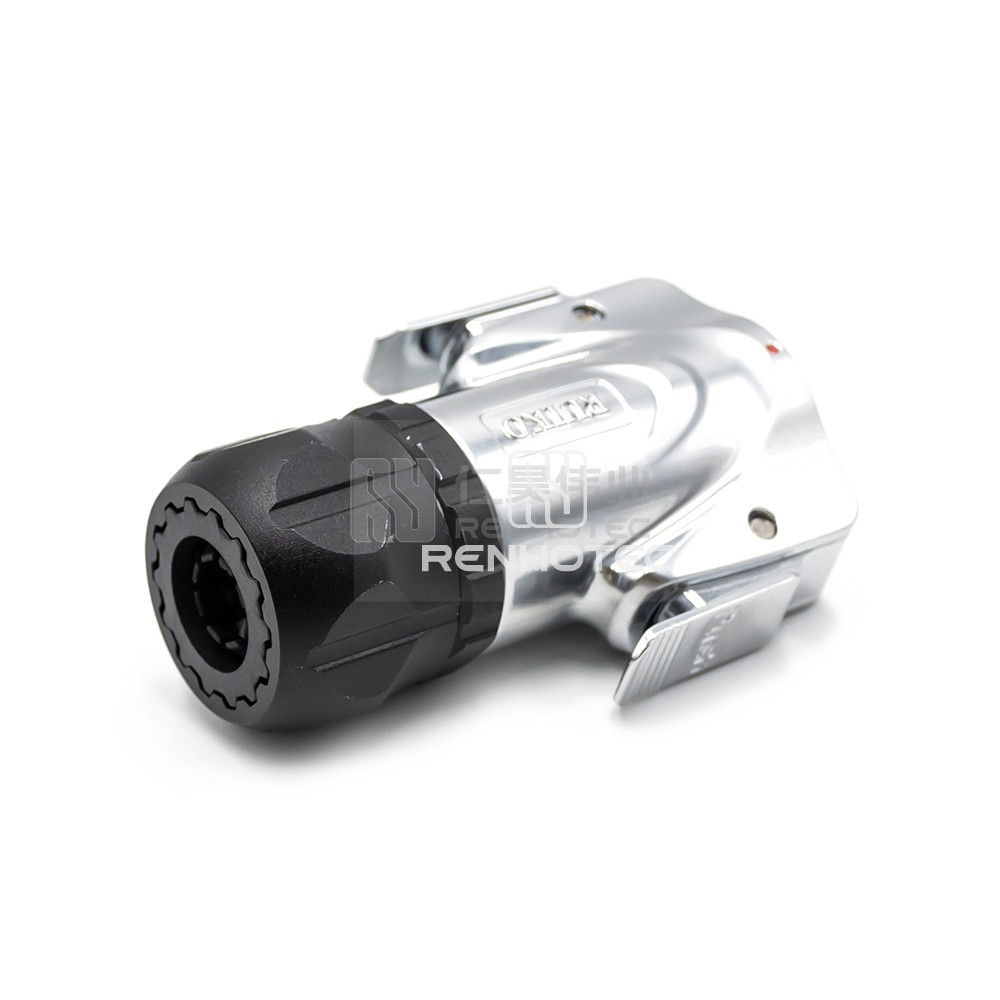

20 Series Full Metal Power Waterproof Connector 7 Pin Plug product image

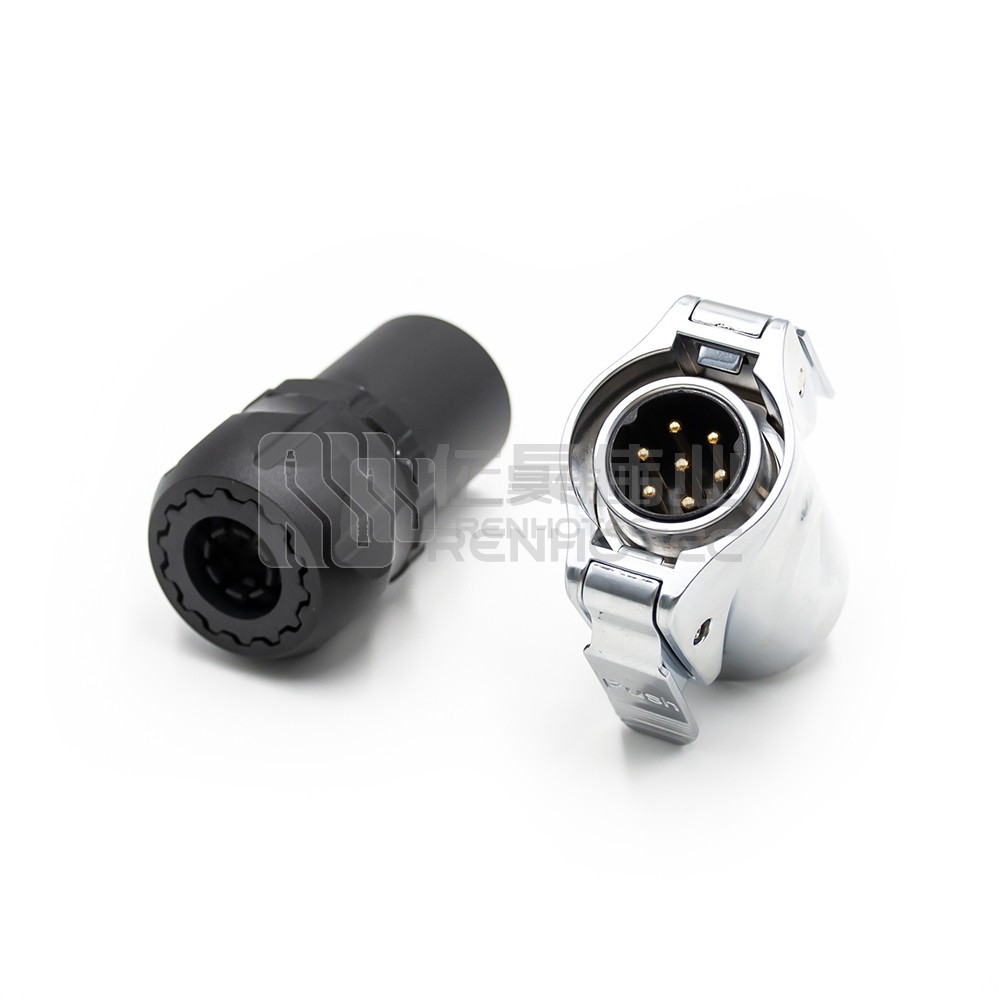

20 Series Full Metal Power Waterproof Connector 7 Pin Plug product image

RK-20-P-07-P-0

20 Series Full Metal Power Waterproof Connector 7 Pin Plug

Number of Positions:

2345791214

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Technical data
    • Overview
    • Certification
    • Download
    GeneralMaterialsElectricalEnvironmental
    General
    Connector TypePlug
    Number of Positions7
    Contact TypeMale Pin
    OrientationStraight
    Mounting TypeCable Type
    Fastening TypePush-Pull
    Contact TerminationSolder
    Wire Gauge or Range1.0mm²-1.5mm²/18-16AWG
    Materials
    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Insulating MaterialPA66
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Electrical
    Rated Voltage250V
    Rated Current12A
    Environmental
    Operating Temperature-40°C ~ + 80°C

    Product excerpt

    Durable and reliable waterproof connector with 7 pin plug, ideal for various applications requiring a secure power connection.
