24 Series 10-core Panel Waterproof Connector Receptacle Formal Installation - RK-24-S-10-R-0
24 Series 10-core Panel Waterproof Connector Receptacle Formal Installation - RK-24-S-10-R-0

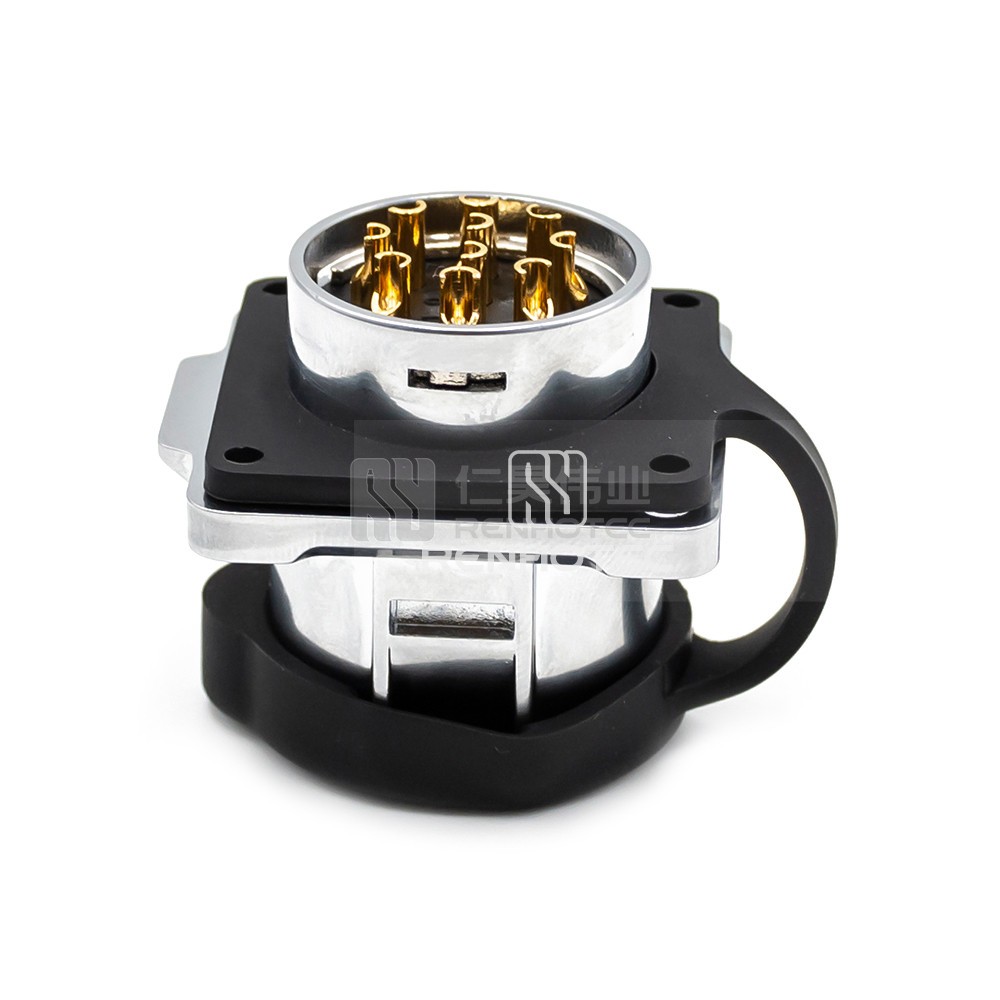

24 Series 10-core Panel Waterproof Connector Receptacle Formal Installation product image

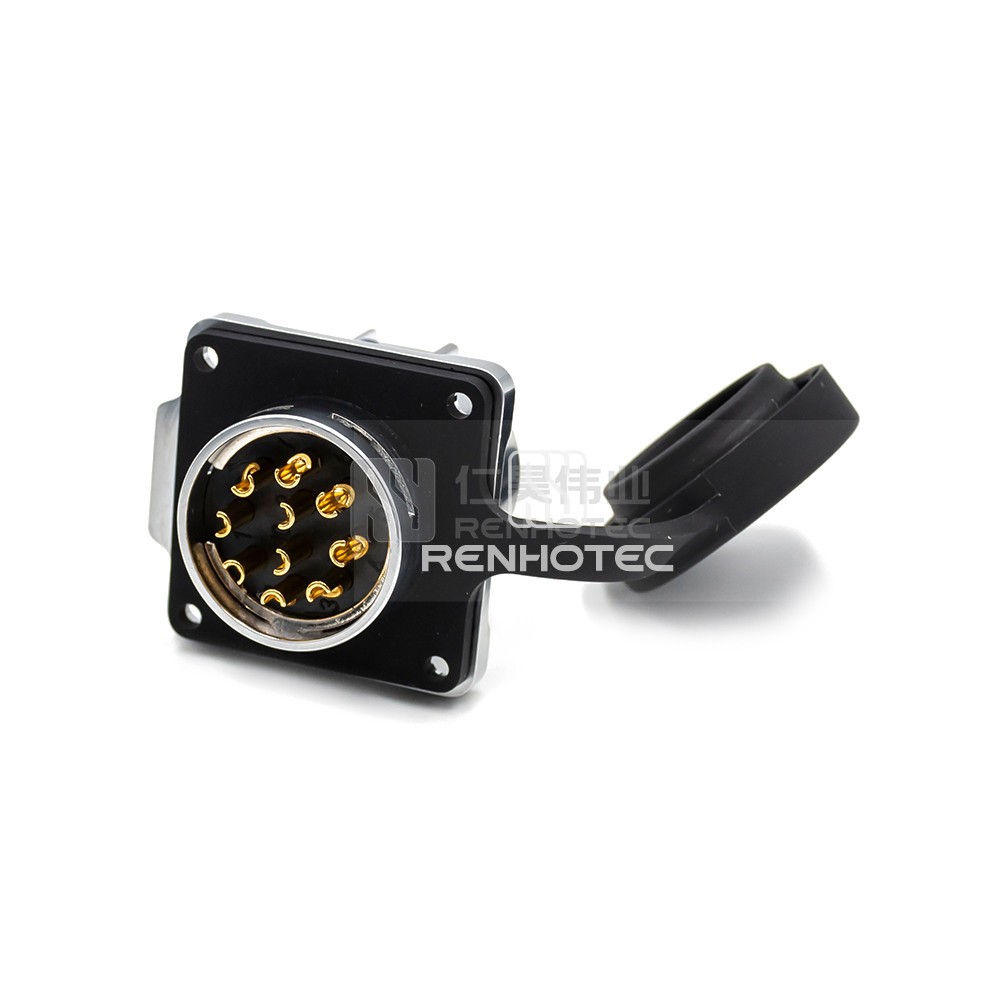

24 Series 10-core Panel Waterproof Connector Receptacle Formal Installation product image

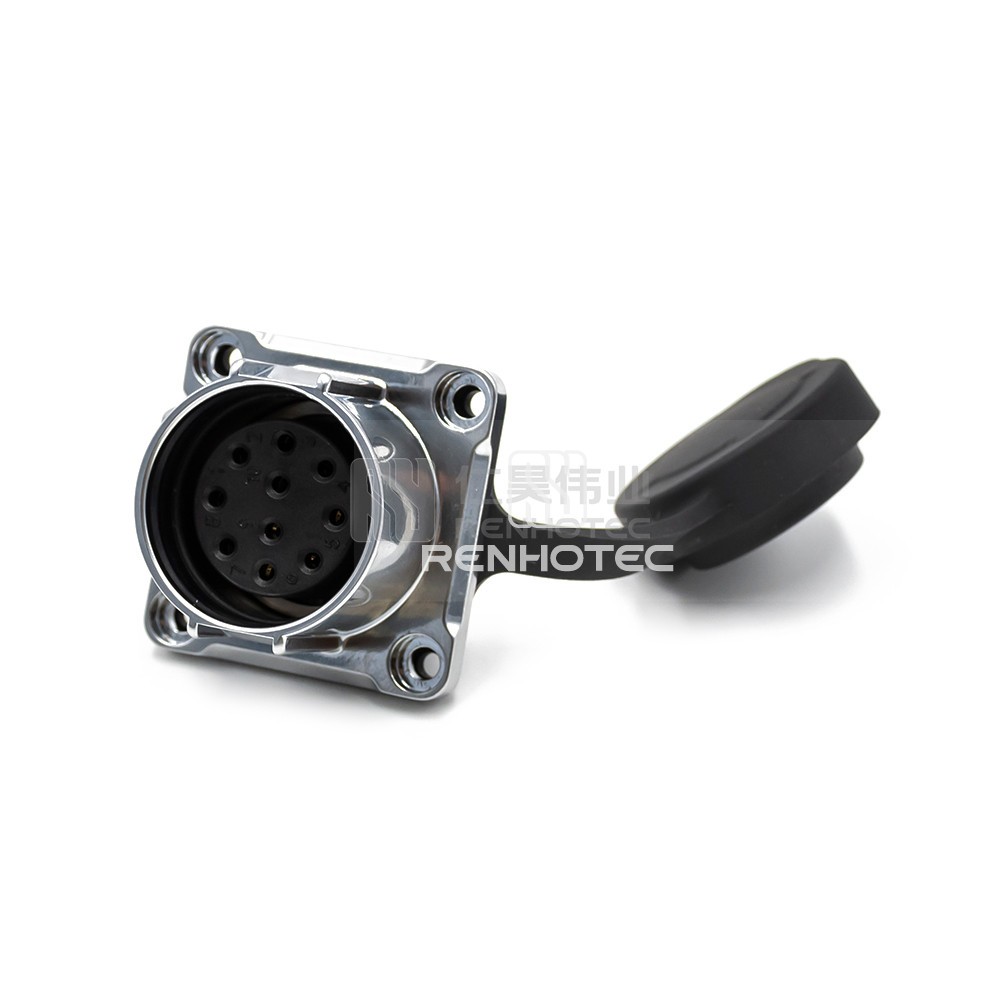

24 Series 10-core Panel Waterproof Connector Receptacle Formal Installation product image

RK-24-S-10-R-0

24 Series 10-core Panel Waterproof Connector Receptacle Formal Installation

Number of Positions:

341024

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Technical data
    • Overview
    • Certification
    • Download
    GeneralMaterialsElectricalEnvironmental
    General
    Connector TypeReceptacle
    Number of Positions10
    Contact TypeFemale Pin
    OrientationStraight
    Mounting TypePanel Mount
    Fastening TypePush-Pull
    Contact TerminationSolder
    Wire Gauge or Range1.0mm²-1.5mm²/18-16AWG
    Materials
    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Insulating MaterialPA66
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Electrical
    Rated Voltage400V
    Rated Current10A
    Environmental
    Operating Temperature-40°C ~ + 80°C

    Product excerpt

    Panel waterproof connector receptacle designed for formal installation, featuring 10-core functionality. Ideal for various applications requiring reliable connectivity in challenging environments.
