RK-24-S-03-R-0

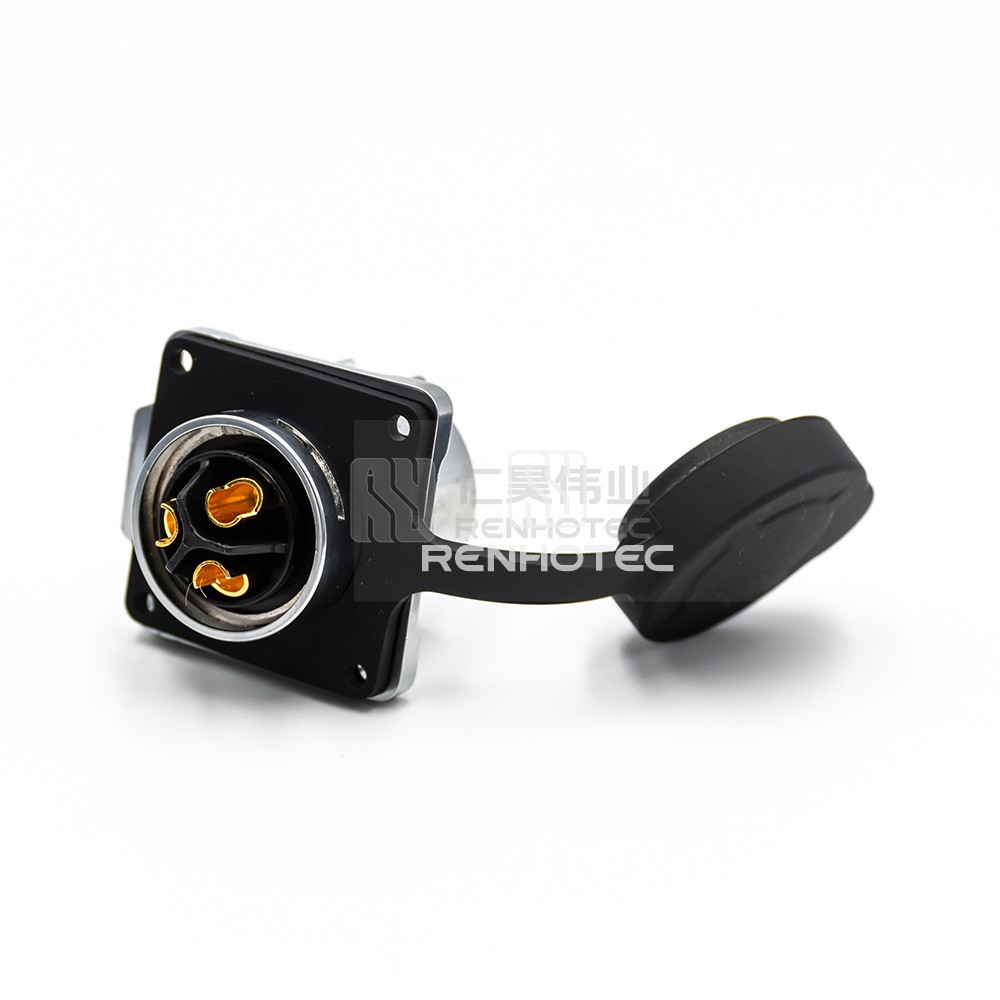

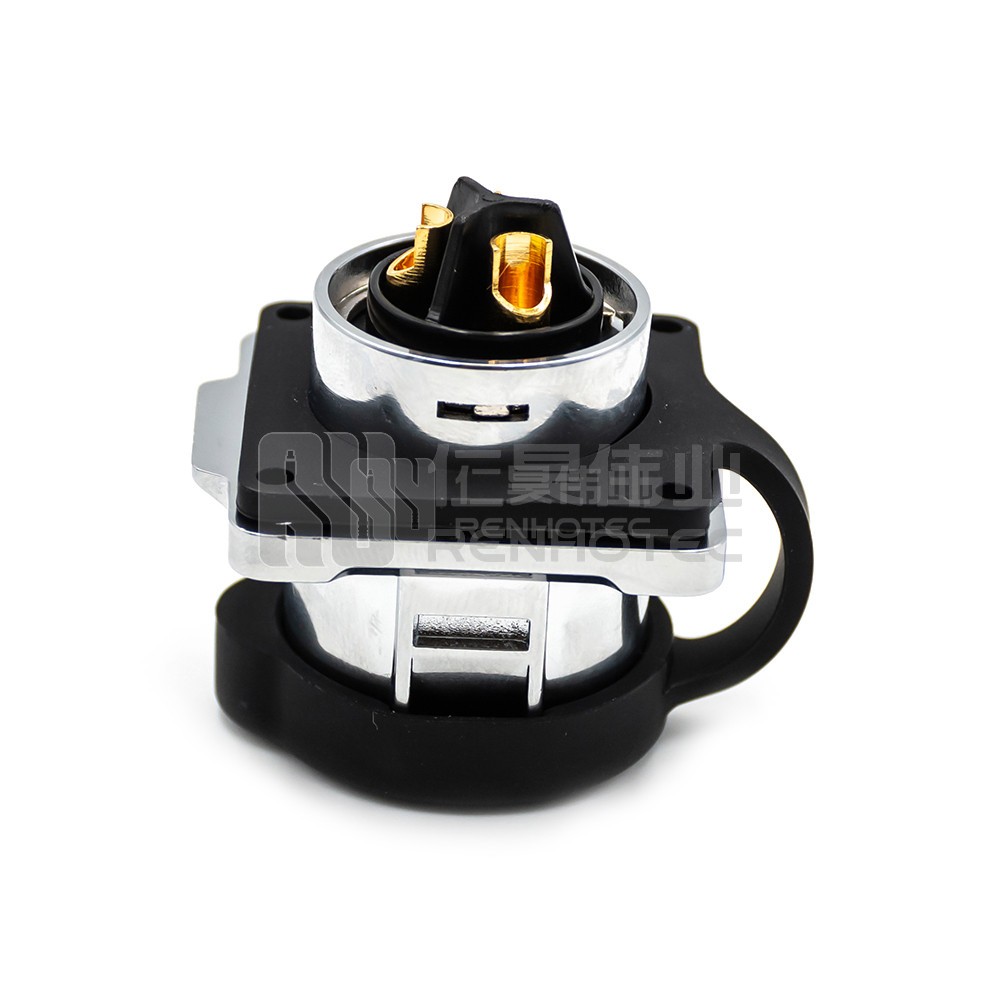

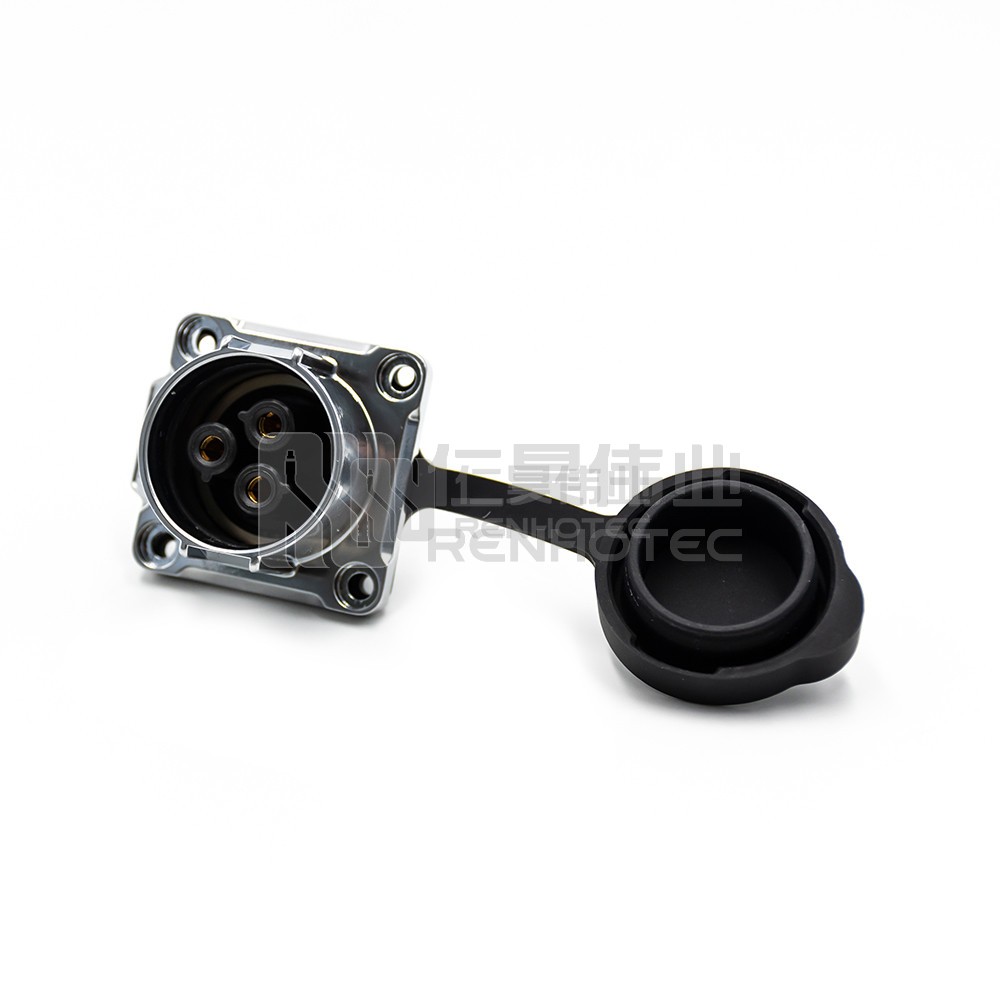

24 Series 3-core Panel Waterproof Connector Receptacle Formal Installation

Color
  1. Silver
Number of Positions
  1. 3
  2. 4
  3. 10
  4. 24
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

    Ensure secure and waterproof electrical connections with this 24 Series 3-core panel waterproof connector receptacle. Perfect for formal installations, this connector provides reliable and long-lasting performance.

    1. General
    2. Mechanical
    3. Material
    4. Electrical
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions3
    Contact TerminationSolder

    Mechanical

    Fastening TypePush-Pull
    Mounting TypePanel Mount
    Wire Gauge or Range14-12AWG/2.5mm²-4.0mm²

    Material

    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Insulating MaterialPA66

    Electrical

    Rated Voltage500V
    Rated Current25A

    Environmental

    Operating Temperature-40°C ~ + 80°C
