Products > Waterproof Connector > 24 Series 24-core Panel Waterproof Connector Plug Formal Installation

RK-24-P-24-P-0

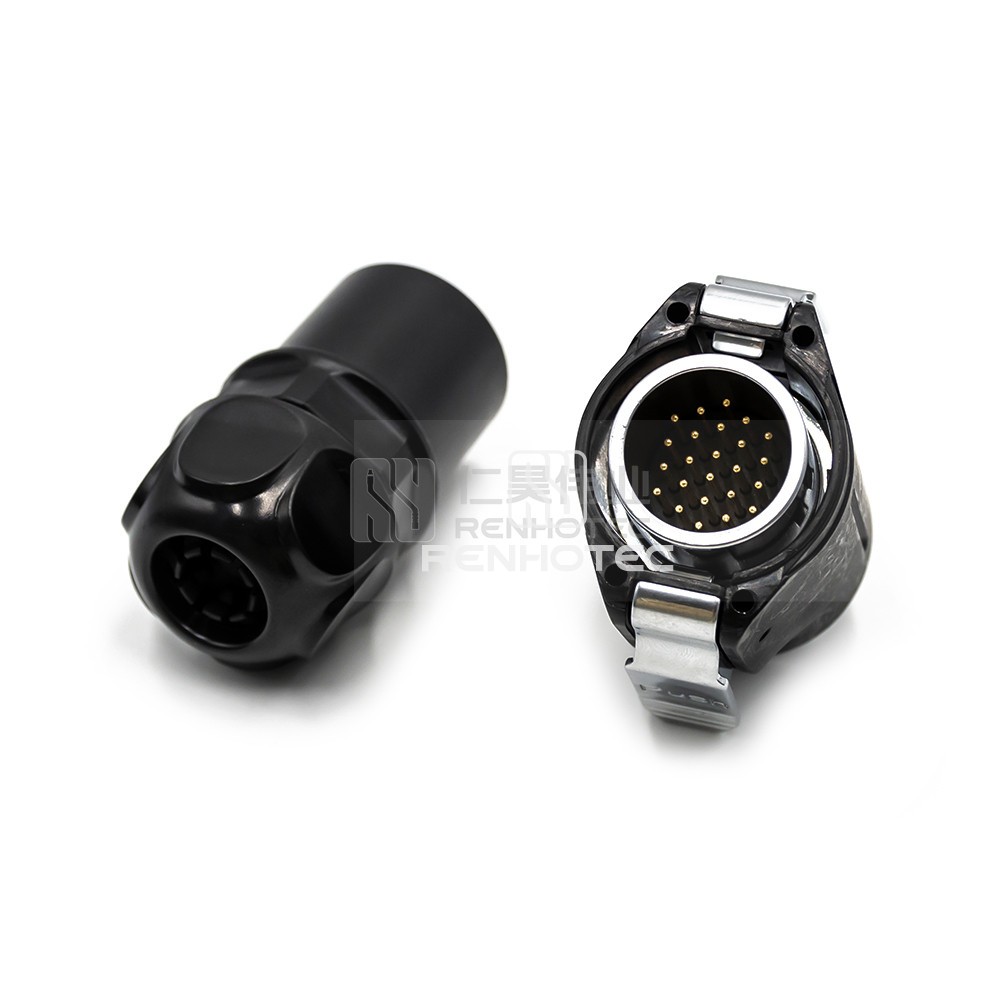

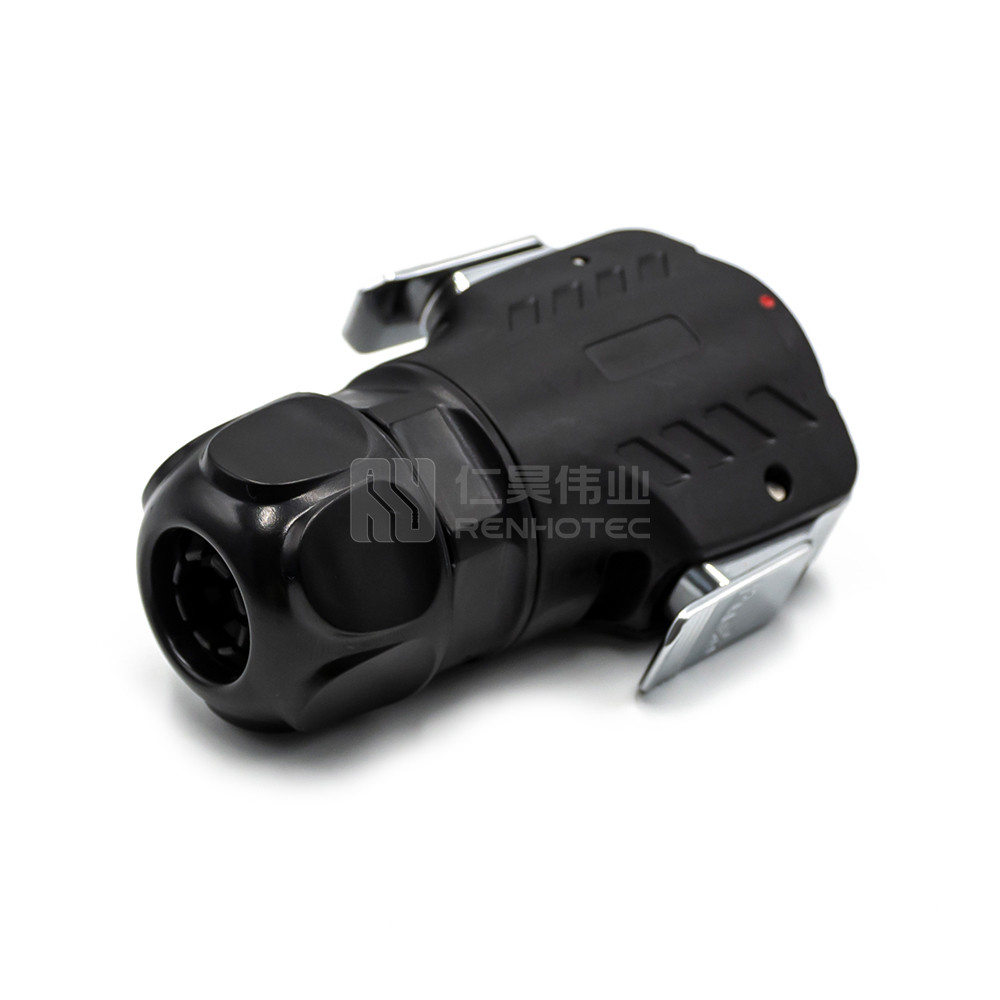

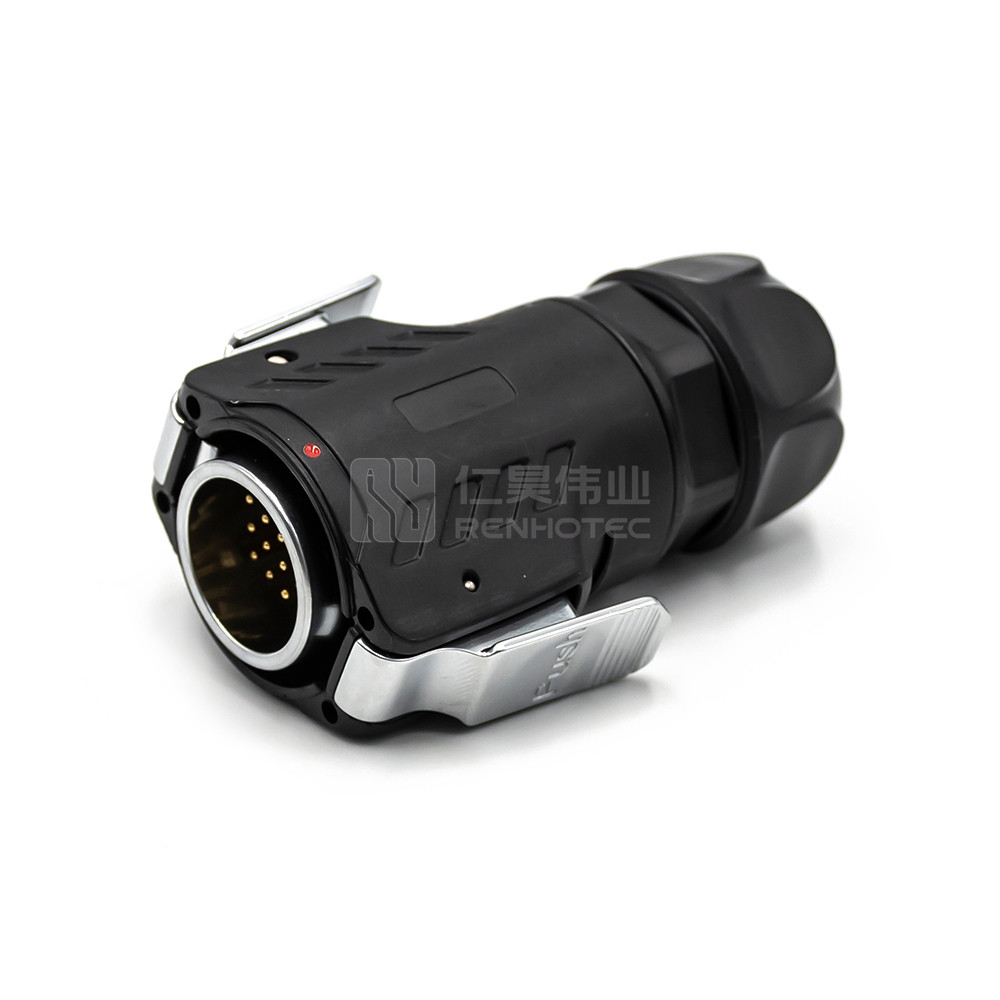

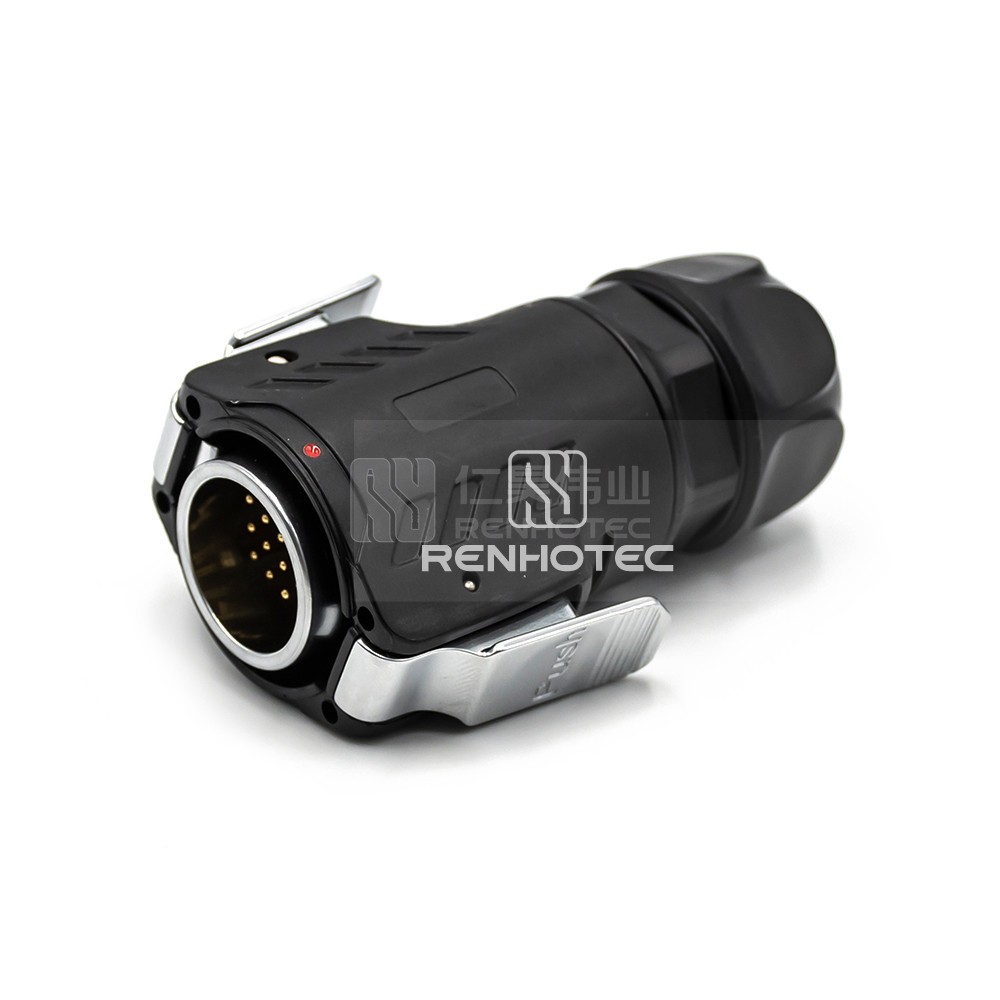

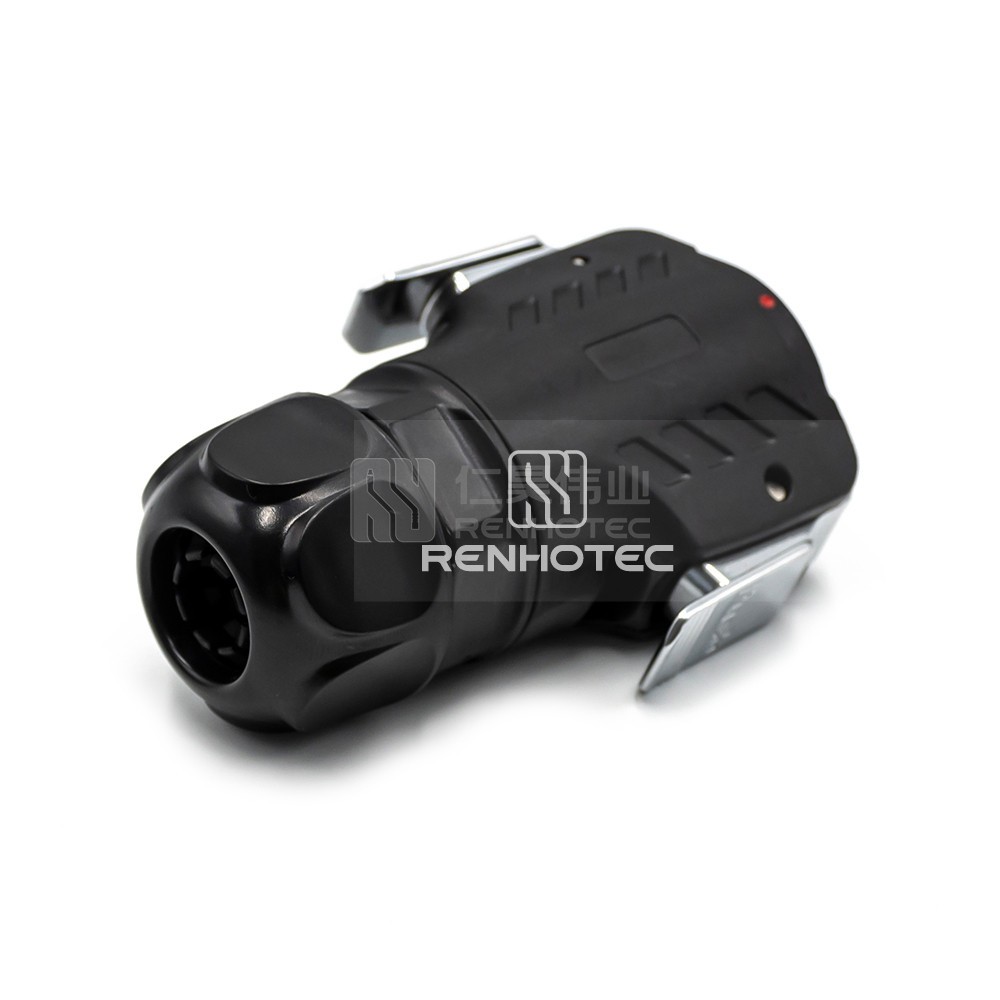

24 Series 24-core Panel Waterproof Connector Plug Formal Installation

Color
  1. Silver
Number of Positions
  1. 3
  2. 4
  3. 10
  4. 24
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

    Durable 24-core panel waterproof connector plug designed for formal installations, providing reliable performance and protection in various environments.

    1. General
    2. Mechanical
    3. Material
    4. Electrical
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions24
    Contact TerminationSolder

    Mechanical

    Fastening TypePush-Pull
    Mounting TypeCable Type
    Wire Gauge or Range22-20AWG/0.3mm²-0.5mm²

    Material

    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Insulating MaterialPA66

    Electrical

    Rated Voltage150V
    Rated Current5A

    Environmental

    Operating Temperature-40°C ~ + 80°C
