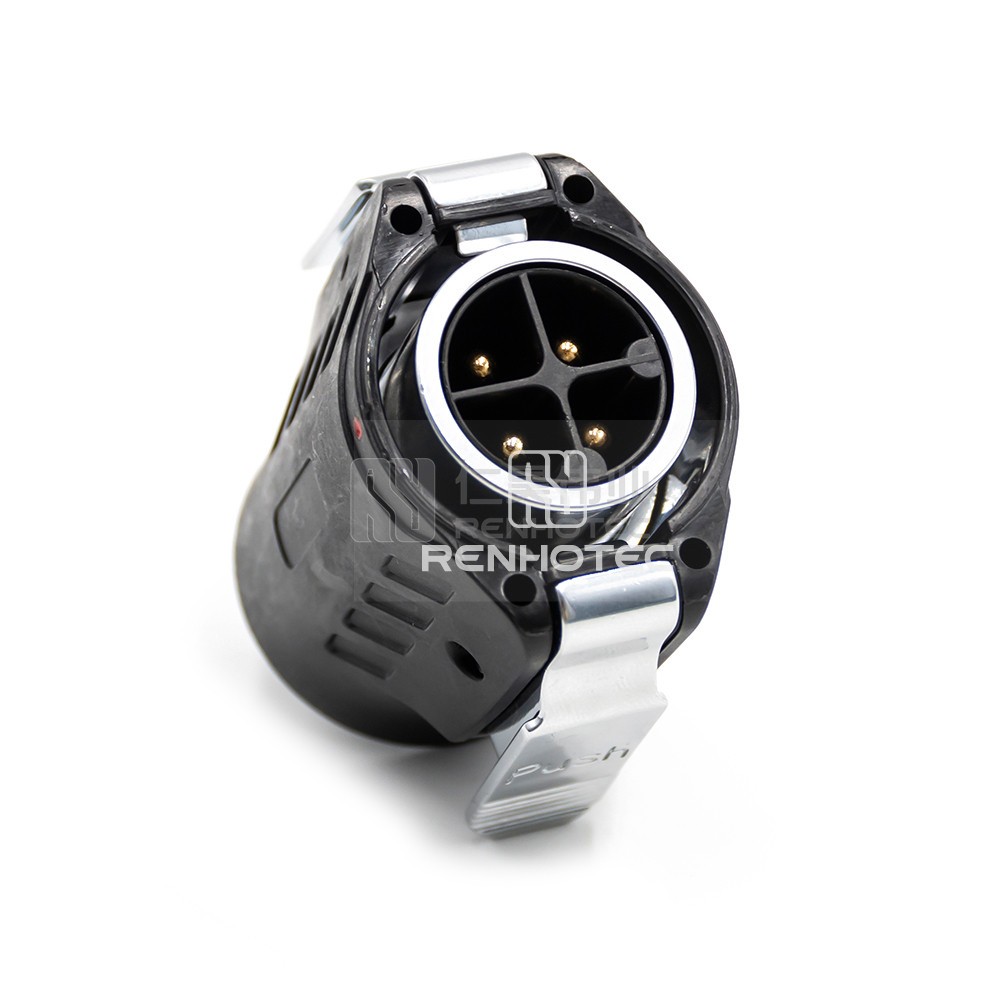

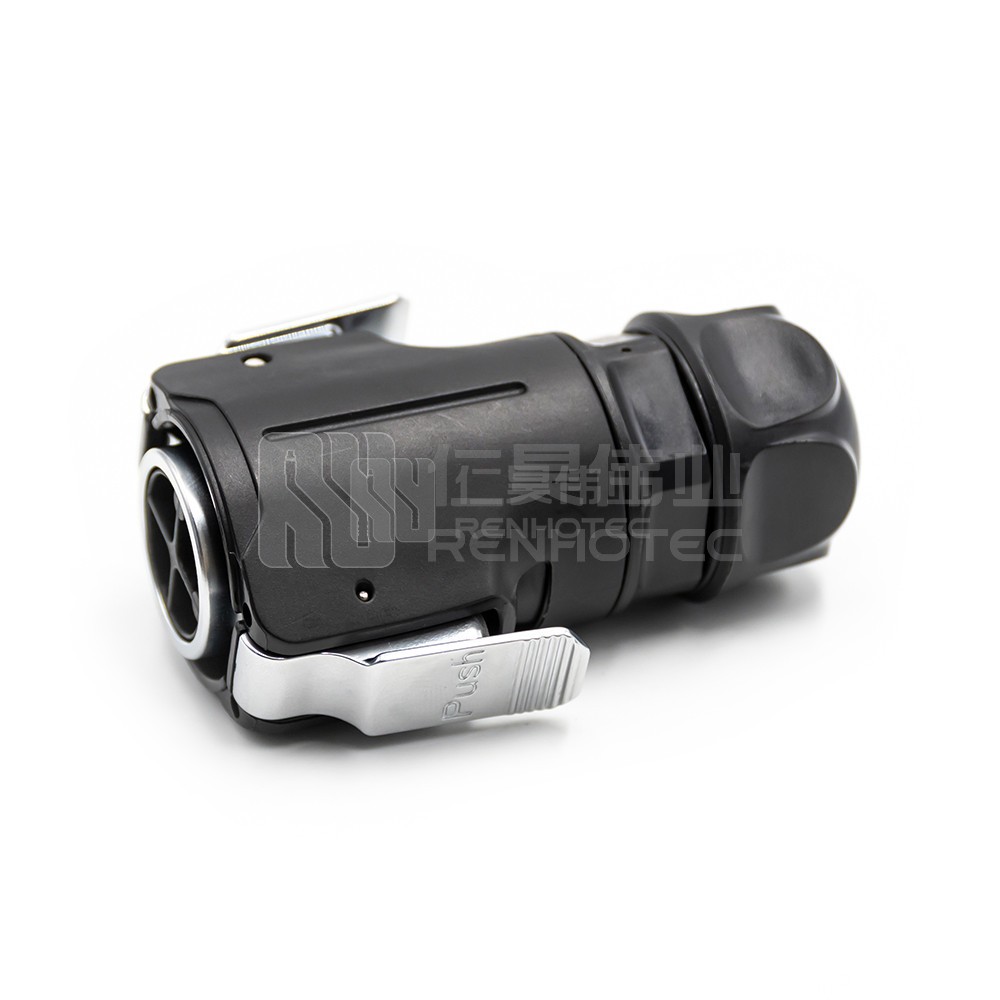

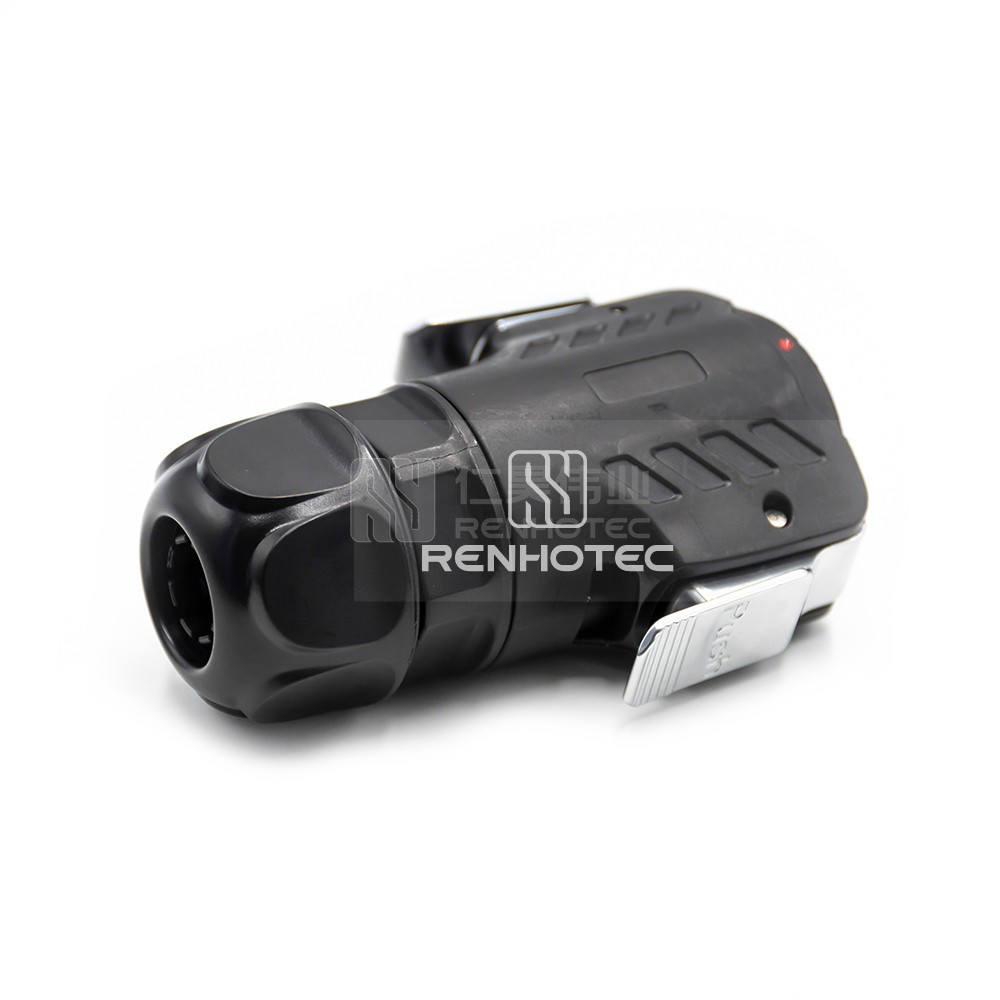

This waterproof connector plug is designed for formal installation applications, featuring 4-core panel design for effective connectivity.
General
Connector Type | Plug |
Orientation | Straight |
Contact Type | Male Pin |
Number of Positions | 4 |
Contact Termination | Solder |
Mechanical
Fastening Type | Push-Pull |
Mounting Type | Cable Type |
Wire Gauge or Range | 14-12AWG/2.5mm²-4.0mm² |
Material
Shell Material | Zinc Alloy |
Shell Finish | Chrome Plated |
Contact Material | Phosphor Bronze |
Contact Finish | Gold |
Insulating Material | PA66 |
Electrical
Rated Voltage | 500V |
Rated Current | 25A |
Environmental
Operating Temperature | -40°C ~ + 80°C |
