Products > HVIL Series Connector > 3 POS High Power Electric vehicle Cable Plug 16A 2.5mm2 Shielded Cable A Key Straight

NI1-1-S036-3AYN-C03

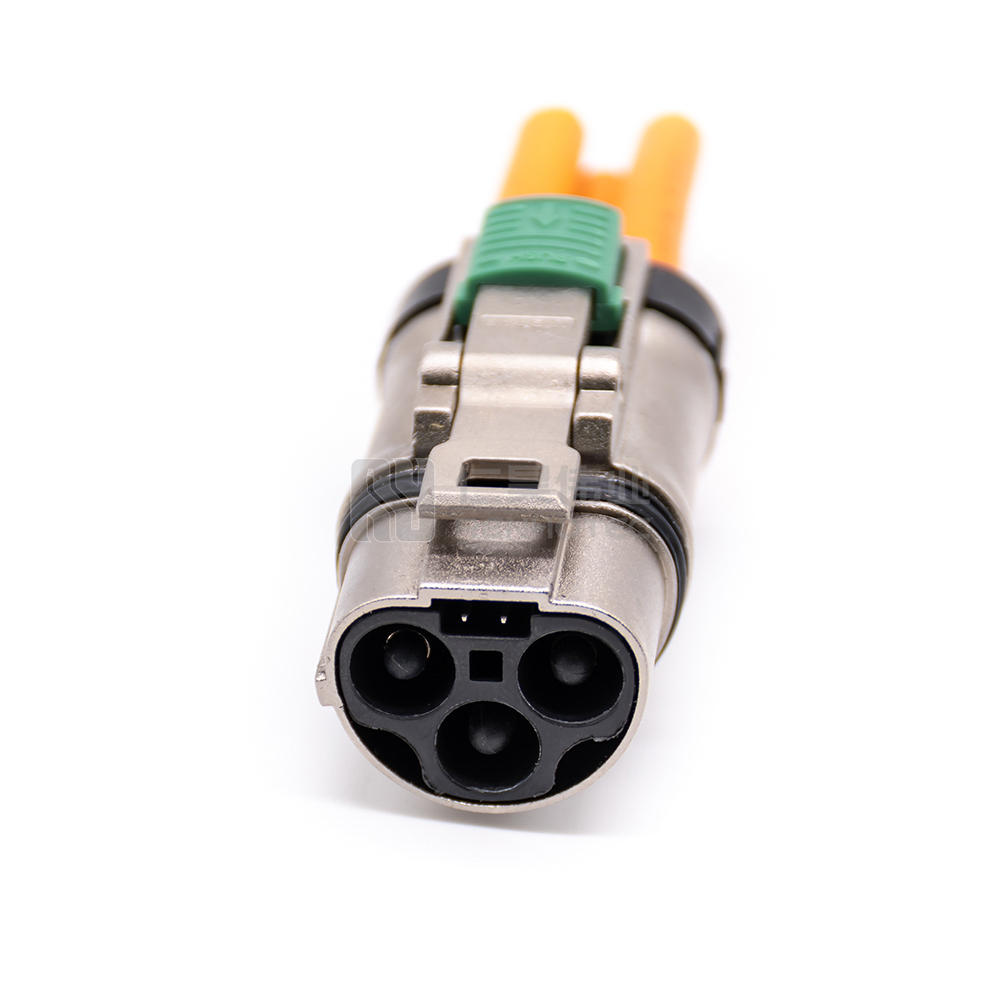

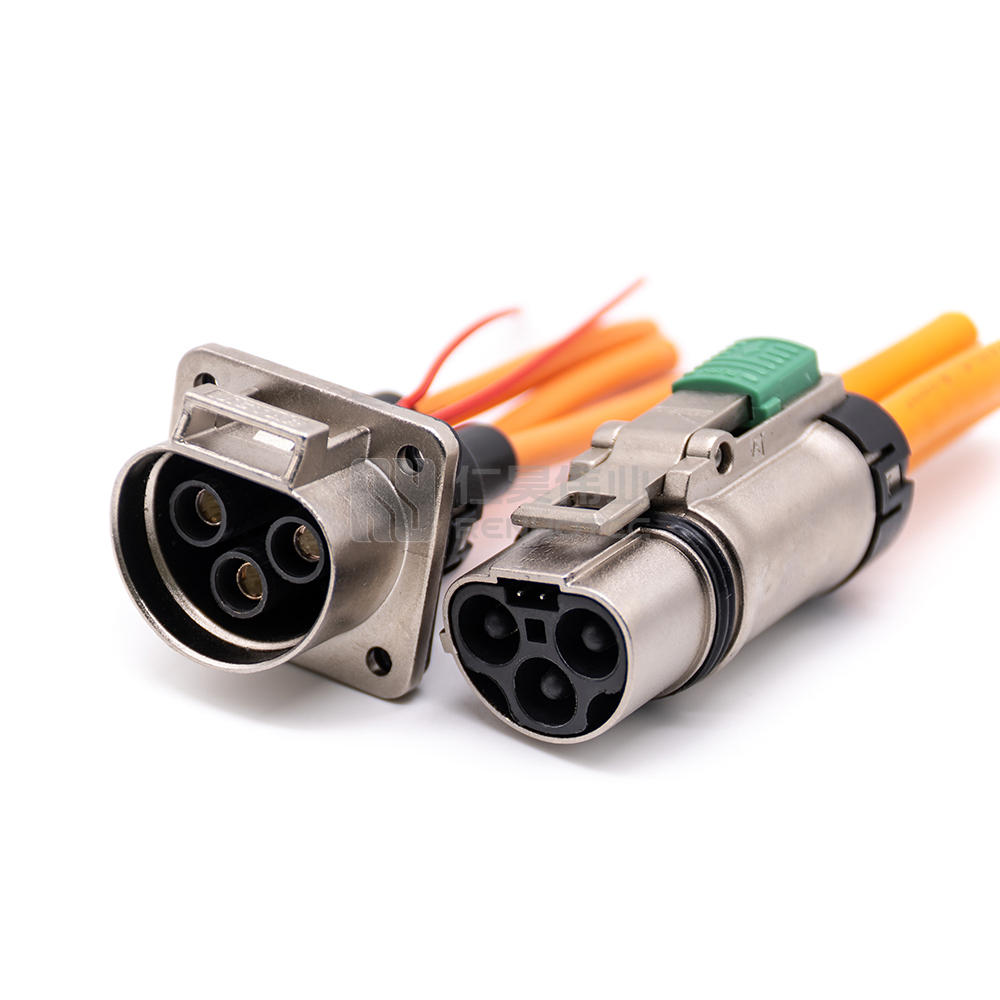

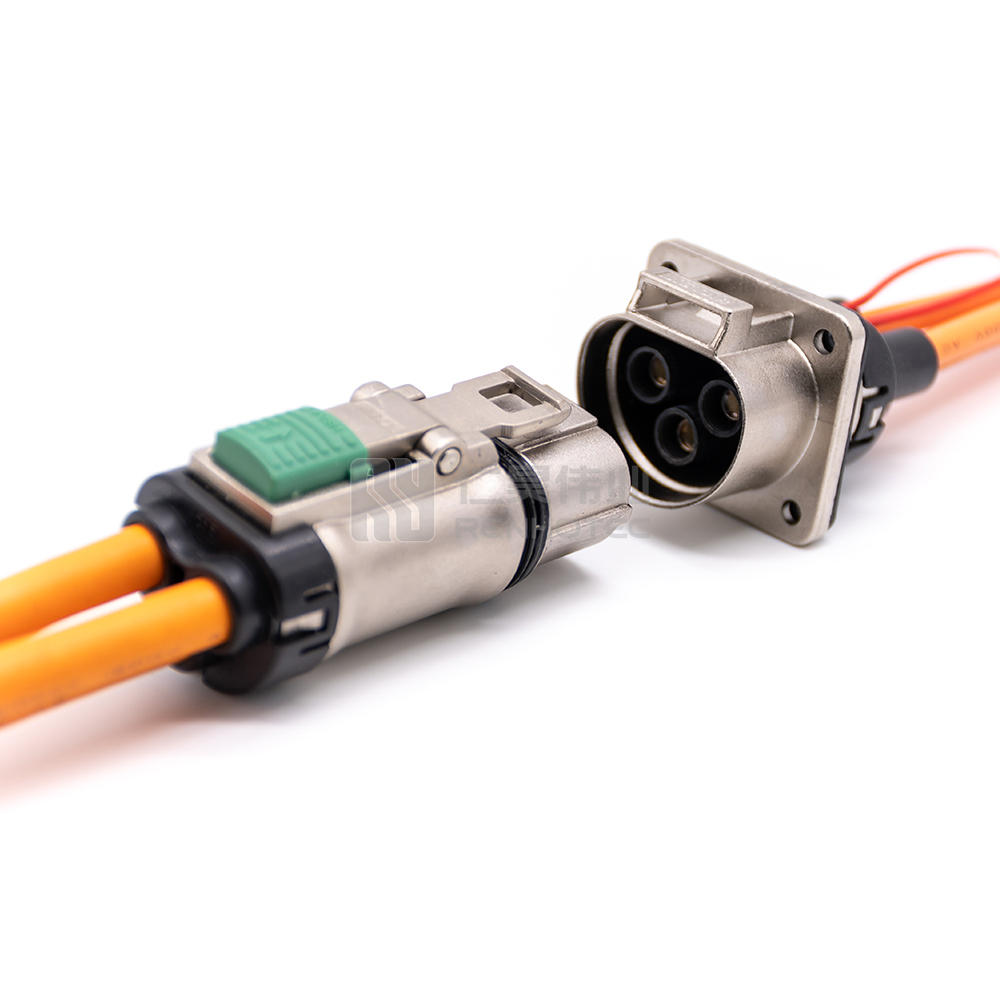

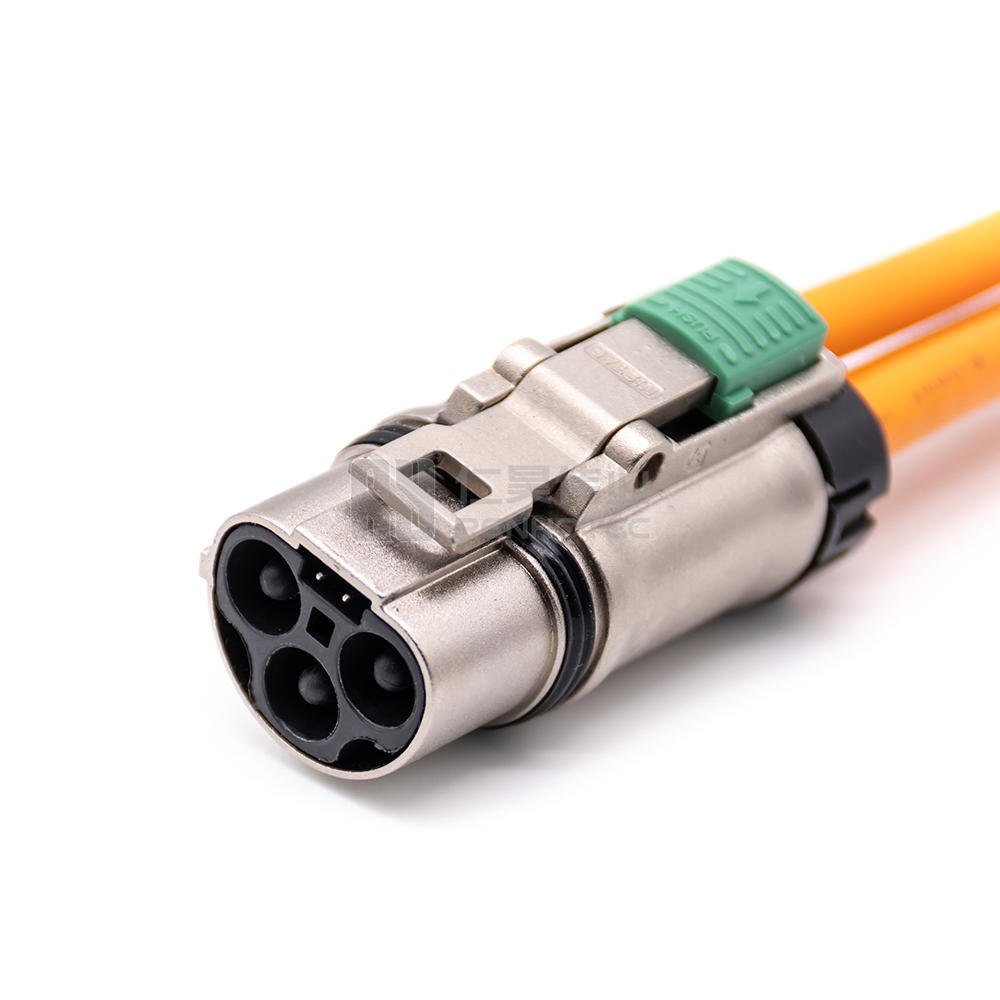

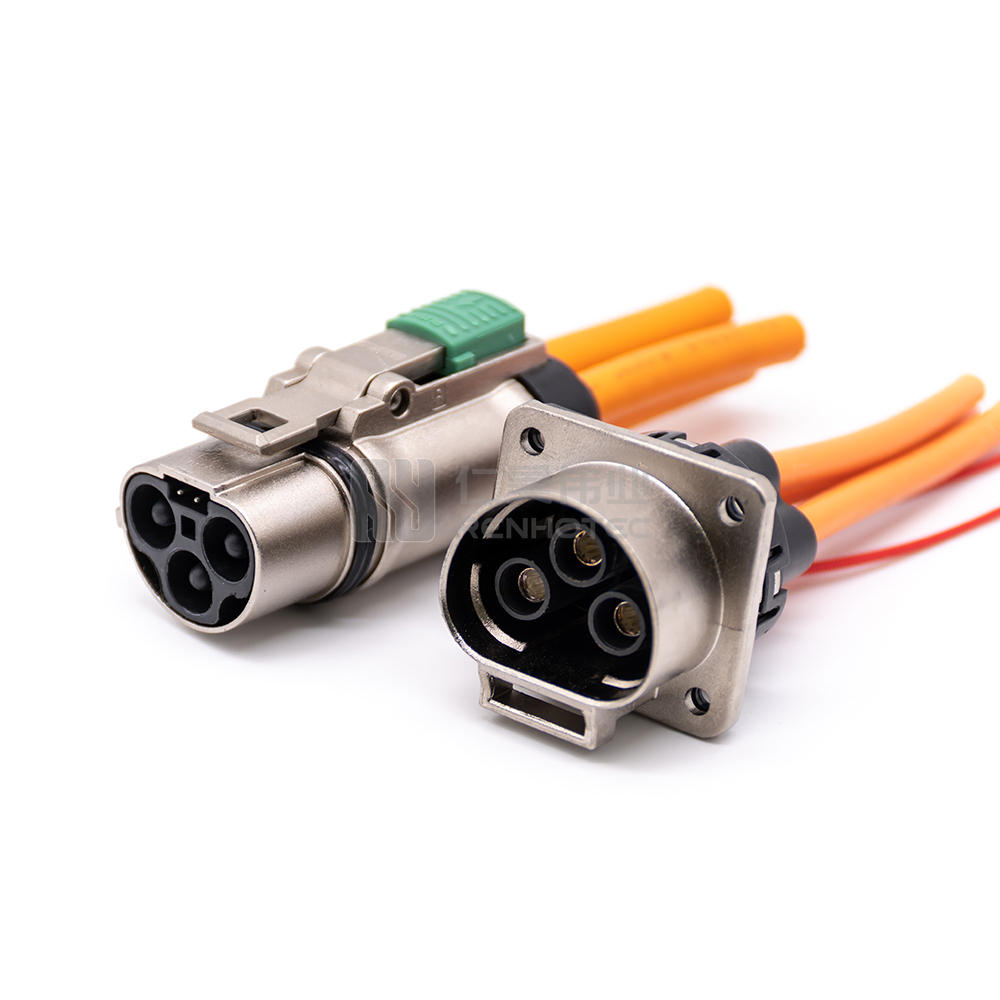

3 POS High Power Electric vehicle Cable Plug 16A 2.5mm2 Shielded Cable A Key Straight

This 3 POS high power electric vehicle cable plug features a 16A capacity, 2.5mm² shielded cable, and is designed with a key straight design. Ideal for electric vehicle charging applications, this cable plug ensures secure and efficient power transfer.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions3
    Contact Size3.6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyA
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current16A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range2.5mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
