Products > HVIL Series Connector > 3 POS High Power Electric vehicle Cable Plug 200A 35mm2 Shielded Cable A Key Right Angle

ST519000-A-35

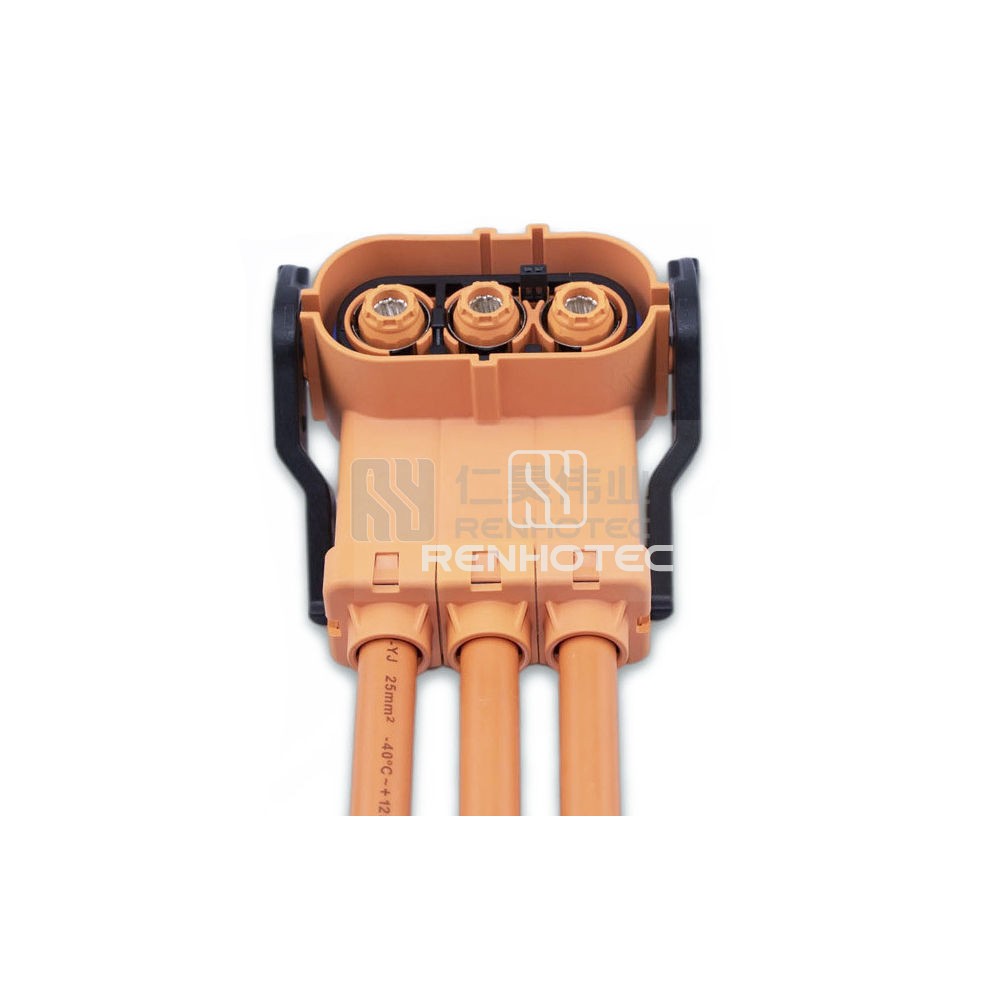

3 POS High Power Electric vehicle Cable Plug 200A 35mm2 Shielded Cable A Key Right Angle

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    Ensure high power transmission for electric vehicles with this 3 POS cable plug. Rated for 200A, it features a 35mm² shielded cable for reliable performance. The A key right angle design provides easy and secure connections. Ideal for electric vehicle charging applications.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions3
    Contact Size8mm
    Contact TerminationCrimp
    KeyA
    ColorOrange
    FeaturesWaterproof

    Electrical

    Rated Voltage1500V
    Rated Current200A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range35mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
